Carburetor Repair Kit – Fits Yamaha 4HP & 6HP 4-Stroke Outboards (Replaces 6BX-W0093-00-00)

Carburetor Repair Kit – Fits Yamaha 4HP & 6HP 4-Stroke Outboards (Replaces 6BX-W0093-00-00)

This carburetor repair kit provides all the necessary components to overhaul the carburetor on Yamaha 4-stroke 4HP F4 and 6HP F6 outboard motors from 2009 and newer. It is designed to restore original performance and prevent fuel system leaks.

This kit is a direct replacement for Yamaha OEM part number 6BX-W0093-00-00, ensuring a precise fit and straightforward installation for the specified engine models.

• Complete Overhaul: Includes all essential gaskets, seals, O-rings, float, and needle valve for a full carburetor rebuild.
• Fuel Type: Compatible with standard gasoline.
• Installation: Designed for direct replacement of the original factory components.

Part Number Cross-Reference

Use this table to confirm an equivalent part number for your application.

Compatible Engine Models

Confirm your engine model/year in the table below. For Yamaha owners, here’s a guide to help you identify your engine’s serial/model: Yamaha Serial Number Guide. You can also review exploded diagrams to verify part numbers: Yamaha Parts Diagrams & Catalog.

Technical Specifications

Specification	Value
Product Type	Carburetor Repair Kit
Installation	Direct replacement
Fuel Type	Gasoline
Other Technical Attributes	OEM Factory Part

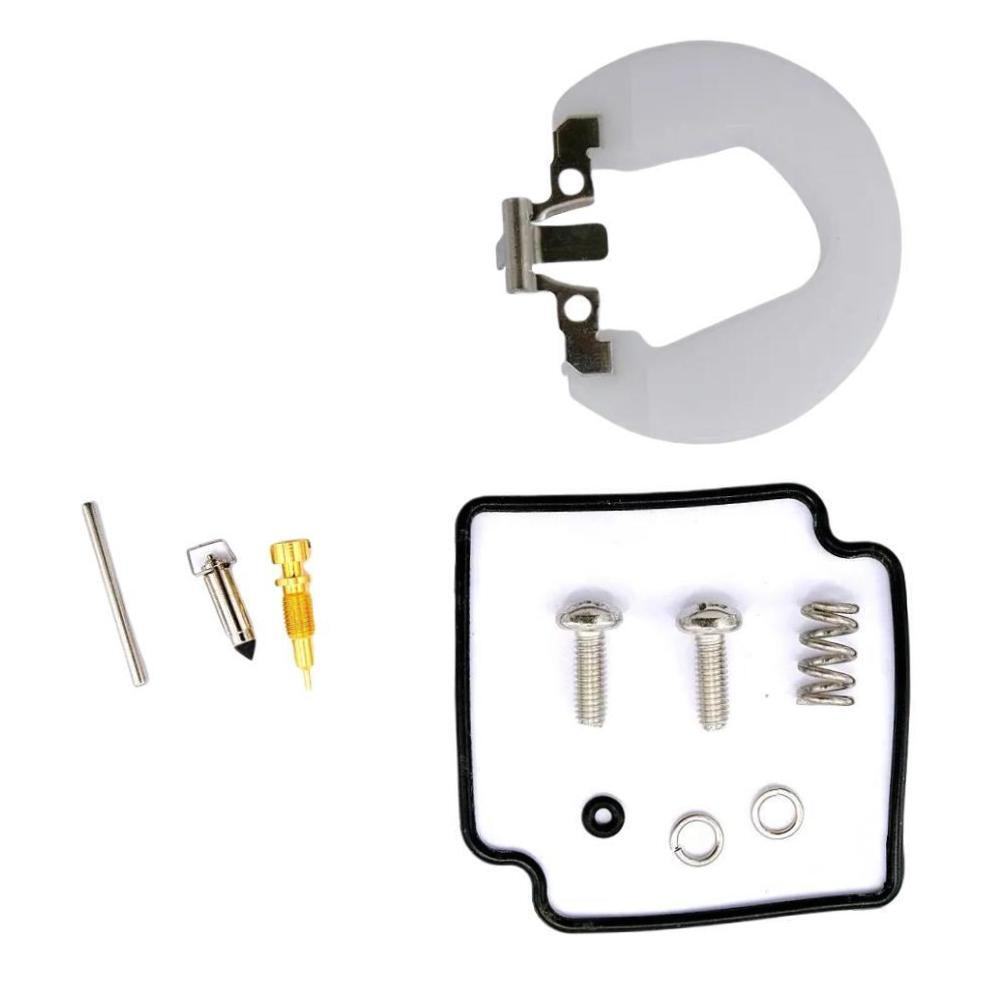

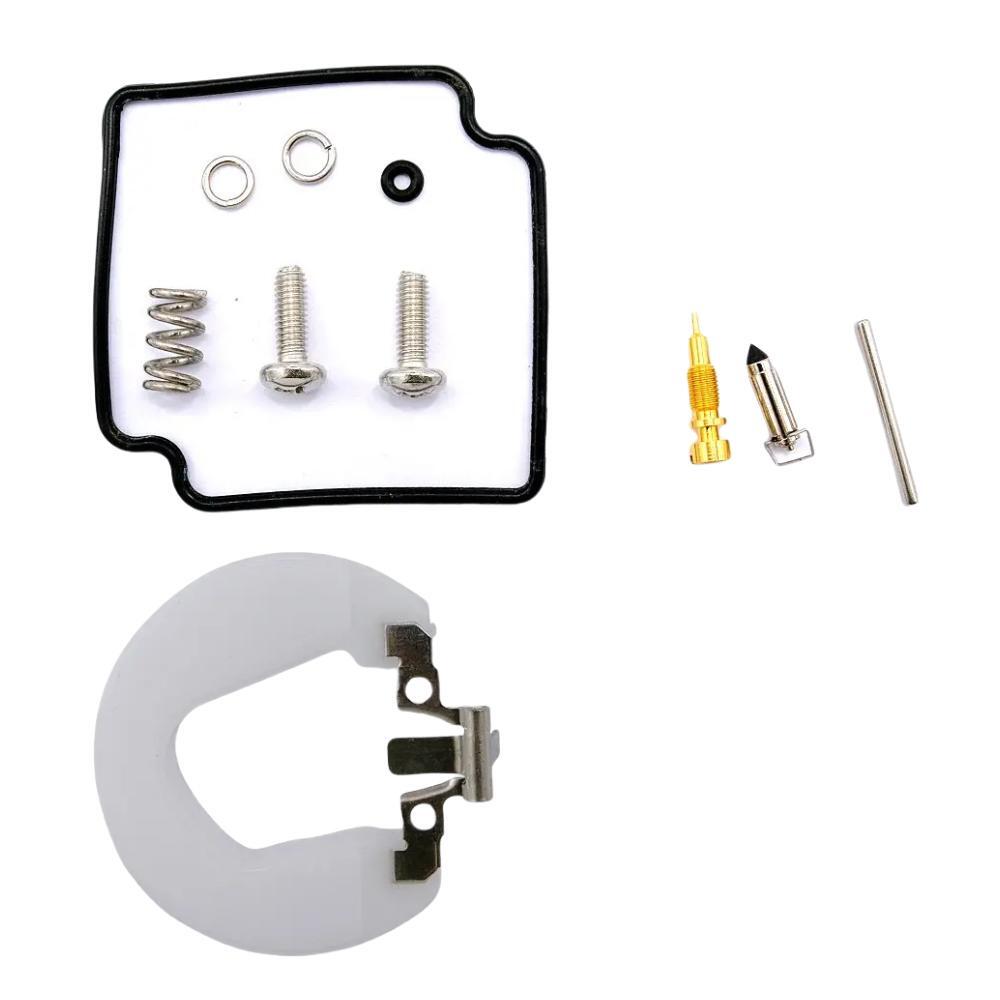

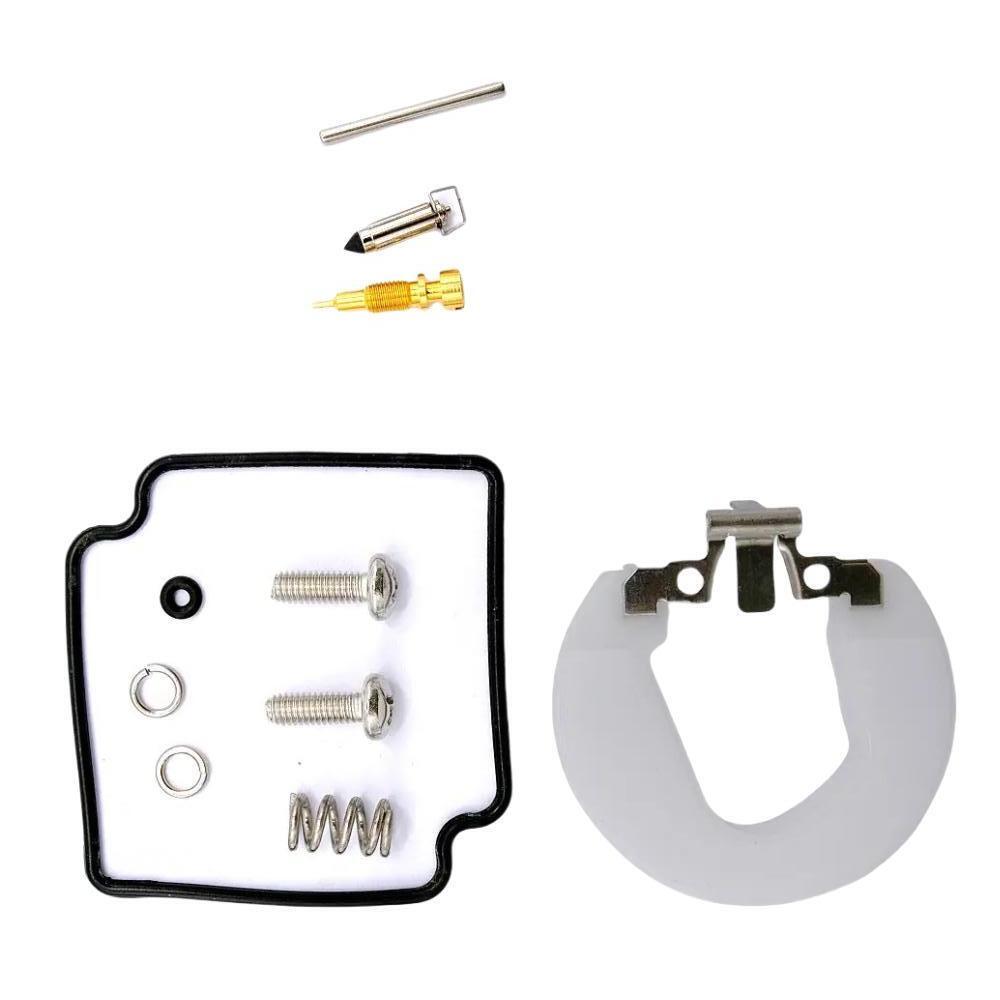

Package Contents

• 1 x CARBURETOR REPAIR KIT (6BX-W0093-00-00)

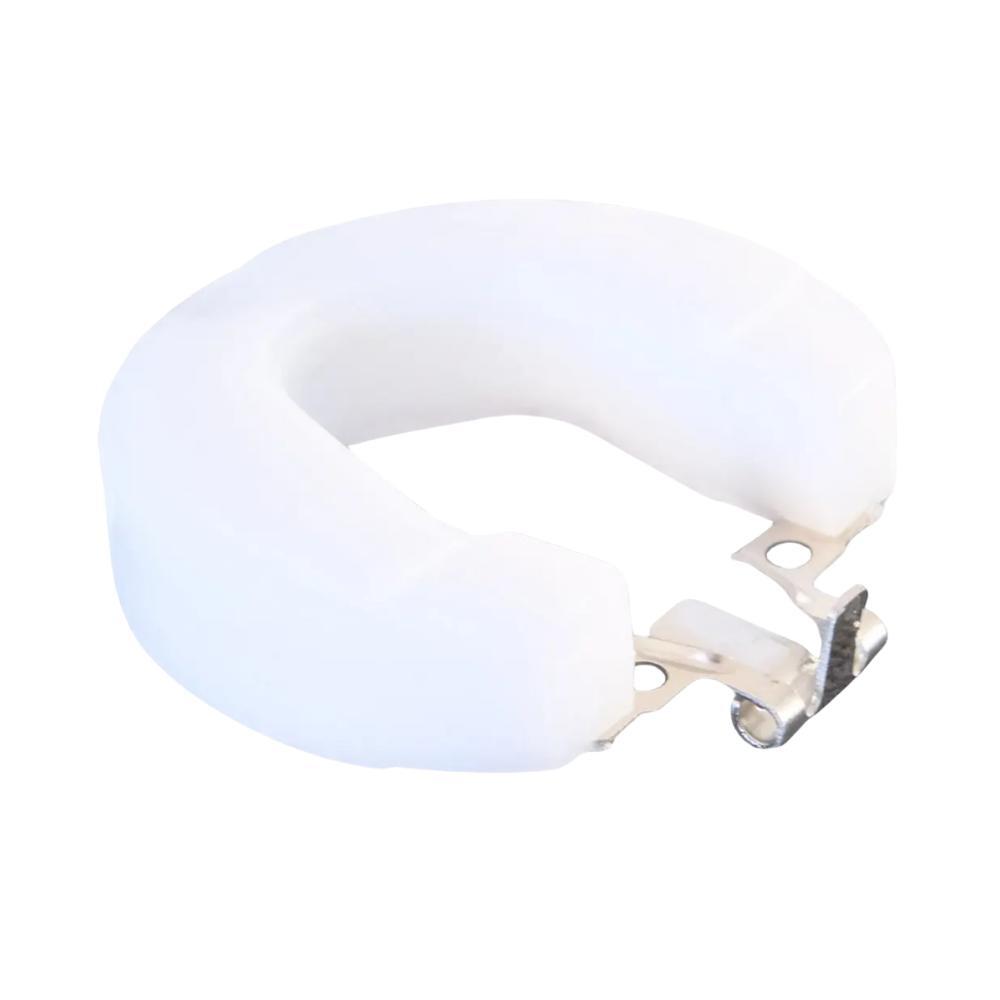

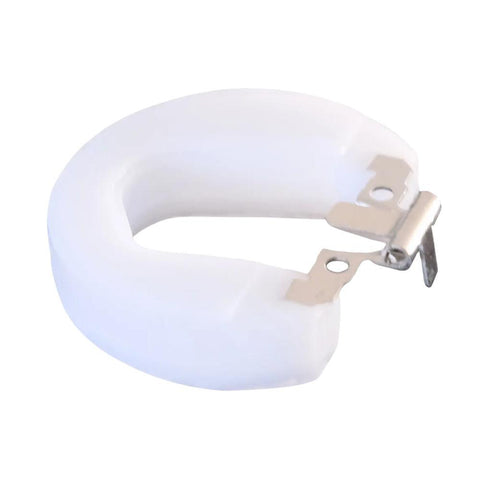

• 1 x FLOAT (6BX-14985-00-00)

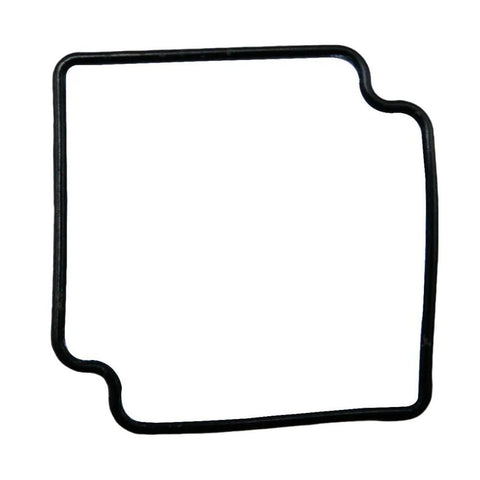

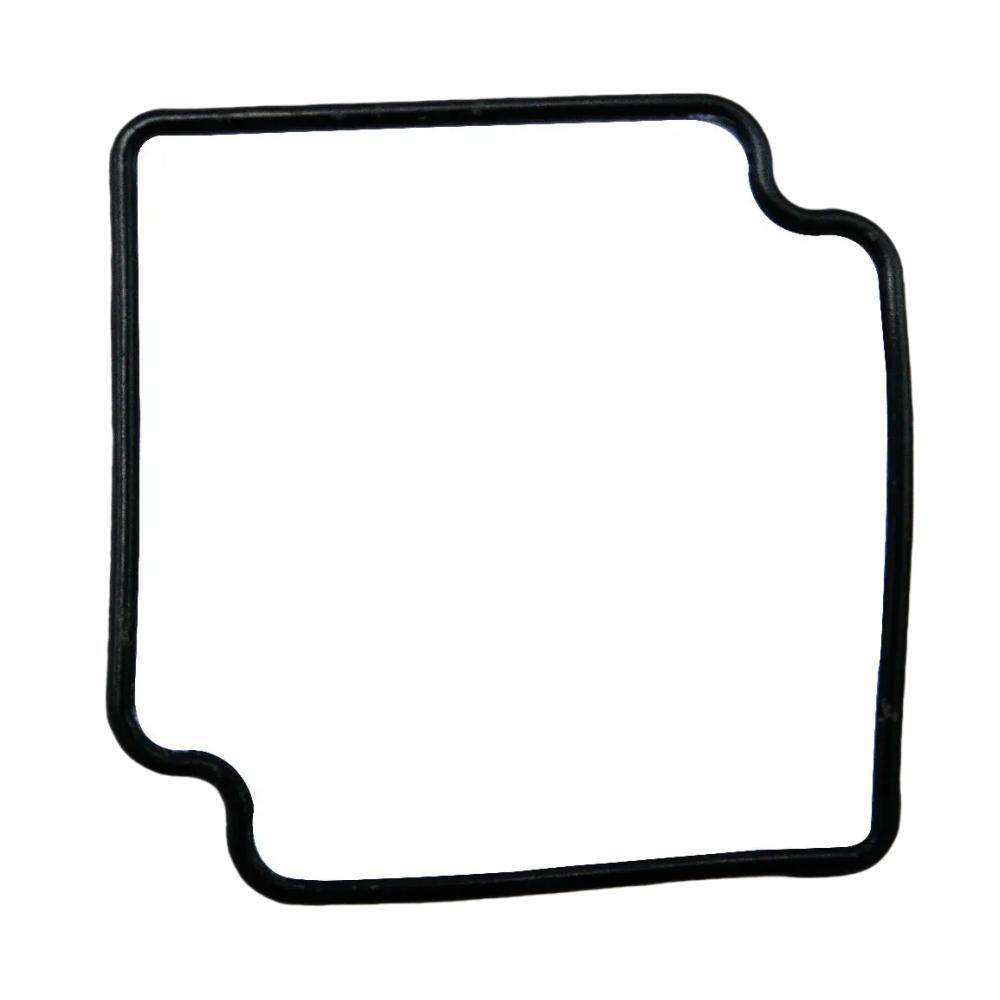

• 1 x GASKET, FLOAT CHAMBER (6BX-14984-00-00)
• 2 x SCREW (6BX-14592-00-00)
• 2 x O-RING (67F-14398-10-00 or 4JH-14562-00-00) - Part number may vary by source.
• 1 x VALVE, NEEDLE (6BX-14546-00-00)
• 1 x PIN, FLOAT ARM (6BX-14548-00-00)
• 1 x CLIP (6BX-14937-00-00)

Installation Guide

1. Turn Off Fuel: Shut off the fuel supply valve and disconnect the fuel line from the carburetor.
2. Remove Carburetor: Loosen the mounting bolts and carefully remove the carburetor from the engine.
3. Disassemble: Carefully disassemble the carburetor, paying close attention to the order and orientation of each part. Start by removing the float chamber bowl.
4. Clean Components: Thoroughly clean all metal parts with a quality carburetor cleaner. Do not use cleaner on non-metal parts.
5. Replace Parts: Install the new gaskets, seals, float, needle valve, and O-rings from the kit. Ensure the float is set to the correct height per your service manual.
6. Reassemble: Reassemble the carburetor in the reverse order of disassembly. Ensure all screws are tightened to the correct torque.
7. Reinstall Carburetor: Mount the rebuilt carburetor back onto the engine, reconnect the fuel line, and turn the fuel supply on.
8. Test and Adjust: Start the engine and check for leaks. Adjust the idle screw and air/fuel mixture as needed for smooth operation.

Troubleshooting & FAQ

Q: How do I confirm this kit fits my Yamaha outboard?
A: This kit is specifically for Yamaha 4HP (F4) and 6HP (F6) 4-stroke models from 2009 and newer. Please verify your model and year in the "Compatible Engine Models" table and confirm that your existing part matches the OEM number 6BX-W0093-00-00.

Q: What are the common signs that my carburetor needs to be rebuilt?
A: Symptoms include difficulty starting the engine, poor or rough idling, stalling at low speeds, engine hesitation upon acceleration, or visible fuel leaks from the carburetor body.

Q: Why are two different part numbers listed for the O-ring?
A: This reflects minor variations found in different OEM parts diagrams and sources. The kit includes the correct size O-ring required for the specified Yamaha F4 and F6 models.

Q: OEM vs. Aftermarket?
A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?
A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?
A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
