Carburetor Rebuild Kit – Fits Yamaha F15C & F20 4-Stroke Outboards (Replaces 6AH-W0093-00-00)

$22.50

Carburetor Rebuild Kit – Fits Yamaha F15C & F20 4-Stroke Outboards (Replaces 6AH-W0093-00-00)

$22.50

Carburetor Rebuild Kit – Fits Yamaha F15C & F20 4-Stroke Outboards (Replaces 6AH-W0093-00-00)

This carburetor rebuild kit is designed for Yamaha 15-20 HP, 4-Stroke outboard motors manufactured between 2006 and 2009. It provides all the necessary components for a complete and reliable carburetor overhaul.

This kit is a direct replacement for Yamaha part numbers 6AH-W0093-00-00 and 6AH-W0093-00.

  • Installation: Designed for direct OEM replacement.
  • Fuel Compatibility: For use with gasoline engines.
  • Component Quality: Includes genuine OEM-spec repair components for a reliable rebuild.

Part Number Cross-Reference

Use this table to confirm equivalent part numbers. This kit is a direct replacement for the following OEM parts:

Brand Part Number Superseded By Notes
Yamaha 6AH-W0093-00-00 6AH-W0093-01-00 This kit is for 2006-2009 models. The superseding part is for models after 2009.
Yamaha 6AH-W0093-00 Alternative part number (no dash).

Compatible Engine Models

Confirm your engine model/year in the table below. For Yamaha owners, here’s a guide to help you identify your engine’s serial/model: Yamaha Serial Number Guide. You can also review exploded diagrams to verify part numbers: Yamaha Parts Diagrams & Catalog.

Brand Model Rated HP Stroke Years OEM Part No. Notes
Yamaha F15C 15 4-Stroke 2006-2009 6AH-W0093-00-00 Superseded by 6AH-W0093-01-00 after 2009
Yamaha F20 20 4-Stroke 2006-2009 6AH-W0093-00-00 Superseded by 6AH-W0093-01-00 after 2009

Technical Specifications

Specification Value
Product Type Carburetor Repair/Rebuild Kit
Installation Direct OEM replacement
Fuel Type Gasoline
Dimensions Package dimensions: 18 × 15 × 3 cm
Weight 30g (1.06 oz)
Warranty 1-Year against manufacturing defects
Other Technical Attributes Genuine OEM repair components

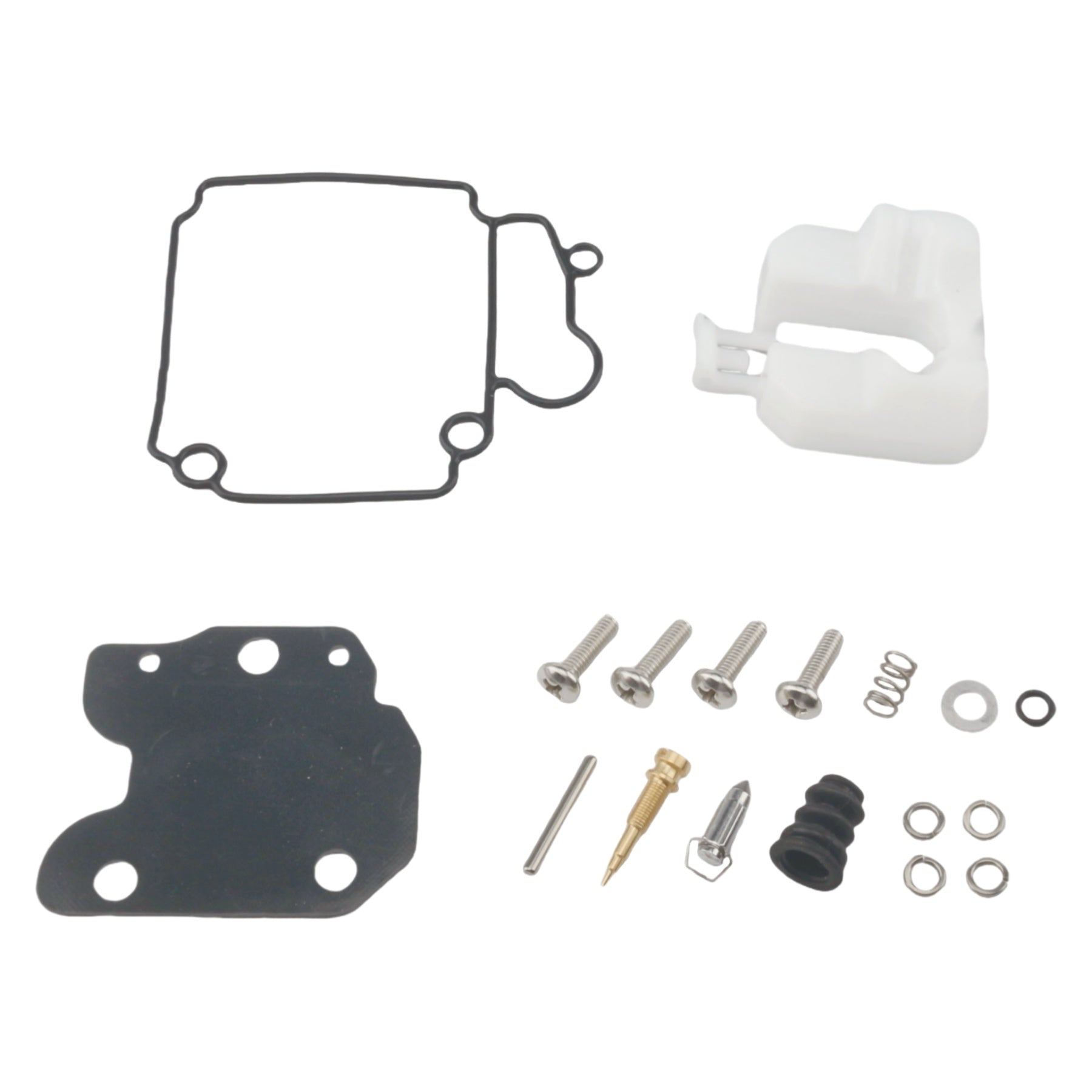

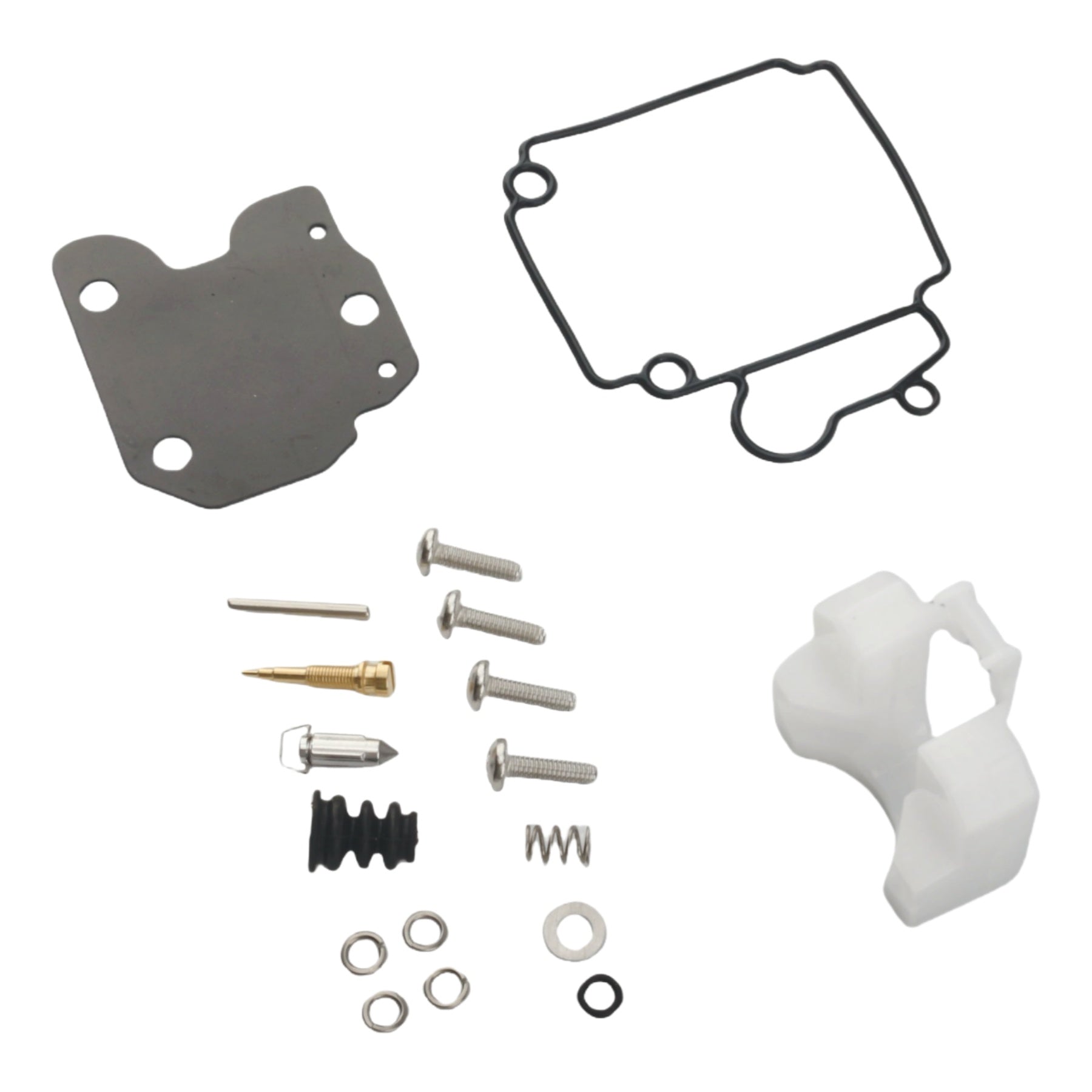

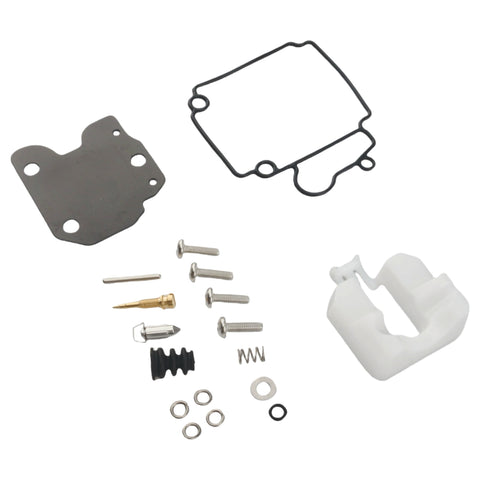

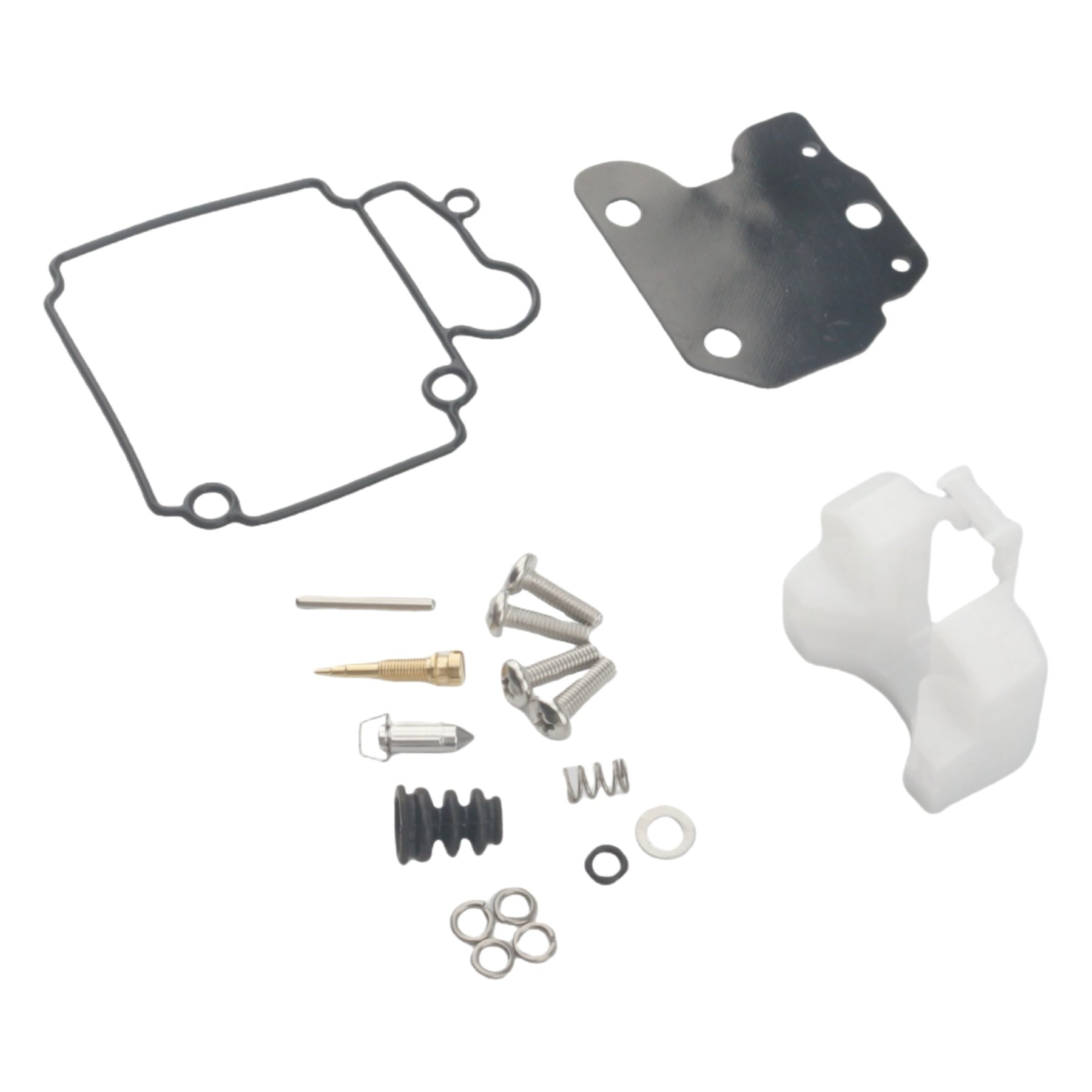

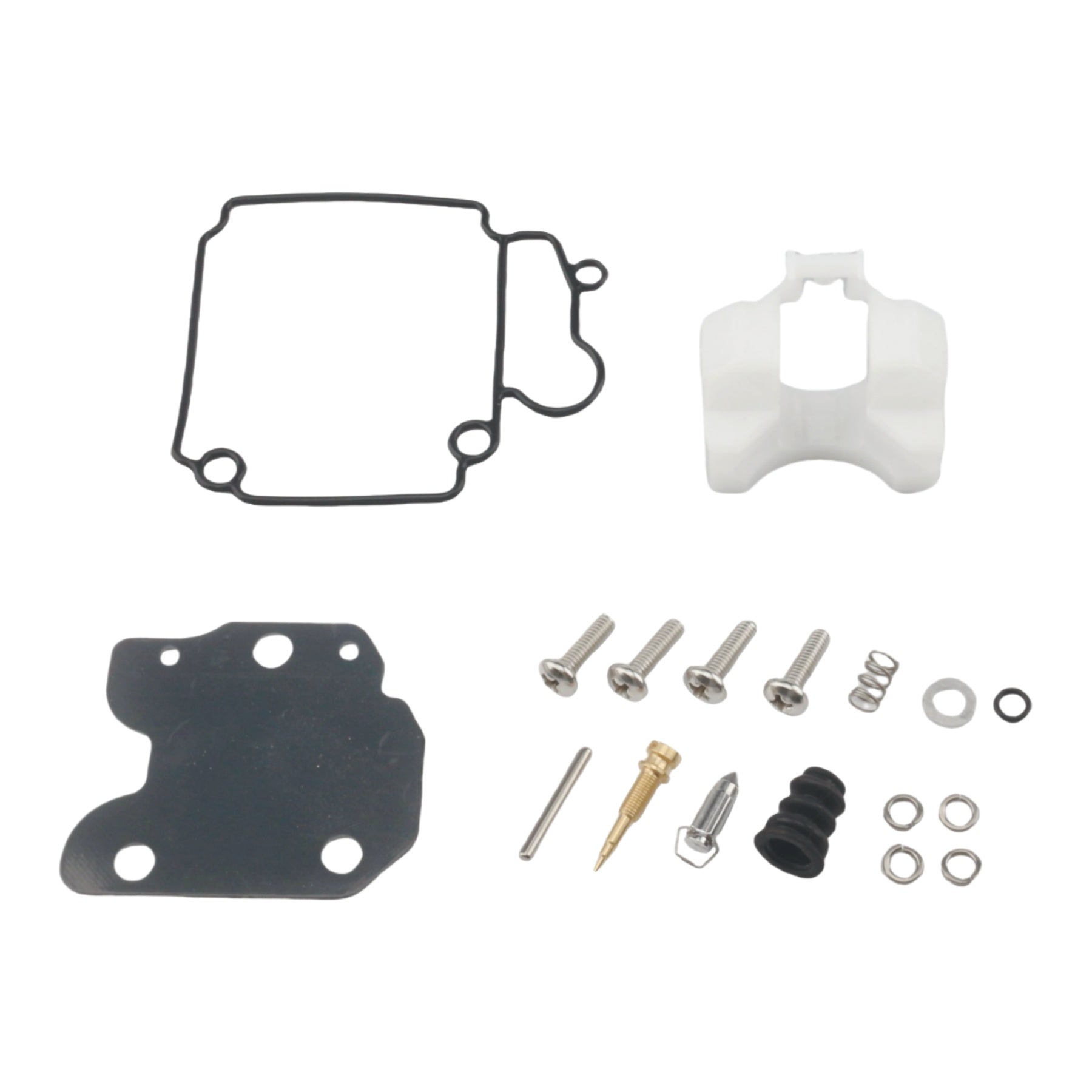

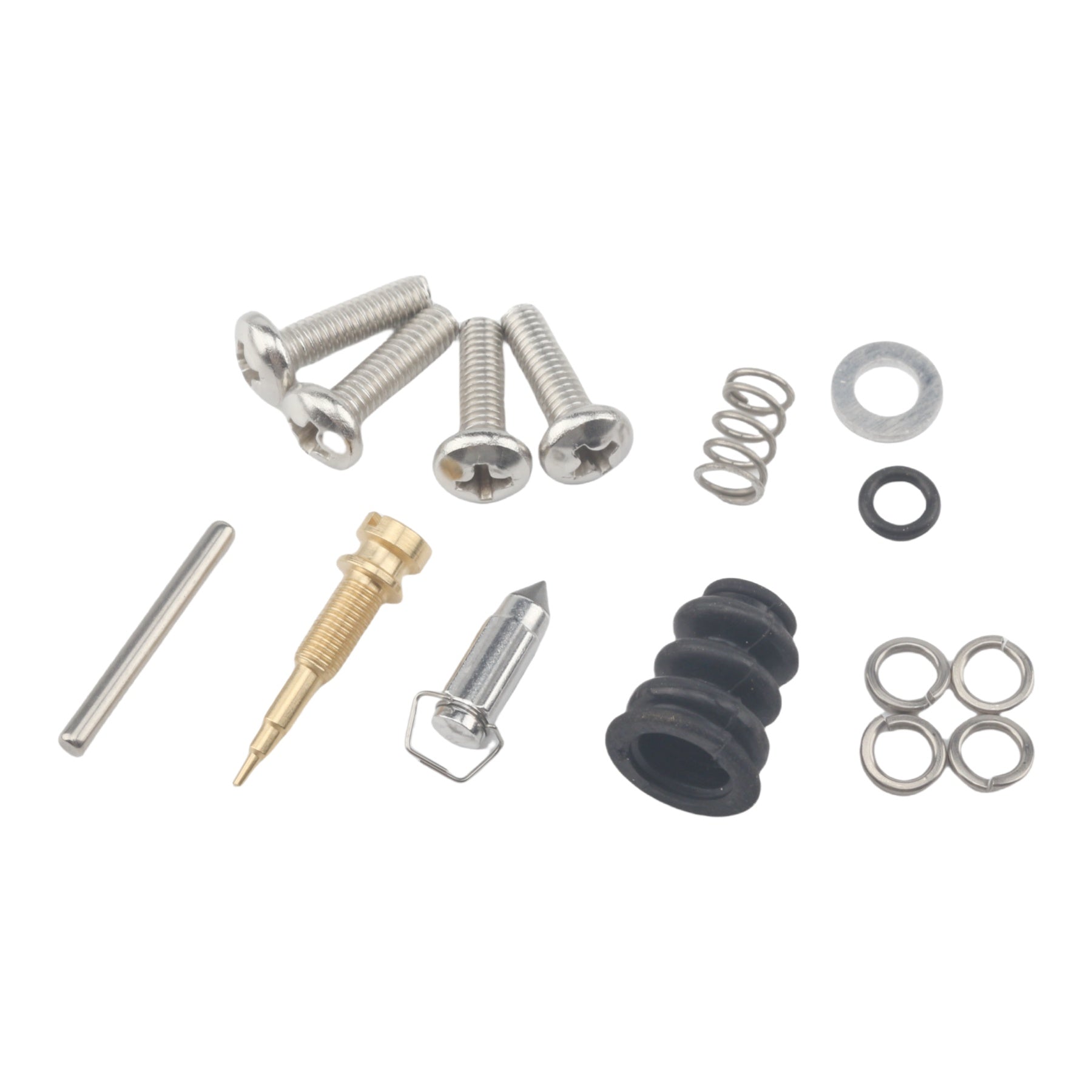

Package Contents

  • 1 x Gasket (65W-14126-10-00)
  • 1 x Valve, Needle (6G1-14546-01-00)
  • 2 x Pin, Float (6BX-14592-00-00)
  • 2 x Pin, Float Arm (6H4-14548-00-00)
  • 1 x Cover, Plunger Cap (65W-14373-01-00)
  • 1 x O-Ring (67F-14398-10-00)

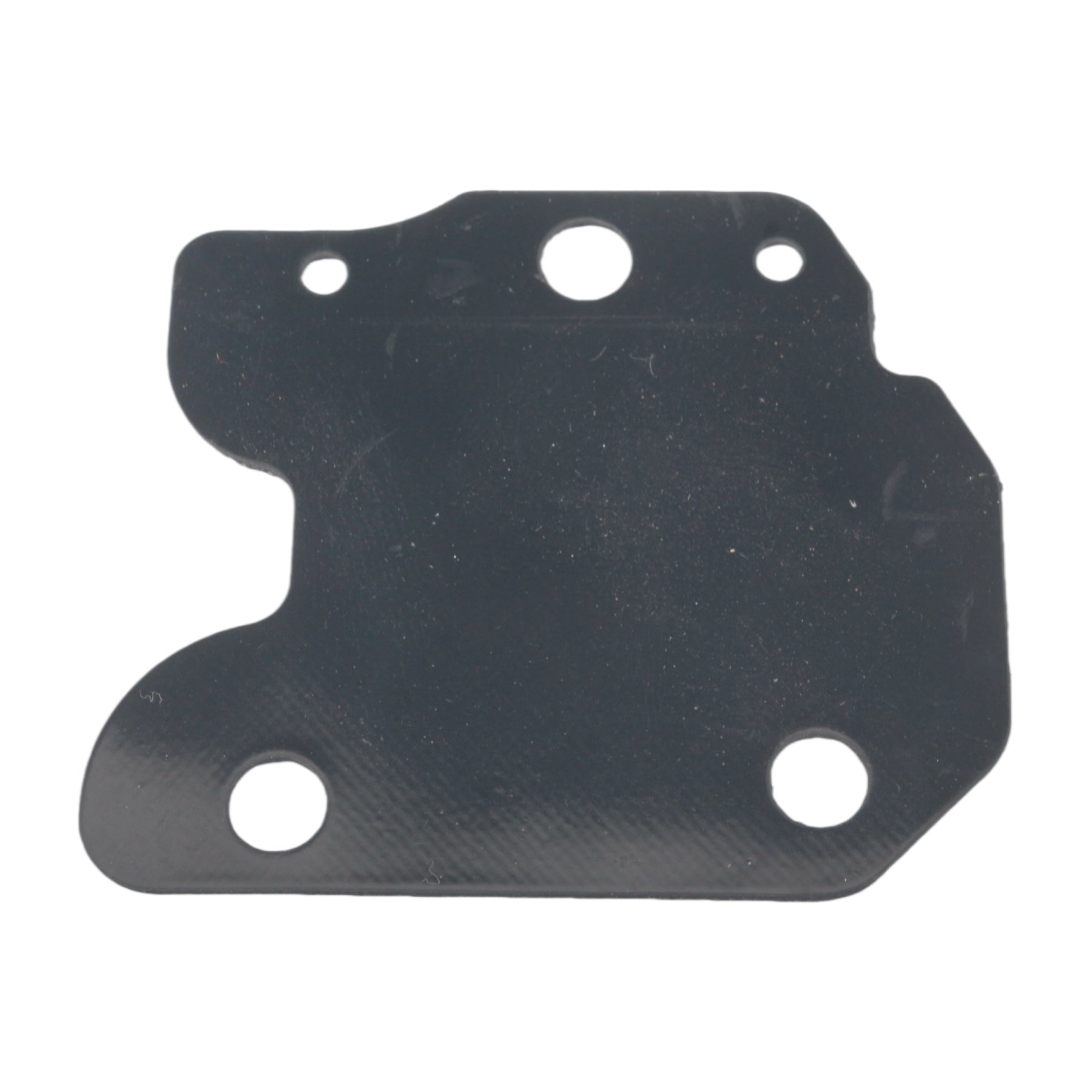

  • 1 x Gasket, Float Chamber (6AH-14384-00-00)
  • 1 x Gasket (6G1-14398-00-00)
  • 4 x Screw, With Washer (97980-04114-00)
  • 1 x Float (6AH-14985-00-00)
  • 1 x Clip (633-14159-00-00)

Installation Guide

  1. Safety First: Before starting, disconnect the battery and ensure the engine is cool. Turn off the fuel supply.
  2. Remove the Carburetor: Carefully disconnect the fuel lines and any linkages attached to the carburetor. Remove the mounting bolts and take the carburetor off the engine.
  3. Disassemble: Working in a clean area, disassemble the carburetor. Lay out the parts in order to make reassembly easier.
  4. Clean Components: Thoroughly clean all metal parts using a quality carburetor cleaner. Do not use cleaner on non-metal parts.
  5. Install New Parts: Carefully replace the old gaskets, seals, needle, float, and other components with the new parts from the kit.
  6. Reassemble: Reassemble the carburetor, ensuring all parts are correctly seated.
  7. Reinstall: Mount the rebuilt carburetor back onto the engine and reconnect all fuel lines and linkages.
  8. Final Check: Turn the fuel supply back on and check for any leaks. Reconnect the battery, start the engine, and adjust the idle if necessary.

Troubleshooting & FAQ

Q: How do I confirm this kit fits my engine?
A: This kit is specifically for Yamaha F15C and F20 4-stroke models from 2006 to 2009. Please verify your engine model and year. It directly replaces OEM part number 6AH-W0093-00-00. If your engine is newer than 2009, you will likely need the superseding part.

Q: What are the signs that my carburetor needs to be rebuilt?
A: Common symptoms include difficulty starting, rough idling, stalling at low speeds, fuel leaking from the carburetor, or reduced engine performance and efficiency.

Q: My manual specifies part 6AH-W0093-01-00. Will this kit work?
A: No. This kit (replaces 6AH-W0093-00-00) is for models made between 2006 and 2009. Part number 6AH-W0093-01-00 is for models manufactured after 2009. Please source the correct part for your engine's year.

Q: OEM vs. Aftermarket?
A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?
A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?
A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

  • Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
  • This product is an aftermarket replacement part and is not an OEM component.
  • Professional installation is recommended to ensure safety and optimal performance.
