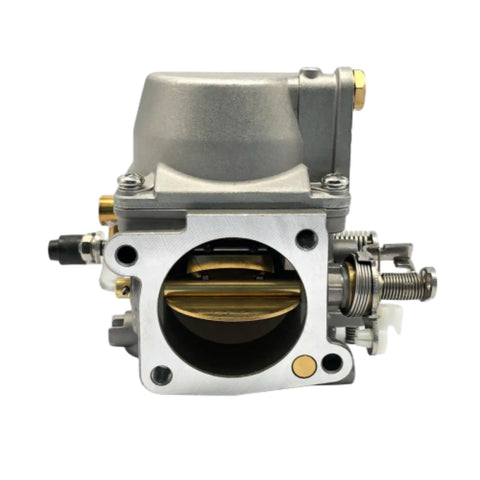

photo of jlm marine carburetor for tohatsu nissan 25hp 30hp 3p0-03200-0 silver metal with mounting flange and two holes showing gold bolt springs linkage

Carburetor Assembly – Fits Tohatsu/Nissan 25HP & 30HP 2-Stroke Outboard (Replaces 3P0-03200-0)

$118.00 $98.00

Carburetor Assembly – Fits Tohatsu/Nissan 25HP & 30HP 2-Stroke Outboard (Replaces 3P0-03200-0)

$118.00 $98.00

Carburetor Assembly – Fits Tohatsu/Nissan 25HP & 30HP 2-Stroke Outboard (Replaces 3P0-03200-0)

This carburetor assembly is designed for Tohatsu and Nissan 25HP and 30HP 2-stroke outboard engines, specifically fitting models M25C3, M30A3, M30A4, NS25C2, NS25C3, NS30A3, and NS30A4 from years 2002 to 2005.

It serves as a direct aftermarket replacement for Tohatsu part numbers 3P0-03200-0, 3P0032000, and 3P0032000M, as well as Nissan part numbers 346-03200-0, 346032000, and 346032000M.

  • Installation: Direct bolt-on replacement for a hassle-free setup.
  • Complete Assembly: Includes all necessary components for a full installation.
  • Fuel Type: Compatible with standard gasoline (petrol).

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Brand Part Number
Tohatsu 3P0-03200-0
Tohatsu 3P0032000
Tohatsu 3P0032000M
Nissan 346-03200-0
Nissan 346032000
Nissan 346032000M

Compatible Engine Models

Confirm your engine model/year in the table below.

Brand Model Rated HP Stroke Years OEM Part No. Notes
Tohatsu M25C3 25 2-Stroke 2002–2005 3P0-03200-0
Tohatsu M30A3 30 2-Stroke 2002–2005 3P0-03200-0
Tohatsu M30A4 30 2-Stroke 2002–2005 3P0-03200-0
Nissan NS25C2 25 2-Stroke 2002–2005 346-03200-0
Nissan NS25C3 25 2-Stroke 2002–2005 346-03200-0
Nissan NS30A3 30 2-Stroke 2002–2005 346-03200-0
Nissan NS30A4 30 2-Stroke 2002–2005 346-03200-0

Technical Specifications

Specification Value
Product Type Carburetor Assembly
Installation Direct bolt-on replacement
Fuel Type Gasoline (petrol)
Housing Material Die-cast aluminum alloy
Housing Color Silver/metallic
Warranty 1 year against manufacturing defects (JLM Marine)
Other Technical Attributes Complete carburetor assembly with all necessary components for installation

Package Contents

  • 1 x Carburetor Assembly (Replaces 3P0-03200-0 / 346-03200-0)

Installation Guide

  1. Safety First: Disconnect the battery and ensure the fuel supply valve is turned off.
  2. Disconnect Components: Carefully label and disconnect the fuel lines, throttle linkage, and any other hoses attached to the carburetor.
  3. Remove Old Carburetor: Unscrew the mounting nuts or bolts holding the carburetor to the intake manifold. Gently remove the old unit and the gasket.
  4. Clean Surface: Thoroughly clean the mounting surface on the intake manifold, ensuring no old gasket material or debris remains.
  5. Mount New Carburetor: Place the new gasket and carburetor assembly onto the manifold studs.
  6. Secure asembly: Evenly tighten the mounting nuts or bolts to the manufacturer's recommended torque. Do not overtighten.
  7. Reconnect Components: Reattach the fuel lines, throttle linkage, and any other hoses to their correct positions on the new carburetor.
  8. Check for Leaks: Turn the fuel supply back on and carefully inspect all connections for any signs of fuel leaks.
  9. Final Steps: Reconnect the battery. Start the engine and allow it to warm up. Adjust the idle and mixture screws as necessary to achieve smooth operation.

Troubleshooting & FAQ

Q: How do I confirm this carburetor fits my Tohatsu/Nissan engine?
A: This carburetor assembly is designed for Tohatsu/Nissan 25HP & 30HP 2-stroke models M25C3, M30A3, M30A4, NS25C2, NS25C3, NS30A3, and NS30A4 (2002–2005). Please verify your engine model and year against the "Compatible Engine Models" table and cross-reference the OEM part number (3P0-03200-0 or 346-03200-0) to ensure a perfect match.

Q: What are the signs that my old carburetor needs replacing?
A: Common signs of a failing carburetor include difficulty starting the engine, rough idling, stalling at low speeds, poor acceleration, black smoke from the exhaust, or visible fuel leaks. If you notice these symptoms, a replacement may be necessary.

Q: Is this a complete bolt-on replacement?
A: Yes, this is a complete carburetor assembly that includes all necessary components for a direct bolt-on installation. No modifications are required if your engine model is listed as compatible.

Q: OEM vs. Aftermarket?
A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?
A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?
A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

  • Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
  • This product is an aftermarket replacement part and is not an OEM component.
  • Professional installation is recommended to ensure safety and optimal performance.
