Carburetor Assembly – Fits Tohatsu/Nissan 9.9HP, 15HP, 18HP Two-Stroke (Replaces 3G2-03100-0)
- $72.00
- $72.00
- Unit price
- per
Couldn't load pickup availability
Free Shipping
Free standard shipping on all orders under 1 KG
Worry-Free Returns

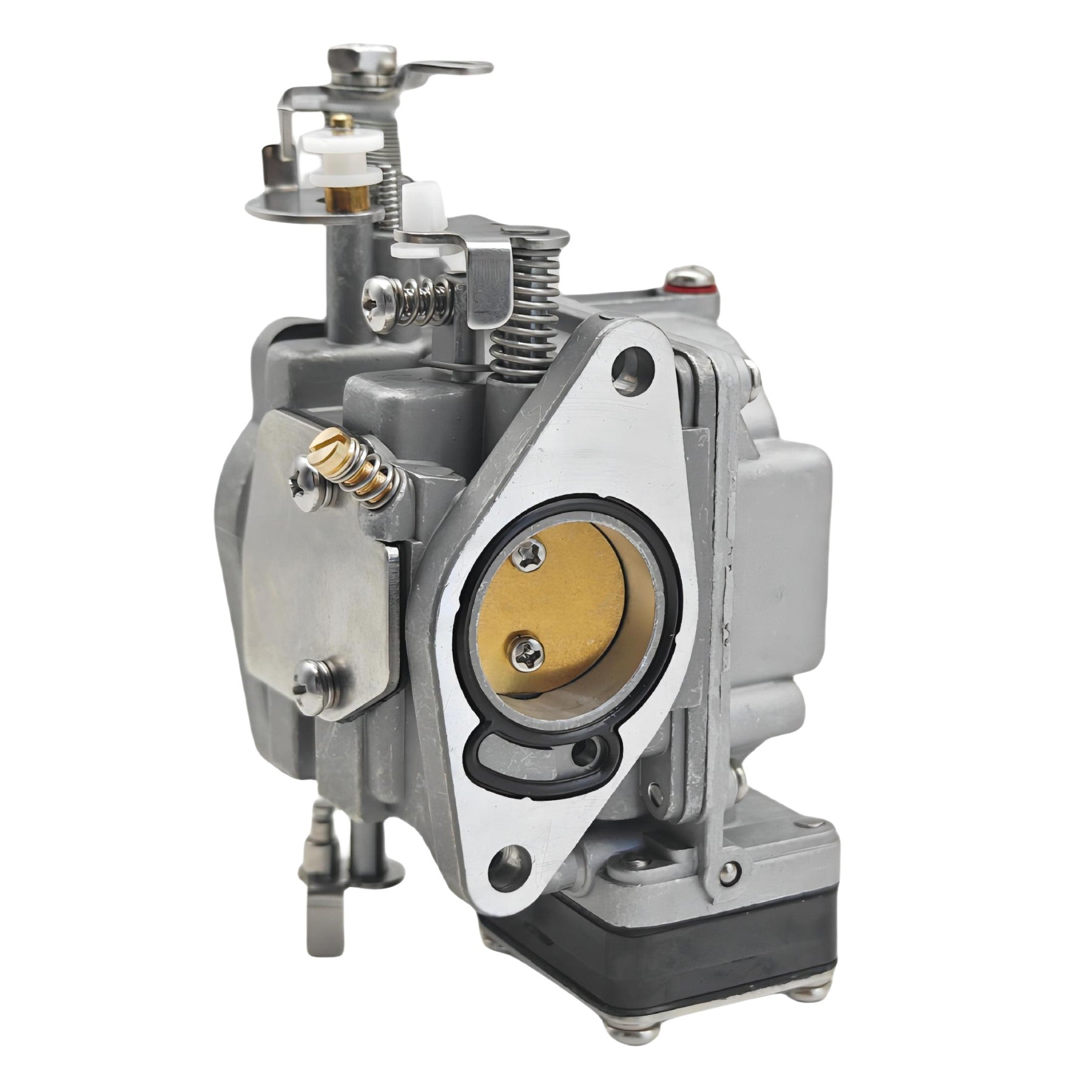

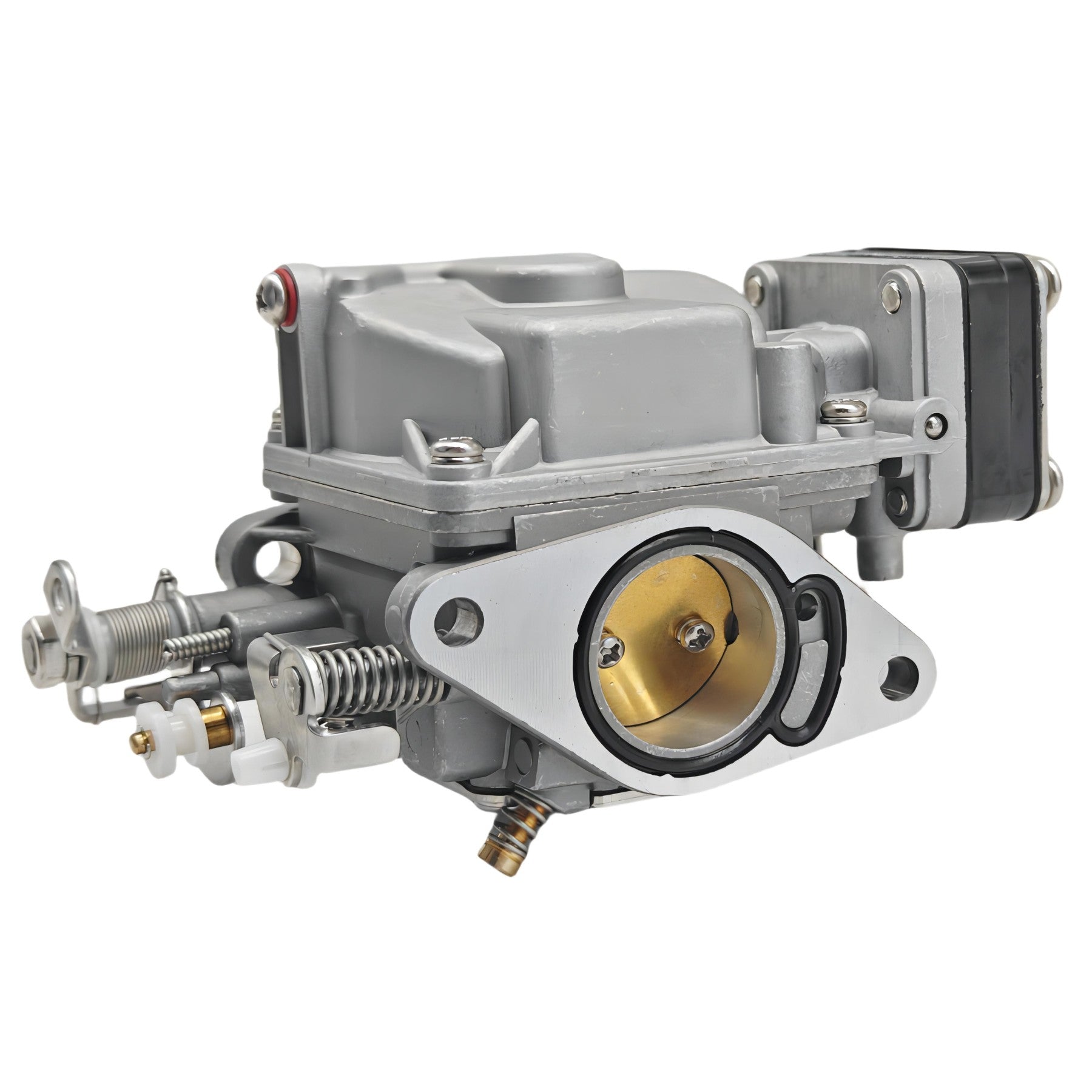

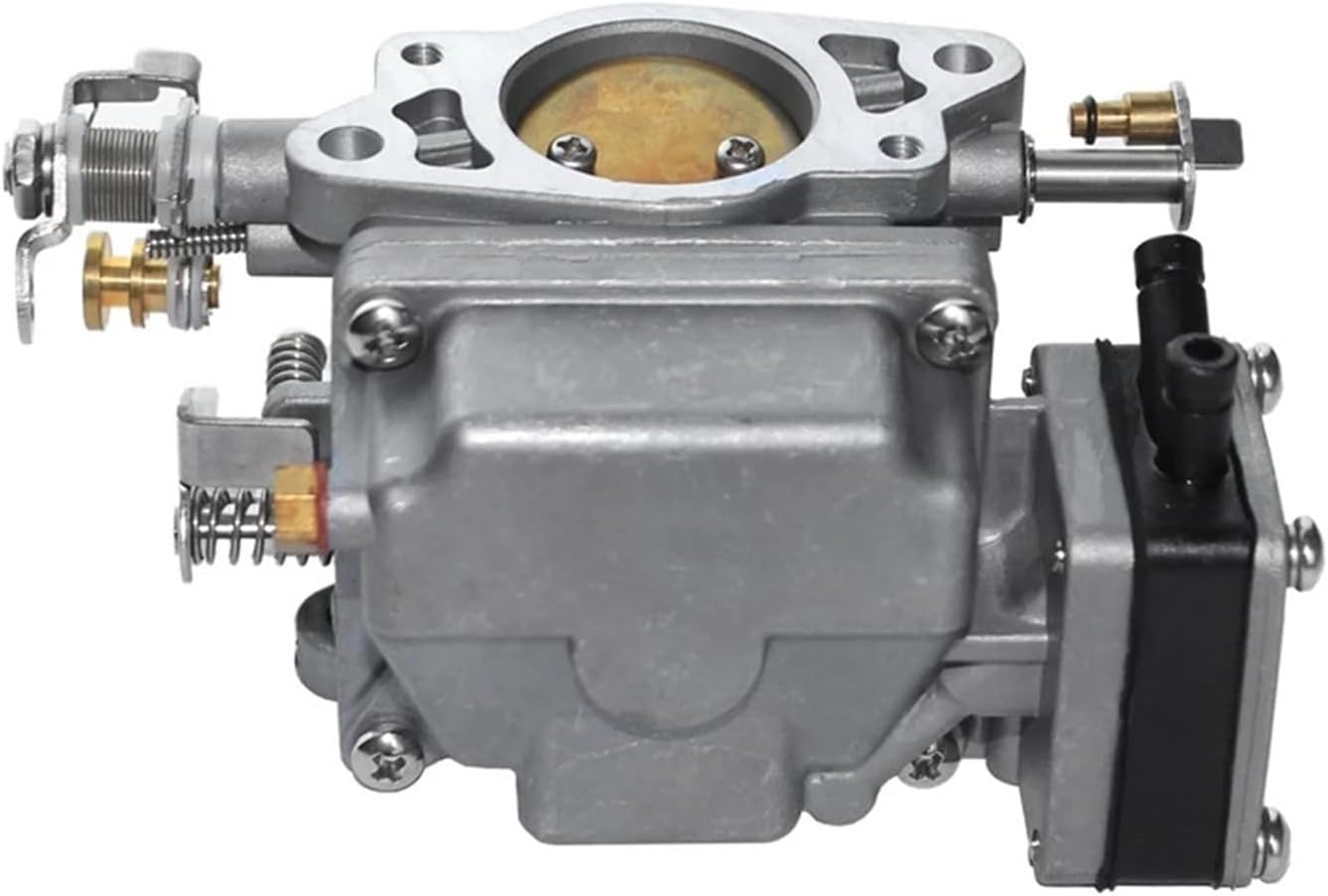

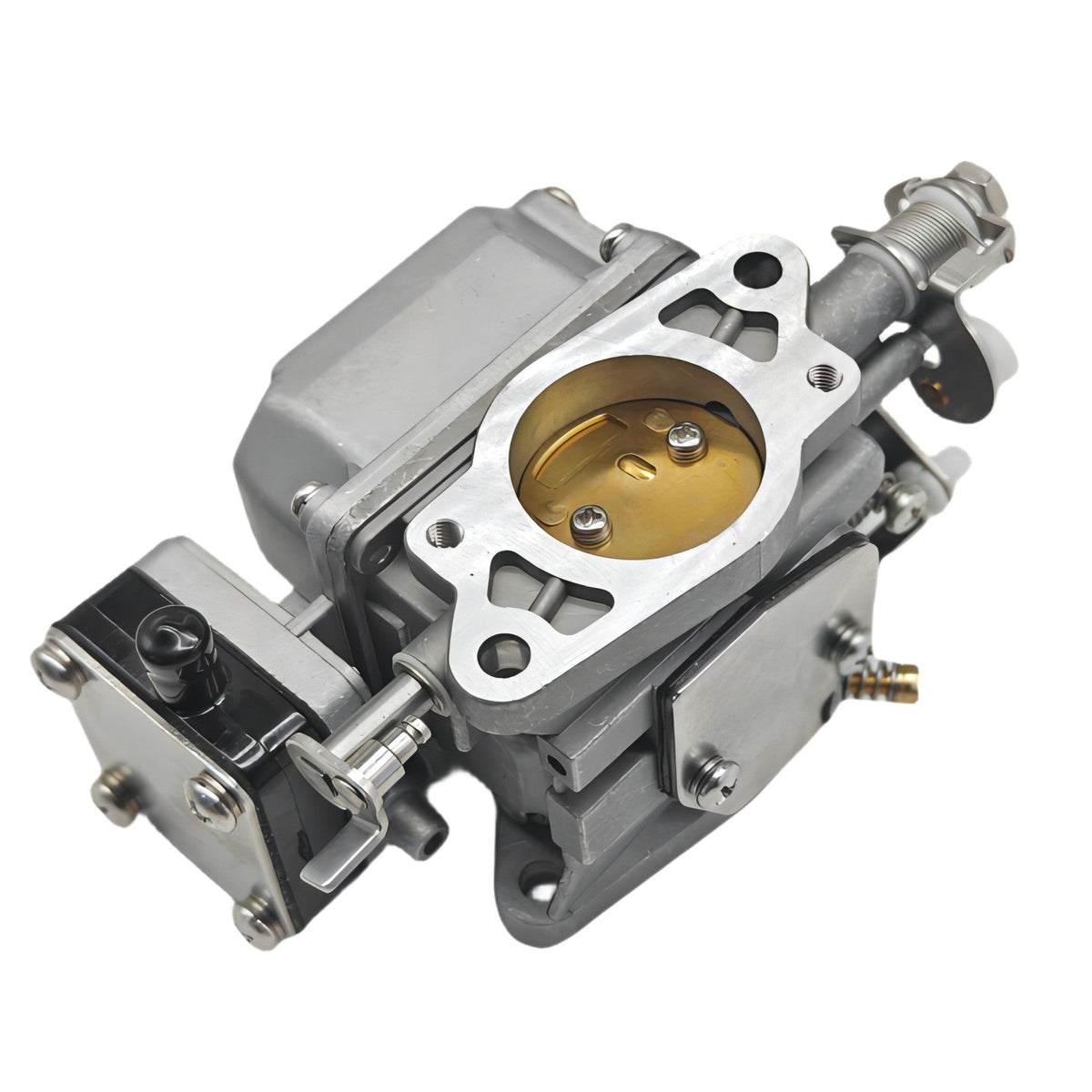

Carburetor Assembly – Fits Tohatsu/Nissan 9.9HP, 15HP, 18HP Two-Stroke (Replaces 3G2-03100-0)
This carburetor assembly is a direct-fit replacement for two-stroke Tohatsu and Nissan outboard motors, including 9.9HP, 15HP, and 18HP models. It is designed to restore original engine performance and fuel efficiency by replacing a worn or faulty carburetor.
This component directly replaces Tohatsu part numbers 3G2-03100-0, 3G2-03100-1, 3G2-03100-2, 3G2-03100-3, 3G2-03100-4, and 3G2-03100-5, as well as Sierra aftermarket part 18-7848.
- Installation Type: Direct OEM replacement that bolts on with no modifications needed.
- Compatibility: Fits Tohatsu M9.9D2, M15D2, M18E2 and Nissan NS9.9D2, NS15D2, NS18E2 series engines.
- Ready to Install: Includes all necessary internal jets and passages as per original equipment specifications.
Part Number Cross-Reference
Use this table to confirm equivalent part numbers across OEM and aftermarket brands.
| Brand | Part Number |
|---|---|
| Tohatsu | 3G2-03100-0 |
| Tohatsu | 3G2-03100-1 |
| Tohatsu | 3G2-03100-2 |
| Tohatsu | 3G2-03100-3 |
| Tohatsu | 3G2-03100-4 |
| Tohatsu | 3G2-03100-5 |
| Sierra | 18-7848 |
Compatible Engine Models
Confirm your engine model/year in the table below.
| Brand | Model | Rated HP | Stroke | OEM Part No. | Notes |
|---|---|---|---|---|---|
| Tohatsu | M9.9D2 | 9.9 | 2-Stroke | 3G2-03100-0 | Also fits 3G2-03100-1/2/3/4/5 variants |
| Tohatsu | M15D2 | 15 | 2-Stroke | 3G2-03100-0 | Also fits 3G2-03100-1/2/3/4/5 variants |
| Tohatsu | M18E2 | 18 | 2-Stroke | 3G2-03100-0 | Also fits 3G2-03100-1/2/3/4/5 variants |
| Nissan | NS9.9D2 | 9.9 | 2-Stroke | 3G2-03100-0 | Also fits 3G2-03100-1/2/3/4/5 variants |
| Nissan | NS15D2 | 15 | 2-Stroke | 3G2-03100-0 | Also fits 3G2-03100-1/2/3/4/5 variants |
| Nissan | NS18E2 | 18 | 2-Stroke | 3G2-03100-0 | Also fits 3G2-03100-1/2/3/4/5 variants |
Technical Specifications
| Specification | Value |
|---|---|
| Product Type | Carburetor Assembly |
| Installation | Direct OEM replacement |
| Fuel Type | Gasoline (petrol) |
| Connection | Direct mount with gasket |
| Housing Material | Aluminum alloy |
| Housing Color | Silver/metallic |
| Fitting Type | Factory mounting points with gasket seal |
| Warranty | 1 year against manufacturing defects (JLM Marine) |
| Other Technical Attributes | Includes all jets and passages as OEM |
Package Contents
- 1 x Carburetor Assembly (3G2-03100-0)
Installation Guide
- Safety First: Disconnect the battery and ensure the engine is cool. Turn off the fuel supply.
- Disconnect Lines: Carefully disconnect the fuel line from the carburetor. Note the position of any throttle or choke linkages and disconnect them.
- Remove Old Carburetor: Unscrew the mounting bolts holding the carburetor to the engine manifold. Remove the old carburetor and the old gasket.
- Clean Surface: Thoroughly clean the manifold mounting surface to ensure a proper seal. Remove any old gasket material or debris.
- Mount New Carburetor: Place the new gasket and carburetor onto the manifold, then secure it with the mounting bolts. Tighten them evenly.
- Reconnect: Reattach the throttle and choke linkages and the fuel line.
- Test: Turn the fuel supply back on and check for leaks. Start the engine and check for smooth idling and proper throttle response. Adjust idle settings if necessary.
Troubleshooting & FAQ
Q: How do I confirm this carburetor fits my specific engine?
A: The best way is to check your original part number. This carburetor replaces Tohatsu part numbers 3G2-03100-0 through 3G2-03100-5 and Sierra 18-7848. You can also match your engine model (e.g., M15D2, NS18E2) with our compatibility table.
Q: What are the signs that my old carburetor is failing?
A: Common symptoms include difficulty starting, stalling at low speeds, rough idling, engine hesitation on acceleration, black smoke from the exhaust, or visible fuel leaks from the carburetor body.
Q: Are any adjustments needed after installation?
A: Our carburetors are preset to factory specifications, but minor idle speed or air/fuel mixture adjustments may be necessary depending on your specific engine's condition and local altitude.
Q: OEM vs. Aftermarket?
A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.
Q: How fast do you ship and how much does it cost?
A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.
Q: What is your warranty and return policy?
A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.
Important Notes
- Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
- This product is an aftermarket replacement part and is not an OEM component.
- Professional installation is recommended to ensure safety and optimal performance.
