Bell Housing Installation Gasket Kit – Fits MerCruiser Bravo Sterndrive (Replaces 16755Q1)

$14.99

Bell Housing Installation Gasket Kit – Fits MerCruiser Bravo Sterndrive (Replaces 16755Q1)

$14.99

Bell Housing Installation Gasket Kit – Fits MerCruiser Bravo Sterndrive (Replaces 16755Q1)

This gasket and seal kit is designed for MerCruiser Bravo I, II, and III sterndrive applications. It provides all the necessary seals for a proper and leak-free installation of the bell housing to the gimbal housing.

This kit is a direct replacement for MerCruiser part number 16755Q1 and other equivalents, manufactured to meet or exceed OEM specifications for material and performance.

  • Installation Method: Direct replacement
  • Compatible Models: All MerCruiser Bravo Sterndrives

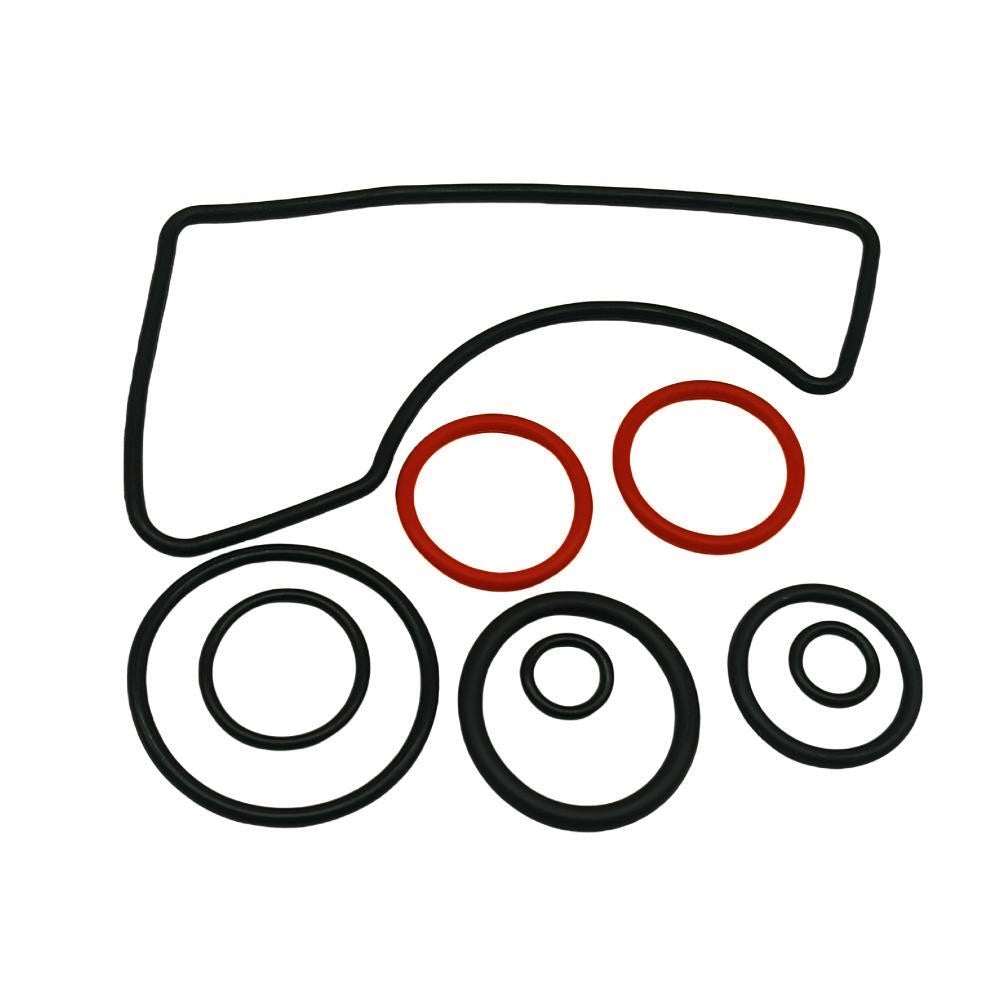

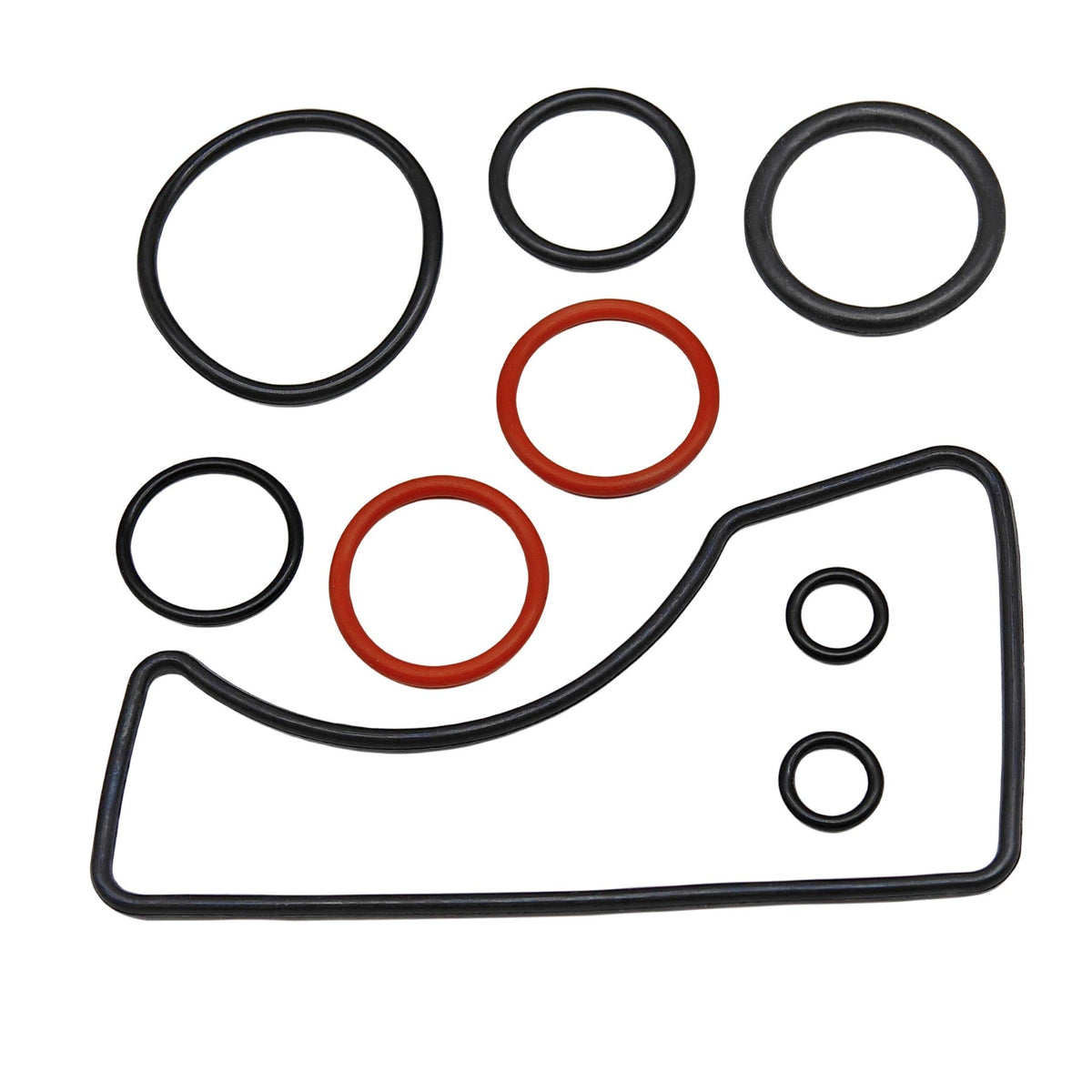

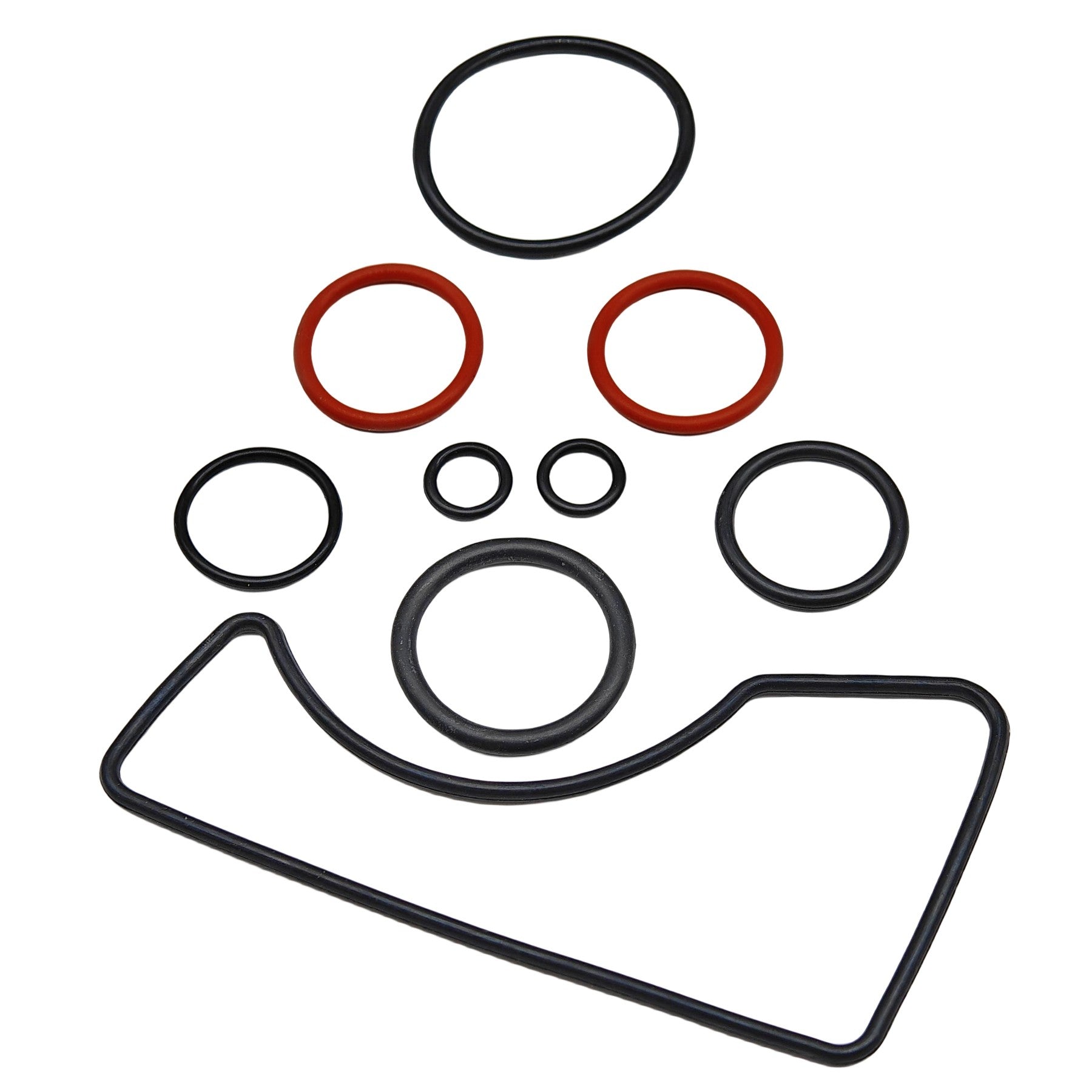

  • Package Includes: 1 Bell Housing Seal, 8 O-Rings

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Brand Part Number
MerCruiser 16755Q1
MerCruiser 16755
MerCruiser 16755A1
Sierra 18-2615
GLM 39640
Mallory 9-62604

Compatible Engine Models

Confirm your engine model/year in the table below. For Mercury owners, here’s a guide to help you identify your engine’s serial/model: Mercury Serial Number Guide. You can also review exploded diagrams to verify part numbers: Mercury Parts Diagrams & Catalog.

Brand Model OEM Part No.
MerCruiser Bravo I 16755Q1
MerCruiser Bravo II 16755Q1
MerCruiser Bravo III 16755Q1
MerCruiser Bravo XR One 16755Q1
MerCruiser Bravo XZ One 16755Q1
MerCruiser Bravo XR Three 16755Q1
MerCruiser Bravo X One 16755Q1
MerCruiser Bravo X Two 16755Q1
MerCruiser Bravo X Three 16755Q1
MerCruiser Bravo XR Sportmaster 16755Q1
MerCruiser Integrated Transom 16755Q1

Technical Specifications

Specification Value
Product Type Bell Housing Installation Gasket Kit
Installation Direct replacement
Dimensions 108 × 55 × 7 mm (4.25 × 2.17 × 0.28 in)
Weight 17.9 g (0.63 oz)
Other Technical Attributes Manufactured to OEM specifications using the exact same material as the originals

Package Contents

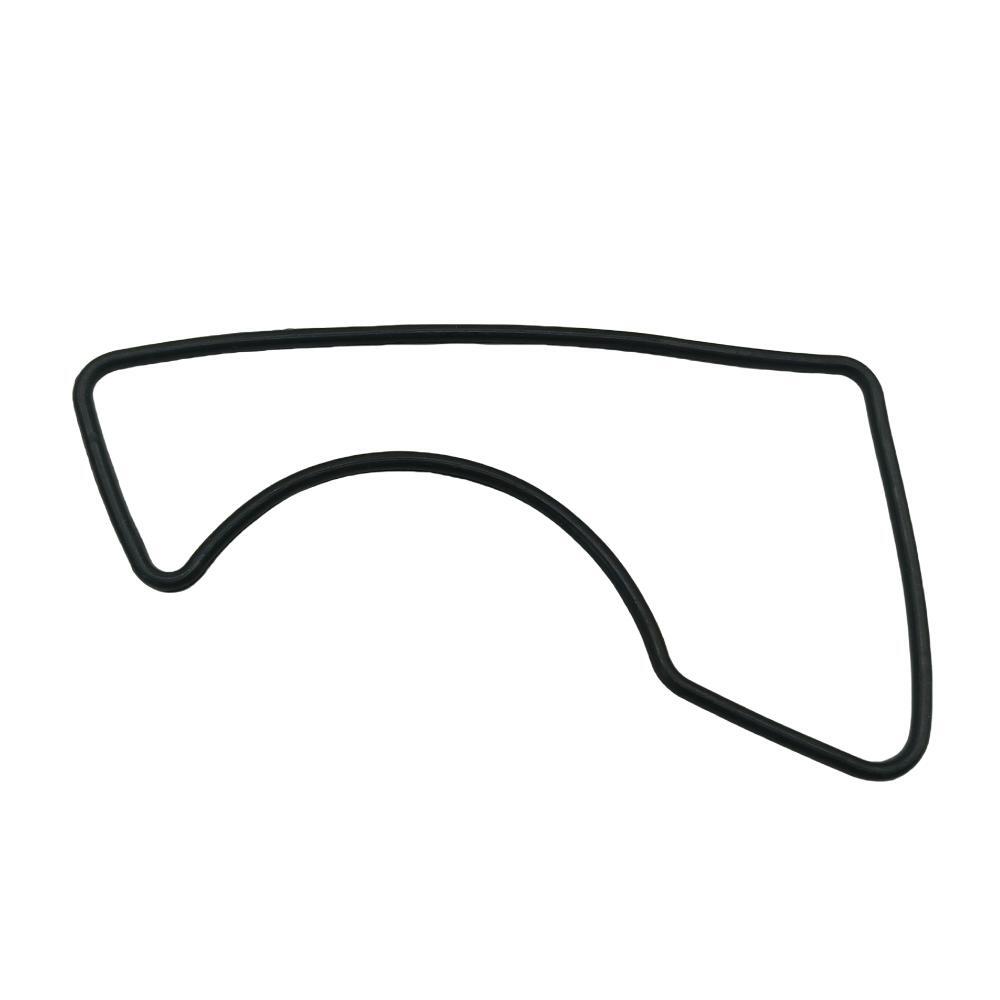

  • 1 x Bell Housing Seal
  • 8 x O-Rings

Installation Guide

  1. Ensure the boat is secure and the battery is disconnected. Place the sterndrive in the full trim-down position.
  2. Remove the rear cover and disconnect the speedometer hose (if equipped).
  3. Remove the six nuts that secure the sterndrive to the bell housing. Be prepared to support the drive's weight.
  4. Carefully slide the sterndrive off the bell housing, ensuring the shift shaft doesn't bind.
  5. Remove the old gasket, O-rings, and oil seal from the bell housing and drive shaft passage.
  6. Thoroughly clean all mating surfaces, removing any old adhesive or debris.
  7. Install the new gasket and seals from the kit. Lightly grease the O-rings and shaft splines.
  8. Carefully align and reinstall the sterndrive, ensuring the drive shaft, water tube, and shift shaft align correctly.
  9. Tighten the six nuts to the manufacturer's specified torque sequence and value.
  10. Reconnect the speedometer hose and install the rear cover. Test for proper operation on the water.

Troubleshooting & FAQ

How do I confirm this fits my MerCruiser Bravo drive?

This kit is designed for all MerCruiser Bravo models (I, II, III, X, XR, etc.). To be certain, cross-reference your existing part number with the numbers listed in our Part Number Cross-Reference table, such as MerCruiser 16755Q1.

What are the signs that my bell housing gasket needs replacement?

Common signs include water leaking into the bilge from the transom assembly, water in the gear lube, or visible corrosion around the mating surfaces. A worn seal may be discovered during routine sterndrive removal and inspection.

Is this kit all I need to reinstall my bell housing?

This kit provides all the essential seals and O-rings for the bell housing installation. You will need standard mechanic's tools and potentially a gimbal bearing alignment tool to ensure proper driveshaft alignment upon reinstallation.

OEM vs. Aftermarket?

This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

How fast do you ship and how much does it cost?

We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

What is your warranty and return policy?

This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

  • Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
  • This product is an aftermarket replacement part and is not an OEM component.
  • Professional installation is recommended to ensure safety and optimal performance.
