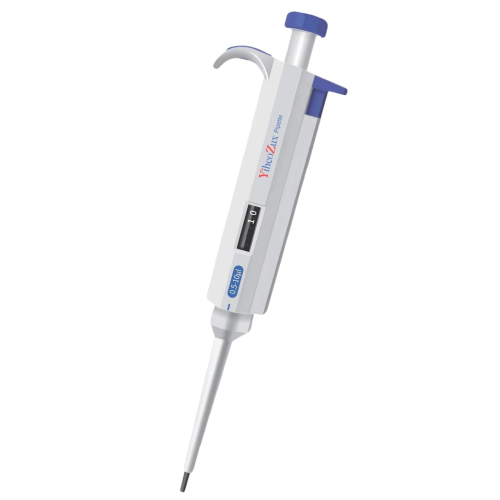

Adjustable Volume Micropipette 0.5-10μL – Fits Laboratory Applications (Replaces LAB FISH 0.5-10μL)

Adjustable Volume Micropipette 0.5-10μL – Fits Laboratory Applications

This single-channel adjustable volume micropipette is a precision laboratory instrument designed for accurate and repeatable liquid handling. Engineered for a volume range of 0.5-10μL, it is an essential tool for applications in research, diagnostics, and academic laboratories. The ergonomic design features a clear 4-digit volume display and a spring-loaded tip cone to ensure a secure fit with universal pipette tips.

It serves as a direct replacement for other micropipettes in the same volume range, including the LAB FISH 0.5-10μL, ONiLAB 0.5-10μL, and Microlit 0.5-10μL models.

• Operating Principle: Utilizes the air displacement method for consistent accuracy.
• Sterilization: The tip core can be disassembled and safely autoclaved at 121°C.
• Advanced Calibration: Features a temporary adjustment option for handling challenging liquids with varying densities or viscosities.

Part Number Cross-Reference

Use this table to confirm equivalent models across compatible brands.

Compatible Models

Confirm your required specifications in the table below.

Technical Specifications

Package Contents

• 1 x Adjustable Volume Micropipette
• 1 x Box of Pipette Tips (quantity varies by manufacturer)
• 1 x Operating Manual
• 1 x Adjustment Tool
• 5 x Adjustment Seals for Temporary Adjustment
• 1 x Tube of Grease for Pipettes
• 1 x Locking Ring (to prevent spring action)

Installation Guide

Follow these steps for proper operation:

1. Set the desired volume by turning the control button until the 4-digit display shows the correct value.
2. Firmly press a sterile, universal-fit pipette tip onto the spring-loaded tip cone.
3. Depress the plunger smoothly to the first positive stop.
4. Immerse the tip just below the surface of the source liquid.
5. Gently and slowly release the plunger to aspirate the liquid into the tip.
6. To dispense, place the tip against the inside wall of the receiving vessel and smoothly depress the plunger to the second (blowout) stop.
7. Press the tip ejector button to discard the used tip into an appropriate waste container.

Troubleshooting & FAQ

How do I select the right volume?
Use the 4-digit volume display and rotate the control button to set any volume between 0.5μL and 10μL. The display shows increments of 0.1μL for high precision.

Can this pipette be sterilized?
Yes. The tip core is designed to be disassembled for sterilization. It can be autoclaved at 121°C to ensure aseptic technique.

What if my accuracy seems off with a specific liquid?
This pipette includes a temporary adjustment feature for challenging liquids (e.g., those with high density or viscosity). Use the provided adjustment seals and tool to perform a quick recalibration as described in the operating manual.

OEM vs. Aftermarket?
This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

How fast do you ship and how much does it cost?
We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

What is your warranty and return policy?
This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
