This comprehensive service kit is designed specifically for Yamaha F150, F150A, and F150B four-stroke outboard engines manufactured between 2004–2005. It consolidates all essential maintenance components into one convenient package, ensuring your engine receives proper care during routine servicing intervals.

This aftermarket service kit directly replaces OEM part number 8M0222281, providing a cost-effective solution for scheduled maintenance without compromising on quality or performance.

• Includes oil filter, remote fuel filter, fuel filter, gaskets, and gear oil pump
• Designed for routine maintenance on Yamaha 4-stroke outboards
• All components meet OEM specifications for reliable fitment

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Yamaha owners, here's a guide to help you identify your engine's serial/model: Yamaha Serial Number Guide. You can also review exploded diagrams to verify part numbers: Yamaha Parts Diagrams & Catalog.

Technical Specifications

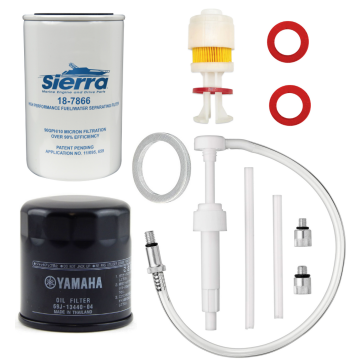

Package Contents

This service kit includes the following components for complete maintenance:

• Oil Filter – Part No. 69J-13440-00-00 View Part → (Quantity: 1)
• Remote Fuel Filter – Part No. MAR-10MEL-00-00 (Quantity: 1)
• Fuel Filter – Part No. 65L-24563-00 View Part → (Quantity: 1)
• Gasket – Part No. 90430-14M09-00 (Quantity: 1)
• Lower Unit Drain Gasket – Part No. 90430-08003-00 (Quantity: 2)
• Gear Oil Pump – Part No. 24OP149 (Quantity: 1)

Installation Guide

1. Prepare the engine: Ensure the outboard is turned off, cool to the touch, and properly supported. Gather all tools and components from the service kit.
2. Drain the lower unit: Remove the lower drain and vent plugs, allowing old gear oil to drain completely into a suitable container. Inspect drained oil for metal particles or water contamination.
3. Replace lower unit drain gaskets: Install new gaskets (90430-08003-00) on both drain and vent plugs. Tighten plugs to manufacturer specifications using the gear oil pump provided.
4. Refill lower unit: Using the included gear oil pump (24OP149), pump fresh gear oil into the drain hole until oil appears at the vent hole. Install vent plug first, then drain plug.
5. Replace the oil filter: Locate the oil filter housing and remove the old filter (69J-13440-00-00). Lubricate the gasket of the new filter with clean oil and hand-tighten into place.
6. Change engine oil: Drain old engine oil, replace drain plug gasket if needed, and refill with manufacturer-recommended oil to proper level.
7. Replace fuel filters: Remove the old remote fuel filter (MAR-10MEL-00-00) and fuel filter (65L-24563-00). Install new filters in their respective housings, ensuring proper flow direction.
8. Replace gasket: Install the new gasket (90430-14M09-00) in its designated location per your engine's service manual.
9. Prime the fuel system: Pump the primer bulb until firm to remove air from fuel lines. Check all filter connections for leaks.
10. Start and inspect: Run the engine at idle for several minutes. Monitor for unusual noises, vibrations, or leaks around all service points.
11. Check fluid levels: After running, recheck oil and lower unit levels. Top off if necessary and inspect for any seepage.
12. Document service: Record the date, engine hours, and components replaced in your maintenance log for future reference.

Troubleshooting & FAQ

Q: How do I confirm this service kit fits my specific engine?
A: Verify your engine model is F150, F150A, or F150B manufactured between 2004–2005. Cross-reference the OEM part number 8M0222281 with your service manual or use the Yamaha serial number guide linked above to confirm compatibility.

Q: How often should I perform this service on my Yamaha outboard?
A: Yamaha recommends servicing every 100 hours of operation or annually, whichever comes first. More frequent service may be required in harsh conditions (saltwater, heavy use, prolonged idling).

Q: What's the difference between this kit and the OEM version?
A: This is an aftermarket replacement built to OEM specifications using comparable materials. All components are manufactured in ISO9002-certified facilities and meet dimensional and performance standards, offering excellent value without compromising reliability.

Q: Can I install this service kit myself or do I need a professional?
A: Mechanically inclined owners with basic tools can perform this service following the installation guide and engine manual. However, professional installation is recommended if you're unfamiliar with outboard maintenance to ensure proper torque specifications and system integrity.

Q: What are signs that my engine needs this service kit?
A: Common indicators include difficulty starting, rough idling, reduced power, excessive smoke, fuel smell, milky gear oil (water contamination), or reaching the recommended service interval. Regular maintenance prevents costly repairs.

Q: Is this an OEM part or aftermarket?
A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?
A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?
A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
