Exhaust Elbow 3884701 – Stainless – Fits Volvo Penta D4
- $258.50
- $258.50
- Unit price
- per
Couldn't load pickup availability
Free Shipping
Free standard shipping on all orders under 1 KG
Worry-Free Returns
How to Match This Part
This aftermarket exhaust elbow replaces Volvo Penta reference 3884701. It routes and cools exhaust on compatible Volvo Penta D4-series marine diesels.
Match this part in this order:
1. Original part number on the elbow or parts list (3884701)
2. Engine model on the engine identification plate
3. Physical form against the product images

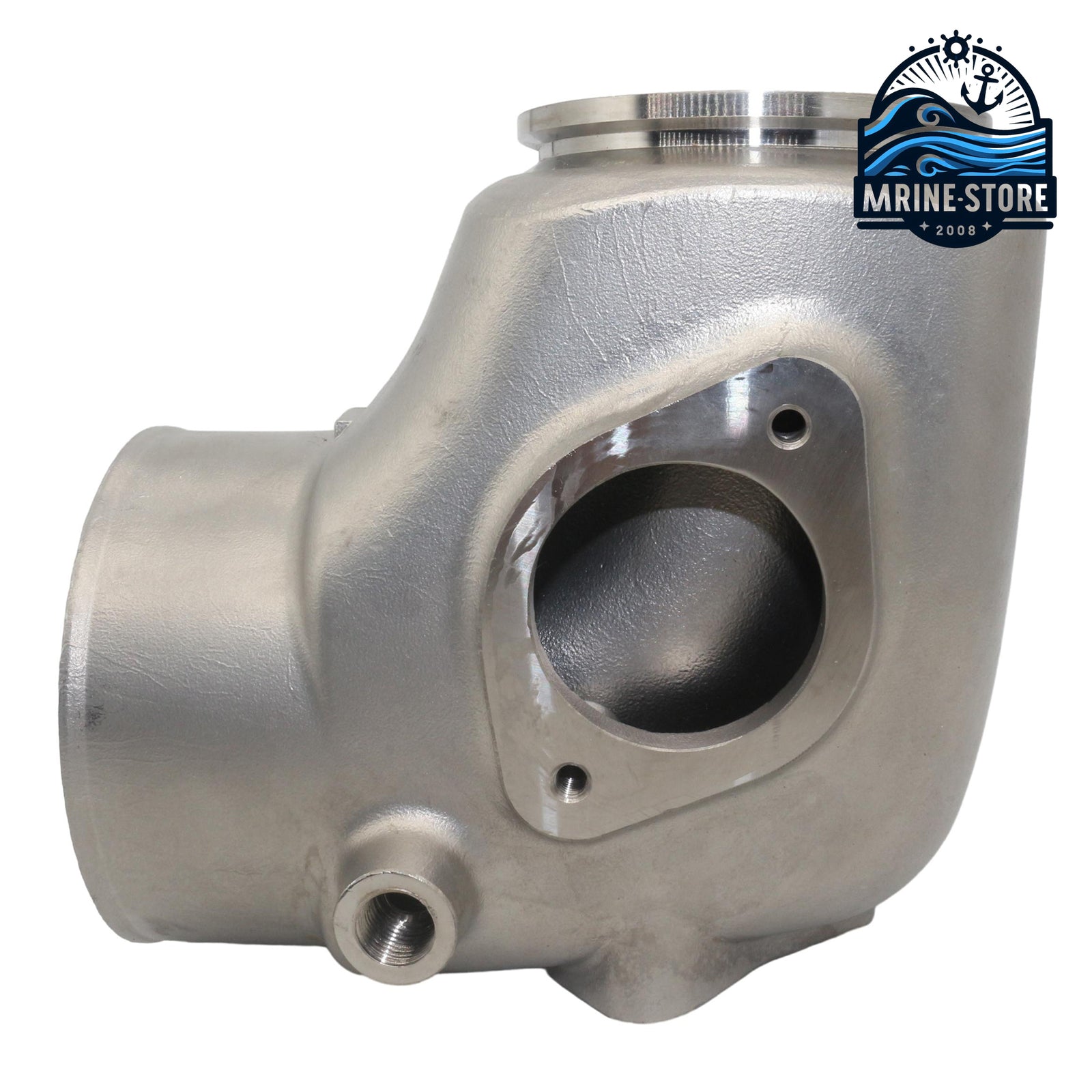

Confirm an approximately 90° cast elbow with a side-integrated 2-hole diamond flange, a small threaded auxiliary port on the body, a smooth circular opening at one end, and a stepped circular hose/clamp end at the other. See the product images before ordering.
Compatible Engine Models
Confirm your engine model in the table below. Match the original part number and the physical shape to the product images. On Volvo Penta inboards, the model and serial identification are typically on the engine block or flywheel housing.
| Brand | Engine Model |
|---|---|
| Volvo Penta | D4-180 |
| Volvo Penta | D4-210 |
| Volvo Penta | D4-225 |
| Volvo Penta | D4-260 |
| Volvo Penta | D4-300 |
Technical Specifications
| Specification | Value |
|---|---|
| Product type | Exhaust elbow |
| Material | Stainless steel |
| Bend | Approximately 90° |
| Mounting flange | Side-integrated 2-hole diamond flange |
| Auxiliary port | Small threaded port on elbow body |
| Outlet / hose end | Stepped circular end |
Installation Guide
Allow the engine to cool completely and disconnect the battery before working on the exhaust system.
Support the exhaust hose and any coolant connections, then unbolt and remove the old elbow. Protect the mating face from damage.
Clean the flange face and compare the new elbow’s 2-hole diamond flange, threaded auxiliary port, and stepped circular end to the removed part and the product images.
Install with the gasket and fasteners specified in your Volvo Penta parts list or service manual. Tighten evenly to the manual’s torque values.
Reconnect hoses and any auxiliary fittings, secure clamps, and check for exhaust or coolant leaks at idle before returning to service.
Note: Follow the Volvo Penta service manual for torque and gasket requirements. Professional installation is recommended.
