3854084 Ignition Coil Harness for Volvo Penta 3.0L 4.3L 5.0L 5.7L 7.4L | JLM Marine

Ignition Coil Harness for Volvo Penta 3.0L 4.3L 5.0L 5.7L 7.4L Marine Engines

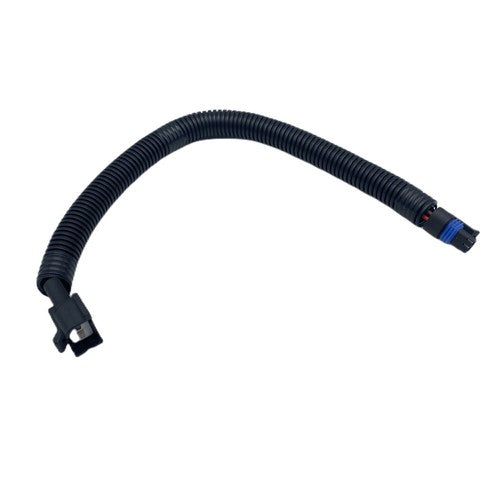

This Ignition Coil Harness is designed for Volvo Penta marine sterndrive engines ranging from 3.0L to 7.4L, including V6 and V8 configurations. Engineered to restore reliable ignition performance, this harness ensures proper electrical connection between the distributor and ignition coils for consistent engine operation.

Direct replacement for Volvo Penta OEM part numbers 3854084 and 3850279. This aftermarket component is built to meet OEM specifications, providing dependable service for your marine engine at a competitive price point.

• Compatible with Volvo Penta 181 CID (3.0L), 262 CID V6 (4.3L), V8 5.0L/5.7L small block, and GM V8 7.4L/8.2L big block engines
• Replaces worn or damaged ignition coil harnesses to restore proper ignition function
• Includes complete harness assembly for straightforward installation

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below.

Technical Specifications

Package Contents

Your purchase includes:

• 1 × Ignition Coil Harness

Installation Guide

1. Disconnect the battery: Always disconnect the negative battery terminal before working on any ignition system components to prevent electrical shock or short circuits.
2. Locate the ignition coil harness: Identify the existing harness running from the distributor to the ignition coils on your Volvo Penta engine.
3. Disconnect the old harness: Carefully unplug all connectors from the distributor and ignition coils. Note the routing and connection points for reference.
4. Remove the old harness: Unfasten any clips or ties securing the harness to the engine block or firewall and remove it completely.
5. Route the new harness: Position the new ignition coil harness along the same path as the original, ensuring it does not contact hot surfaces or moving parts.
6. Connect to the distributor: Plug the harness connector firmly into the distributor port until it clicks into place.
7. Connect to ignition coils: Attach each coil connector to the corresponding ignition coil terminals, ensuring a secure fit on each connection.
8. Secure the harness: Use cable ties or the original clips to fasten the harness away from exhaust manifolds, belts, and pulleys.
9. Inspect all connections: Double-check that every connector is fully seated and that the harness is properly routed without strain or kinks.
10. Reconnect the battery: Reattach the negative battery terminal.
11. Test the ignition system: Start the engine and verify smooth operation with no misfires or warning lights. Listen for unusual sounds that might indicate poor connections.
12. Perform a final check: After the engine reaches operating temperature, shut it down and inspect all connections for signs of overheating or looseness.

Troubleshooting & FAQ

Q: How do I confirm this harness fits my Volvo Penta engine?
A: Check the Compatible Engine Models table above to verify your engine displacement (3.0L, 4.3L, 5.0L, 5.7L, 7.4L, or 8.2L) and configuration (V6 or V8). Cross-reference your existing harness part number with OEM numbers 3854084 or 3850279 to ensure compatibility.

Q: What are the signs that my ignition coil harness needs replacement?
A: Common symptoms include engine misfires, rough idling, difficulty starting, or intermittent loss of power. Visible damage such as cracked insulation, melted wires, corroded connectors, or carbon tracking on the harness also indicate the need for replacement.

Q: Can I install this harness myself or do I need a marine technician?
A: If you have basic mechanical skills and follow the installation steps carefully, you can install this harness yourself. However, professional installation is recommended to ensure all electrical connections are secure and properly routed, especially if you are unfamiliar with marine ignition systems.

Q: Will this aftermarket harness perform the same as the original Volvo Penta part?
A: Yes. This aftermarket harness is manufactured to OEM specifications using quality materials that match or exceed original equipment standards. It provides reliable ignition performance at a more competitive price point than OEM parts.

Q: How often should I inspect or replace the ignition coil harness?
A: Inspect the harness during routine engine maintenance or whenever you service the ignition system. Replace it immediately if you notice any physical damage, corrosion, or if you experience ignition-related performance issues. In harsh marine environments, more frequent inspections are advisable.

Q: Is this an OEM part or an aftermarket replacement?
A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?
A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?
A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
