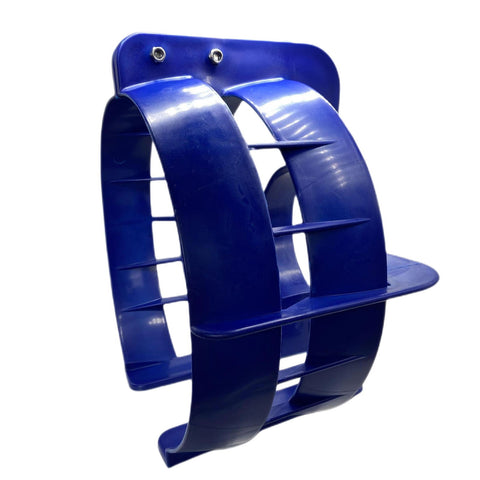

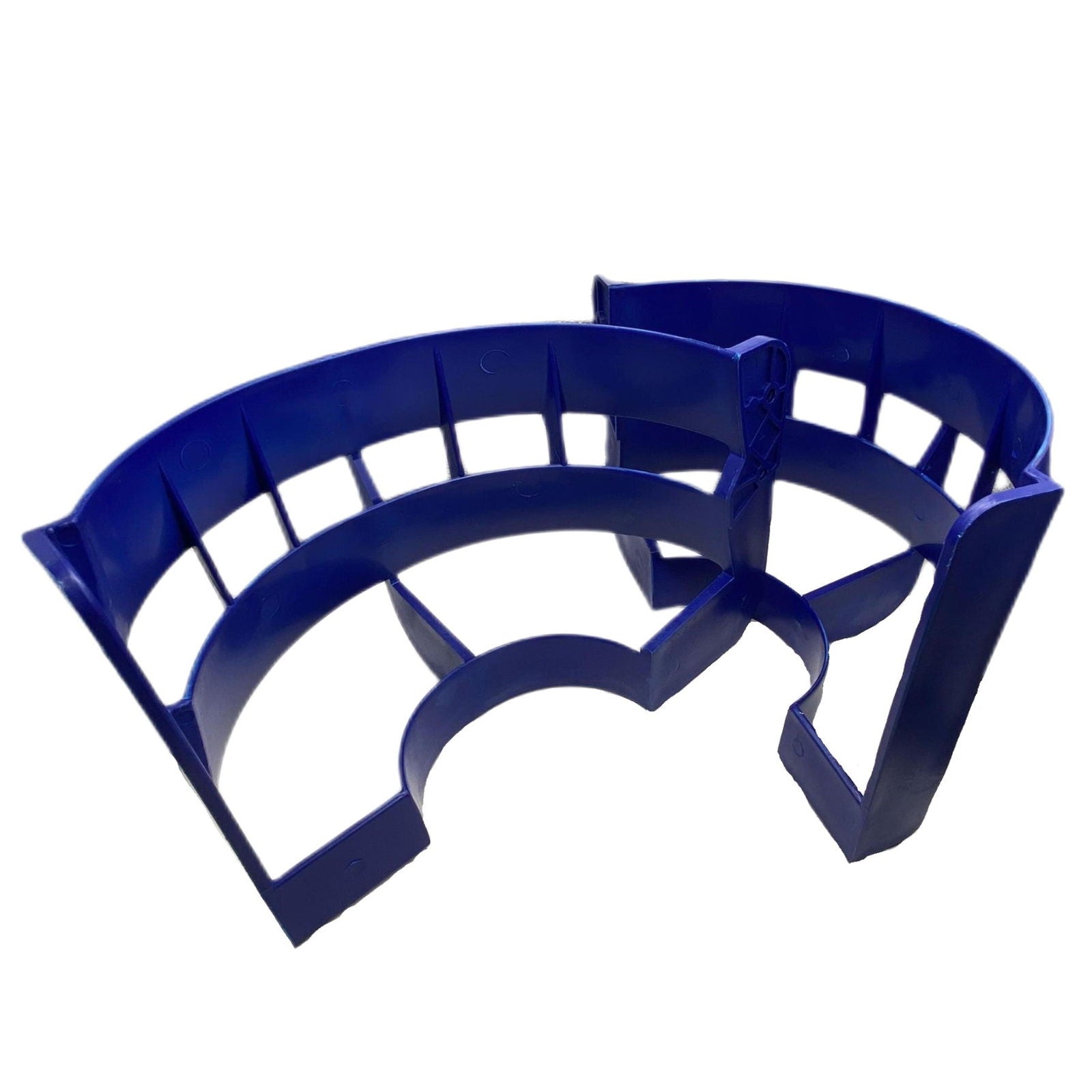

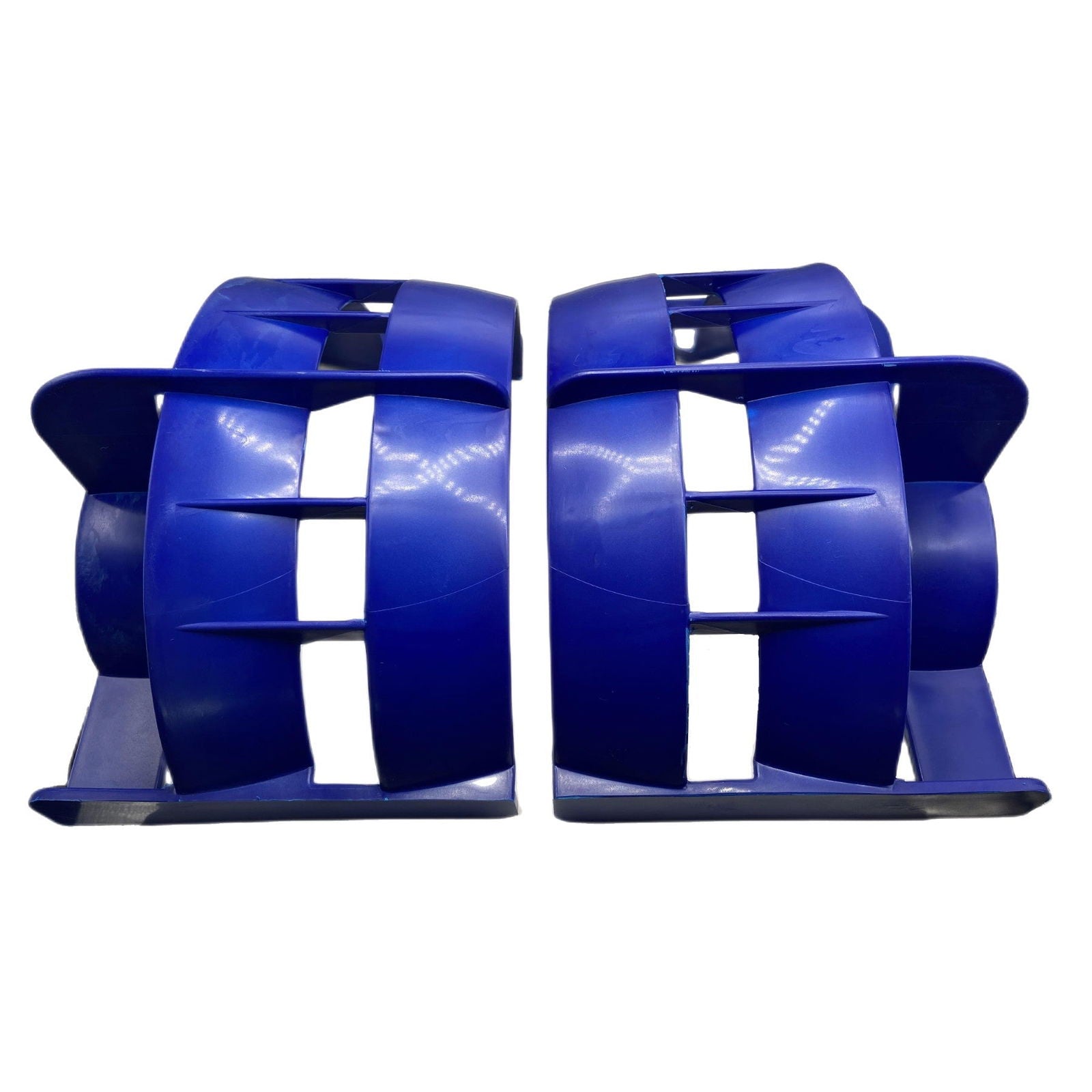

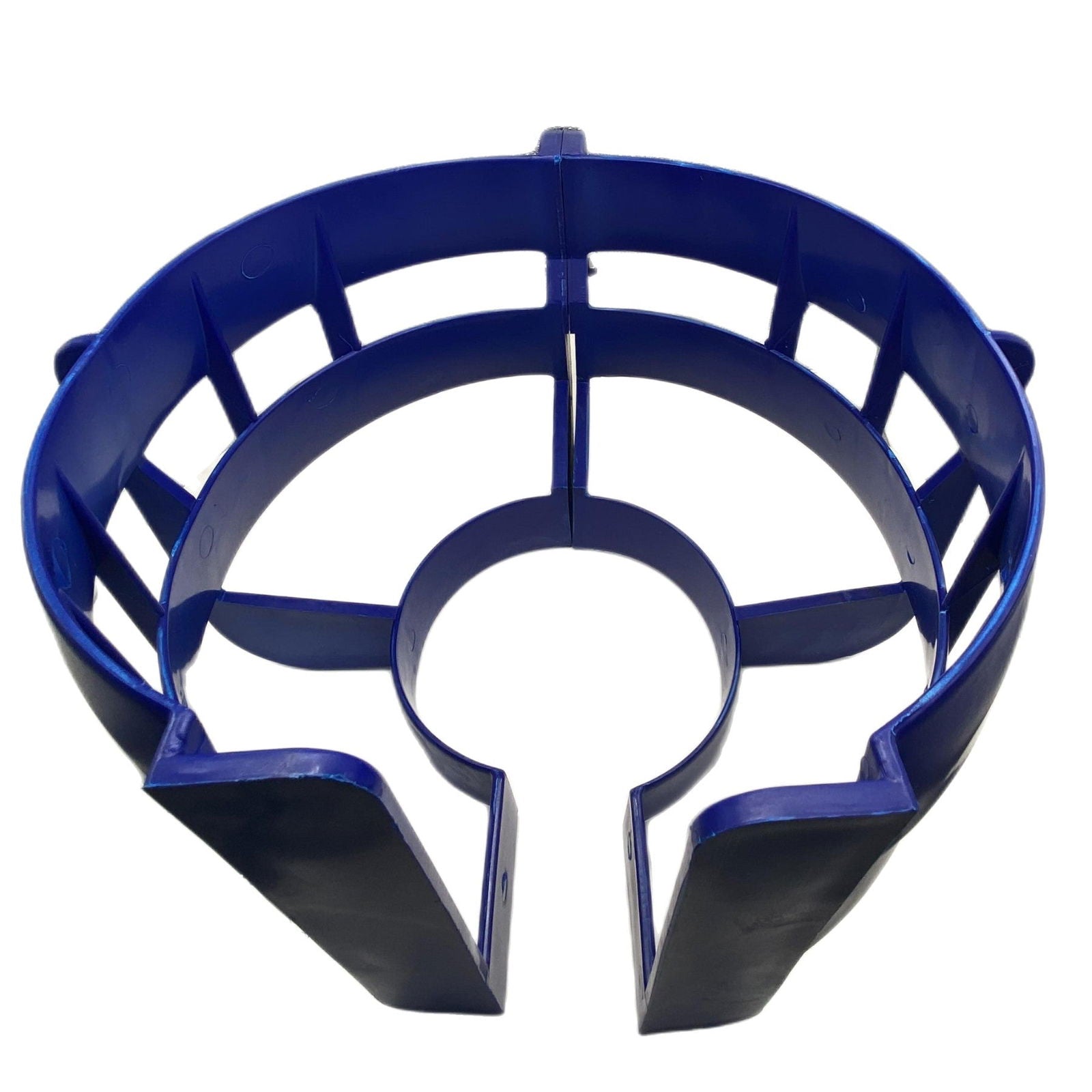

13" Propeller Safety Guard – Fits 40-65 HP Outboard Motors (Blue)

This aftermarket propeller safety guard is designed for universal fitment on most outboard motors in the 40 to 65 HP range. It is compatible with major brands including Mercury, Yamaha, Honda, Suzuki, and Johnson/Evinrude, providing essential protection for the propeller, swimmers, and marine life.

This is a universal aftermarket accessory and does not directly replace any OEM part number.

  • Installs securely by bolting to the outboard's cavitation plate and skeg.
  • Constructed from high-strength, durable polypropylene for impact resistance.
  • Complete installation kit includes mounting bolts, washers, nuts, and a drill bit.

Compatible Engine Models

Confirm your engine model/year in the table below. For Mercury owners, here’s a guide to help you identify your engine’s serial/model: Mercury Serial Number Guide. You can also review exploded diagrams to verify part numbers: Mercury Parts Diagrams & Catalog.

Confirm your engine model/year in the table below. For Yamaha owners, here’s a guide to help you identify your engine’s serial/model: Yamaha Serial Number Guide. You can also review exploded diagrams to verify part numbers: Yamaha Parts Diagrams & Catalog.

Confirm your engine model/year in the table below.

Confirm your engine model/year in the table below. For Suzuki owners, You can review exploded diagrams here to verify part numbers: Suzuki Parts Diagrams & Catalog.

Confirm your engine model/year in the table below. For Johnson/Evinrude owners, here’s a guide to help you identify your engine’s serial/model: Johnson Serial Number Guide.

Brand Model Rated HP Stroke Notes
Mercury 40-65 HP Outboards 40-65 2- & 4-Stroke Not for Big Foot/High Thrust models
Brand Model Rated HP Stroke Notes
Yamaha 40-65 HP Outboards 40-65 2- & 4-Stroke Not for High Thrust models
Brand Model Rated HP Stroke Notes
Honda 40-65 HP Outboards 40-65 4-Stroke Not for High Thrust models
Brand Model Rated HP Stroke Notes
Suzuki 40-65 HP Outboards 40-65 2- & 4-Stroke Not for High Thrust models
Brand Model Rated HP Stroke Notes
Johnson/Evinrude 40-65 HP Outboards 40-65 2- & 4-Stroke Not for High Thrust models

Technical Specifications

Specification Value
Product Type Propeller Safety Guard
Installation Bolts to cavitation plate and skeg using included hardware
Material High-strength polypropylene
Color Safety Blue
Maximum Propeller Size 10.5" diameter (12.5" with proper clearance)
Maximum Motor HP 65 HP (not recommended for Big Foot/High Thrust models)
Maximum Speed 25 mph (not warranted for higher speeds)
Installation Time Approximately 30 minutes
Included Hardware 6-9 sets of mounting bolts, washers, and nuts

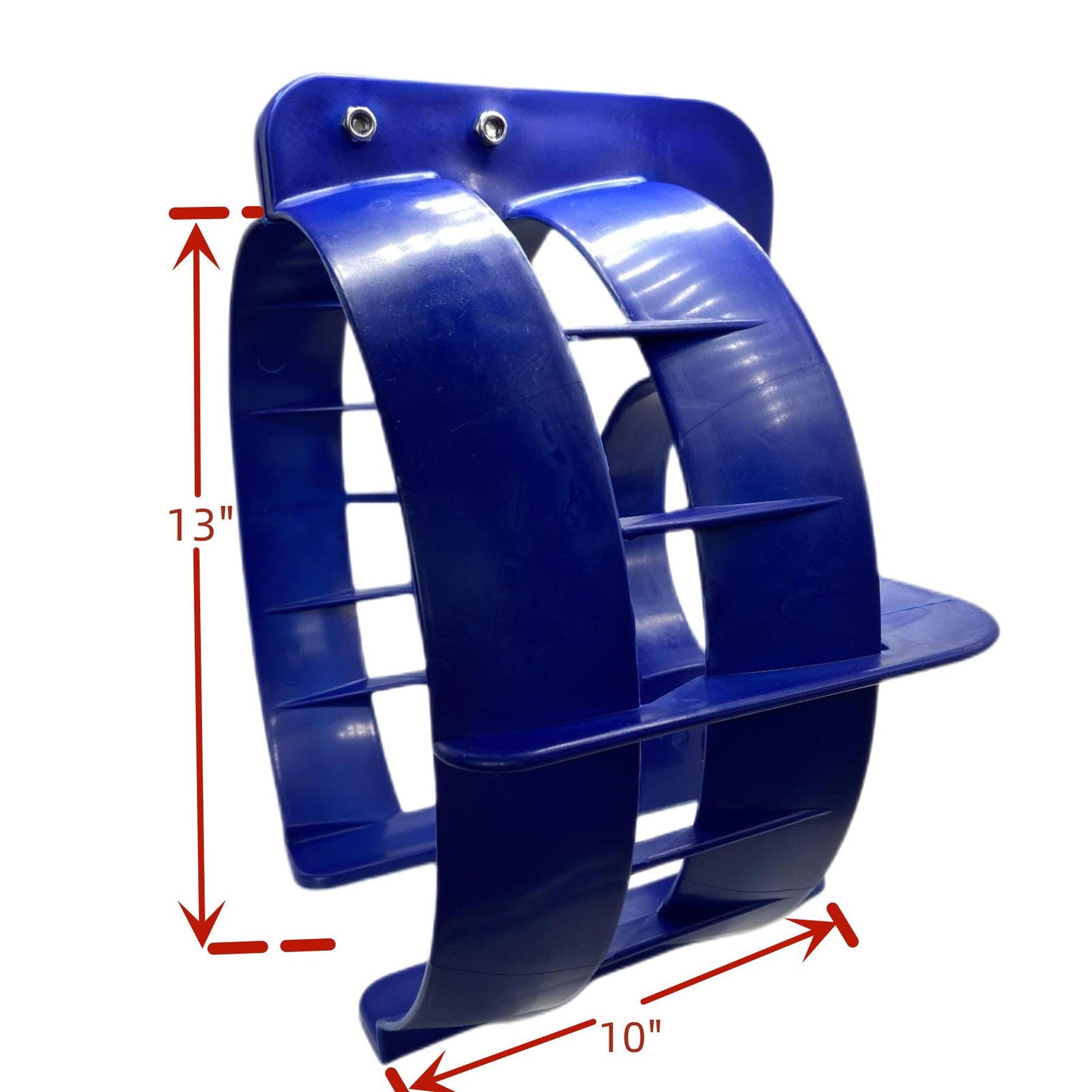

Dimensions 13" diameter
Weight 2.699 kg (5.95 lbs)

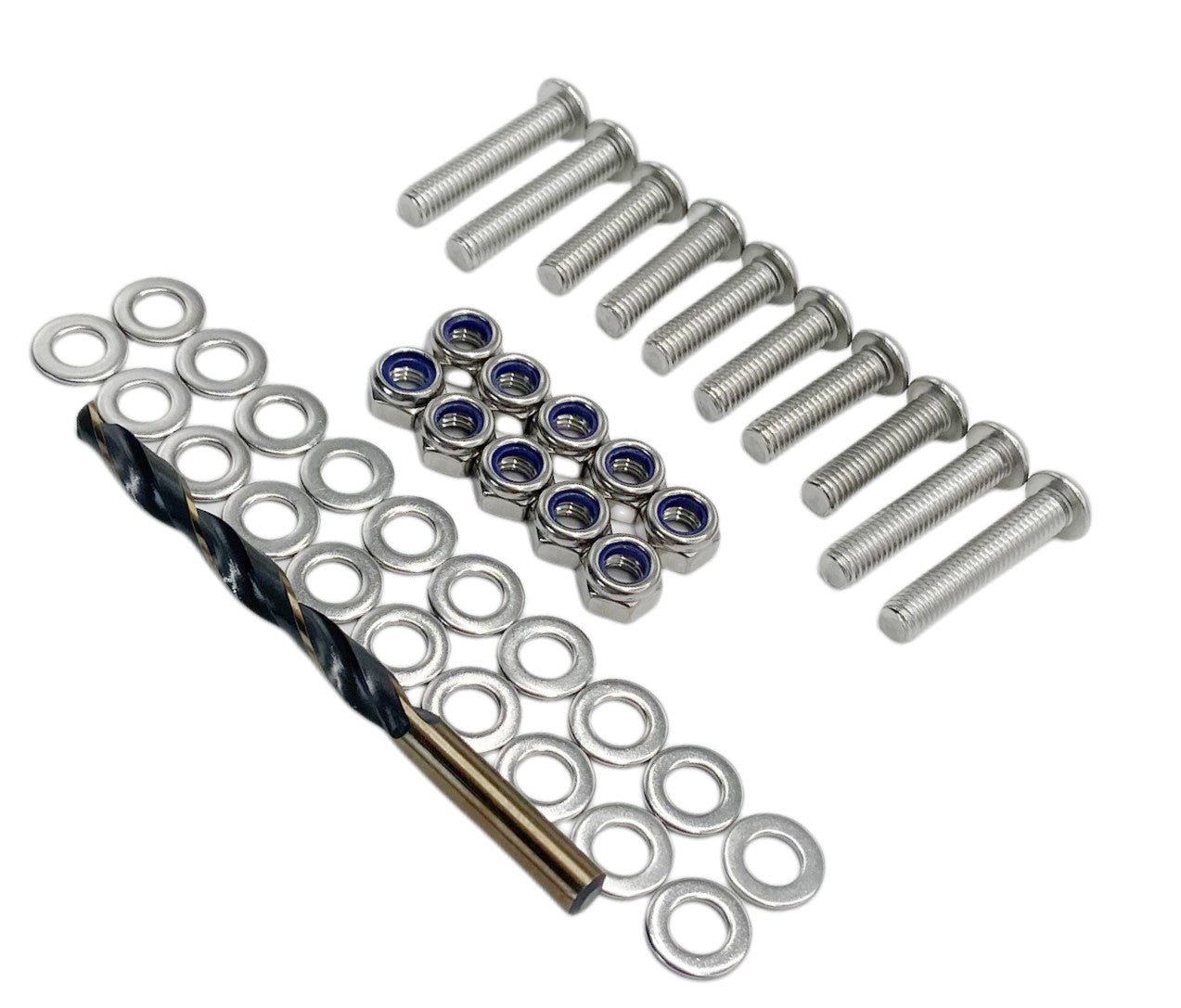

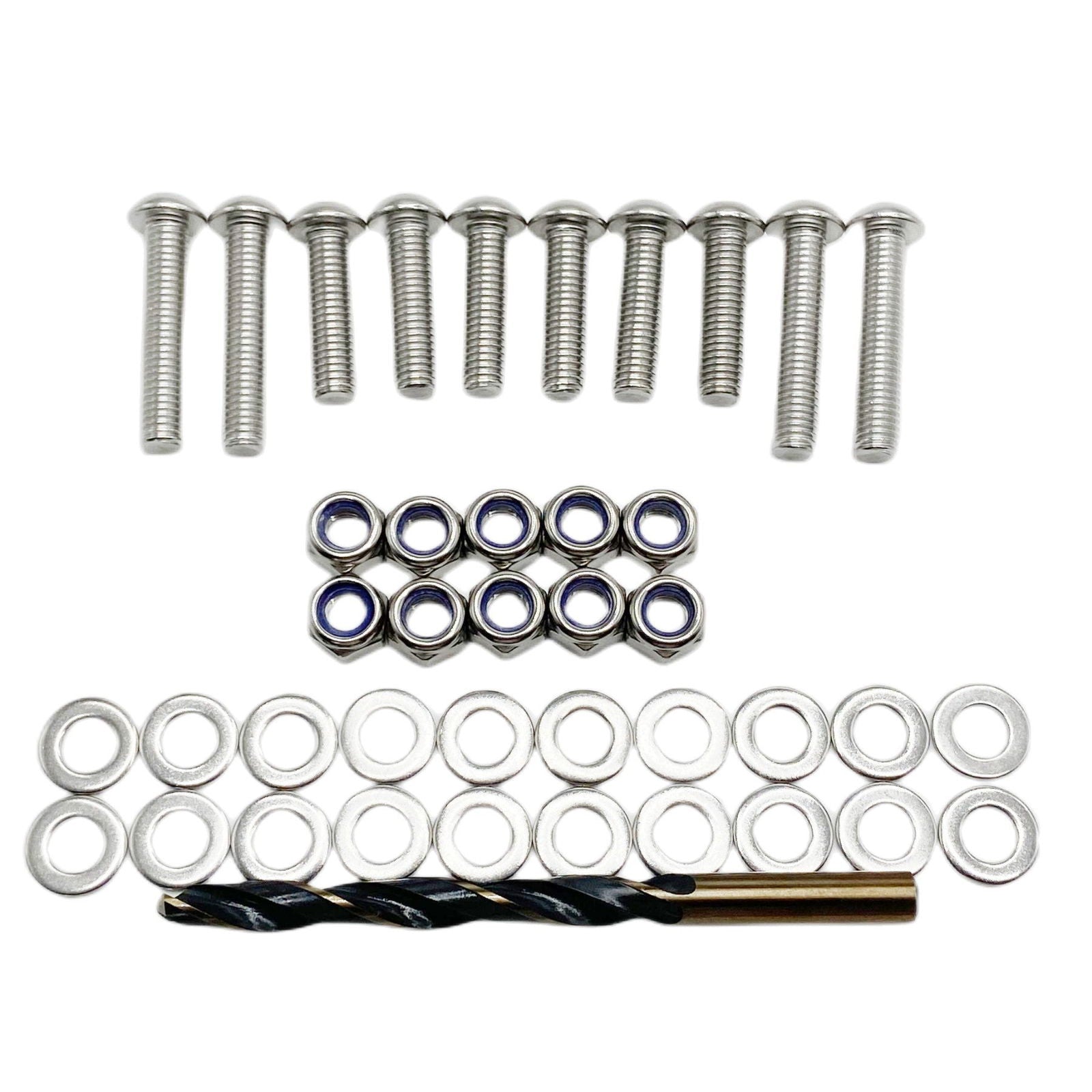

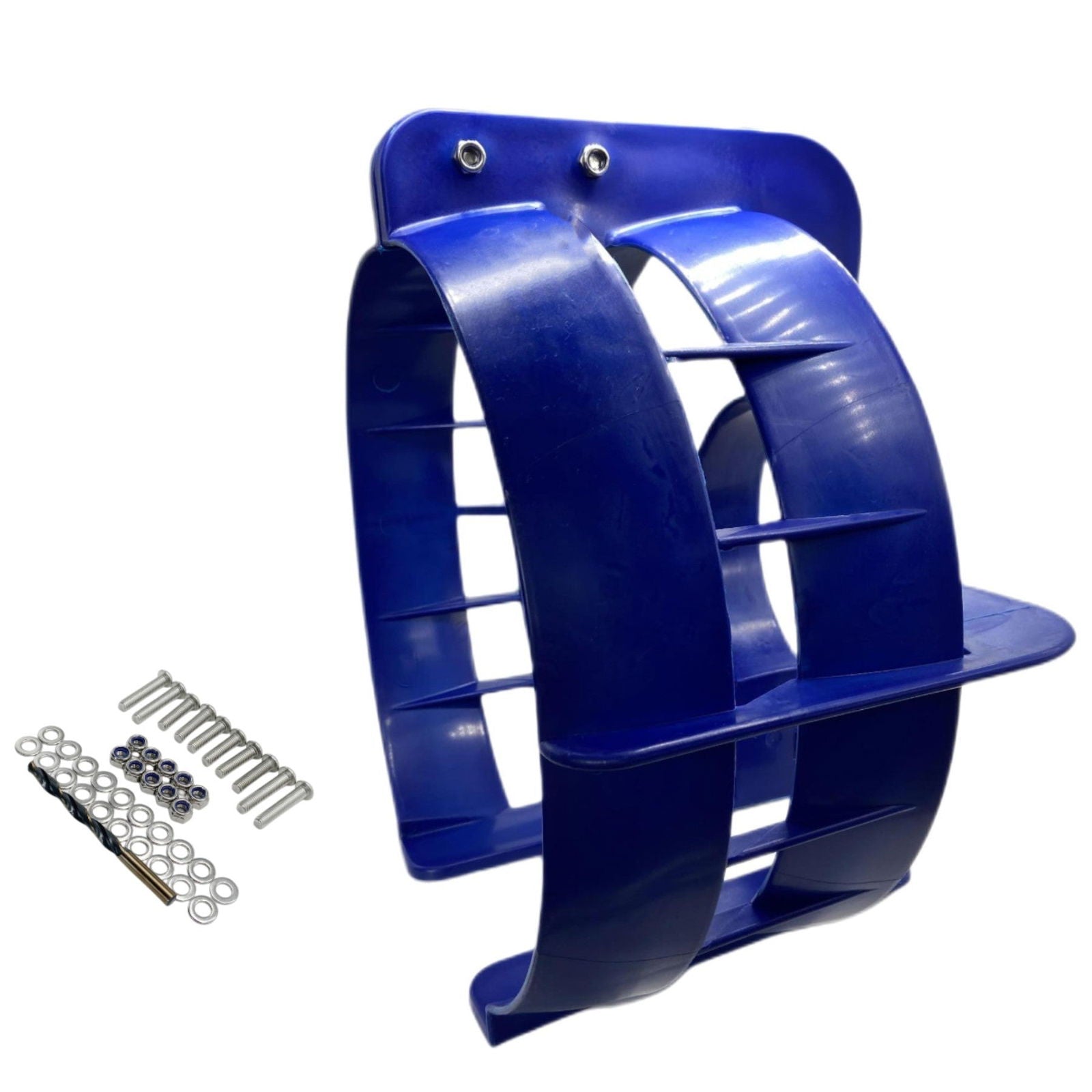

Package Contents

  • 1 x Propeller Safety Guard (Blue, 13")
  • 6-9 x Sets of mounting bolts, washers, and nuts
  • 1 x Drill bit (5/16" or 1/3")

Installation Guide

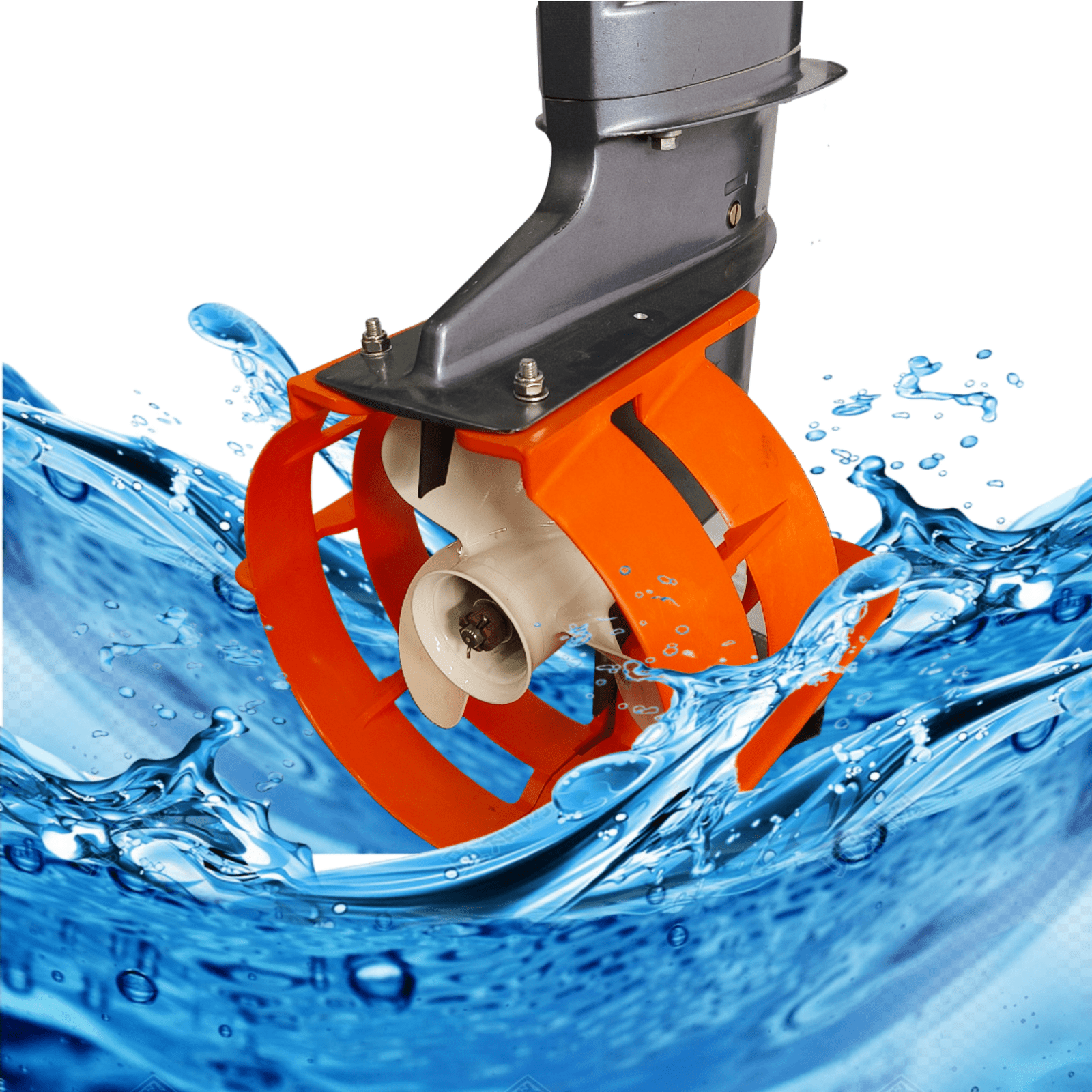

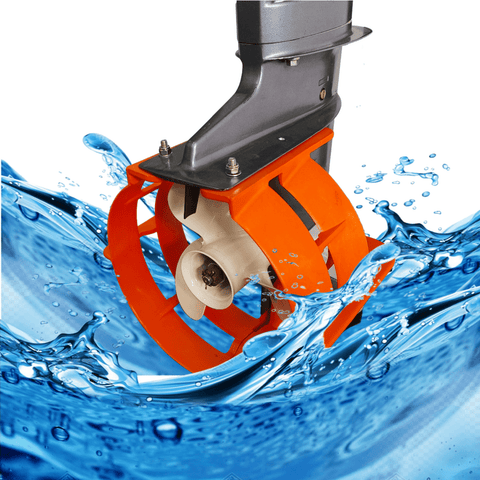

This guard attaches to the outboard motor's cavitation plate and skeg. It is designed for motors where the measurement from the prop shaft to the underside of the cavitation plate is 6.5" to 7.5". Installation requires drilling.

  1. Position the guard on the underside of the cavitation plate, ensuring there is equal distance between the guard and the propeller blades.
  2. Position the guard as far forward on the cavitation plate as possible for optimal protection and performance.
  3. If your motor has a trim tab located under the cavitation plate, it must be removed before installing the guard.
  4. Drill 6 holes through the cavitation plate and the guard on each side.
  5. Insert the provided bolts, washers, and nuts, and only loosely tighten them at this stage.
  6. Drill one final hole through the lower skeg, insert the corresponding bolt, washer, and nut, and tighten it securely.
  7. Once the skeg bolt is secure, proceed to tighten all the cavitation plate bolts evenly.

Troubleshooting & FAQ

Q: How do I know if this guard will fit my specific motor model?

A: This guard is a universal fit for most 40-65 HP outboards. The key is to ensure your motor does not have a "Big Foot" or "High Thrust" lower unit, your propeller is no larger than 10.5" in diameter, and the distance from the prop shaft to the cavitation plate is between 6.5" and 7.5". Always measure before ordering.

Q: What is the maximum speed I can go with this guard installed?

A: The guard is designed for speeds up to 25 mph. It is not warranted for use at higher speeds, as this can put excessive stress on the guard and the motor's lower unit.

Q: Does this guard affect my boat's performance?

A: Like any propeller guard, it can introduce slight changes in handling, acceleration, or top speed due to increased drag. However, it is designed to minimize these effects while providing crucial safety protection.

Q: OEM vs. Aftermarket?

A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?

A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?

A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

  • Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
  • This product is an aftermarket replacement part and is not an OEM component.
  • Professional installation is recommended to ensure safety and optimal performance.
