Exhaust Mixing Elbow 128890-13530 – Fits Yanmar 2YM15 3YM20 3YM30

Exhaust Mixing Elbow 128890-13530 – Fits Yanmar 2YM15 3YM20 3YM30

$162.80
Description

How to Match This Part

This aftermarket exhaust mixing elbow replaces Yanmar Marine reference 128890-13530. It mixes raw cooling water into the exhaust stream and routes the mixture away from compatible Yanmar YM-series marine diesels.

Match this part in this order:
1. Original part number on the elbow or parts list (128890-13530 or superseded 128397-13530)
2. Engine model on the engine identification plate
3. Physical form and hose sizes against the product images and your existing hoses

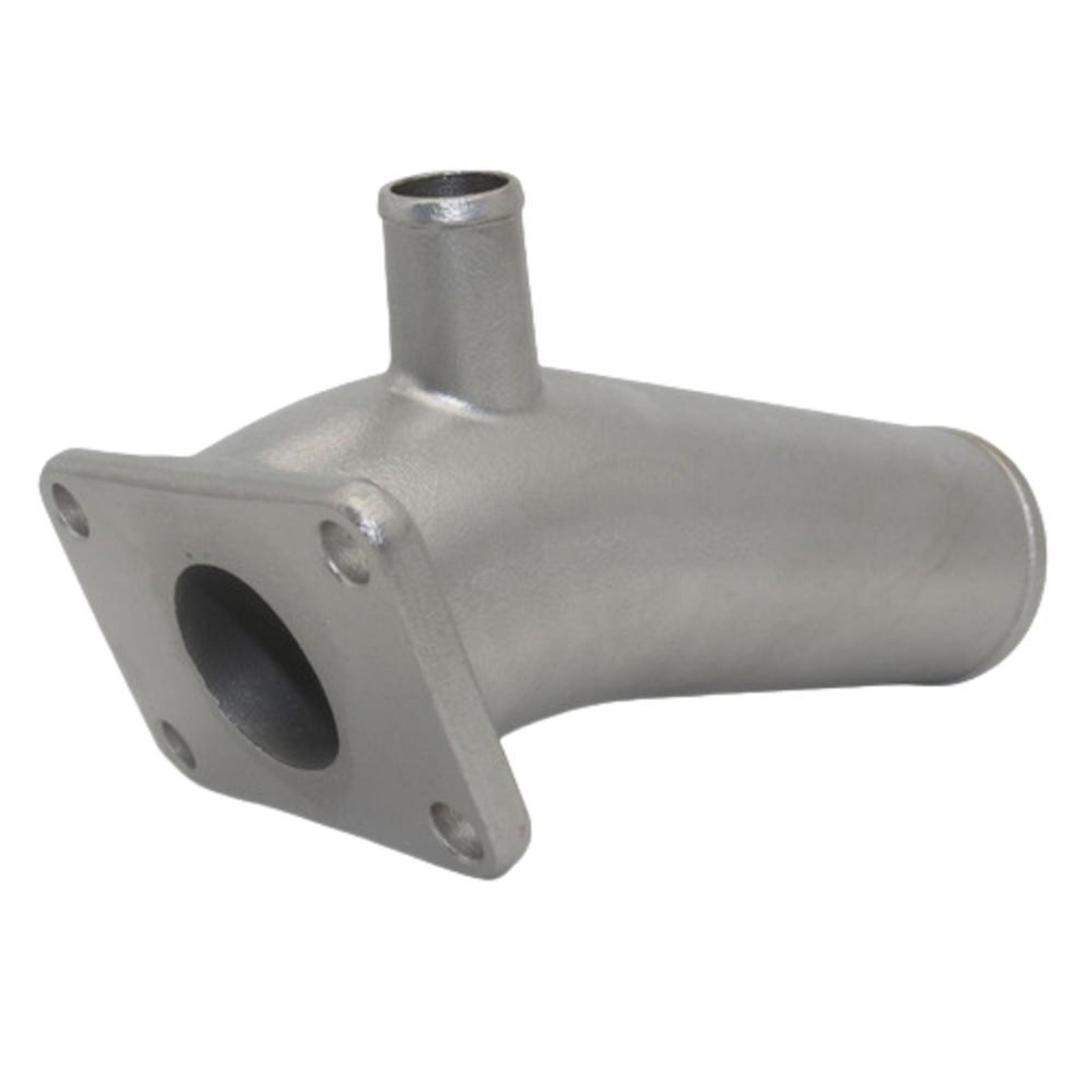

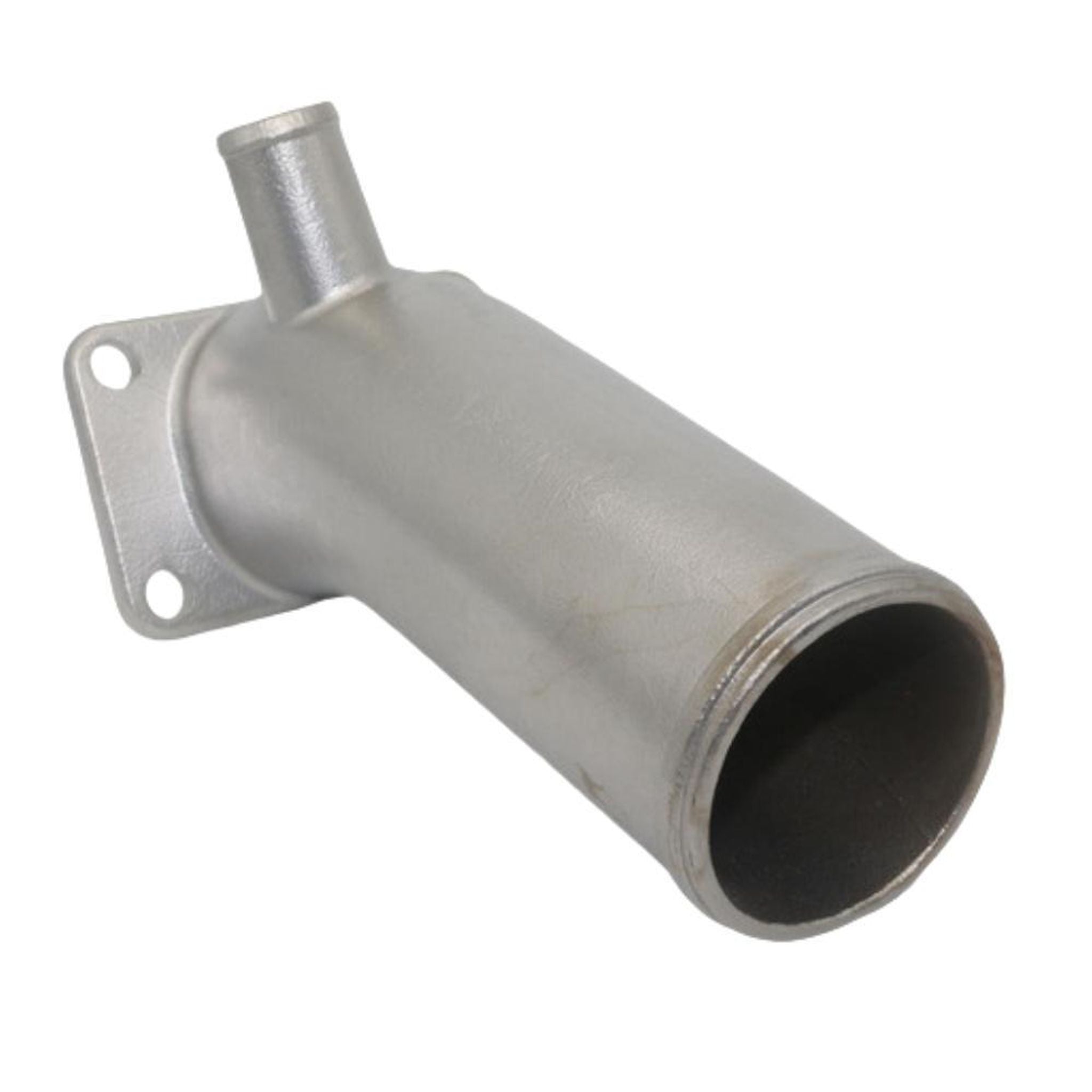

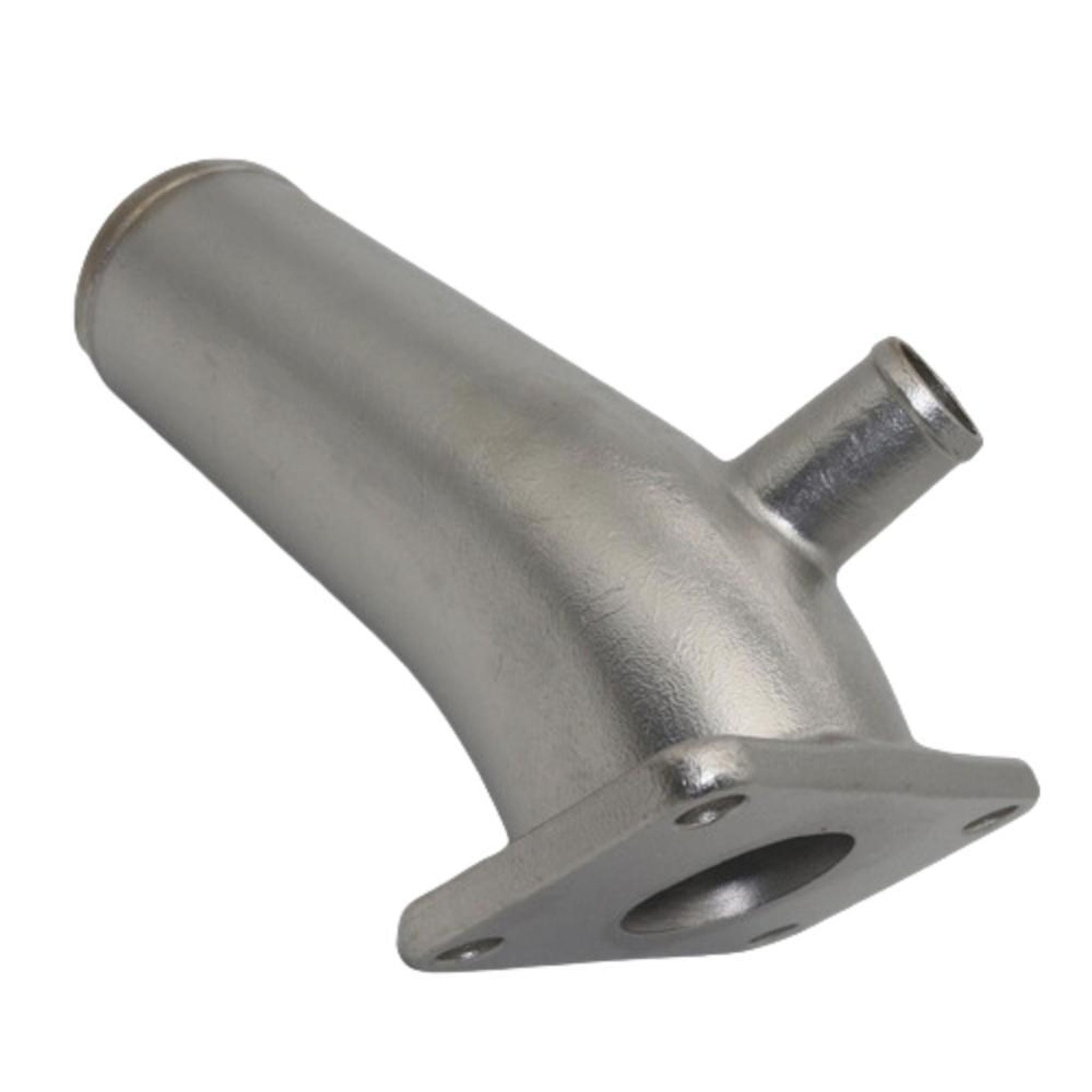

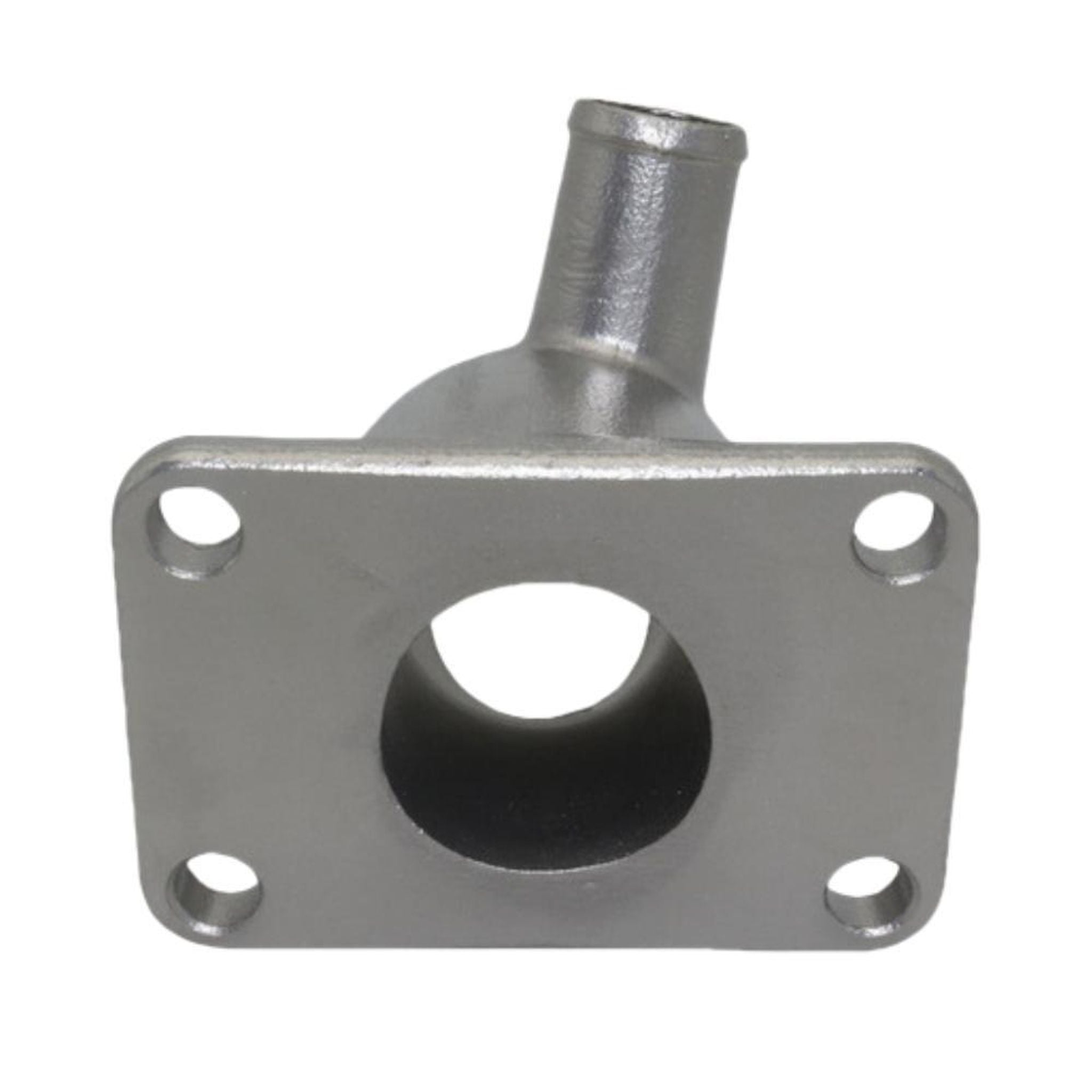

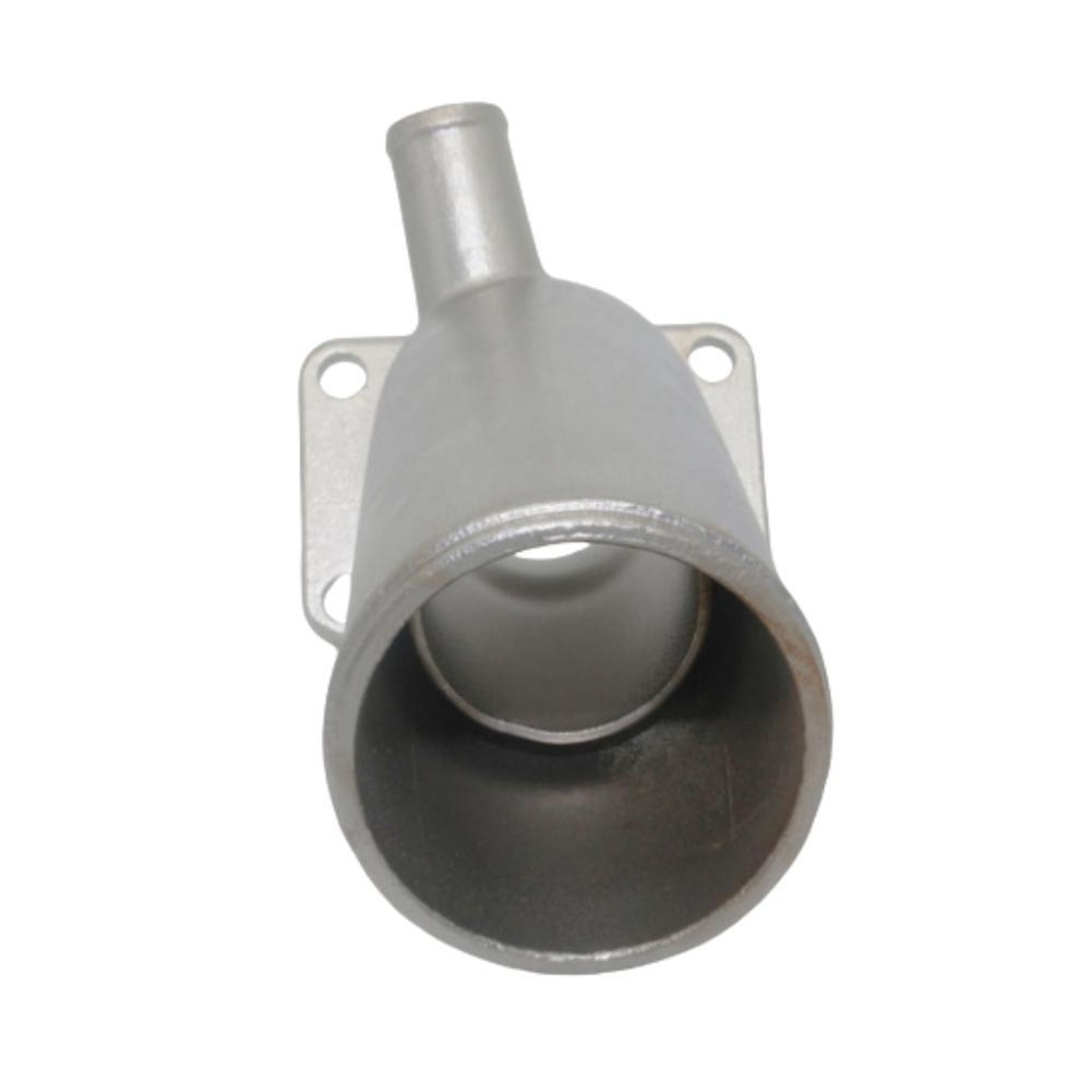

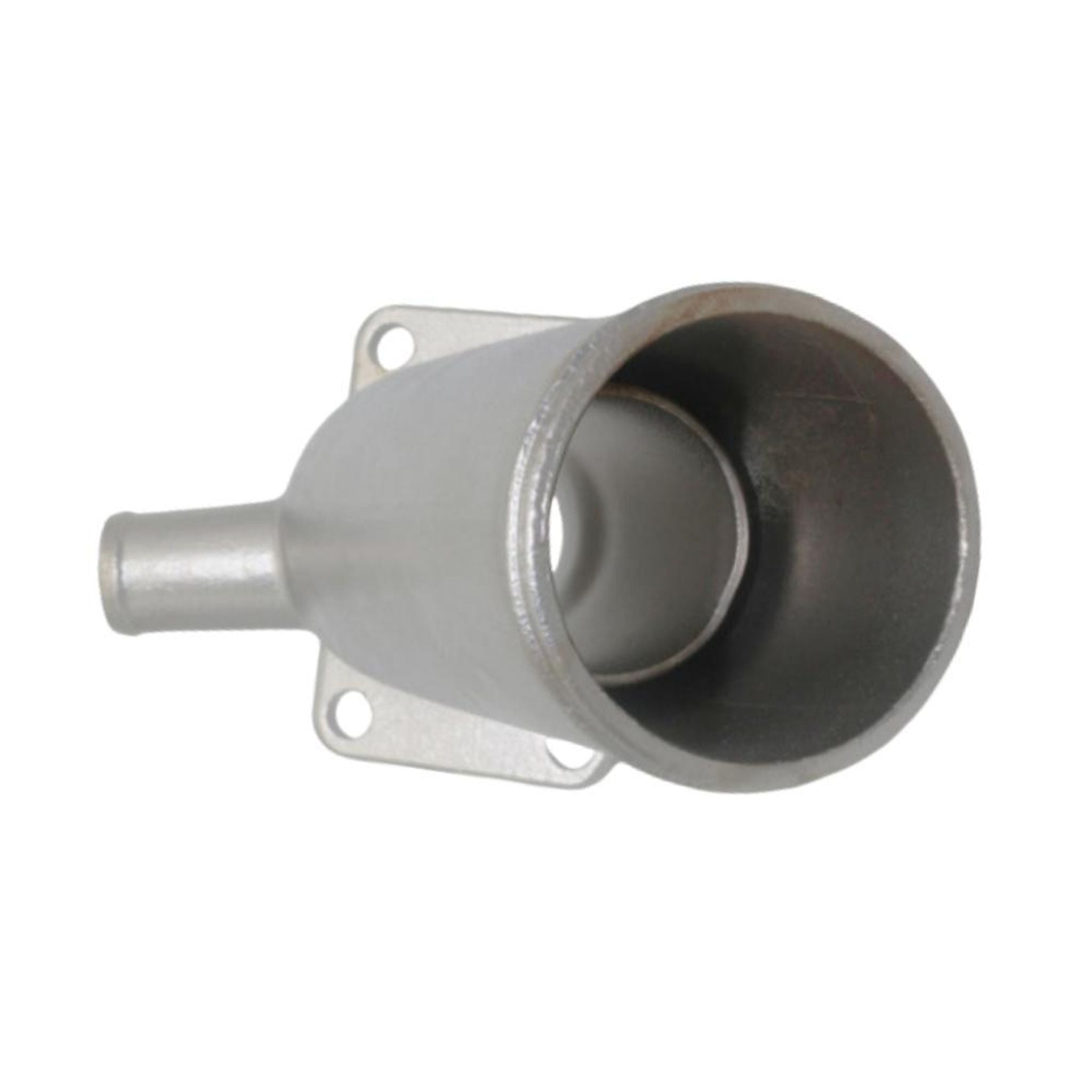

Confirm a square 4-bolt flange, a straight main tube with a vertical water-injection port near the flange, an 11/16" (17 mm) water inlet, and a 2" (50 mm) exhaust outlet before ordering. See the product images for flange orientation and port location.

Part Number Cross-Reference

Use this table to confirm equivalent Yanmar mixing-elbow references for this application.

Reference Type Brand Part Number Notes
Primary OEM Reference Yanmar 128890-13530 Current mixing elbow reference
Supersession Yanmar 128397-13530 Prior elbow; replaced by 128890-13530

Compatible Engine Models

Confirm your engine model and year in the table below. Match the original part number and the physical shape to the product images. Find the model code on the engine identification plate.

Brand Engine Model
Yanmar Marine 2YM15
Yanmar Marine 3YM20
Yanmar Marine 3YM30

Some YM engines changed mixing-elbow hose size by serial range. Verify your water-injection hose ID matches the 11/16" (17 mm) inlet on this unit before purchase.

Technical Specifications

Specification Value
Product type Exhaust mixing elbow
Material Stainless steel
Mounting flange Square 4-bolt flange
Water inlet 11/16" (17 mm) vertical injection port
Exhaust outlet 2" (50 mm)
Form Straight tube with flange-end water port

Installation Guide

1

Allow the engine to cool completely and disconnect the battery before starting work.

2

Compare the new elbow to the original for square 4-bolt flange layout, vertical water-port location, and hose diameters before removing the old part.

3

Remove the old elbow, clean the manifold mating face, and install a suitable exhaust gasket and fasteners as specified in the engine service manual (gasket commonly referenced as Yanmar 128370-13201 or equivalent).

4

Seat the new elbow on the flange, tighten fasteners evenly to the manufacturer’s torque values, then reconnect the water inlet hose and 2" exhaust hose with secure clamps.

5

Reconnect the battery, start the engine, and check for water or exhaust leaks at the flange and hose joints before returning the vessel to service.

Note: Follow the Yanmar service manual for torque and gasket requirements. Professional installation is recommended.

Troubleshooting & FAQ

Is this an OEM or aftermarket part? +

This is an aftermarket replacement manufactured for the Yanmar 128890-13530 application. It is not a genuine Yanmar OEM part.

Does a gasket come with this elbow? +

Do not assume a mounting gasket is included. Plan to use the gasket called out in your engine parts list (commonly Yanmar 128370-13201 or equivalent) unless your order confirmation states otherwise.

My water hose looks larger than 11/16"—will this fit? +

This listing is built around an 11/16" (17 mm) water inlet. If your engine uses a larger injection hose (often about 22 mm on some later YM installations), do not force-fit this elbow—confirm hose ID and OEM number first.

Is my 3GM30 or 3GM30F covered? +

Only the engine models in the compatibility table above are confirmed for this listing. GM-series engines often use a different mixing-elbow reference. Match the original OEM number, flange layout, and water-inlet size before purchasing.

Important Notes

  • A wrong water-inlet size can leak, overheat, or allow seawater into the exhaust path—always verify hose ID and OEM number.
  • This unit uses a square 4-bolt flange and a straight-tube form; do not confuse it with triangular 3-bolt Yanmar elbows used on other series.
