Water in Fuel Sensor 3808616 – Volvo Penta D3/D4/D6 Diesel

Vendor: JLM Marine
Availability: In Stock
Product Type: Sensor
$56.99
$56.99
Subtotal: $56.99

Envío gratis

Envío estándar gratuito en todos los pedidos inferiores a 1 kg.

Devoluciones sin preocupaciones

Aprende más.
Water in Fuel Sensor 3808616 – Volvo Penta D3/D4/D6 Diesel

Water in Fuel Sensor 3808616 – Volvo Penta D3/D4/D6 Diesel

$56.99

How to Match This Part

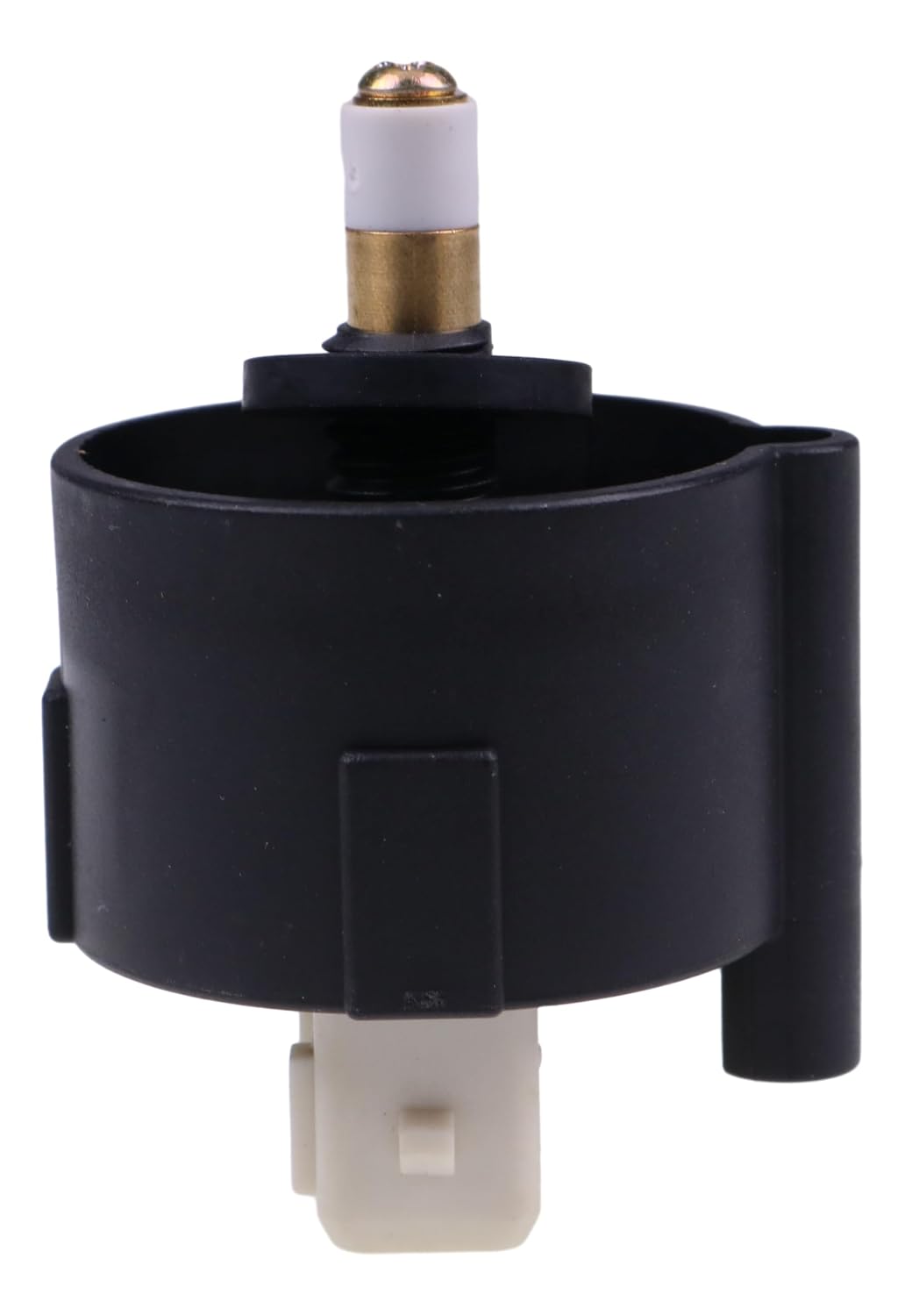

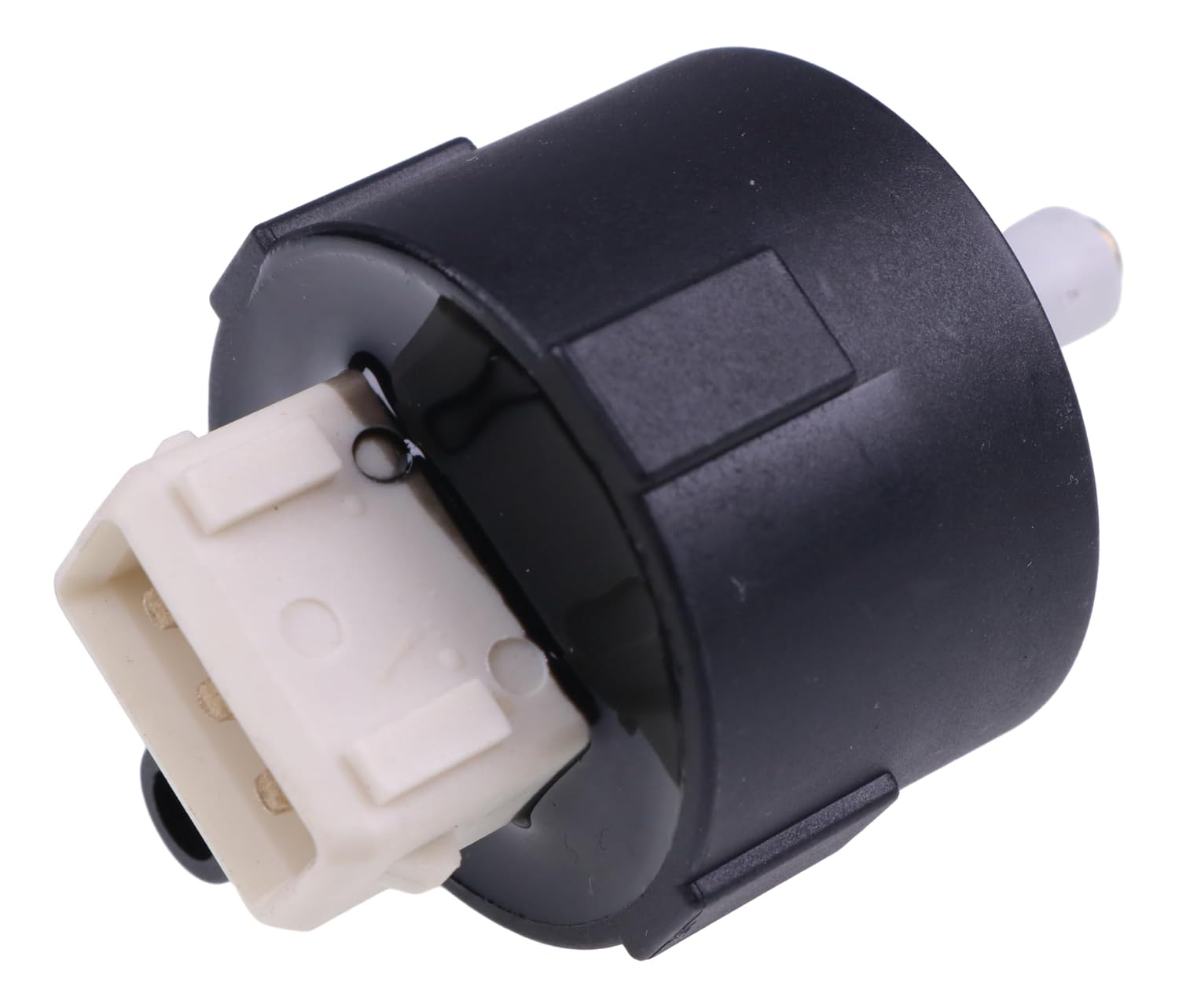

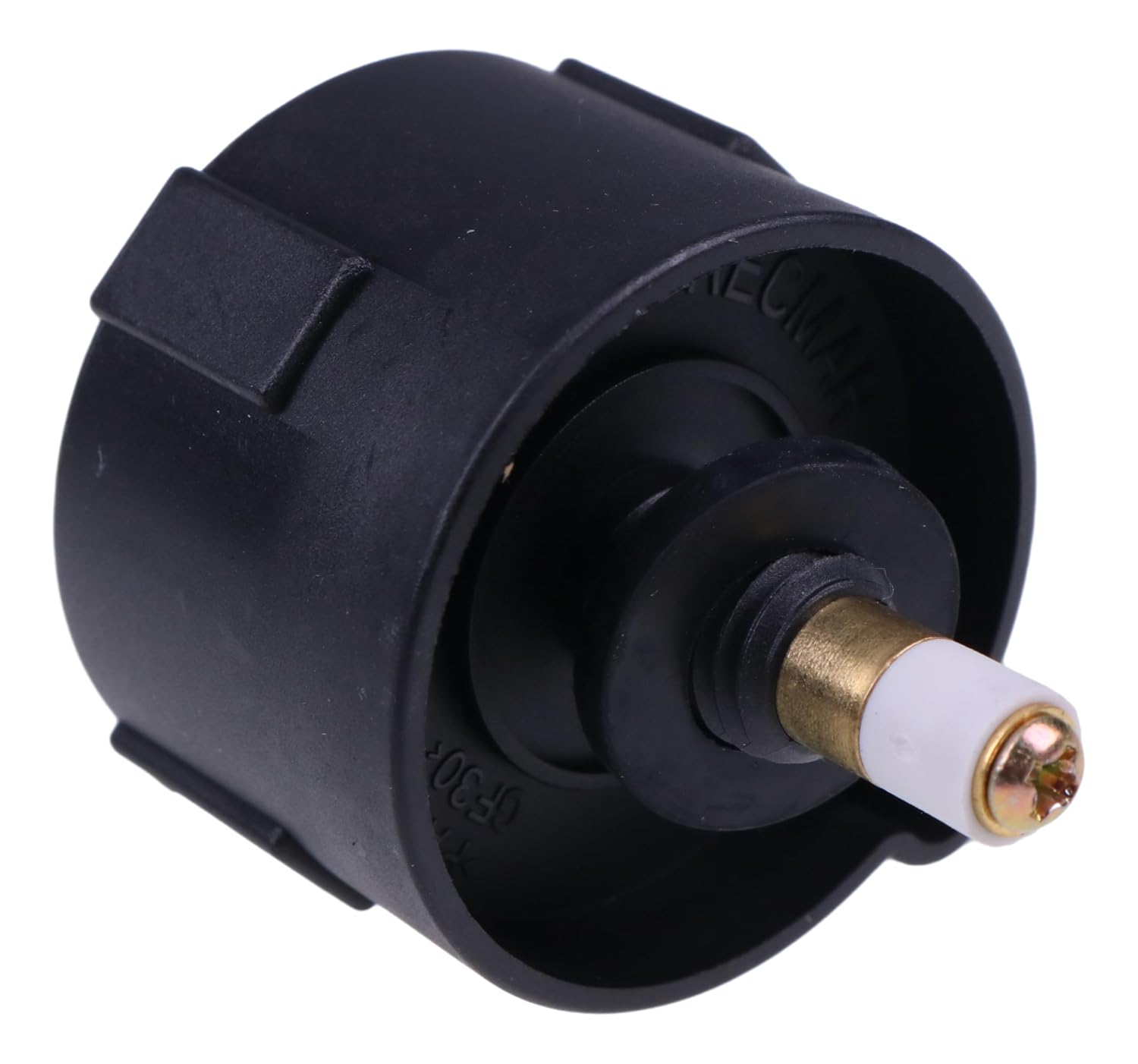

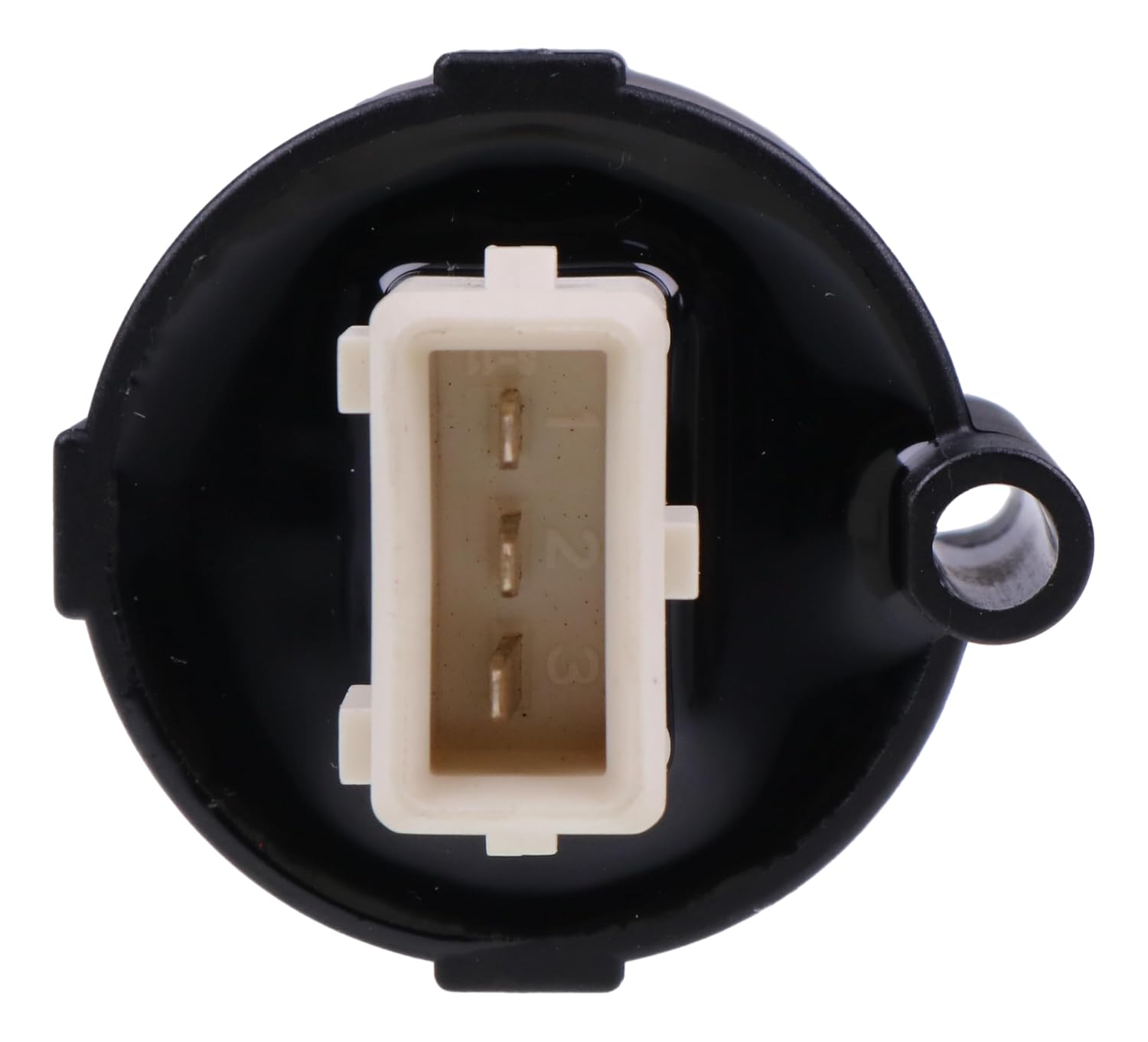

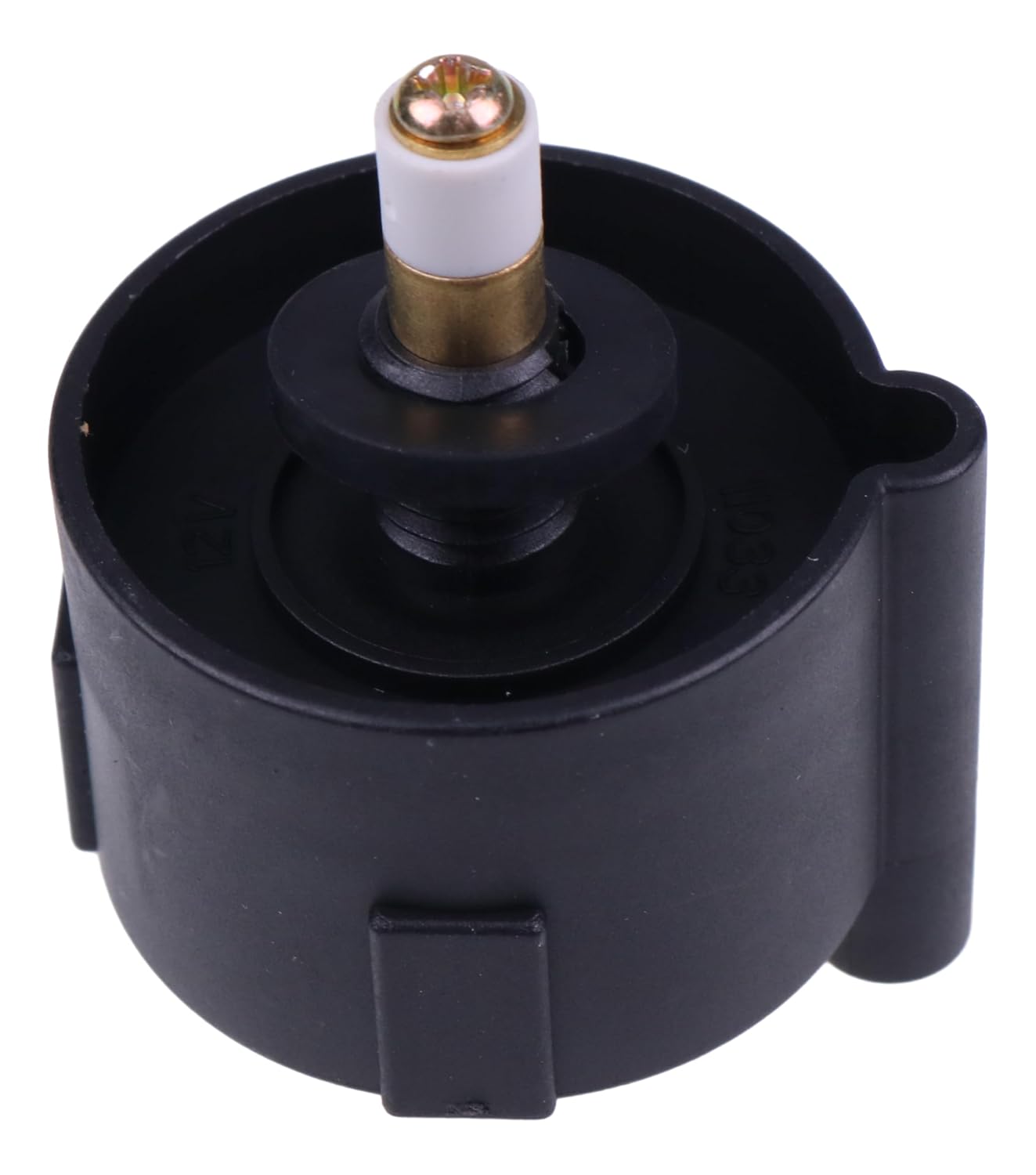

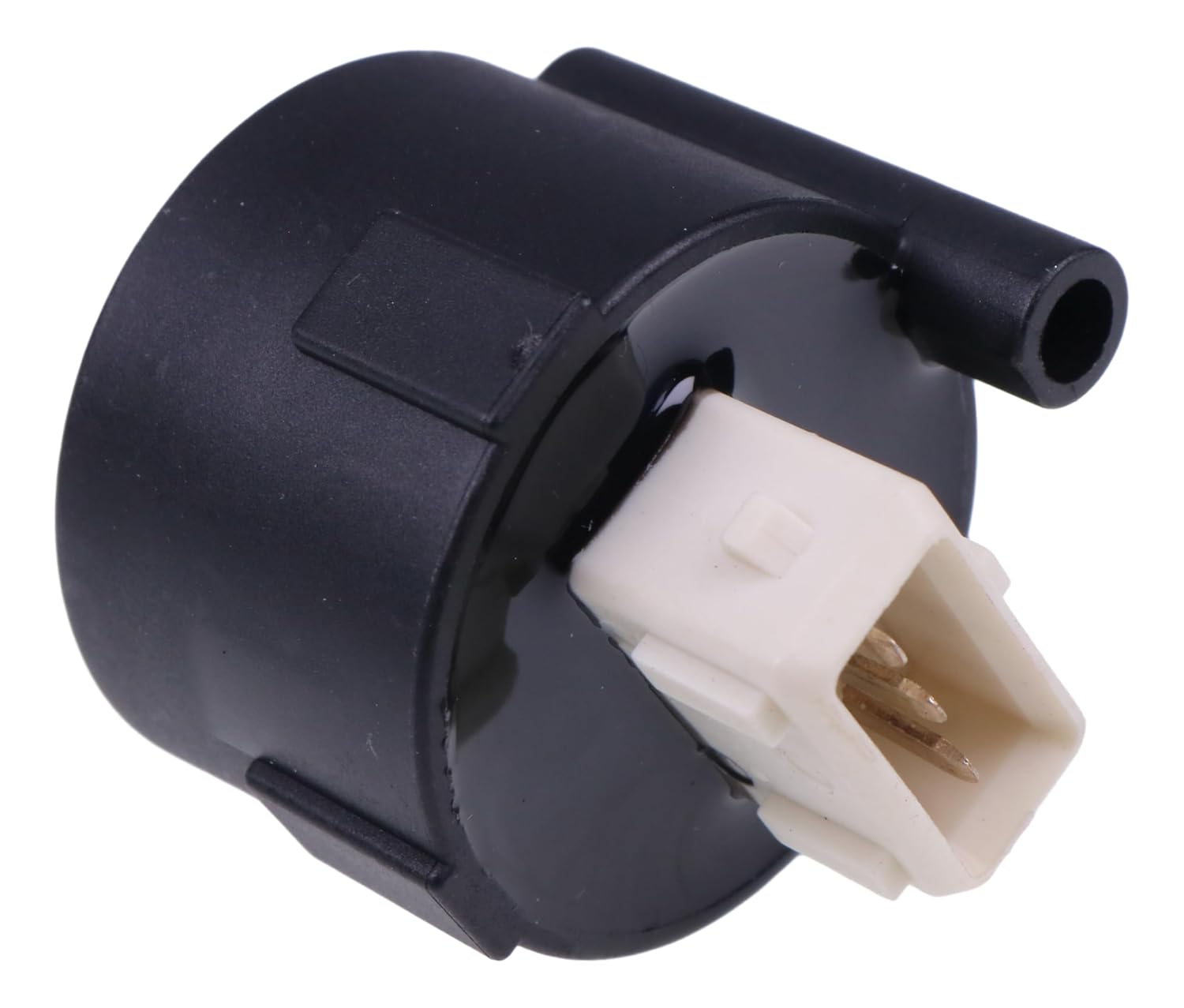

This aftermarket water-in-fuel sensor replaces Volvo Penta 3808616 (current) and the earlier number 874572. It threads into the bottom of the engine-mounted fuel filter and signals water contamination in the diesel fuel.

Match this part in this order:
1. OEM number — 3808616 or 874572 on the sensor, filter, or parts list
2. Engine family — Volvo Penta D3, D4, or D6 diesel
3. Location — sensor in the base of the engine-mounted fuel filter

Confirm the number on the original sensor before ordering. This listing is the filter-base water sensor, not a tank-level sender.

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Type Brand Part Number Notes
OEM Volvo Penta 3808616 Current water-in-fuel sensor
OEM Volvo Penta 874572 Superseded; replaced by 3808616
Aftermarket Recmar REC3808616 Direct aftermarket replacement

This is an aftermarket part manufactured by JLM Marine and is not sold as a genuine Volvo Penta component.

Compatible Engine Models

Confirm your engine family on the Volvo Penta identification plate (typically on the engine block or flywheel housing). Coverage below is the D3 / D4 / D6 diesel families. Match the original sensor number as well.

Engine family Notes
Volvo Penta D3 Water-in-fuel sensor in engine-mounted fuel-filter base
Volvo Penta D4 Water-in-fuel sensor in engine-mounted fuel-filter base
Volvo Penta D6 Water-in-fuel sensor in engine-mounted fuel-filter base

Technical Specifications

Specification Value
Part type Water-in-fuel (WIF) sensor
Primary OEM number 3808616
Supersedes 874572
Mounting Bottom of engine-mounted fuel filter
Function Detects water in diesel fuel and signals the engine monitoring system

Installation Guide

1

Stop the engine. Disconnect the battery. Work with a drip tray — residual diesel will drain from the filter base.

2

Unplug the sensor connector. Unscrew the original sensor from the bottom of the engine-mounted fuel filter. Compare the OEM number to 3808616 or 874572.

3

Clean the filter-base seat. Fit a serviceable sealing washer if the service manual calls for one. Thread the new sensor in by hand, then snug it. Do not overtighten.

4

Reconnect the harness and battery. Start the engine and confirm the water-in-fuel warning behaves normally. Drain water from the filter if the alarm remains on.

Note: Professional installation is recommended to ensure safety and optimal performance.

Troubleshooting & FAQ

Is 874572 the same as 3808616?+

Yes. Volvo Penta superseded 874572 with 3808616. This aftermarket sensor is matched to that current number.

Is this an OEM or aftermarket part?+

This is an aftermarket JLM Marine replacement. It is not a genuine Volvo Penta part.

Will this fit every Volvo Penta diesel?+

Published coverage is D3, D4, and D6. Confirm 3808616 or 874572 on the original sensor. Other Volvo Penta diesel families are not listed here.

Why Choose JLM MARINE?

  • Precision Fit: Water-in-fuel sensor matched to Volvo Penta 3808616 / 874572 on D3, D4, and D6 diesels.
  • Quality Control: Each batch is inspected for dimensional consistency and workmanship.
  • Direct from Manufacturer: Aftermarket marine sensors engineered for reliable fuel-filter water detection.
