Propeller Safety Guard 11" - Fits 25-35 HP Outboards (Replaces PG00110, PG-11O, PG002)
Propeller Safety Guard 11" - Fits 25-35 HP Outboards (Replaces PG00110, PG-11O, PG002)

Propeller Safety Guard 11" - Fits 25-35 HP Outboards (Replaces PG00110, PG-11O, PG002)

Vendor: JLM Marine
Availability: In Stock
Product Type: Propeller Guard
$170.00
$204.00
$170.00
Subtotal: $170.00

Envío gratis

Envío estándar gratuito en todos los pedidos inferiores a 1 kg.

Devoluciones sin preocupaciones

Aprende más.
Propeller Safety Guard 11" - Fits 25-35 HP Outboards (Replaces PG00110, PG-11O, PG002)

Propeller Safety Guard 11" - Fits 25-35 HP Outboards (Replaces PG00110, PG-11O, PG002)

$204.00 $170.00
Propeller Safety Guard 11" - Fits 25-35 HP Outboards (Replaces PG00110, PG-11O, PG002)

Propeller Safety Guard 11" - Fits 25-35 HP Outboards (Replaces PG00110, PG-11O, PG002)

$204.00 $170.00
Descripción

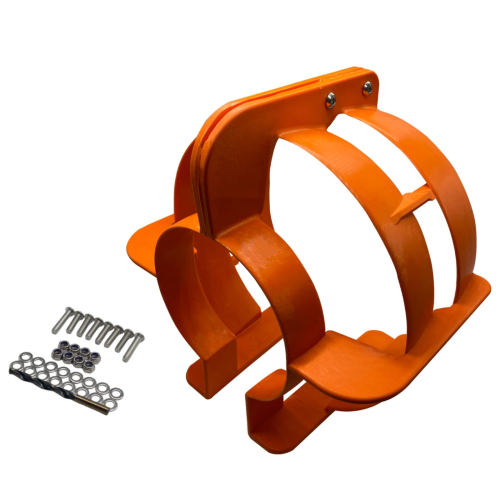

Propeller Safety Guard 11" – Fits 25-35 HP Outboards

This orange polypropylene safety guard is designed to fit most 25-35 HP outboard motors including Mercury, Johnson, Evinrude, Yamaha, Suzuki, Honda, and Tohatsu models with standard gearcase configurations. It excludes Big Foot and High Thrust models.

It directly replaces model numbers PG00110, PG-11O, and PG002.

  • Installation: Bolt-on with hardware included
  • Compatibility: Fits 25-35 HP outboards
  • Material: High strength polypropylene in bright orange

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Brand Part Number
GHmarine PG00110
GHmarine PG-11O
GHmarine PG002

Compatible Engine Models

Confirm your engine model/year in the table below. For Mercury owners, here9s a guide to help you identify your engine9s serial/model: Mercury Serial Number Guide. You can also review exploded diagrams to verify part numbers: Mercury Parts Diagrams & Catalog.

Confirm your engine model/year in the table below. For Johnson/Evinrude owners, here9s a guide to help you identify your engine9s serial/model: Johnson Serial Number Guide.

Confirm your engine model/year in the table below. For Yamaha owners, here9s a guide to help you identify your engine9s serial/model: Yamaha Serial Number Guide. You can also review exploded diagrams to verify part numbers: Yamaha Parts Diagrams & Catalog.

Confirm your engine model/year in the table below. For Suzuki owners, You can review exploded diagrams here to verify part numbers: Suzuki Parts Diagrams & Catalog.

Brand Model Rated HP Stroke OEM Part No. Notes
Mercury 25 HP 25 2-Stroke & 4-Stroke Except Big Foot and High Thrust
Mercury 30 HP 30 2-Stroke & 4-Stroke Except Big Foot and High Thrust
Mercury 35 HP 35 2-Stroke & 4-Stroke Except Big Foot and High Thrust
Johnson/Evinrude 25 HP 25 2-Stroke & 4-Stroke Class B Gearcase
Johnson/Evinrude 30 HP 30 2-Stroke & 4-Stroke Class B Gearcase
Johnson/Evinrude 35 HP 35 2-Stroke & 4-Stroke Class B Gearcase
Yamaha 25 HP 25 2-Stroke & 4-Stroke Standard gearcase only
Yamaha 30 HP 30 2-Stroke & 4-Stroke Standard gearcase only
Suzuki 25 HP 25 2-Stroke & 4-Stroke Standard gearcase only
Suzuki 30 HP 30 2-Stroke & 4-Stroke Standard gearcase only
Honda 25 HP 25 4-Stroke Standard gearcase only
Honda 30 HP 30 4-Stroke Standard gearcase only
Tohatsu/Nissan 25 HP 25 2-Stroke & 4-Stroke Standard gearcase only
Tohatsu/Nissan 30 HP 30 2-Stroke & 4-Stroke Standard gearcase only

Technical Specifications

Specification Value
Product Type Propeller Safety Guard
Material High Strength Polypropylene
Color Orange
Size 11" (280 mm)
Maximum Propeller Diameter 10.5" (267 mm)
Compatible HP Range 25-35 HP Outboards
Installation Bolt-on (hardware included)
Weight 1.95 kg (4.29 lbs)
Recommended Maximum Speed 25 mph (not warranted above this speed)

Package Contents

  • 1 x Propeller Safety Guard (PG00110)
  • 1 x 1/3" Drill Bit
  • 6 x Short Bolt Sets (for upper guard installation)
  • 4 x Long Bolt Sets (for lower guard installation)

Installation Guide

  1. Verify that the propeller and gearcase are compatible with this guard shape and size.
  2. Gather included hardware and a 1/3" drill bit along with basic tools.
  3. Position the safety guard on the propeller area aligning bolt holes.
  4. Drill pilot holes as needed using the included drill bit.
  5. Attach the guard with the included short bolts for the upper section.
  6. Secure the lower section using the included long bolts.
  7. Tighten all bolts firmly but avoid overtightening to prevent damage.
  8. Inspect the installation for proper clearance from the propeller blades.
  9. Test rotate the propeller to confirm no contact with guard.
  10. Double-check all hardware after initial test run.
  11. Allow approximately 30 minutes for installation with simple tools.

Troubleshooting & FAQ

  • How do I confirm this fits my engine? Check your engine9s model and year against the compatibility table, and use the provided serial number guides for Mercury, Johnson/Evinrude, Yamaha, and Suzuki to verify fitment.
  • What are the differences versus OEM guards? This is an aftermarket replacement built to meet OEM specifications with comparable materials but is not an OEM part.
  • How often should I replace the guard? Replace the guard if you notice cracks, damage, or any deformation that affects its safety function.
  • What are common signs of failure? Cracks, warping, or loose mounting hardware are signs the guard needs inspection or replacement.
  • Can I install it myself? Installation typically takes around 30 minutes with basic tools and the included hardware and drill bit.
  • OEM vs. Aftermarket? This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.
  • How fast do you ship and how much does it cost? We offer fast global shipping typically 515 days worldwide and standard shipping is free. Expedited options are available at checkout depending on your location.
  • What is your warranty and return policy? This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

  • Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
  • This product is an aftermarket replacement part and is not an OEM component.
  • Professional installation is recommended to ensure safety and optimal performance.

Why Choose JLM MARINE?

  • Quality Assured: As a trusted manufacturer for over 20 years, we supply top marine brands globally.
  • Fast Global Shipping: Free delivery worldwide in 5–15 days.
  • Direct from Manufacturer: Competitive pricing without compromising quality.
