Pipettor Adjustable Variable Volume Micropipette 1000-5000μL – Fits Laboratory Research Equipment

Pipettor Adjustable Variable Volume Micropipette 1000-5000μL – Fits Laboratory Research Equipment

$47.00 $39.72
Descripción

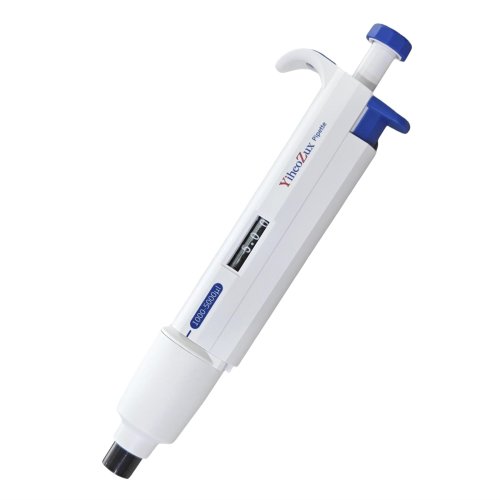

Pipettor Adjustable Variable Volume Micropipette 1000-5000μL

This is an adjustable single-channel pipette with a variable volume ranging from 1000μL to 5000μL (1-5mL). It is designed for precise liquid handling in various settings, including scientific research, medical sampling, and general laboratory applications.

This unit serves as a direct replacement for several models, including ONiLAB 7010101017, Four E's Scientific 1-5mL models, and Xin Tester 1000-5000μL.

  • Volume Range: 1000-5000μL with 50μL increments.
  • Autoclavable: The lower part can be disassembled and autoclaved at 121°C.
  • Installation: Manual hand-held operation.

Compatible Models

Confirm your model compatibility in the table below.

Brand Model Rated Capacity Type Increment OEM Part No. Notes
ONiLAB 1000-5000μL Multi-Volume Adjustable 1000-5000μL Single-Channel 50μL 7010101017 Lower half autoclavable
Xin Tester High Accurate Lab Pipettor 1000-5000μL Single-Channel 50μL Comes with 20 tips
Four E's Scientific 1-5mL Pipettor 1000-5000μL Single-Channel

Technical Specifications

Specification Value
Product Type Single-Channel Variable Volume Pipettor
Installation Manual hand-held
Connection Standard 5mL pipette tip compatible
Housing Material Body: PP (Polypropylene); Control button & tip ejector: PA (Polyamide)
Fitting Type Cone tip for 5mL pipette tips
Operating Temperature Autoclavable at 121°C (250°F)
Other Technical Attributes Increment: 50μL; Lower part can be disassembled and autoclaved

Package Contents

  • 1 x Micropipette (main body)
  • 1 x Calibration Oil
  • 1 x Simple Bracket
  • 1 x Wrench
  • 1 x User Manual
  • 20 x Pipette Tips (Included with Xin Tester compatible models)

Installation Guide

Follow these steps for proper operation:

  1. Set Volume: Turn the thumb push-button clockwise or counter-clockwise to set the desired volume. Ensure the volume is within the 1000-5000μL range.
  2. Attach Tip: Firmly press the pipette's cone tip into a compatible 5mL pipette tip to ensure an airtight seal.
  3. Aspirate Liquid: Depress the plunger to the first stop. Immerse the tip into the liquid and smoothly release the plunger to draw up the liquid.
  4. Dispense Liquid: Place the tip against the inner wall of the receiving vessel. Depress the plunger to the first stop, pause, then press to the second stop (blowout) to expel any remaining liquid.
  5. Eject Tip: Press the tip ejector button to discard the used tip.
  6. Calibration & Maintenance: Use the included wrench and calibration oil for periodic calibration checks. The lower part can be disassembled for autoclaving at 121°C.

Troubleshooting & FAQ

Q: How do I know if this pipette is compatible with my existing tips?
A: This pipette is designed with a standard cone fitting for 5mL pipette tips. Verify that your tips are designed for this size and style of fitting.

Q: Can the entire pipette be autoclaved?
A: No, only the lower part (tip cone assembly) is autoclavable. It can be safely disassembled and sterilized at 121°C (250°F). Autoclaving the entire unit will damage the internal components.

Q: The volume setting seems inaccurate. What should I do?
A: Accuracy can vary slightly. First, ensure you are operating the plunger smoothly and correctly. For calibration, use the included tool and follow the user manual's instructions to adjust the pipette against a known standard.

Q: What is the difference between an OEM and an aftermarket part?
A: This is an aftermarket replacement part, not an original equipment manufacturer (OEM) component. We manufacture our parts to meet or exceed OEM specifications using high-quality, comparable materials in an ISO9002-certified facility. Each batch is inspected to ensure consistent quality and performance.

Q: How fast do you ship and what is the cost?
A: We offer fast global shipping, with most orders arriving within 5–15 days. Standard shipping is free worldwide. Expedited shipping options may be available at checkout depending on your location.

Q: What is your warranty and return policy?
A: This product is covered by a 1-year warranty against manufacturing defects under normal use. If you encounter an issue, please contact our support team with your order details. Returns of unused products in their original condition are accepted within our standard return window. Please see our policy page or contact us for instructions.

Important Notes

  • Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
  • This product is an aftermarket replacement part and is not an OEM component.
  • Professional installation is recommended to ensure safety and optimal performance.
