Oxygen Sensor 68F-8592A-00 – Fits Yamaha 150–250HP V6 EFI
- $249.77
$359.00- $249.77
- Unit price
- per
Couldn't load pickup availability
Envío gratis
Envío estándar gratuito en todos los pedidos inferiores a 1 kg.
Devoluciones sin preocupaciones
Aprende más.
How to Match This Part
This aftermarket oxygen sensor replaces Yamaha 68F-8592A-00 (catalog form 68F-8592A-00-00). It threads into the exhaust on selected Yamaha V6 two-stroke HPDI and EFI outboards from 150 to 250 HP and reports exhaust oxygen so the ECU can trim fuel. This unit is new production, not a remanufactured core.
Match this part in this order:
1. OEM number on the removed sensor or in your parts catalog (68F-8592A-00 / 68F-8592A-00-00, or predecessor 65L-8592A-01 / 65L-8592A-00)
2. Model code and year in the table below

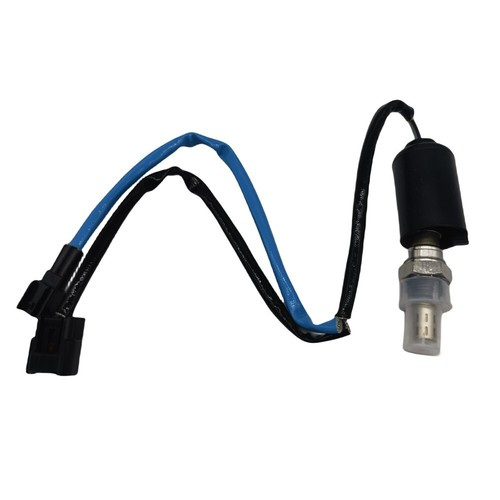

3. Physical form — hex body, slotted tip shield, black protective boot, and a lead that splits into black and blue sleeves ending in two separate rectangular single-pin connectors
This is not Yamaha 67H-8592A (the rectangular 2-pin-connector sensor used on DX/LX/SX/VX 150–200). If your original uses a single rectangular 2-pin plug without the black/blue split leads, order the 67H listing instead.
Part Number Cross-Reference
Use this table to confirm equivalent part numbers. Yamaha catalogs these sensors with a trailing -00 suffix.
| Type | Brand | Part Number | Notes |
|---|---|---|---|
| OEM | Yamaha Outboard | 68F-8592A-00 | Primary reference; also listed as 68F-8592A-00-00 |
| OEM | Yamaha Outboard | 65L-8592A-01 | Equivalent Yamaha number; also listed as 65L-8592A-01-00 |
| OEM | Yamaha Outboard | 65L-8592A-00 | Superseded by 65L-8592A-01; also listed as 65L-8592A-00-00 |
| Aftermarket | Sierra | 18-7656 | Direct aftermarket replacement |
Part numbers are listed for identification only. This is an aftermarket part manufactured by JLM Marine and is not sold as a genuine Yamaha component.
Compatible Engine Models
Confirm your engine model and year in the table below. For Yamaha owners: Yamaha Serial Number Guide and Yamaha Parts Diagrams. On Yamaha outboards the identification plate is on the port-side transom clamp bracket.
| Engine Model | HP | Years | Notes |
|---|---|---|---|
| LZ150 | 150 | 2000–2005 | V6 2-stroke HPDI |
| VZ150 | 150 | 2000–2014 | V6 2-stroke HPDI |
| Z150 | 150 | 2000–2005 | V6 2-stroke HPDI |
| VZ175 | 175 | 2001–2012 | V6 2-stroke HPDI |
| Z175 | 175 | 2001–2005 | V6 2-stroke HPDI |
| LZ200 | 200 | 2000–2012 | V6 2-stroke HPDI |
| V200 | 200 | 1998–1999 | V6 2-stroke EFI |
| VX200 | 200 | 2000–2005 | V6 2-stroke EFI |
| VZ200 | 200 | 2001–2004 | V6 2-stroke HPDI |
| Z200 | 200 | 2000–2012 | V6 2-stroke HPDI |
| L225 | 225 | 1997–1999 | V6 2-stroke EFI |
| LX225 | 225 | 2000–2003 | V6 2-stroke EFI |
| S225 | 225 | 1997–1999 | V6 2-stroke EFI |
| SX225 | 225 | 2000–2003 | V6 2-stroke EFI |
| V225 | 225 | 1998–1999 | V6 2-stroke EFI |
| VX225 | 225 | 1998–2005 | V6 2-stroke EFI |
| L250 | 250 | 1997–1999 | V6 2-stroke EFI |
| LX250 | 250 | 2000–2003 | V6 2-stroke EFI |
| S250 | 250 | 1997–1999 | V6 2-stroke EFI |
| SX250 | 250 | 2000–2003 | V6 2-stroke EFI |
| VX250 | 250 | 2002–2004 | V6 2-stroke EFI |
Match the OEM number on the sensor you remove. Do not use this sensor for DX150, LX150, SX150, VX150, LX200, or SX200 applications that call for 67H-8592A-00.
Technical Specifications
| Specification | Value |
|---|---|
| Part type | Oxygen (O2 / lambda) sensor for EFI / HPDI exhaust |
| Primary OEM number | 68F-8592A-00 |
| Mounting | Threaded into the exhaust housing |
| Electrical connection | Integral lead splitting to black and blue sleeves; two separate rectangular single-pin connectors |
| Visible form | Hex body, slotted tip shield, black protective boot on cable exit |
| Condition | New production — not remanufactured |
Installation Guide
1
Allow the engine and exhaust housing to cool fully. Disconnect the battery negative cable before unplugging the sensor leads.
2
Note the cable routing and which plug goes where, then unplug both connectors. Unscrew the old sensor from the exhaust housing with the correct oxygen-sensor socket or wrench on the hex — do not crush the lead.
3
Confirm the OEM number and the black/blue dual-connector layout match this 68F-8592A-00 assembly. Thread the new sensor in by hand to avoid cross-threading, then tighten snugly on the hex. Follow the Yamaha service manual for your model for tightening and thread treatment.
4
Reconnect both plugs until they lock, restore the battery, start the engine, and confirm there is no exhaust leak at the bung and that the EFI / HPDI system runs without an oxygen-sensor fault.
Note: Professional installation is recommended to ensure safety and optimal performance.
Troubleshooting & FAQ
Why Choose JLM MARINE?
- Precision Fit: Form and connector layout matched to Yamaha 68F-8592A-00 oxygen sensor applications.
- Quality Control: Each batch is inspected for dimensional consistency and workmanship.
- Direct from Manufacturer: Aftermarket marine parts engineered for reliable EFI / HPDI exhaust sensing.
