Single Ram Transom Saver Kit – White Wedge Body + 2 Black Trailering Motor Locks – Fits Yamaha/Mercury/Honda/Suzuki

Product Overview

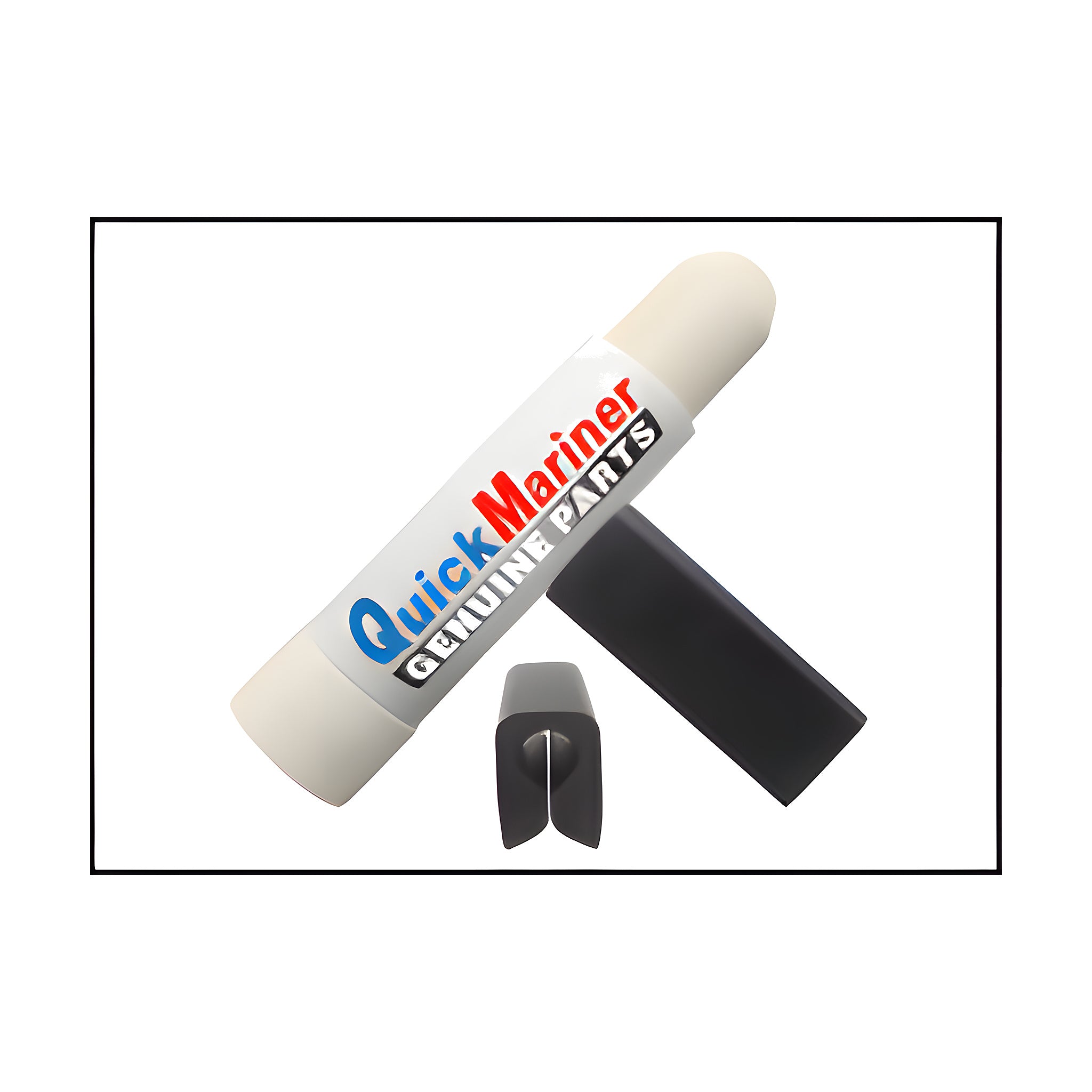

This Single Ram Transom Saver Kit includes a White wedge-style support body and 2 × Black trailering motor locks / hydraulic steering stabilizer clips. The wedge support braces the engine on the tilt/trim ram during trailering to help reduce strain on the transom and trim/tilt system; the locks clip onto the hydraulic steering cylinder to reduce side-to-side swing.

Material: marine-grade high-density EPDM rubber with reinforced polymer housing — rust-free vs traditional metal bars; safe for saltwater and freshwater. Aftermarket alternative to QuickMarine / M-Y Wedge style trailering supports for Yamaha, Mercury, Honda, Suzuki, Tohatsu, and Evinrude/Johnson. Not OEM or an authorized QuickMarine dealer part — verify ram count and clearance before ordering. Designed to support typical trailering loads.

What's Included

• 1 × White Wedge Transom Saver support
• 2 × Black trailering motor locks / hydraulic steering stabilizer clips
• Contents match the product photo for this color kit

Package: 1 × White wedge body + 2 × Black trailering motor locks

Compatibility

Intended for many single-ram outboard trim & tilt systems from Yamaha, Mercury, Honda, Suzuki, Tohatsu, and Evinrude/Johnson.

• Confirm your motor has a single main tilt/trim ram
• Multi-ram or heavy Verado-class setups may need two supports for balanced load
• Always verify clearance against the product photo and your ram diameter

Fitment is by ram configuration — not by inventing horsepower or year ranges. Contact us with brand/model photos if unsure.

Technical Specs

Installation Notes

1. Trim the outboard to a high trailering position.
2. Identify the main tilt/trim ram.
3. Place the support body onto the exposed ram so it seats between the engine and transom bracket area.
4. Slowly lower the motor until the support is lightly compressed and the engine feels stable.
5. If using two supports on a multi-ram motor, balance the load across rams.
6. Clip the trailering motor locks onto the hydraulic steering cylinder to limit side-to-side movement (when included).
7. Before launching, raise the motor slightly and remove the support(s) and locks.

Do not force-fit. If the body does not seat cleanly, stop and verify ram style/clearance.

FAQ

Q: Single-ram or multi-ram?
A: Match the kit to your trim/tilt ram count. Single-body kits suit most single-ram motors; dual-body kits are recommended for balanced support on 2/3-ram systems.

Q: What do the trailering motor locks do?
A: The included hydraulic steering stabilizer clips clip onto the steering cylinder to reduce side-to-side engine swing while trailering.

Q: Is this OEM or QuickMarine authentic?
A: No. This is an aftermarket alternative for common QuickMarine / M-Y Wedge style trailering supports — not an OEM or licensed QuickMarine part.

Q: Color / shape for this SKU?
A: This listing is the White wedge kit with Black locks. Use the product photo as the package reference.
