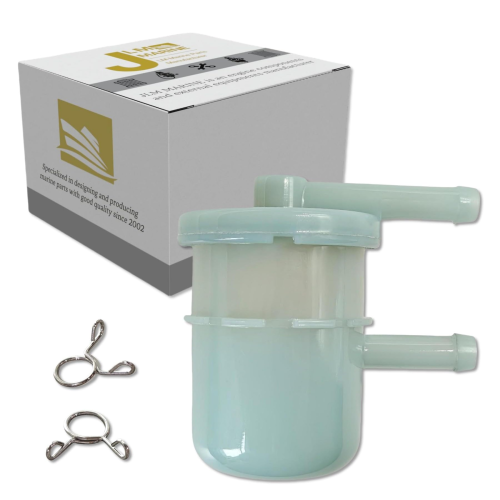

Fuel Filter – Fits Suzuki 25–140 HP & Johnson/Evinrude 25–140 HP 4-Stroke (Replaces 15410-87J10, 5032323)

Fuel Filter – Fits Suzuki 25–140 HP & Johnson/Evinrude 25–140 HP 4-Stroke

This inline fuel filter is designed for a wide range of Suzuki and Johnson/Evinrude 4-stroke outboard engines from 25 HP to 140 HP. It ensures clean fuel delivery by trapping contaminants, protecting your engine's sensitive fuel system components from damage and maintaining performance.

This part is a direct replacement for Sierra 18-7716, Suzuki 15410-87J10, 15410-87J30, 15410-60C00, and Johnson/Evinrude 5032323, 5030702, and 765573.

• Compatible with standard gasoline fuel.
• Features a 10-micron filtration rating to capture fine particles.
• Installs directly into the in-line fuel line with a simple clamp-on connection.

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

For Suzuki owners, you can review exploded diagrams here to verify part numbers: Suzuki Parts Diagrams & Catalog.

Confirm your engine model/year in the table below. For Johnson/Evinrude owners, here’s a guide to help you identify your engine’s serial/model: Johnson/Evinrude Serial Number Guide.

Suzuki

Johnson/Evinrude (BRP)

Technical Specifications

Package Contents

• 1 x Fuel Filter (Replaces 15410-87J10 / 5032323)
• 2 x Hose Clamps (included)

Installation Guide

1. Safety First: Ensure the engine is off and cool. Work in a well-ventilated area and disconnect the battery.
2. Locate Filter: Find the existing inline fuel filter along the fuel line between the fuel tank and the engine.
3. Prepare for Removal: Place a rag or container under the filter to catch any spilled fuel.
4. Release Pressure: If applicable, release pressure from the fuel system according to your engine's service manual.
5. Loosen Clamps: Use pliers or a screwdriver to loosen the hose clamps on both sides of the old filter.
6. Remove Old Filter: Gently twist and pull the fuel hoses off both ends of the filter. Be prepared for minor fuel leakage.
7. Install New Filter: Note the arrow on the new filter indicating fuel flow direction. The arrow must point towards the engine.
8. Connect Hoses: Slide the fuel hoses onto the barbed fittings of the new filter.
9. Secure Clamps: Position the new hose clamps over the connection points and tighten them securely. Ensure they are snug but do not overtighten and damage the hose.
10. Prime System: Reconnect the battery. Prime the fuel system by squeezing the primer bulb until firm.
11. Check for Leaks: Start the engine and carefully inspect the filter and hose connections for any signs of fuel leaks.

Troubleshooting & FAQ

Q: How do I confirm this filter fits my engine?
A: The most reliable method is to match your existing part number to those listed in our cross-reference table. You can also review the detailed compatibility tables for your specific engine model, HP, and year. For Suzuki or Johnson/Evinrude owners, use the provided links to access parts diagrams or serial number guides to help verify fitment.

Q: How often should I replace my fuel filter?
A: As a general guideline, replace your fuel filter every 100 hours of operation or at least once per year during seasonal maintenance. Signs that your filter is clogged and needs replacement include the engine bogging down, stalling at low speeds, or difficulty starting.

Q: Is this filter installed in a specific direction?
A: Yes, absolutely. This filter is directional. An arrow is printed on the filter housing to indicate the direction of fuel flow. You must install it with the arrow pointing toward the engine. Incorrect installation can obstruct fuel flow and prevent the engine from running.

Q: OEM vs. Aftermarket?
A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?
A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?
A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
