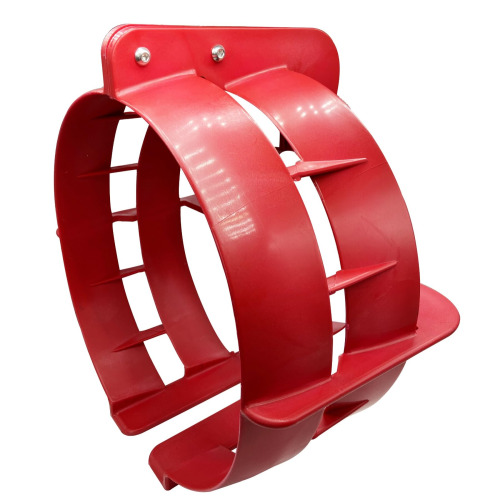

14" Propeller Safety Guard – Fits Most 70-120 HP Outboard Motors (Red)
14" Propeller Safety Guard – Fits Most 70-120 HP Outboard Motors (Red)

14" Propeller Safety Guard – Fits Most 70-120 HP Outboard Motors (Red)

Vendor: JLM Marine
Availability: In Stock
Product Type: Propeller Guard
$135.00
$162.00
$135.00
Subtotal: $135.00

Envío gratis

Envío estándar gratuito en todos los pedidos inferiores a 1 kg.

Devoluciones sin preocupaciones

Aprende más.
14" Propeller Safety Guard – Fits Most 70-120 HP Outboard Motors (Red)

14" Propeller Safety Guard – Fits Most 70-120 HP Outboard Motors (Red)

$162.00 $135.00
14" Propeller Safety Guard – Fits Most 70-120 HP Outboard Motors (Red)

14" Propeller Safety Guard – Fits Most 70-120 HP Outboard Motors (Red)

$162.00 $135.00
Descripción

14" Propeller Safety Guard – Fits Most 70-120 HP Outboard Motors (Red)

This 14-inch propeller safety guard is designed to fit most outboard motors in the 70 to 120 HP range with standard gearcases. It offers protection for both swimmers and marine life from propeller-related injuries while also shielding the propeller blades from underwater impacts with rocks or debris. This guard is compatible with propellers up to 13.5 inches in diameter and is intended for motors where the height from the center of the propeller shaft to the cavitation plate is between 6.5 and 7.5 inches. This product is not suitable for Big Foot, High Thrust, or Command Thrust models, which require a larger guard.

This is a standard safety accessory designed for broad compatibility and does not have a direct OEM equivalent part number. It is manufactured from a high-strength, marine-grade polypropylene plastic, offering impact resistance comparable to stainless steel at a significantly lighter weight.

  • Installation Method: Bolts directly to the outboard's cavitation plate and skeg.
  • Material: High-strength marine-grade polypropylene plastic in a high-visibility safety red color.
  • Included Hardware: Comes as a complete kit with all necessary mounting bolts and a drill bit for installation.

Compatible Engine Models

Confirm your engine model and year in the tables below. Please note the specific gearcase requirements for proper fitment.

For Mercury owners, here’s a guide to help you identify your engine’s serial/model: Mercury Serial Number Guide. You can also review exploded diagrams to verify part numbers: Mercury Parts Diagrams & Catalog.

For Yamaha owners, here’s a guide to help you identify your engine’s serial/model: Yamaha Serial Number Guide. You can also review exploded diagrams to verify part numbers: Yamaha Parts Diagrams & Catalog.

For Johnson/Evinrude owners, here’s a guide to help you identify your engine’s serial/model: Johnson Serial Number Guide.

For Suzuki owners, you can review exploded diagrams here to verify part numbers: Suzuki Parts Diagrams & Catalog.

Mercury / Mariner

Brand Model Rated HP Stroke Years Notes
Mercury 70 HP 70 2 & 4-Stroke All years Standard gearcase only, not for Big Foot
Mercury 75 HP 75 2 & 4-Stroke All years Standard gearcase only
Mercury 80 HP 80 2 & 4-Stroke All years Standard gearcase only
Mercury 90 HP 90 2 & 4-Stroke All years Standard gearcase only, not for Command Thrust
Mercury 100 HP 100 2 & 4-Stroke All years Standard gearcase only
Mercury 110 HP 110 2 & 4-Stroke All years Standard gearcase only
Mercury 115 HP 115 2 & 4-Stroke All years Standard gearcase only, not for Command Thrust
Mercury 120 HP 120 2 & 4-Stroke All years Standard gearcase only

Yamaha

Brand Model Rated HP Stroke Years Notes
Yamaha 70 HP 70 2 & 4-Stroke All years Standard gearcase only
Yamaha 75 HP 75 2 & 4-Stroke All years Standard gearcase only
Yamaha 80 HP 80 2 & 4-Stroke All years Standard gearcase only
Yamaha 85 HP 85 2 & 4-Stroke All years Standard gearcase only
Yamaha 90 HP 90 2 & 4-Stroke All years Standard gearcase only, not for High Thrust
Yamaha 100 HP 100 2 & 4-Stroke All years Standard gearcase only
Yamaha 115 HP 115 2 & 4-Stroke All years Standard gearcase only, not for High Thrust

Honda

Brand Model Rated HP Stroke Years Notes
Honda BF75 75 4-Stroke All years Standard gearcase only
Honda BF90 90 4-Stroke All years Standard gearcase only
Honda BF100 100 4-Stroke All years Standard gearcase only
Honda BF115 115 4-Stroke All years Standard gearcase only

Suzuki

Brand Model Rated HP Stroke Years Notes
Suzuki DF70 70 4-Stroke All years Standard gearcase only
Suzuki DF80 80 4-Stroke All years Standard gearcase only
Suzuki DF90 90 4-Stroke All years Standard gearcase only
Suzuki DF100 100 4-Stroke All years Standard gearcase only
Suzuki DF115 115 4-Stroke All years Standard gearcase only

Johnson / Evinrude

Brand Model Rated HP Stroke Years Notes
Johnson/Evinrude 70 HP 70 2-Stroke All years Standard gearcase only
Johnson/Evinrude 75 HP 75 2-Stroke All years Standard gearcase only
Johnson/Evinrude 85 HP 85 2-Stroke All years Standard gearcase only
Johnson/Evinrude 90 HP 90 2-Stroke All years Standard gearcase only
Johnson/Evinrude 100 HP 100 2-Stroke All years Standard gearcase only
Johnson/Evinrude 115 HP 115 2-Stroke All years Standard gearcase only
Evinrude E-TEC 75 HP 75 2-Stroke All years Not for E-TEC models (require 16" guard)
Evinrude E-TEC 90 HP 90 2-Stroke All years Not for E-TEC models (require 16" guard)
Evinrude E-TEC 115 HP 115 2-Stroke All years Not for E-TEC models (require 16" guard)

Tohatsu / Nissan

Brand Model Rated HP Stroke Years Notes
Tohatsu 70 HP 70 2 & 4-Stroke All years Standard gearcase only
Tohatsu 75 HP 75 2 & 4-Stroke All years Standard gearcase only
Tohatsu 90 HP 90 2 & 4-Stroke All years Standard gearcase only
Tohatsu 100 HP 100 2 & 4-Stroke All years Standard gearcase only
Tohatsu 115 HP 115 2 & 4-Stroke All years Standard gearcase only

Technical Specifications

Specification Value
Product Type Propeller Safety Guard / Propeller Cage
Installation Bolts to cavitation plate and skeg
Material High-strength marine-grade polypropylene plastic
Color Safety Red
Dimensions 14" (355.6 mm) diameter cage
Maximum Propeller Diameter Up to 13.5" (342.9 mm)
Weight 2.77 kg (6.1 lbs)
Maximum Speed Rating 25 mph (not recommended or warranted above this speed)
Hardware Included Yes (mounting bolts and drill bit)
Compatible Engine Range 70–120 HP outboard motors
Engine Type 4-Stroke and 2-Stroke outboard motors
Mounting Position Height (H) from propeller shaft to cavitation plate: 6.5"–7.5"
Warranty Varies by seller - typically 30 days

Package Contents

  • 1 x 14" Propeller Safety Guard (Red)
  • 6 x Short Bolts (for cavitation plate mounting)
  • 4 x Long Bolts (for lower mounting / skeg)
  • 1 x 1/3" Drill Bit

Installation Guide

  1. Safety First: Before starting, disconnect the engine's battery and ensure the engine is tilted up securely.
  2. Position the Guard: Place the two halves of the propeller guard around the gearcase, ensuring it is centered and does not interfere with the propeller's rotation.
  3. Mark Drill Holes: With the guard held in position, use a marker to mark the drilling locations on the cavitation plate and the skeg.
  4. Drill the Holes: Carefully drill the marked holes using the provided 1/3" drill bit. Ensure the holes are straight and clean.
  5. Mount the Guard: Attach the guard using the included hardware. Use the shorter bolts for the top (cavitation plate) and the longer bolts for the bottom (skeg).
  6. Tighten Securely: Securely tighten all bolts. Do not overtighten to avoid cracking the plastic. Check that the guard is rigid and firmly in place.
  7. Final Inspection: Manually rotate the propeller to confirm it has ample clearance and does not touch the guard at any point.

Troubleshooting & FAQ

Q: How do I confirm this guard will fit my engine?
A: To ensure compatibility, verify three key things: 1) Your motor is between 70-120 HP. 2) It has a standard gearcase, not a Big Foot, High Thrust, or Command Thrust model. 3) The distance from the center of the propeller shaft to the bottom of the cavitation plate is between 6.5 and 7.5 inches. The guard accommodates propellers up to 13.5" in diameter.

Q: Is there a maximum speed when using this propeller guard?
A: Yes, this guard is rated for a maximum speed of 25 mph. Use above this speed is not recommended and is not covered by warranty, as it can create undesirable handling characteristics and may cause the guard to fail.

Q: Why won't this fit my Big Foot / High Thrust / E-TEC model?
A: Models like Mercury's Big Foot/Command Thrust, Yamaha's High Thrust, and some Evinrude E-TECs use a larger-than-standard gearcase. These larger gearcases require a bigger (typically 16-inch) propeller guard to ensure proper clearance and fitment.

Q: Will a plastic guard be strong enough for impacts?
A: Yes. This guard is made from a specialized high-strength polypropylene. This material is designed for marine environments and offers impact resistance nearly equivalent to stainless steel, but with the advantages of being lighter and naturally corrosion-proof.

Q: OEM vs. Aftermarket?
A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?
A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?
A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

  • Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
  • This product is an aftermarket replacement part and is not an OEM component.
  • Professional installation is recommended to ensure safety and optimal performance.

Why Choose JLM MARINE?

  • Quality Assured: As a trusted manufacturer for over 20 years, we supply top marine brands globally.
  • Fast Global Shipping: Free delivery worldwide in 5–15 days.
  • Direct from Manufacturer: Competitive pricing without compromising quality.
