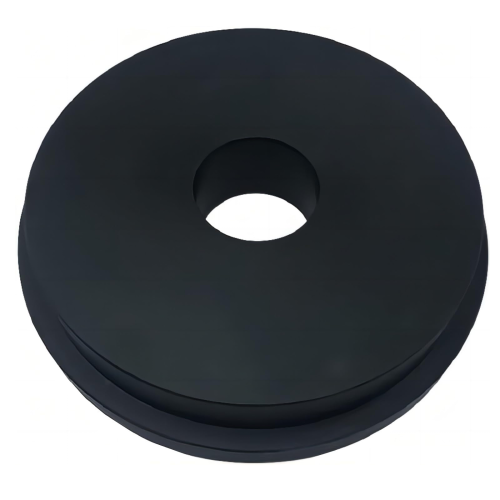

Bellow Retainer Ring Installation Tool – Fits Mercury MerCruiser Alpha 1 Gen 2, Bravo, Blackhawk (Replaces 91-818162)
Bellow Retainer Ring Installation Tool – Fits Mercury MerCruiser Alpha 1 Gen 2, Bravo, Blackhawk (Replaces 91-818162)

Bellow Retainer Ring Installation Tool – Fits Mercury MerCruiser Alpha 1 Gen 2, Bravo, Blackhawk (Replaces 91-818162)

Vendor: JLM Marine
Availability: In Stock
Product Type: Tool
$12.58
$15.00
$12.58
Subtotal: $12.58

Envío gratis

Envío estándar gratuito en todos los pedidos inferiores a 1 kg.

Devoluciones sin preocupaciones

Aprende más.
Bellow Retainer Ring Installation Tool – Fits Mercury MerCruiser Alpha 1 Gen 2, Bravo, Blackhawk (Replaces 91-818162)

Bellow Retainer Ring Installation Tool – Fits Mercury MerCruiser Alpha 1 Gen 2, Bravo, Blackhawk (Replaces 91-818162)

$15.00 $12.58
Bellow Retainer Ring Installation Tool – Fits Mercury MerCruiser Alpha 1 Gen 2, Bravo, Blackhawk (Replaces 91-818162)

Bellow Retainer Ring Installation Tool – Fits Mercury MerCruiser Alpha 1 Gen 2, Bravo, Blackhawk (Replaces 91-818162)

$15.00 $12.58
Descripción

Bellow Retainer Ring Installation Tool – Fits Mercury MerCruiser Alpha 1 Gen 2, Bravo, Blackhawk (Replaces 91-818162)

This specialized installation tool is engineered for installing the aluminum retainer ring inside the U-joint bellows. It is designed specifically for Mercury MerCruiser Alpha One Generation 2, Bravo (One, Two, Three), and Blackhawk sterndrives manufactured from 1988 to the present.

This tool is a direct replacement for several OEM and aftermarket part numbers, ensuring precise compatibility for a seamless repair or maintenance task.

  • Function: Specialized tool designed to properly seat the U-joint bellows retainer ring.
  • Material: Constructed from high-strength Aluminum for durability and precise fit.
  • Requirements: Requires a compatible driver rod and engine alignment tool for proper use.

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Brand Part Number
Mercury Marine 91-818162
Mercury Marine 43577
Sierra 18-9870
Mallory 9-79821 / 79821
HeuroFosh 818162

Compatible Engine Models

Confirm your engine model/year in the table below. For Mercury owners, here’s a guide to help you identify your engine’s serial/model: Mercury Serial Number Guide. You can also review exploded diagrams to verify part numbers: Mercury Parts Diagrams & Catalog.

Brand Model Rated HP Stroke Years OEM Part No. Notes
Mercury Alpha One Gen II 120–300 4-Stroke 1992–Present 91-818162 Primary application
Mercury Bravo One 250–500+ 4-Stroke 1988–Present 91-818162 High-performance drives
Mercury Bravo Two 300–500+ 4-Stroke 1989–Present 91-818162 Heavy-duty applications
Mercury Bravo Three 250–500+ 4-Stroke 1988–Present 91-818162 Dual-prop configuration
Mercury Blackhawk 300–500+ 4-Stroke 1994–1998 91-818162 Surface drive system

Technical Specifications

Specification Value
Product Type Drive Shaft Bellow Sleeve Installation Tool
Installation Specialized tool for installing aluminum retainer ring into U-joint bellows
Housing Material Aluminum
Dimensions Approximately 89 mm diameter x 25 mm height (3.5" x 1")
Weight Approximately 150 g (0.33 lb)
Fitting Type Precision-machined installation sleeve
Warranty 1-year against manufacturing defects
Other Technical Attributes Requires driver rod and installer tool for optimal performance; engine alignment tool needed for use

Package Contents

  • 1 x Bellow Retainer Ring Installation Tool (Replaces 91-818162)

Installation Guide

  1. Ensure the sterndrive unit is safely tilted up and accessible.
  2. Place the new U-joint bellows onto the gimbal housing.
  3. Insert the aluminum retainer ring into the designated groove on the new bellows.
  4. Position this sleeve installation tool evenly over the retainer ring.
  5. Using a compatible driver rod, carefully apply pressure to drive the tool, seating the ring securely into the bellow's groove.
  6. Once fully seated, visually inspect the ring to confirm it is flush and evenly installed.
  7. Carefully remove the installation tool. The bellows is now secured.

Troubleshooting & FAQ

How do I confirm this tool works with my sterndrive?
This tool is specifically designed for Mercury MerCruiser Alpha One Gen II, Bravo (One, Two, Three), and Blackhawk sterndrives. Cross-reference your existing part number with our list, which includes Mercury 91-818162, Sierra 18-9870, and others, to ensure a perfect match.

What other tools do I need for the installation?
For proper installation, you will need a compatible driver rod to apply even pressure and an engine alignment tool to ensure correct positioning during the process.

Is this tool made of aluminum or plastic?
Our bellow retainer ring installer is constructed from high-quality, durable aluminum to ensure longevity and a precise fit. While some aftermarket alternatives exist in plastic, our version is built for strength and repeated use.

OEM vs. Aftermarket?
This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

How fast do you ship and how much does it cost?
We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

What is your warranty and return policy?
This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

  • Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
  • This product is an aftermarket replacement part and is not an OEM component.
  • Professional installation is recommended to ensure safety and optimal performance.

Why Choose JLM MARINE?

  • Quality Assured: As a trusted manufacturer for over 20 years, we supply top marine brands globally.
  • Fast Global Shipping: Free delivery worldwide in 5–15 days.
  • Direct from Manufacturer: Competitive pricing without compromising quality.
