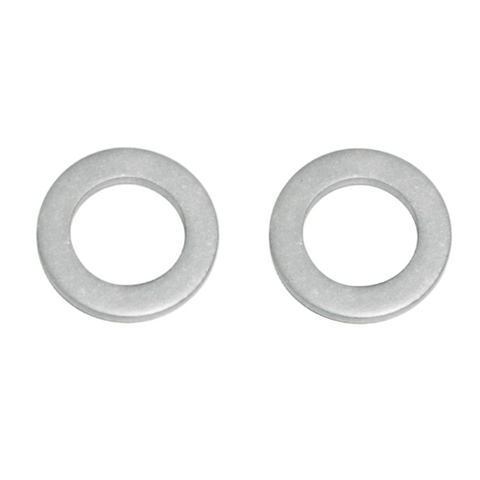

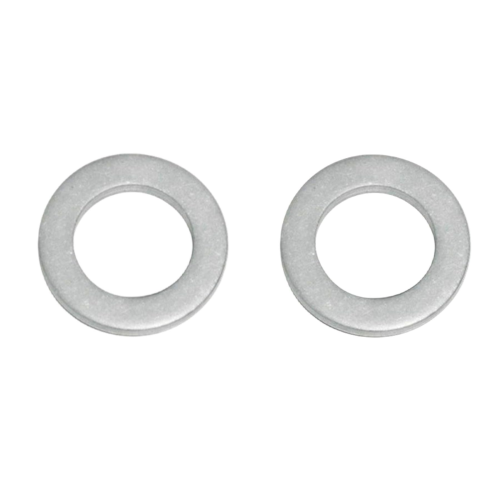

Oil Drain Plug Crush Gasket – Fits Suzuki DF25-DF350 Outboards (Replaces 09168-12012)

Oil Drain Plug Crush Gasket – Fits Suzuki DF25-DF350 Outboards (Replaces 09168-12012)

This crush gasket is designed for Suzuki Marine 25–350 HP, 4-stroke outboard engines from 2000 to the present. It creates a secure, leak-proof seal for the engine oil drain plug or lower unit fill/drain plugs, which is essential during routine oil changes and maintenance.

This component is a direct replacement for Suzuki part number 09168-12012 and several other aftermarket equivalents, ensuring wide compatibility and reliable performance.

• Material: Constructed from high-quality, corrosion-resistant aluminum to prevent seizing and ensure durability.
• Function: A single-use crush washer that deforms to create a perfect seal between the drain plug and the oil pan.
• Installation: Fits engine oil pan and lower unit drain/fill plugs.

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Suzuki owners, you can review exploded diagrams here to verify part numbers: Suzuki Parts Diagrams & Catalog.

Technical Specifications

Package Contents

• 1 x Oil Drain Plug Crush Gasket (09168-12012)

Installation Guide

1. Position a suitable drain pan under the engine's oil drain plug.
2. Using the correct wrench, carefully loosen and remove the drain plug, allowing the old oil to drain completely.
3. Inspect the drain plug and its threads for any signs of damage or wear. Clean the plug thoroughly.
4. Remove the old, used crush washer from the drain plug and discard it. Do not reuse old gaskets.
5. Slide the new crush gasket (09168-12012) onto the drain plug.
6. Reinstall the drain plug with the new gasket by hand, then tighten it to the manufacturer's recommended torque specification. This ensures a tight seal without stripping the threads.
7. Refill the engine with the correct type and amount of new outboard oil as specified in your owner's manual.
8. Start the engine and let it run for a few minutes, carefully checking for any oil leaks around the drain plug area.

Troubleshooting & FAQ

Q: How do I confirm this gasket fits my Suzuki engine?
A: This gasket fits most Suzuki 4-stroke outboards from 25 HP to 350 HP, model years 2000 to present. Please check the "Compatible Engine Models" table on this page to verify your specific model and year. It directly replaces OEM part number 09168-12012.

Q: How often should I replace the oil drain plug gasket?
A: For a reliable, leak-proof seal, it is strongly recommended to replace the crush gasket every time you change the engine oil. Reusing an old, compressed gasket significantly increases the risk of oil leaks.

Q: What are the signs of a failing drain plug gasket?
A: The most common sign is an oil leak or drip originating from the drain plug area after an oil change. If you notice fresh oil on the ground below your engine or a sheen of oil on the lower unit housing, the gasket may be compromised and should be replaced.

Q: OEM vs. Aftermarket?
A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?
A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?
A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
