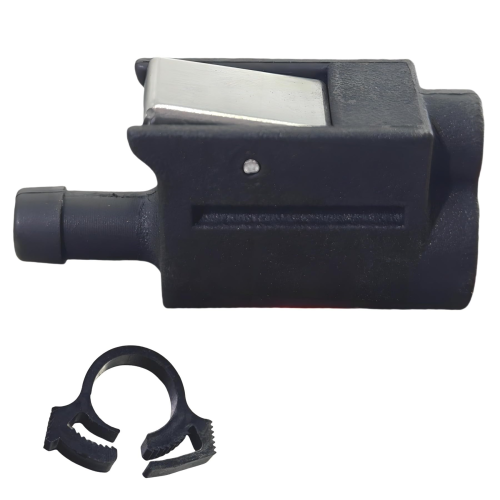

Female Fuel Line Connector – Fits Mercury/Mariner 4-40 HP Outboards (Replaces 22-13563Q7, 13563A7, 13563T7)

Female Fuel Line Connector – Fits Mercury/Mariner 4-40 HP Outboards (Replaces 22-13563Q7, 13563T7)

This fuel tank connector is designed for portable fuel tank applications on Mercury, Mariner, and Force outboard engines in the 4-40 HP range. It provides a secure, double-sealed connection at the tank end of the fuel line for reliable performance.

This component is a direct replacement for Mercury Quicksilver part numbers 22-13563Q7, 13563A7, and 13563T7, ensuring proper fit and function.

• Installation Location: Mounts on the tank end of the fuel line.
• Connection Style: Features a clip-on style quick disconnect for easy and secure attachment.
• Hose Compatibility: Designed for 5/16" (8mm) inside diameter fuel line hoses.

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Mercury owners, here’s a guide to help you identify your engine’s serial/model: Mercury Serial Number Guide. You can also review exploded diagrams to verify part numbers: Mercury Parts Diagrams & Catalog.

Technical Specifications

Package Contents

• 1 x Fuel Connector with Clip (Replaces 22-13563Q7)
• 1 x Hose Clamp

Installation Guide

Follow these steps for a secure installation:

1. Safety First: Work in a well-ventilated area away from ignition sources. Disconnect the boat's battery.
2. Remove Old Connector: Carefully detach the old fuel line connector from the fuel hose, cutting the old clamp or hose if necessary.
3. Prepare New Connector: Slide the new hose clamp over the fuel line first.
4. Attach Connector: Firmly press the barbed end of the new fuel connector into the 5/16" fuel line until it is fully seated.
5. Secure Clamp: Position the hose clamp approximately 1/4" from the end of the hose over the barbed fitting and tighten it securely.
6. Connect to Tank: Clip the new connector onto the male fitting on your portable fuel tank, ensuring it clicks into place.
7. Check for Leaks: Prime the fuel system and carefully inspect the connection for any signs of fuel leakage before starting the engine.

Troubleshooting & FAQ

Q: How do I confirm this connector will fit my specific outboard?
A: This female connector fits most Mercury, Mariner, and Force 2-stroke outboards in the 4-40 HP range that use a clip-on style quick disconnect at the tank. The surest way to confirm is to match your old part's number to one of the cross-reference numbers (22-13563Q7, 13563A7, 13563T7) and verify your fuel line has a 5/16" (8mm) inside diameter.

Q: What are the signs that my fuel connector needs to be replaced?
A: Common failure signs include visible fuel leaks or a strong smell of gasoline around the connector, difficulty getting the connector to snap securely into place, and visible cracks, brittleness, or degradation of the plastic or rubber housing.

Q: Is the hose clamp included with the connector?
A: Yes, the package includes one new hose clamp to ensure a tight, leak-free seal when installing the connector onto your fuel line.

Q: OEM vs. Aftermarket?
A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?
A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?
A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
