This comprehensive maintenance kit is engineered for Honda BF80A and BF100A outboard engines, delivering all essential service components in one convenient package. Designed to meet OEM specifications, this kit ensures your engine receives complete maintenance coverage with precision-manufactured parts that match original equipment performance standards.

Direct OEM Replacement: 06211-ZZ0-505. This aftermarket kit consolidates critical maintenance components including impeller, thermostat, filters, gaskets, seals, and a gear oil pump—everything needed for thorough engine servicing.

• Complete 14-component kit covering cooling system, fuel system, lubrication, and drive maintenance
• Includes water pump impeller, thermostat, oil filter, dual fuel filters, and gear oil pump
• All gaskets, O-rings, and hardware supplied for professional-grade service

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below.

Technical Specifications

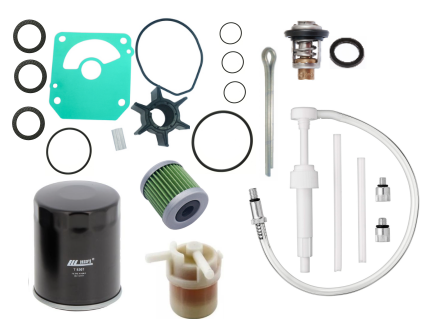

Package Contents

This maintenance kit includes the following components:

• 19234-ZW1-B00 – Gasket × 1
• 91356-ZW1-B00 – O-ring × 1
• 90752-ZW1-B02 – Key × 1
• 19210-ZY9-H01 – Impeller × 1 (Critical cooling system component)
• 19300-ZW9-003 – Thermostat × 1 (Engine temperature regulation)
• 15400-RBA-F01 – Oil Filter × 1
• 16911-ZY3-010 – Fuel Filter × 1
• 16073-ZY9-003 – O-ring × 1
• 16910-ZY9-004 – Fuel Filter × 1
• 16918-ZY3-003 – O-ring × 1
• 91301-ZW4-003 – O-ring × 3
• 12-191833 – Drain Gasket × 3
• 90758-ZW1-B00 – Cotter Pin × 1
• 24OP149 – Gear Oil Pump × 1 (Lower unit service tool)

Installation Guide

1. Preparation: Gather all tools including socket set, screwdrivers, torque wrench, and drain pans. Ensure the engine is cool and disconnected from the battery.
2. Oil Change: Drain engine oil completely and replace with fresh oil using the new drain gaskets provided. Install the new 15400-RBA-F01 oil filter, hand-tightening plus 3/4 turn.
3. Lower Unit Service: Use the included gear oil pump (24OP149) to drain old gear oil from the lower unit. Refill with fresh gear oil using new drain gaskets (12-191833).
4. Water Pump Service: Remove the lower unit to access the water pump housing. Remove the old impeller and clean the housing thoroughly.
5. Impeller Installation: Lubricate the new impeller (19210-ZY9-H01) with glycerin or soapy water. Install with vanes oriented correctly per rotation direction, then secure with key (90752-ZW1-B02).
6. Gaskets & Seals: Replace the water pump gasket (19234-ZW1-B00) and all O-rings (91356-ZW1-B00, 16073-ZY9-003, 16918-ZY3-003, 91301-ZW4-003). Never reuse old gaskets.
7. Thermostat Replacement: Locate the thermostat housing on the cylinder head and remove cover bolts. Install the new thermostat (19300-ZW9-003) with the spring side facing inward.
8. Fuel System Service: Replace both fuel filters (16911-ZY3-010 and 16910-ZY9-004) with their corresponding O-rings. Ensure proper seating to prevent fuel leaks.
9. Secure Cotter Pin: Install the cotter pin (90758-ZW1-B00) in the appropriate location per your service manual. Bend ends to secure properly.
10. Reassembly: Reinstall the lower unit, torquing all fasteners to manufacturer specifications. Double-check all drain plugs and filter installations.
11. System Check: Reconnect the battery and add fresh fuel if needed. Start the engine and check for leaks at all service points (oil filter, fuel filters, lower unit).
12. Final Inspection: Run the engine briefly and verify proper cooling system operation with strong water stream from telltale. Check engine temperature and oil pressure within normal ranges.

Troubleshooting & FAQ

Q: How do I confirm this maintenance kit fits my Honda outboard?
A: This kit is designed specifically for Honda BF80A and BF100A models. Verify your engine model by checking the identification plate on the transom bracket or swivel bracket. Cross-reference the OEM part number 06211-ZZ0-505 in your engine's service manual to ensure compatibility.

Q: How often should I perform this complete maintenance service?
A: Honda recommends annual maintenance or every 100 hours of operation, whichever comes first. In saltwater environments or heavy-use conditions, consider servicing every 50-75 hours. Always replace the impeller annually regardless of hours to prevent cooling system failure.

Q: What are the signs that my impeller or thermostat needs replacement?
A: Watch for weak water flow from the telltale (indicator stream), engine overheating, inconsistent operating temperature, or steam from the engine. If the impeller has missing vanes, cracks, or hardened rubber, replace it immediately to avoid catastrophic engine damage.

Q: Can I reuse any of the old gaskets or O-rings during installation?
A: No, never reuse gaskets, O-rings, or drain gaskets. These components compress and deform during initial installation, and reusing them will result in leaks. This kit provides all necessary sealing components—use every new part supplied.

Q: Do I need any special tools beyond what's included in this kit?
A: The gear oil pump is included, but you'll need standard hand tools: socket set, torque wrench, screwdrivers, and drain pans. A service manual for your specific engine model is highly recommended for torque specifications and detailed procedures.

Q: What's the difference between OEM and aftermarket maintenance kits?
A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?
A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?
A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
