How to Match This Part

This is a flexible rubber raw water pump impeller. It sits inside the pump housing behind the cover plate and is driven by a 12-spline shaft. It replaces the primary original part number Jabsco 17240-0001 (also 18789-0001), and is also supplied against JMP 9001-01, DJ 08-15-0901 and Caterpillar 7E3022.

Match this part by checking your engine in this order:
1. Original impeller part number (stamped on the old impeller or listed in the pump section of your parts catalog)
2. Blade count (this listing is 9 blades)
3. Drive type (this listing is a 12-spline hub, 25 mm bore — not the double-flat 18786-0001 / 9000-01 cousin)
4. Diameter and width (this listing is 117 mm diameter and 88.5 mm wide)

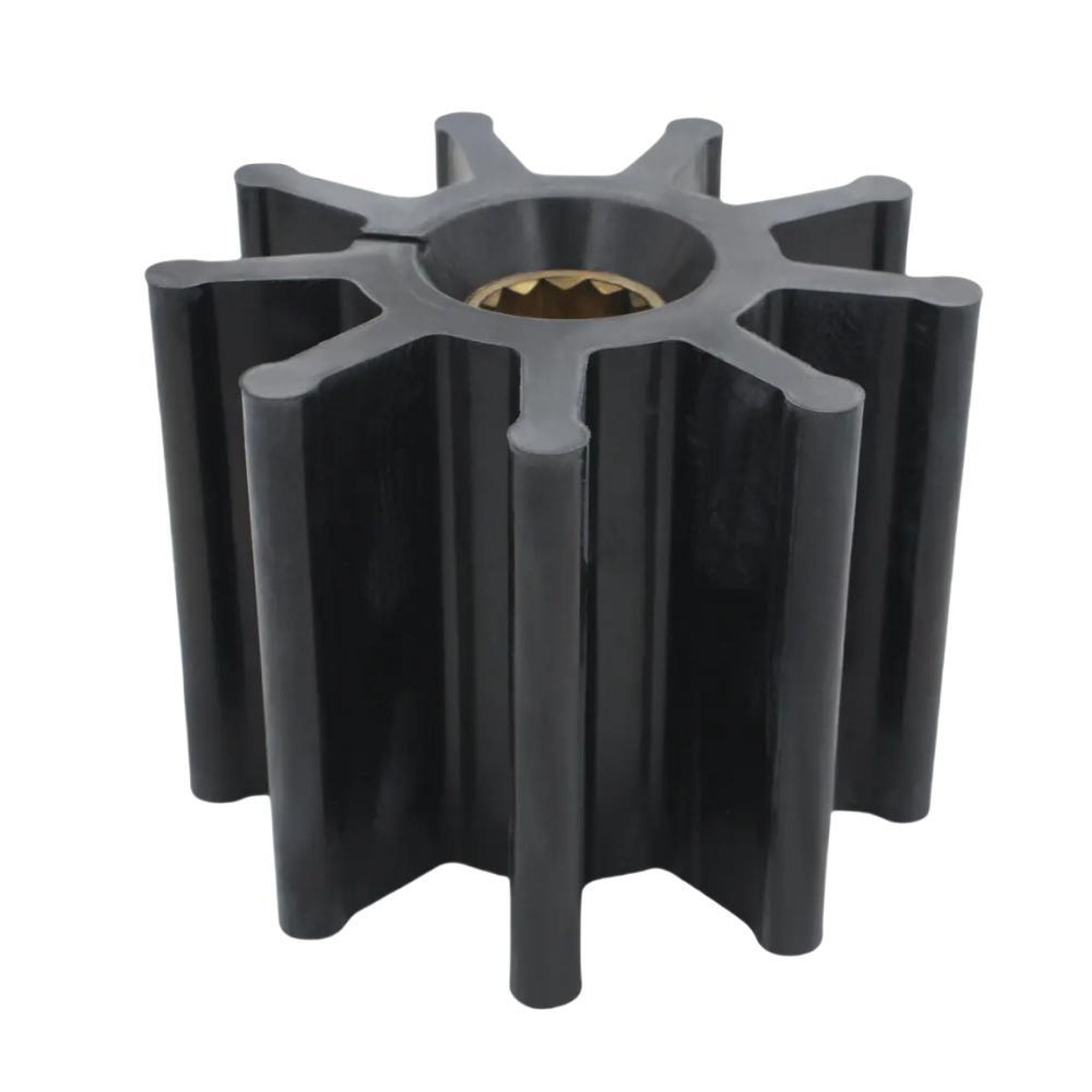

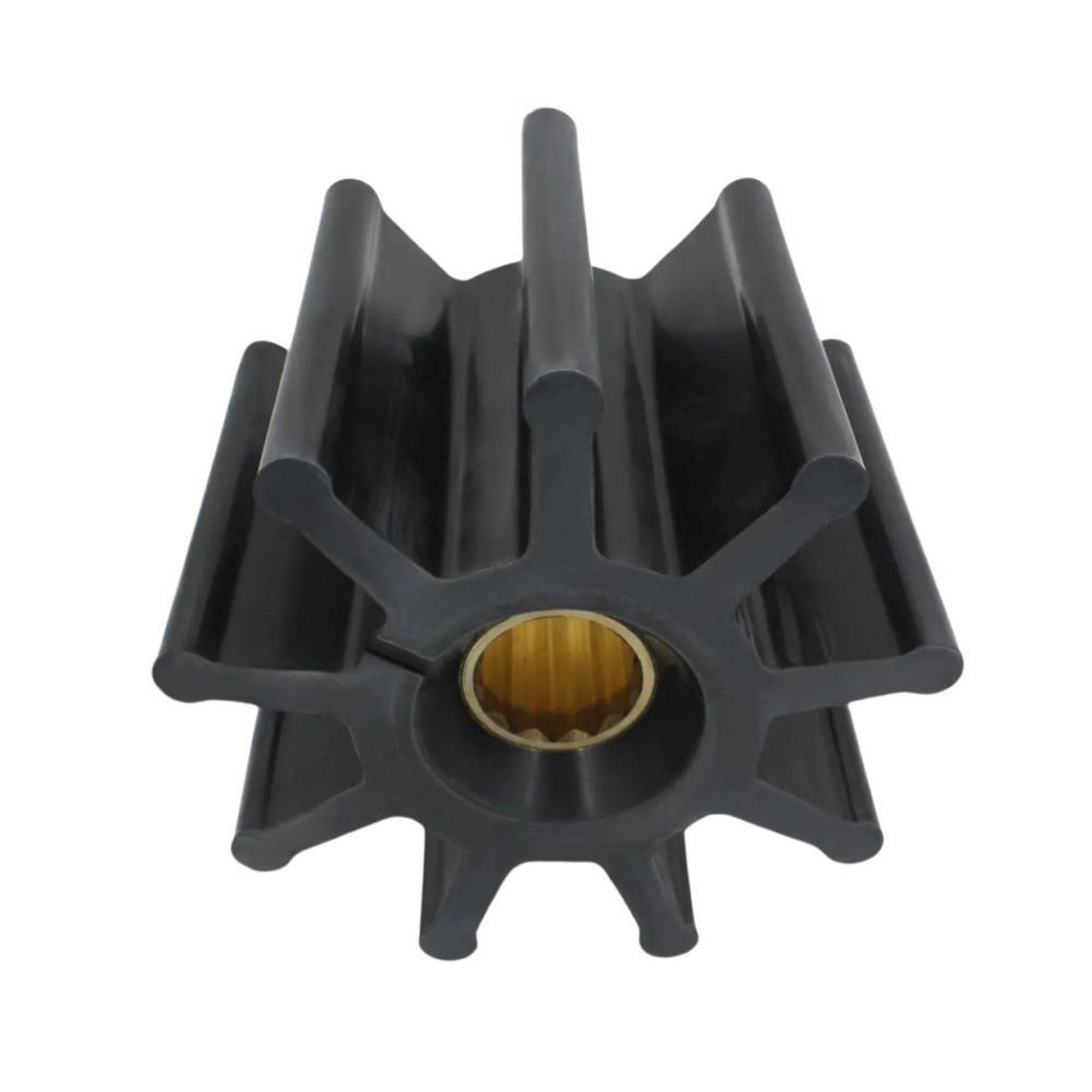

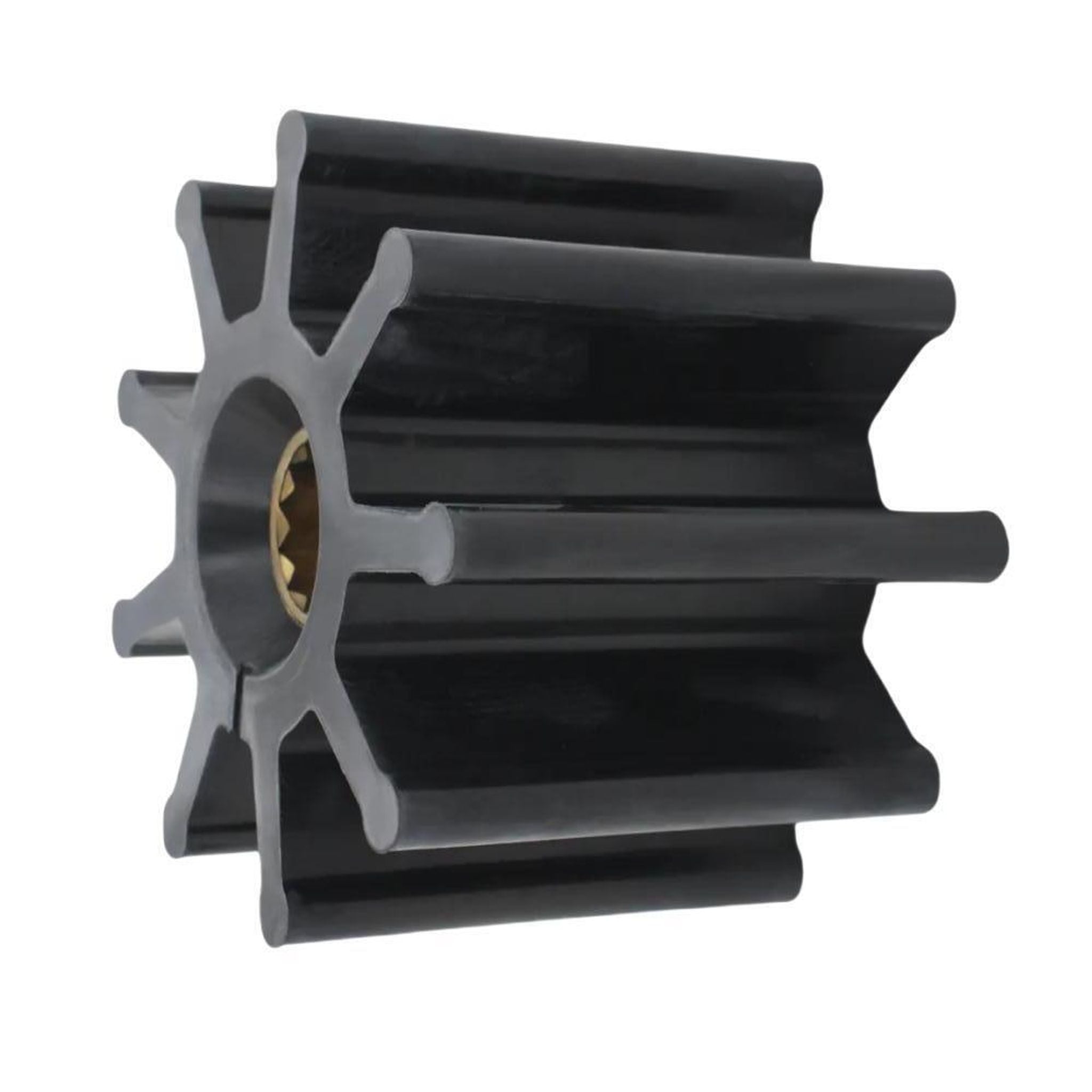

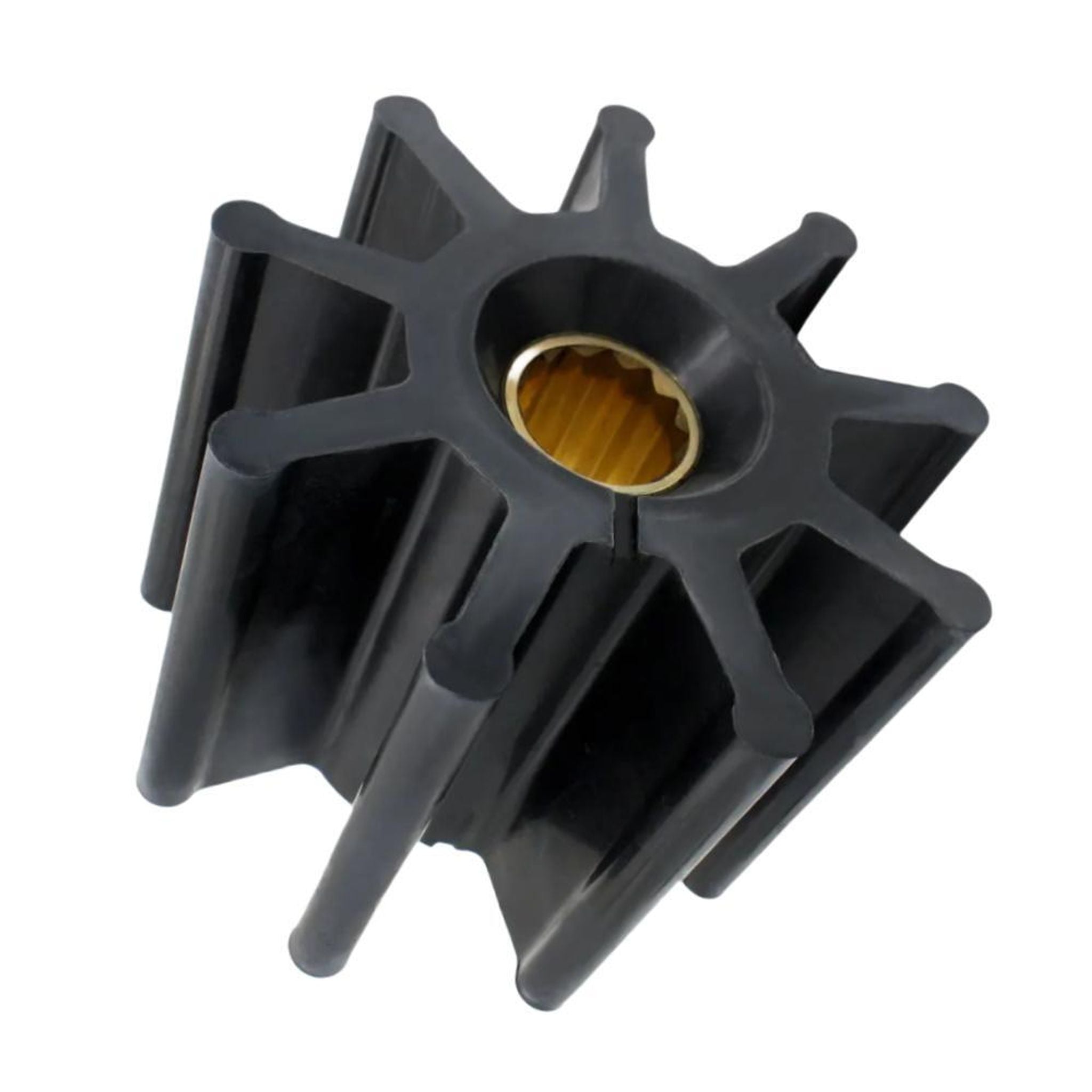

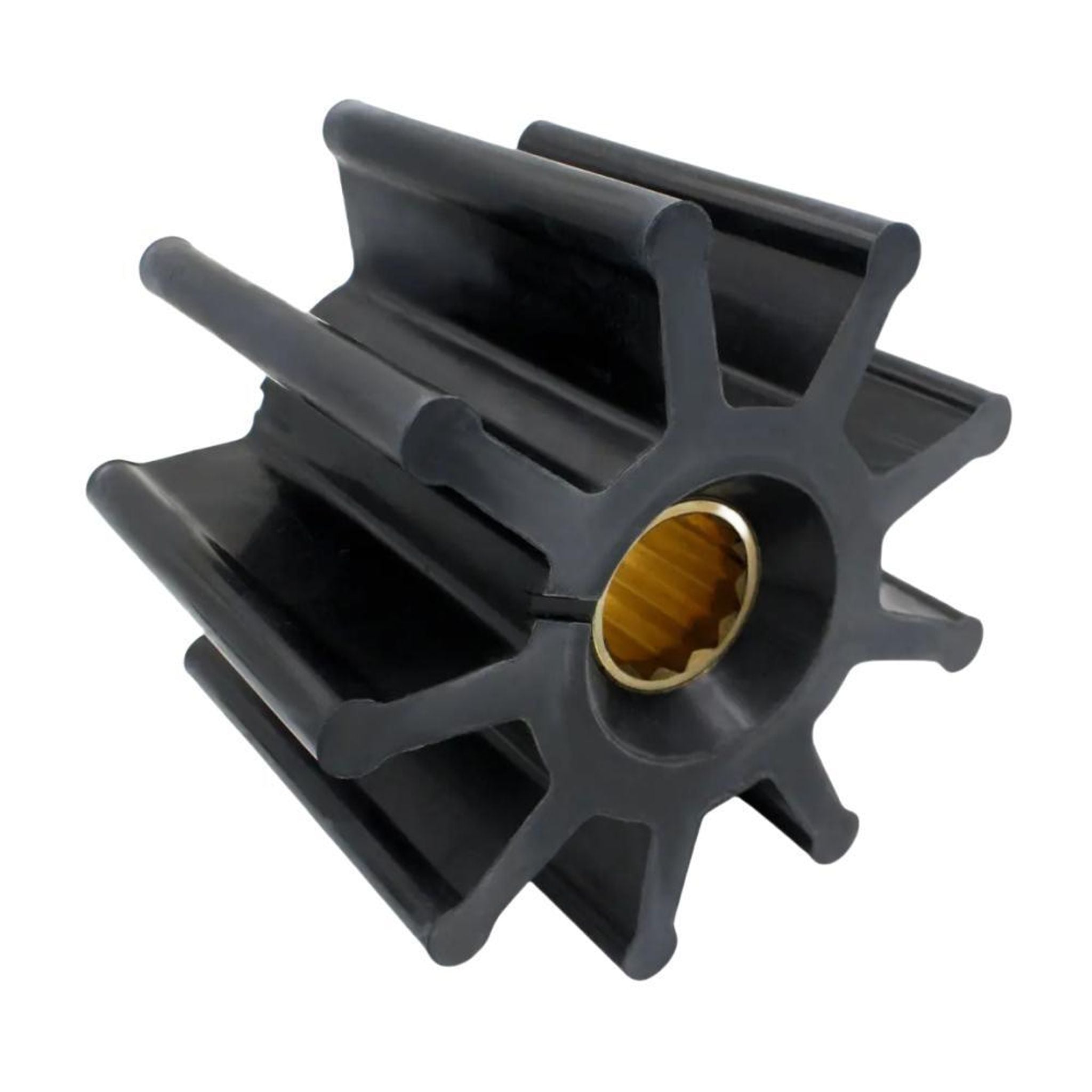

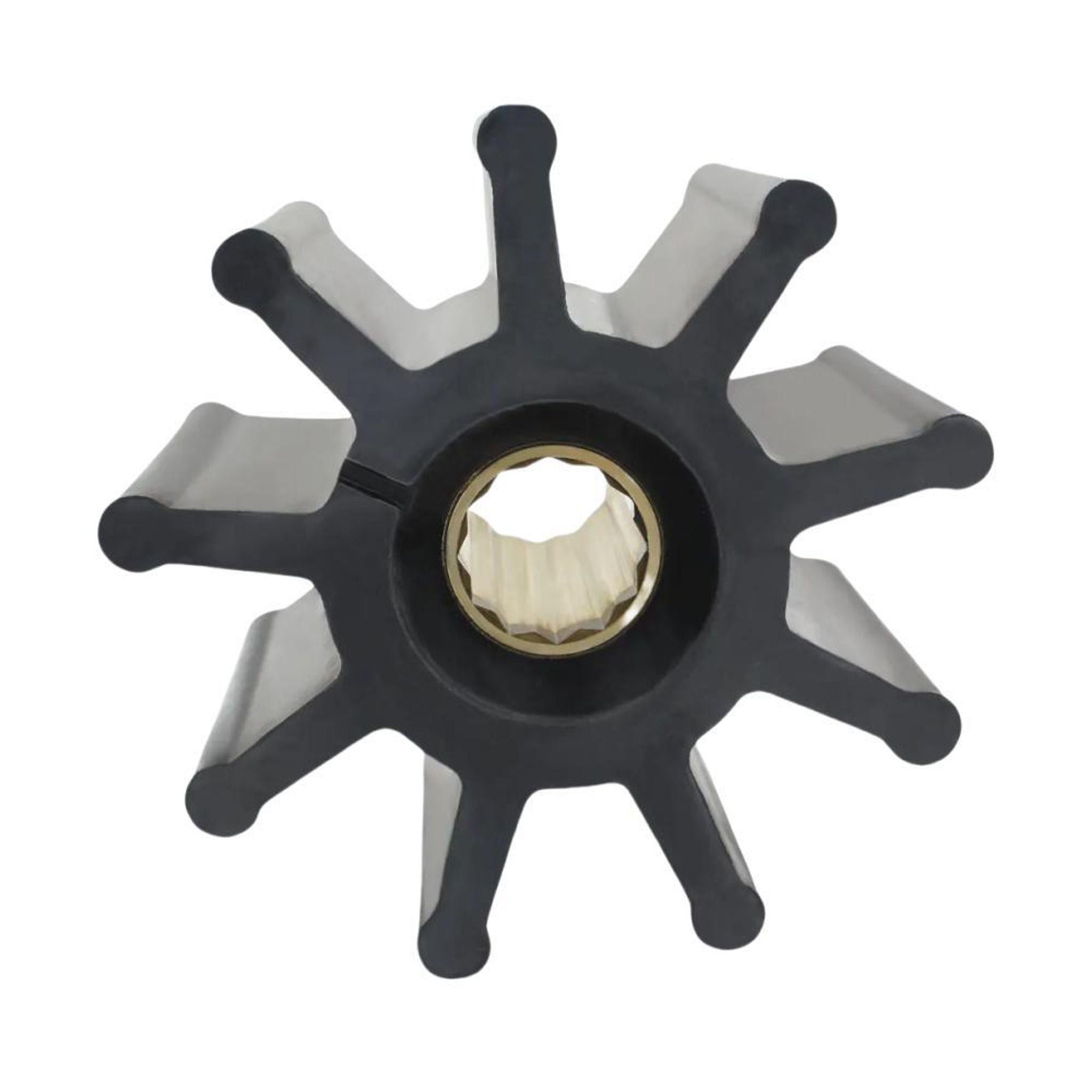

Identify it physically before ordering. This impeller has nine vanes moulded in black neoprene around a machined brass 12-spline insert. JMP 9001-01 is 117 mm diameter, 88.5 mm width and 25 mm bore. An isometric photo of this SKU can look like ten vanes; JMP 9001-01 and DJ 08-15-0901 both specify nine.

✓ Primary OEM: Jabsco 17240-0001
✓ Product form: 9-blade neoprene impeller, brass 12-spline insert, 117 × 88.5 × 25 mm
✓ Fitment: part number, then blade count, then spline vs double-flat

Part Number Cross-Reference

Use this table to confirm equivalent part numbers. Some retailers list 18789-0001P or 9001-01K as a kit. This listing is the impeller only.

Type	Brand	Part Number	Notes
OEM	Jabsco	17240-0001	Primary reference. 9-blade neoprene, 12-spline
OEM	Jabsco	18789-0001	Current Jabsco number for the same spline impeller
OEM	JMP Pump	9001-01	9-blade 12-spline equivalent
OEM	DJ Pump	08-15-0901	9-blade spline equivalent
OEM	Caterpillar	7E3022	Excel CAT number for this SKU. Confirm the hub is spline, not double-flat 18786-0001
Other brand	Industry interchange	K-175	Source-sheet other-brand number
Other brand	Industry interchange	888-175	Source-sheet other-brand number

Compatible Engine Models

Confirm the original impeller number and count nine blades on a 12-spline hub 88.5 mm wide. Do not assume every Cummins K19 or CAT 3406/3412 pump uses this impeller.

Brand	Engine / Pump Model	Original Part No.	Notes
Jabsco / JMP / DJ / CAT	Pumps specified for 17240-0001, 18789-0001, 9001-01, 08-15-0901 or 7E3022	17240-0001, 18789-0001, 9001-01, 08-15-0901, 7E3022	9-blade, 12-spline, 117 × 88.5 × 25 mm
Jabsco	29860, 29870, 29880 and 29890-series pump bodies listed for 17240-0001 / 18789-0001	17240-0001, 18789-0001	Jabsco pump models. Match the impeller number
JMP Pump	JPR-C1905 replacement raw-water pump	9001-01	JMP pump model that uses this impeller. Match the impeller number

Technical Specifications

Specification	Value
Part type	Flexible rubber impeller, raw water pump
Number of blades	9
Impeller diameter (A)	117 mm
Impeller width / depth (B)	88.5 mm
Shaft bore diameter (C)	25 mm
Insert / drive type	12-spline
Insert material	Machined brass
Vane material	Neoprene rubber

Package Contents

This listing is for the impeller only, as shown in the impeller in the product images. Please refer to the part number cross-reference table to confirm component details.

Cover gasket, O-ring and lubricant are not included.

Installation Guide

1 Stop the engine, let it cool, and close the raw water seacock so water cannot enter the boat while the pump is open.
2 Remove the cover plate screws and lift off the cover. Keep the screws and the old gasket together so you can compare the seal size when reassembling.
3 Note the 12-spline orientation, then grip the brass insert and pull the old impeller straight off. Recover any broken vane pieces from the downstream cooling circuit before continuing.
4 Clean the housing bore and the wear plate, and inspect them for scoring. Apply a marine-grade impeller lubricant, glycerine or soapy water to the bore and the new vanes. Do not use petroleum-based grease, which attacks neoprene.
5 Align the 12-spline in the brass insert with the pump shaft, then press the impeller in while turning the shaft in the normal direction of rotation so all nine vanes lay over the same way.
6 Refit the cover plate with a serviceable gasket, tighten the screws evenly in a crisscross pattern, open the seacock, then start the engine and confirm a solid stream of cooling water and no leaks at the cover.

Note: Professional installation is recommended to ensure safety and optimal performance.

Troubleshooting & FAQ

How do I confirm this fits my engine? +

Start from the original impeller number. If the old part is Jabsco 17240-0001 / 18789-0001, JMP 9001-01 or DJ 08-15-0901, and the brass hub is a 12-spline 25 mm on a 117 mm 9-blade impeller, this part is the correct size.

The photo looks like 10 blades. Is this a 10-blade impeller? +

No. JMP 9001-01 and DJ 08-15-0901 both specify 9 blades. Count the vanes on the old impeller before ordering.

Is this the same as Jabsco 18786-0001 / JMP 9000-01? +

No. That number is the same envelope with a double-flat hub. This listing is 12-spline. Confirm the drive before ordering.

Will this fit every Cummins K19 or CAT 3406 / 3412? +

Do not assume a whole engine family. Match the original impeller number. JMP pump JPR-C1905 uses this impeller; CAT 7E3022 is listed on this SKU but some catalogs put 7E3022 on the double-flat cousin — confirm spline vs double-flat.

Is this a kit or just the impeller? +

This listing is the impeller only. JMP 9001-01K adds an O-ring and lubricant. Photos of this SKU show the impeller on its own.

Is this an OEM or aftermarket part? +

This listing is an aftermarket replacement part and is not an OEM component. We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

How fast do you ship and how much does it cost? +

We offer fast global shipping, typically 5–15 days worldwide, and standard shipping is free. Expedited options are available at checkout depending on your location.

What is your warranty and return policy? +

This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window for unused items in original condition; please see our policy page or reach out for instructions.

Important Notes

Verify that the product images and specifications match your original part. If discrepancies exist, even if your model is listed, do not proceed with the purchase.
This product is an aftermarket replacement part and is not an OEM component.
The impeller is supplied on its own. Cover seals and lubricant must be ordered separately if your service procedure requires them.
This is a 9-blade, 117 mm 12-spline impeller, 88.5 mm wide with a 25 mm bore. It will not fit double-flat 18786-0001 / 9000-01 of the same envelope.
Never run the pump dry. Even a few seconds without water will damage the neoprene vanes.
Professional installation is recommended to ensure safety and optimal performance.
