Hydrofoil Stabilizer – Fits Marine Outboard and Sterndrive Motors 5–150 HP

Hydrofoil Stabilizer – Fits Marine Outboard and Sterndrive Motors 5–150 HP

$50.00 $41.85
Hydrofoil Stabilizer – Fits Marine Outboard and Sterndrive Motors 5–150 HP

Hydrofoil Stabilizer – Fits Marine Outboard and Sterndrive Motors 5–150 HP

$50.00 $41.85
Descripción

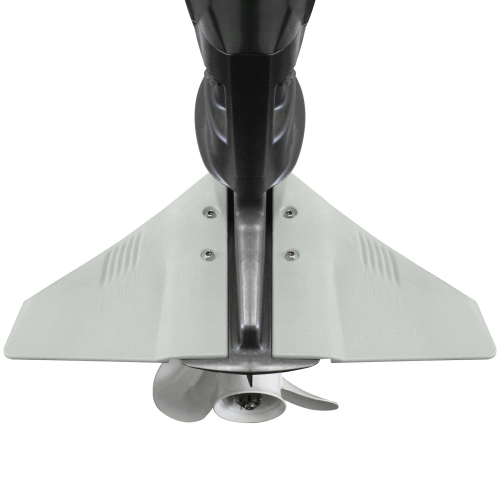

Hydrofoil Stabilizer – Fits Marine Outboard and Sterndrive Motors 5–150 HP

This universal-fit hydrofoil stabilizer is designed for outboard and sterndrive motors from 5–150 HP. It is compatible with most major brands, including Yamaha, Mercury, Honda, Suzuki, and Tohatsu, making it a versatile solution for improving your boat's performance. The stabilizer is constructed from high-strength, marine-grade UV-resistant reinforced nylon (PA66) plastic for durability in harsh saltwater and freshwater environments.

This part is a direct replacement for QuickMarine HS001-White and FO2001 Hydrofoil models.

  • Installation: Mounts directly to the engine's cavitation plate with the included hardware.
  • Material: Marine-grade UV-resistant reinforced nylon (PA66).
  • Compatibility: Universal fit for most 5-150 HP outboard and sterndrive motors.

Compatible Engine Models

Confirm your engine model/year in the table below.

Brand Motor Types HP Range Notes
Yamaha Outboard 5-150 HP All 2-stroke and 4-stroke models
Mercury Outboard/Sterndrive 5-150 HP All 2-stroke and 4-stroke models
Honda Outboard 5-150 HP All 4-stroke models
Suzuki Outboard 5-150 HP All 2-stroke and 4-stroke models
Tohatsu Outboard 5-150 HP All 2-stroke and 4-stroke models
Other Outboard/Sterndrive 5-40 HP Particularly effective on smaller motors

Technical Specifications

Product Type Hydrofoil Stabilizer
Installation Engine-mounted with included hardware
Fuel Type Gasoline (compatible with all fuel types)
Housing Material Marine-grade UV-resistant reinforced nylon (PA66) plastic
Housing Color White
Dimensions Each wing: 10-1/4" × 8-1/4" (260 mm × 210 mm)
Weight 2.45 lbs (1.11 kg)
Mounting Type Engine mount (cavitation plate)
Package Dimensions 14.53" × 11.26" × 1.26" (369 mm × 286 mm × 32 mm)
Assembly Required Yes
Compatibility Universal fit for 5-150 HP outboard and sterndrive motors

Package Contents

  • 1 x Hydrofoil Stabilizer (HS001-White)
  • 4 x Sets of SS316 bolts, nuts, and gaskets

Installation Guide

Follow these general steps for installation. Professional installation is recommended for optimal performance and safety.

  1. Center the hydrofoil on the anti-cavitation plate of your outboard or sterndrive motor. Ensure it is positioned correctly for your specific engine model.
  2. With the hydrofoil held firmly in place, use a marker to mark the locations for the four mounting holes.
  3. Remove the hydrofoil and carefully drill the four marked holes through the cavitation plate. Start with a smaller pilot bit if necessary.
  4. Place the rubber gaskets between the hydrofoil and the cavitation plate to reduce vibration.
  5. Align the hydrofoil with the drilled holes and insert the SS316 bolts from the top.
  6. From underneath, secure the bolts with the provided nuts and washers, tightening them evenly until the hydrofoil is firmly attached. Do not overtighten.

Troubleshooting & FAQ

How do I confirm this fits my engine?
This hydrofoil offers a universal fit for most outboard and sterndrive motors in the 5-150 HP range. It is confirmed to work with major brands like Yamaha, Mercury, Honda, Suzuki, and Tohatsu. Please check the compatibility table and ensure your engine's cavitation plate has sufficient space for mounting (each wing is 10-1/4" × 8-1/4").

What are the main performance benefits?
Installing this hydrofoil helps your boat get on plane faster, reduces or eliminates porpoising (bow bounce), and improves overall stability at speed. Its design avoids the drag associated with older, cupped hydrofoils. It's especially effective for improving the performance of aluminum boats, jon boats, and inflatable boats.

Is this effective for any size motor in the 5-150 HP range?
While it is designed for the broad 5-150 HP range, performance gains are often most noticeable on smaller motors. Some sources indicate the optimal range is 5-40 HP, where it provides a significant lift for lighter boats.

OEM vs. Aftermarket?
This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

How fast do you ship and how much does it cost?
We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

What is your warranty and return policy?
This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

  • Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
  • This product is an aftermarket replacement part and is not an OEM component.
  • Professional installation is recommended to ensure safety and optimal performance.

Why Choose JLM MARINE?

  • Quality Assured: As a trusted manufacturer for over 20 years, we supply top marine brands globally.
  • Fast Global Shipping: Free delivery worldwide in 5–15 days.
  • Direct from Manufacturer: Competitive pricing without compromising quality.
