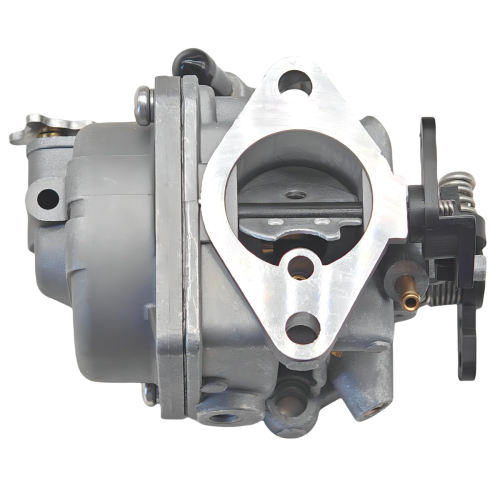

Carburetor Assembly – Fits Honda BF5 5HP 4-Stroke Outboard (Replaces 16100-ZV1-A03)

Carburetor Assembly – Fits Honda BF5 5HP 4-Stroke Outboard (Replaces 16100-ZV1-A03)

This carburetor assembly is designed to fit Honda Marine 5 HP (BF5) 4-Stroke outboard motors, covering models from the mid-1990s through current production years. It serves as a direct-fit replacement, ensuring reliable fuel system performance.

This unit directly replaces Honda OEM part numbers 16100-ZV1-000KA, 16100-ZV1-005, 16100-ZV1-A00, 16100-ZV1-A01, 16100-ZV1-A02, and 16100-ZV1-A03, as well as JLM Marine aftermarket part AM16100ZV1A03.

• Installation Method: Direct OEM Replacement
• Compatible Fuel Type: Gasoline
• Included Components: 1x Carburetor Assembly

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below.

Technical Specifications

Package Contents

• 1 x Carburetor Assembly (16100-ZV1-A03)

Installation Guide

1. Safety First: Disconnect the battery and ensure the engine is cool. Work in a well-ventilated area away from open flames or sparks.
2. Shut Off Fuel: Turn off the fuel valve to prevent gasoline from spilling.
3. Disconnect Lines: Carefully disconnect the fuel lines and any throttle or choke linkages connected to the old carburetor. Note their positions.
4. Remove Old Carburetor: Unbolt the existing carburetor from the intake manifold. You may need to remove the airbox or cowling for access.
5. Clean Mating Surface: Clean the gasket mating surface on the intake manifold to ensure a proper seal.
6. Install New Gasket: Place the new gasket included with your carburetor onto the intake manifold.
7. Mount New Carburetor: Install the new carburetor, ensuring it is seated correctly on the gasket. Tighten the mounting bolts evenly.
8. Reconnect Lines: Re-attach the fuel lines, throttle linkage, and choke linkage to the new carburetor.
9. Check for Leaks: Turn the fuel supply back on and check carefully for any leaks around the carburetor and fuel lines.
10. Start and Adjust: Start the engine and allow it to warm up. You may need to adjust the idle speed screw for smooth operation.

Troubleshooting & FAQ

How do I confirm this carburetor fits my Honda BF5 engine?
The best method is to match your existing carburetor's part number to the numbers listed in our cross-reference table. Additionally, check the Compatible Engine Models list to ensure your specific model (e.g., BF5AH, BF5AM) is included.

Some listings mention BF50 compatibility. Is that correct?
This appears to be a common typo. This carburetor is specified for BF5 (5 HP) models. The part number series 16100-ZV1 is consistently associated with the 5 HP engine, not the 50 HP (BF50) engine, which uses a different fuel system. Please verify your engine's horsepower before ordering.

What are common signs that my carburetor needs to be replaced?
Symptoms of a failing carburetor include difficulty starting, rough idling, stalling, poor acceleration, black smoke from the exhaust (running rich), or visible fuel leaks. Often, these issues arise from internal passages being clogged by old fuel deposits.

OEM vs. Aftermarket?
This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

How fast do you ship and how much does it cost?
We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

What is your warranty and return policy?
This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
