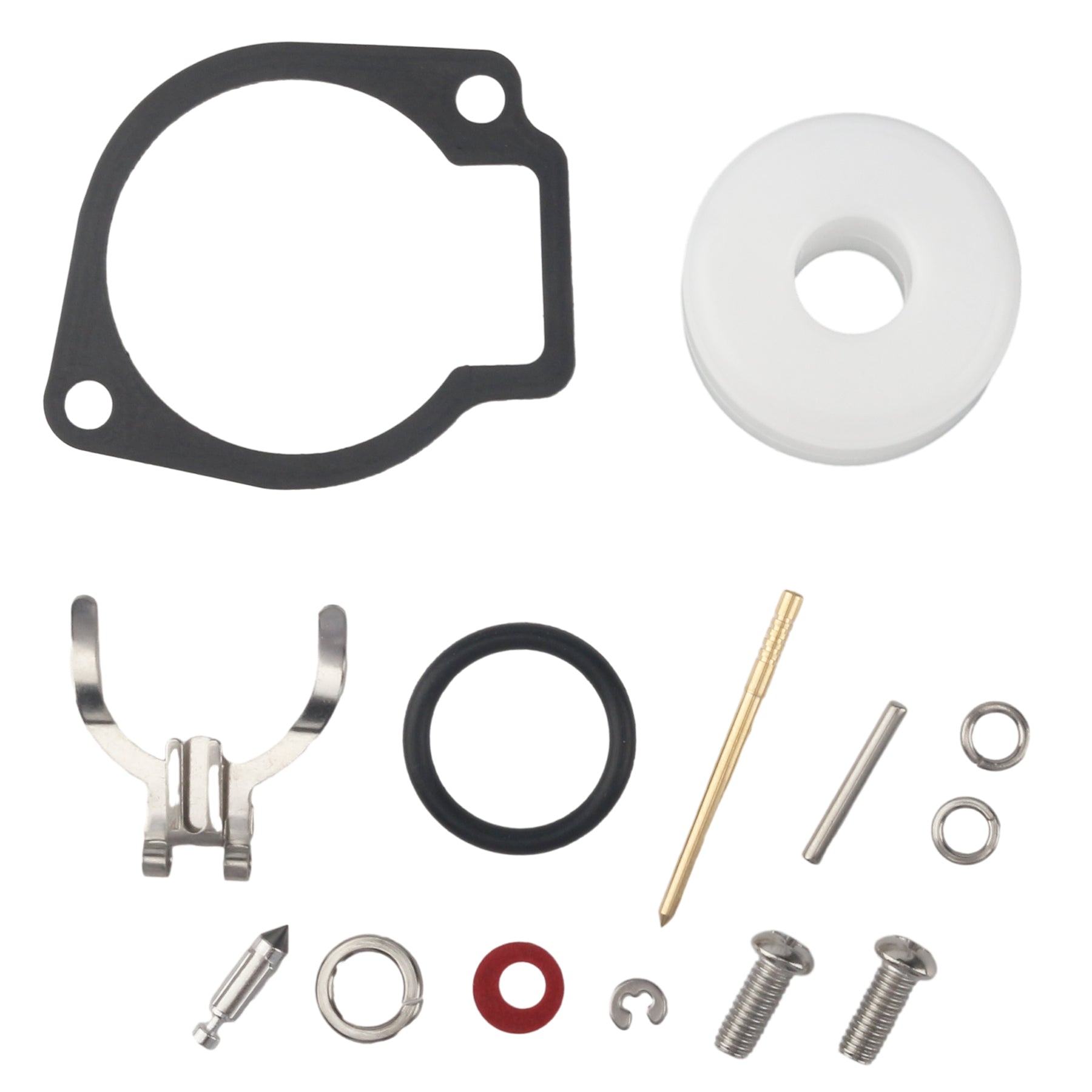

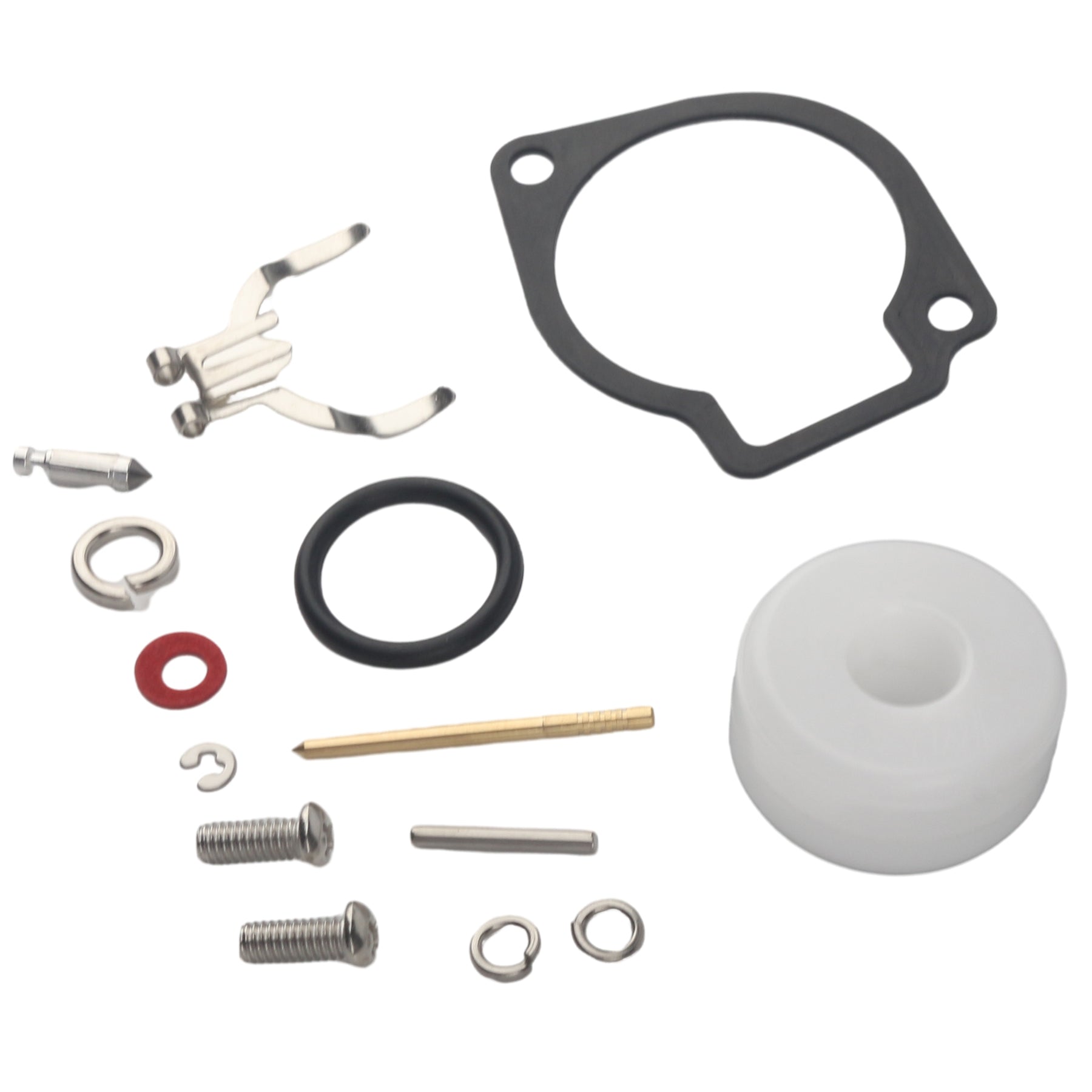

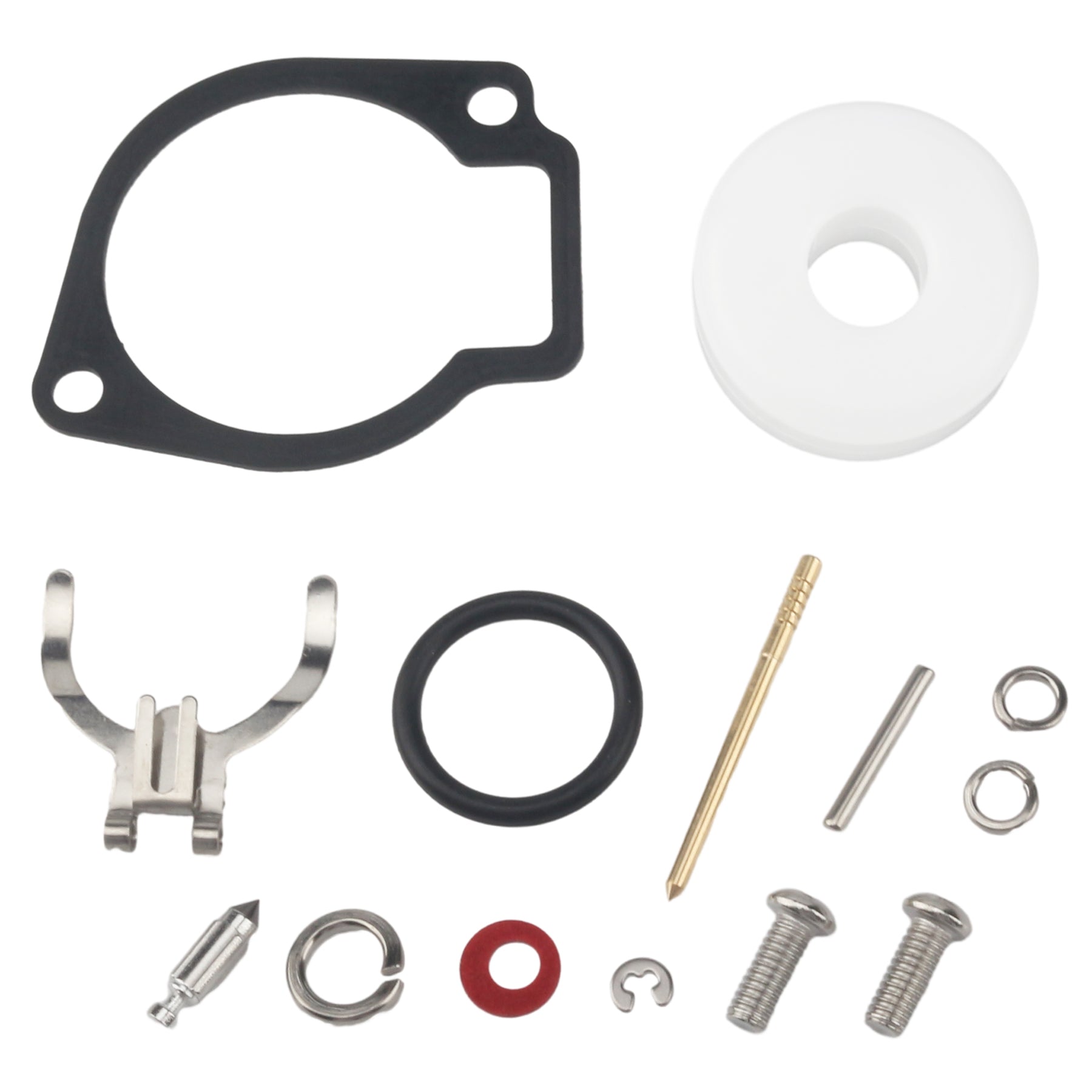

Carburetor Rebuild Kit for Mercury Mariner Nissan 2.5HP, 3.5HP; Tohatsu 2.5HP, 3.5HP 2-Stroke Models (3F0-87122-1)

OEM Part Numbers

• Yamaha: 6G1-W0093-00, 6G1-W0093-00-00, 6G1-W0093-00-XX, 6G1W009300, 6G1W00930000, 6G1W009300XX, 6L5-W0093-00-00, 6L5W00930000, 6N0-W0093-00-00, 6N0W00930000, 6G1-W0093-01-00, 6G1W00930100
• Mercury/Mariner: 11502M
• Sierra: 18-7765
• Tohatsu: 369-87122-1, 369871220, 369871220M, 369871221, 369871221M, 3B2871220, 3B2871220M, 3K9871220, 3K9871220M
• Aftermarket: AM6G1-W0093-00

Compatible Models

• Nissan
• Two-Stroke Engines: NS 2.5A2, NS 3.5A2, NS 3.5B, NS 3.5B2
• Tohatsu
• Two-Stroke Engines: M 2.5A2, M 3.5A2, M 3.5B, M 3.5B2

Technical Specifications

Weight: 36g
Package Dimensions: 18 x 15 x 2 cm

Installation Instructions

1. Make sure the engine is completely shut down and fully cooled.
2. Disconnect the battery to prevent any accidental starting.
3. Remove the engine cover to expose the carburetor assembly.
4. Disconnect and label all fuel lines and control linkages so they can be re-installed correctly.
5. Remove the entire carburetor and place it on a clean workbench; note the original orientation of jets, throttle plates, and other parts.
6. Open the carburetor body and, in order, take out the old float, needle valve, jets, diaphragms, etc.; lay out the new gaskets, O-rings, needle-valve assembly, float-pivot pin, and other parts from the repair kit as shown in the instructions.
7. Clean every air and fuel passage thoroughly with carburetor cleaner or an ultrasonic bath; blow everything dry with compressed air to remove residue.
8. Following the repair-kit manual, install all new components and set the float height, idle-mixture screw, and other preliminary adjustments.
9. Reassemble the carburetor and mount it back on the engine; reconnect all fuel lines and linkages, then start the engine and fine-tune idle, mid-range, and high-speed mixtures to factory specifications until it runs smoothly without stalling or hesitation.

Important Notes

Verify that the product images and specifications match your original part. If discrepancies exist, even if your model is listed as compatible, do not proceed with the purchase.

This product is an aftermarket replacement part and is not an OEM component.

Professional installation is recommended to ensure safety and optimal performance.

Warranty Information

This product comes with a 1-year warranty against manufacturing defects under normal use conditions. Please contact our customer service team for warranty claims or additional product information.
