Water Pump Impeller Repair Kit – Fits Yamaha 115-130 HP Outboards (Replaces 68V-W0078, 61A-44311)

Water Pump Impeller Repair Kit – Fits Yamaha 115-130 HP Outboards

This water pump impeller repair kit is designed for Yamaha 115 HP and 130 HP (All F, LF, & C models) 2-stroke and 4-stroke outboard motors. It provides a reliable solution for maintaining your engine’s cooling system to prevent overheating.

This kit serves as a direct replacement for multiple OEM and aftermarket part numbers, ensuring broad compatibility for a range of specified Yamaha engines. It includes a complete housing, impeller, wave washer, and all necessary seals and gaskets for a full service.

• Fits Yamaha 115-130 HP (F, LF, & C) 2-Stroke & 4-Stroke models.
• Engineered with a durable neoprene impeller and a PA66 nylon housing for longevity.
• Installation is a direct fit in the lower unit.

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Yamaha owners, here’s a guide to help you identify your engine’s serial/model: Yamaha Serial Number Guide. You can also review exploded diagrams to verify part numbers: Yamaha Parts Diagrams & Catalog.

Technical Specifications

Package Contents

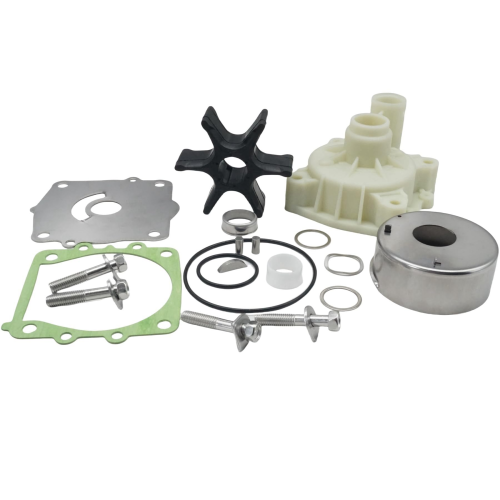

This comprehensive kit includes all components needed for a full water pump service. The kit includes: 1 x Water Pump Impeller (6E5-44352-01-00), 1 x Wear Plate (68V-44323-00-00), and 1 x Water Pump Housing (61A-44311-01-00). Also included: 1 x Insert Cup (61A-44322-02-00) 1 x Impeller Key (90280-04M05-00) 2 x Dowel Pins (93606-12019-00) 1 x O-Ring (93210-37M67-00) 1 x O-Ring (93210-86M38-00) 1 x Gasket (6E5-44315-A0-00) 4 x Bolts with Washers (90119-08M14-00) 1 x Wave Washer (90206-22M19-00) 1 x Spacer (61A-45538-00-00) 2 x S.S. Washers (90201-22M01-00) 1 x Collar (61A-45527-00-00)

Installation Guide

1. Disconnect the battery and ensure the engine is turned off and cool.
2. Drain the gearcase oil from the lower unit.
3. Remove the propeller and unbolt the lower unit from the engine. Carefully lower it.
4. Locate and unbolt the water pump housing. Note the orientation of the bolts.
5. Remove the old housing, impeller, wear plate, gaskets, and O-rings.
6. Clean all mating surfaces thoroughly, removing any old gasket material or sealant.
7. Install the new gasket, wear plate, and impeller key.
8. Slide the new impeller onto the driveshaft, turning it clockwise to seat the vanes correctly inside the new housing.
9. Install the new housing, O-rings, and other components from the kit. Ensure all seals are seated properly.
10. Tighten the housing bolts to the manufacturer's specified torque.
11. Re-install the lower unit, reconnect all linkages, and refill with fresh gearcase oil.
12. Reconnect the battery and test the engine using a water supply (flushing muffs) to verify proper cooling system operation.

Troubleshooting & FAQ

How do I confirm this kit fits my engine?

This kit is designed for specific Yamaha 115 HP and 130 HP outboard models. The best way to ensure a match is to cross-reference your engine's model number with our "Compatible Engine Models" table. Additionally, you can check if your existing water pump parts match the part numbers listed in our "Part Number Cross-Reference" section.

What are the signs of a failing water pump impeller?

Common signs include the engine overheating at idle or low speeds, a weak or non-existent water stream from the "tell-tale" port, and a dry, cracked, or brittle appearance of the old impeller upon inspection.

How often should a water pump impeller be replaced?

As a general maintenance guideline, impellers should be inspected annually and replaced every 1-2 years, or after every 100-200 hours of use, depending on operating conditions (especially in saltwater or sandy/silty water).

OEM vs. Aftermarket?

This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

How fast do you ship and how much does it cost?

We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

What is your warranty and return policy?

This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
