Water Pump Impeller – Fits Honda Outboard 35-60 HP 4-Stroke (Replaces 19210-ZV5-003)

Water Pump Impeller – Fits Honda Outboard 35-60 HP 4-Stroke (Replaces 19210-ZV5-003)

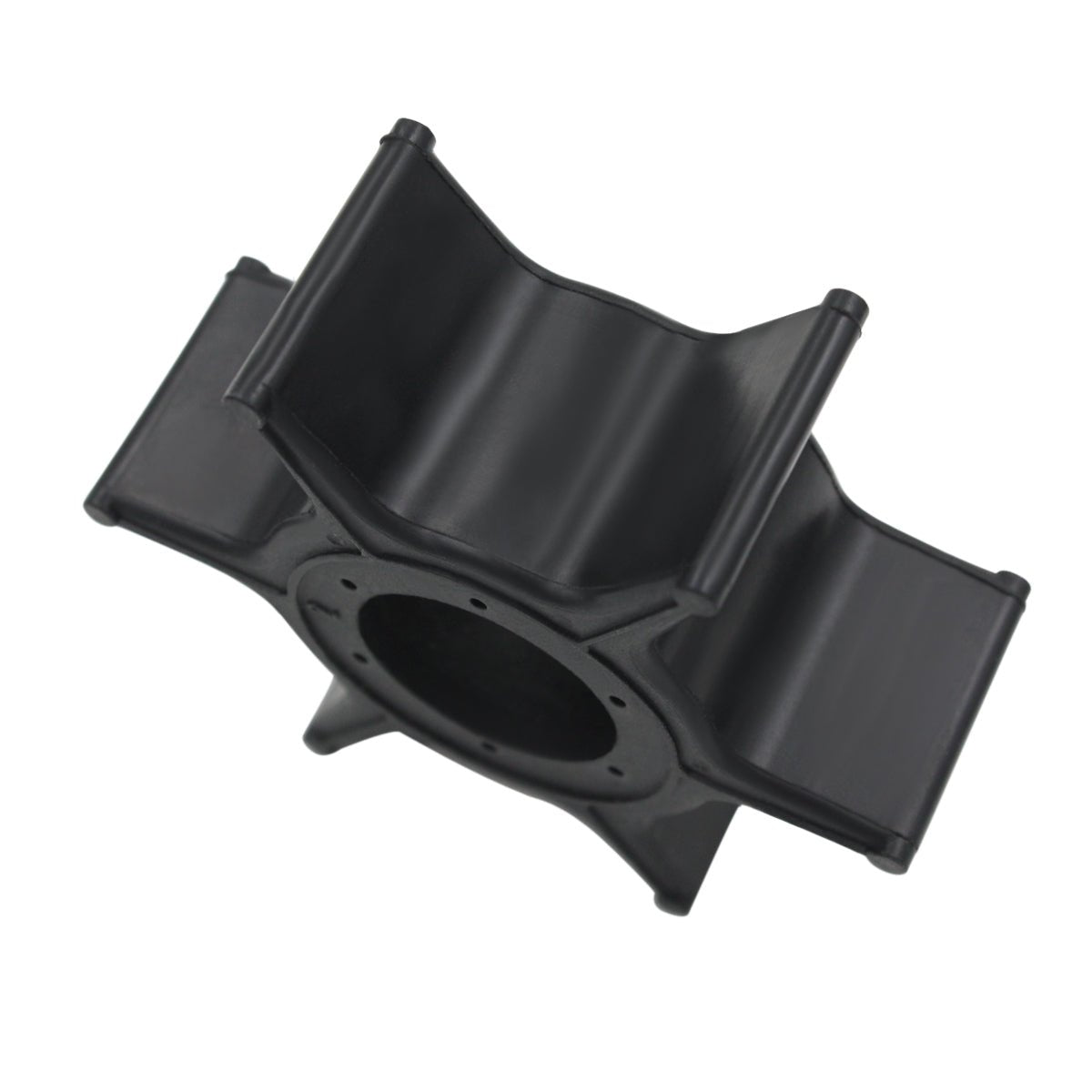

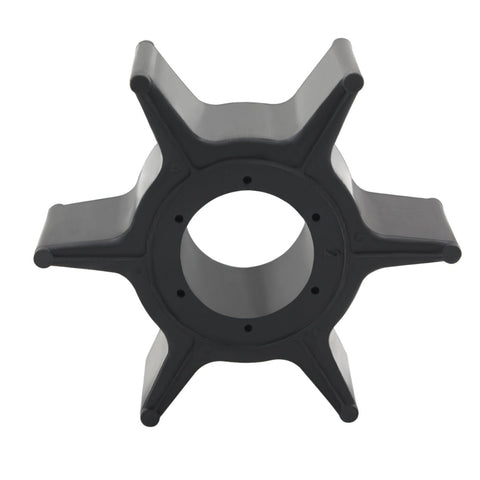

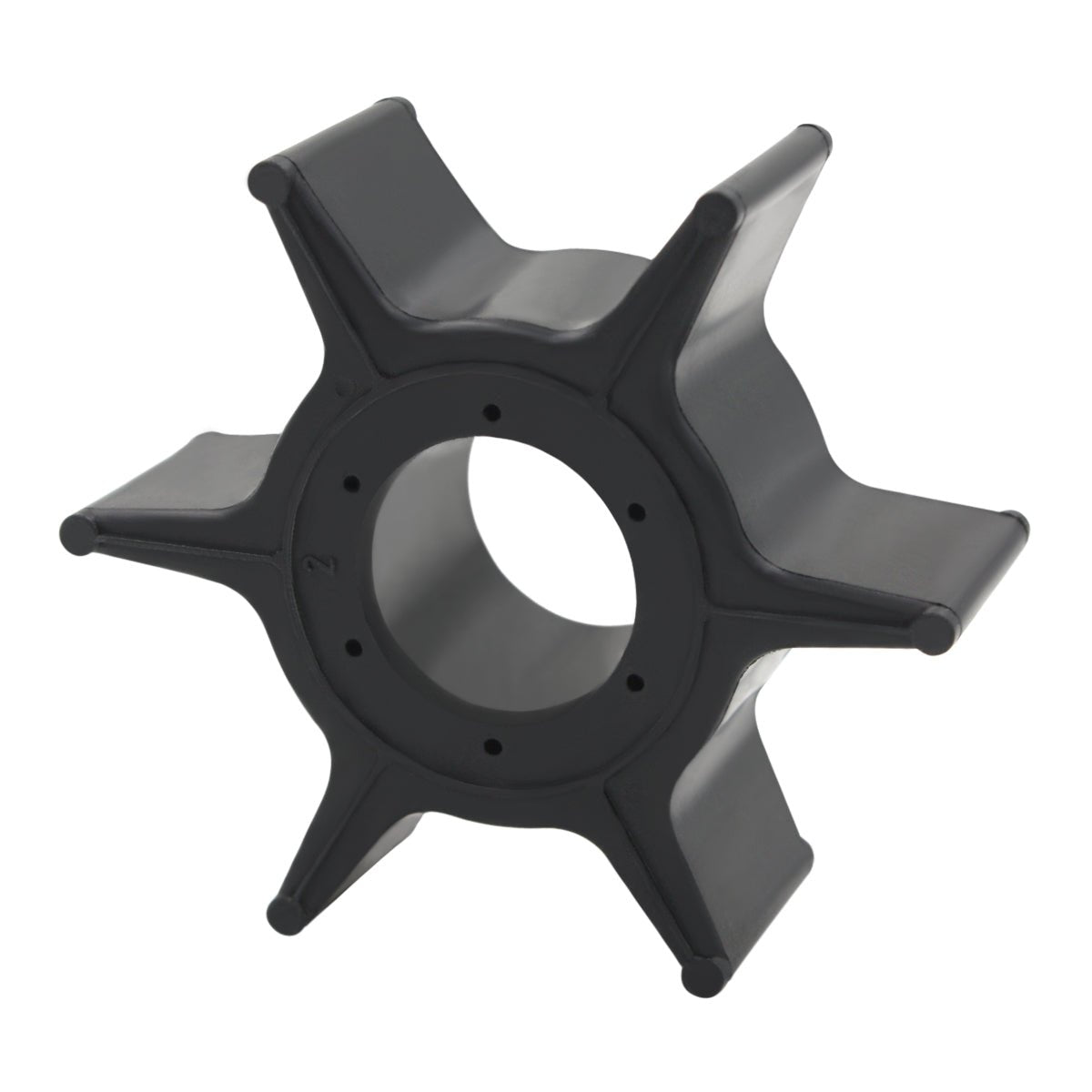

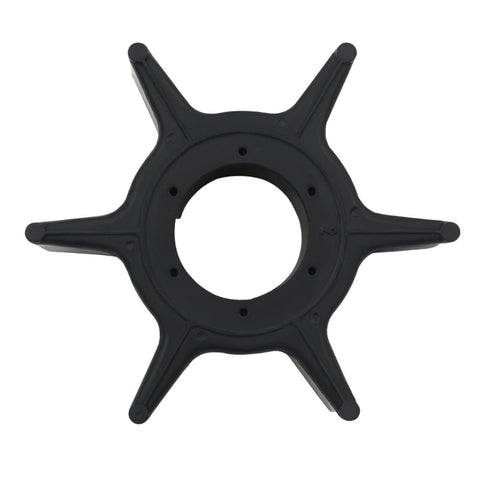

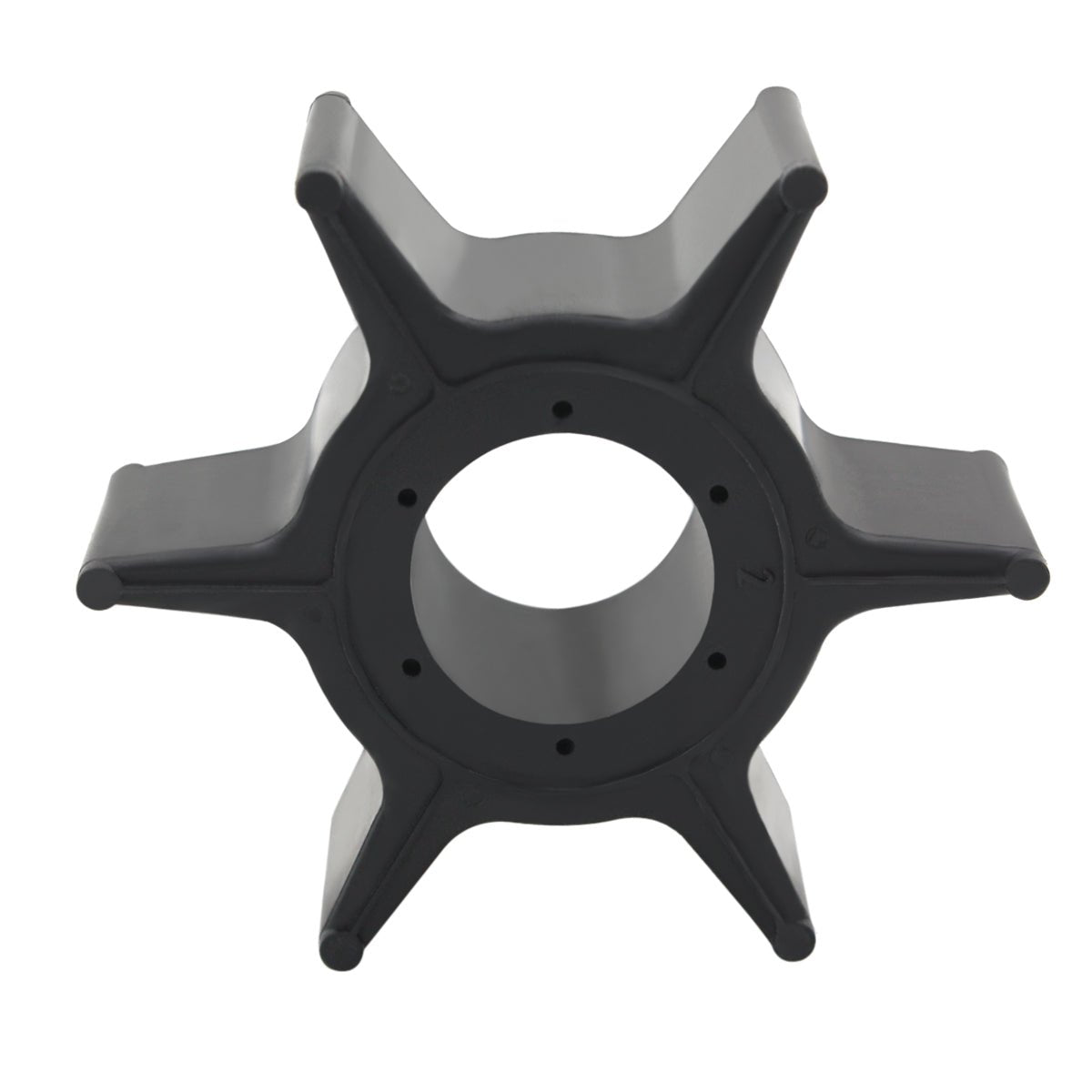

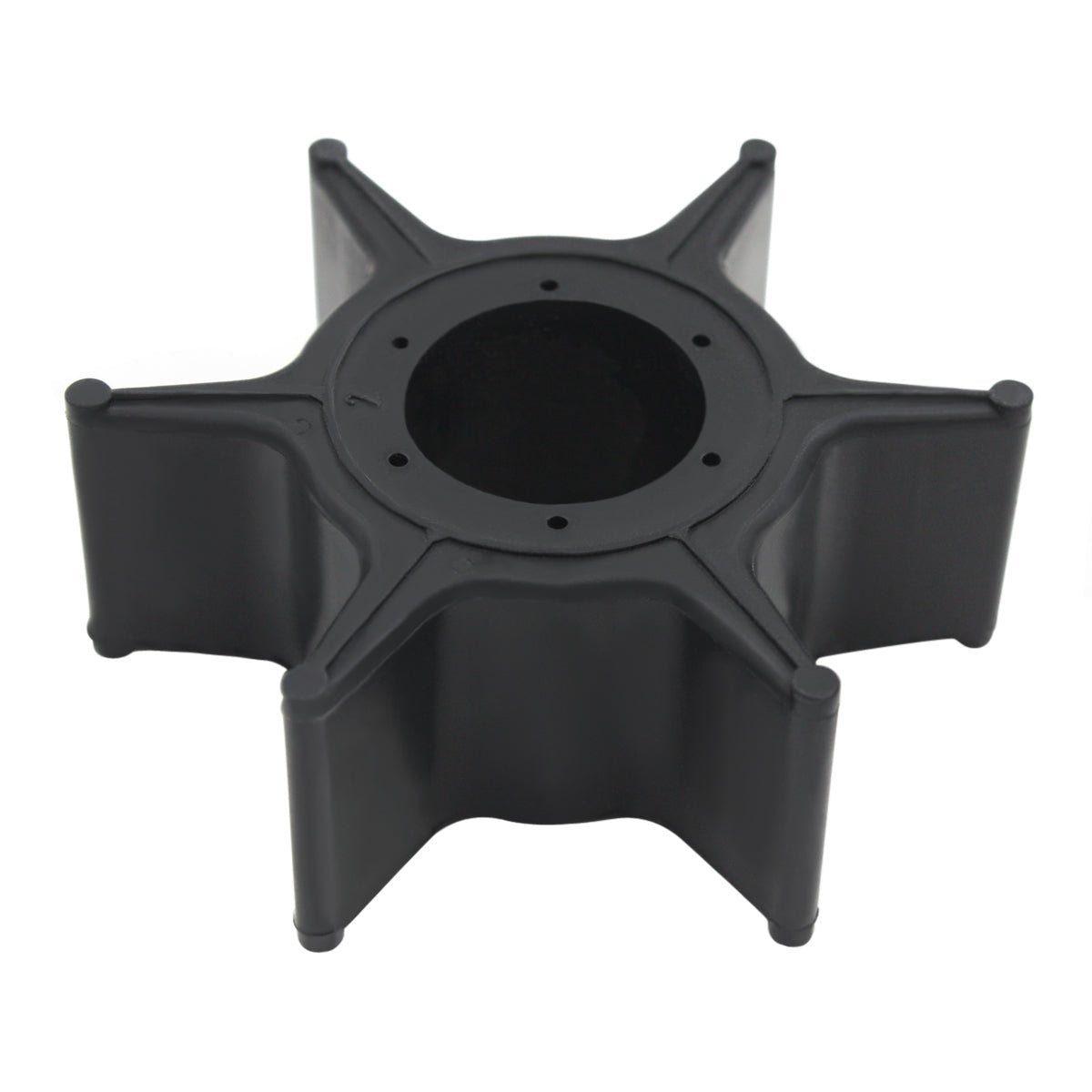

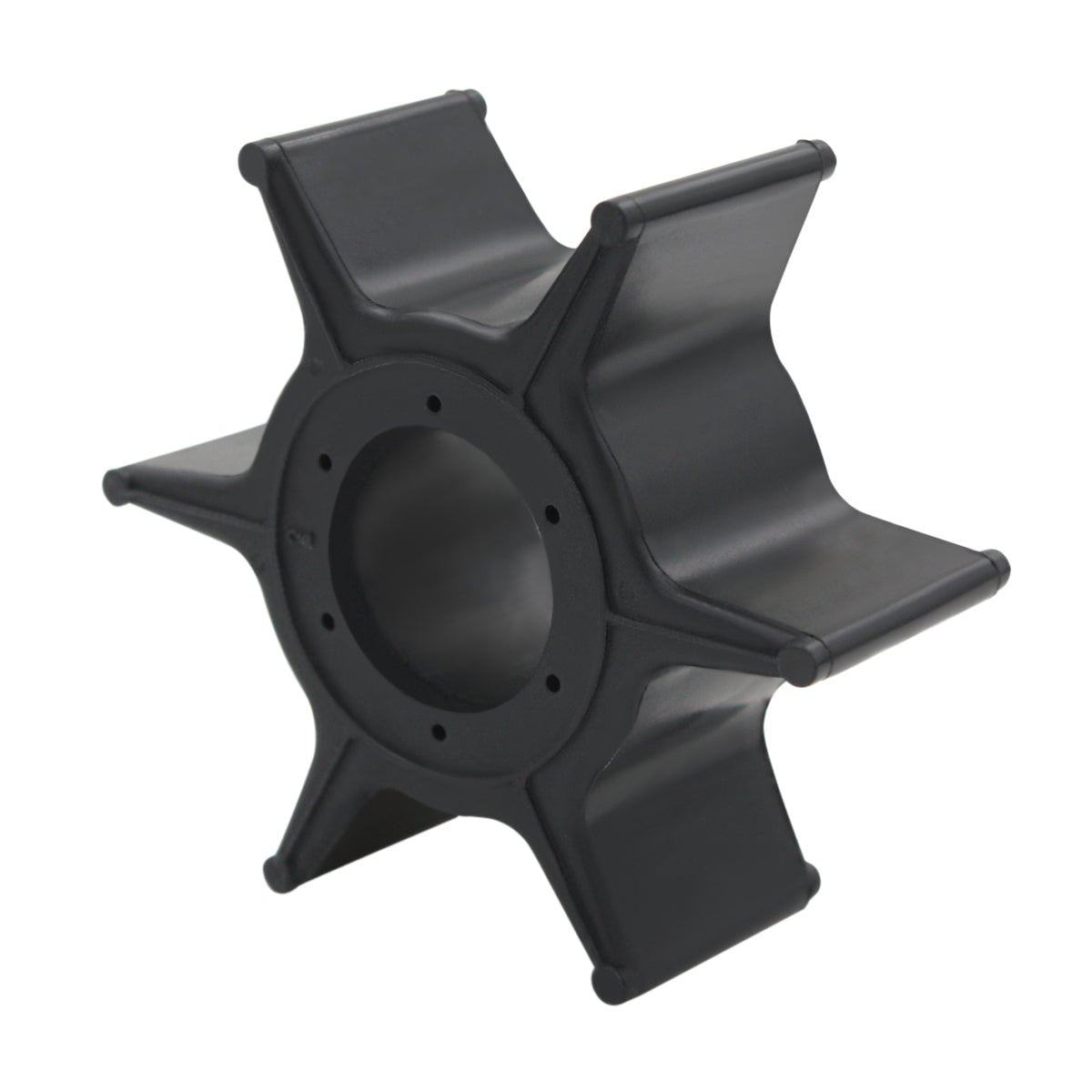

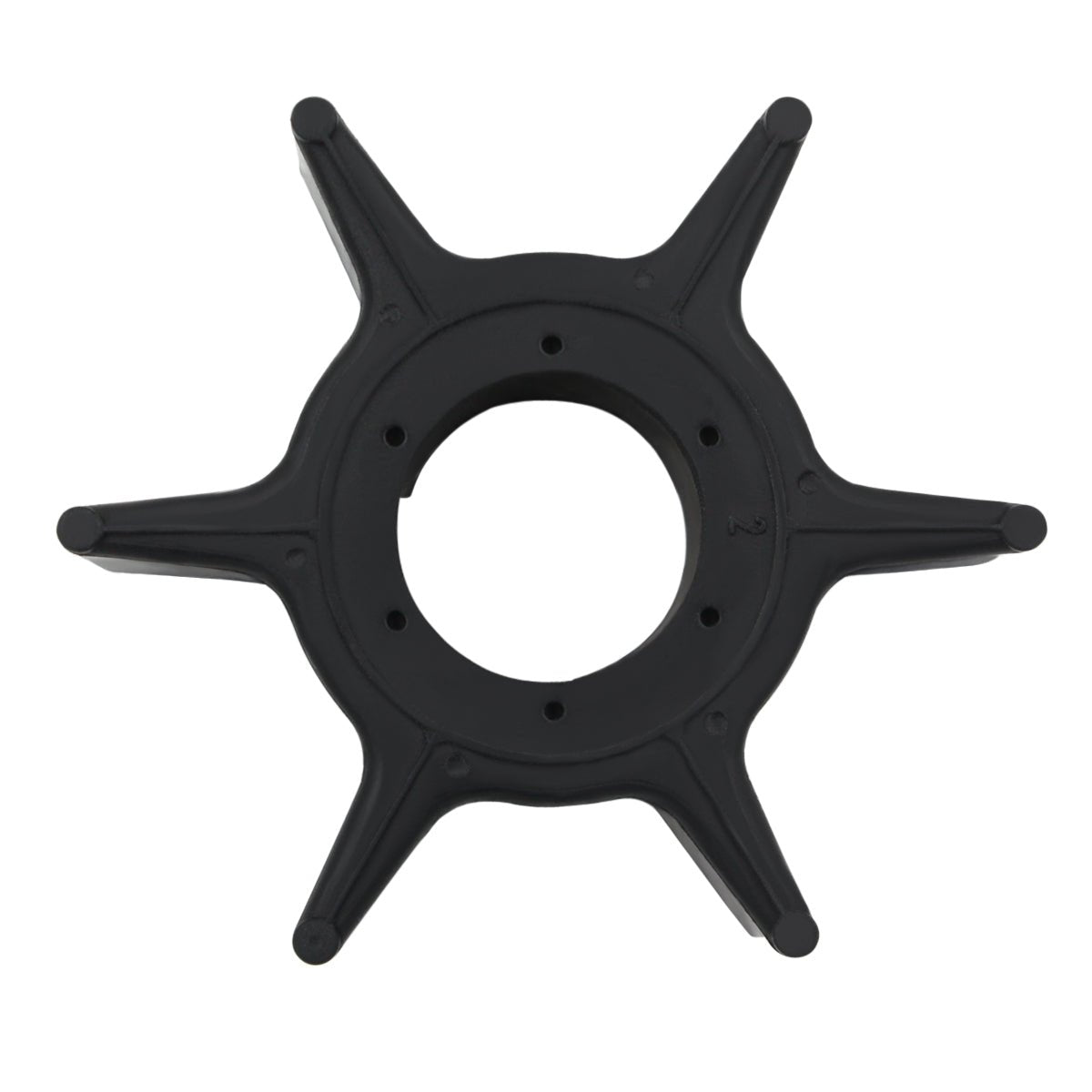

This water pump impeller is designed for Honda 4-stroke outboard engines, covering models from 35 HP to 60 HP (BF35AM through models with a DK4 suffix). It serves as a direct replacement part, ensuring proper cooling system function.

Engineered to meet or exceed OEM specifications, this impeller provides a reliable and cost-effective solution for maintaining your outboard's performance and preventing engine overheating.

• Installation Type: Direct OEM replacement
• Material: High-strength neoprene rubber with a hardened nylon core for durability
• Kit Contents: Includes one water pump impeller

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below.

Technical Specifications

Package Contents

• 1 x Water Pump Impeller (Replaces 19210-ZV5-003)

Explosion Diagram

Installation Guide

1. Disconnect the negative battery cable for safety.
2. Place the outboard in neutral and remove the lower unit (gearcase) bolts.
3. Carefully separate the lower unit from the upper housing.
4. Locate and unbolt the water pump housing cover.
5. Note the rotational direction of the old impeller's blades before removal.
6. Slide the old impeller off the driveshaft, removing the Woodruff key.
7. Clean the pump housing interior and inspect all surfaces for scoring or wear.
8. Lightly grease the new impeller and housing interior with marine grease.
9. Place the Woodruff key in its slot and slide on the new impeller, twisting it in the direction of engine rotation to bend the blades correctly.
10. Reinstall the water pump housing, gasket, and bolts, tightening to the manufacturer's specified torque.
11. Reattach the lower unit to the outboard motor.
12. Reconnect the battery and test the engine with a proper water supply, ensuring a strong stream from the tell-tale outlet.

Troubleshooting & FAQ

How can I be sure this impeller fits my Honda engine?
This impeller is designed for Honda 4-stroke outboards from 35 HP to 60 HP. Please check the "Compatible Engine Models" table and cross-reference your engine's model number and the OEM part number (19210-ZV5-003 or 19210-ZV7-003).

What are the signs of a failing water pump impeller?
Common signs include the engine overheating at idle or low speeds, a weak or intermittent water stream from the "tell-tale" outlet, or a complete lack of water flow. A brittle or cracked impeller found during inspection also warrants immediate replacement.

How often should I replace the water pump impeller?
For preventative maintenance, it is recommended to inspect the impeller annually and replace it every 1-2 years or every 100-200 hours of use, depending on operating conditions (e.g., saltwater vs. freshwater).

OEM vs. Aftermarket?
This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

How fast do you ship and how much does it cost?
We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

What is your warranty and return policy?
This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
