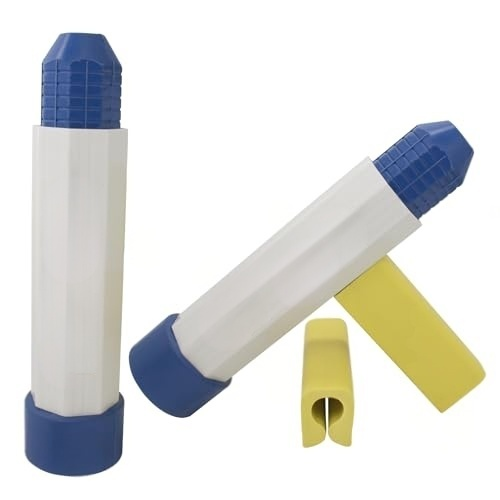

Transom Saver Support – Fits Marine Outboard Engines with 3 Ram Hydraulic Trim Systems (Replaces TS003)

Transom Saver Support – Fits Marine Outboard Engines with 3 Ram Hydraulic Trim Systems

This transom support and stabilizer kit is designed to protect your outboard motor and transom during trailering. It is compatible with a wide range of outboard engines that use a 3-ram hydraulic tilt and trim system.

This kit provides a safe and effective solution for absorbing stress on the engine's hydraulic system, transom bracket, and boat hull while on the road. It directly replaces aftermarket parts such as QuickMarine TS003 and GHmarine 1H03.

• Protects engine and transom by stabilizing the motor during transport.
• Engineered for manual placement between the tilt ram and the engine bracket.
• Includes one transom saver support and two hydraulic steering stabilizer clips.

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Yamaha owners, here’s a guide to help you identify your engine’s serial/model: Yamaha Serial Number Guide. You can also review exploded diagrams to verify part numbers: Yamaha Parts Diagrams & Catalog.

For Mercury owners, here’s a guide to help you identify your engine’s serial/model: Mercury Serial Number Guide. You can also review exploded diagrams to verify part numbers: Mercury Parts Diagrams & Catalog.

For Suzuki owners, you can review exploded diagrams here to verify part numbers: Suzuki Parts Diagrams & Catalog.

For Johnson/Evinrude owners, here’s a guide to help you identify your engine’s serial/model: Johnson Serial Number Guide.

For all other compatible brands, including Honda and Tohatsu/Nissan, confirm your engine model/year in the tables below.

Yamaha

Mercury

Suzuki

Honda

Tohatsu/Nissan

Johnson/Evinrude

Technical Specifications

Package Contents

• 1 x Transom Saver Motor Toter Support (Black)
• 2 x Outboard Steer Stop Stabilizer Clips (Grey)

Installation Guide

1. Tilt your outboard engine to its maximum upward position.
2. Verify Fitment: Before proceeding, ensure there is at least 9.25 inches of clearance from the tip of the tilt piston to the engine bracket.
3. Important: Check for any grease fittings on the motor's tilt mechanism. This support cannot be used if a grease fitting is present, as it may cause damage.
4. Place the transom saver support directly onto the hydraulic tilt ram. The end with the recessed hold should be positioned to clear the piston seal.
5. Slowly lower the engine until the support is held firmly in place between the tilt ram and the engine bracket. Do not apply excessive pressure.
6. Attach the two included hydraulic steering stabilizer clips to the main steering rams to prevent unwanted side-to-side engine movement during transit.
7. For engines with a 2-pipe configuration, we recommend using two transom savers to achieve better force balance and extend the service life of your equipment.

Troubleshooting & FAQ

Q: How do I confirm this transom saver will fit my engine?

A: First, check the compatibility tables on this page to see if your brand, model, and year are listed. Second, you must measure the clearance on your motor. Tilt the engine all the way up and measure the distance from the tip of the tilt piston to the engine bracket—it must be at least 9.25 inches. Finally, ensure there are no grease fittings on the tilt ram that would interfere with installation.

Q: What is the purpose of the stabilizer clips?

A: The two included stabilizer clips are designed to fit on the hydraulic steering rams. They prevent the engine from turning side-to-side during trailering, providing additional stability and protecting the steering system from unnecessary stress.

Q: My boat rocks a lot during trailering. Will one support be enough?

A: For maximum stability, especially on engines with a 2-pipe trim system, it is highly recommended to use two transom savers. This balances the load across both sides of the engine bracket, providing superior support and reducing stress on the transom more effectively than a single support.

Q: What is the difference between an OEM part and this aftermarket part?

A: This listing is an aftermarket replacement part, not an OEM component. We build our parts to meet or exceed OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected to ensure consistent quality and performance.

Q: How fast do you ship and how much does it cost?

A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?

A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify Fitment Carefully: Review product images and specifications to ensure they match your requirements. Even if your model is listed, do not purchase if there are discrepancies. This is especially important for the 9.25-inch clearance requirement and the notes on pipe configurations.
• Incompatible Models: This part is NOT compatible with Yamaha VMAX/HPDI/SHO, Mercury Verado, Mercury Racing, or smaller horsepower models from any brand listed. Please review the detailed compatibility list and notes carefully.
• Grease Fittings: DO NOT use this support if there is a grease fitting on the motor's tilt ram, as it may break the fitting.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
