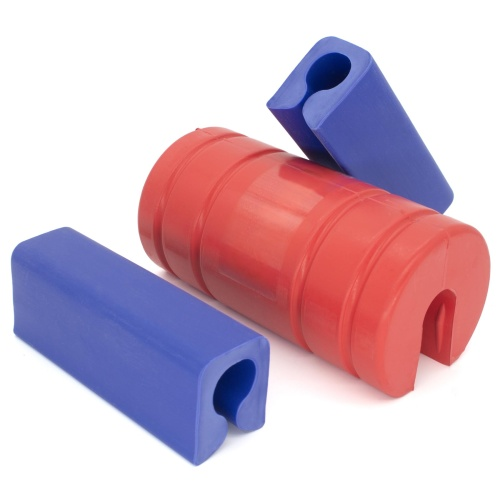

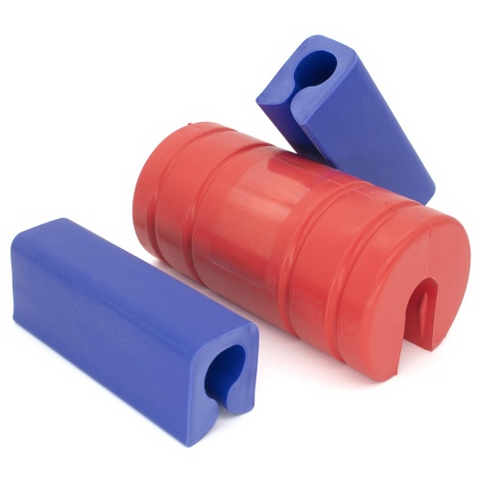

Outboard Motor Transom Support Saver – Fits Single Ram Tilt/Trim Systems (Replaces QuickMarine TS002)

Outboard Motor Transom Support Saver – Fits Single Ram Tilt/Trim Systems

This transom support saver is designed for outboard engines equipped with a single ram tilt/trim system. It helps protect your transom, steering system, and engine by absorbing stress and vibrations during trailering. It effectively prevents the engine from bouncing and turning, reducing strain on the hydraulic tilt system and transom assembly.

This part is a direct replacement for QuickMarine TS002, WYFWFDF Transom Saver for Single Ram, and NorthBoat Transom Saver Kit.

• Material: Made from high-density, corrosion-resistant EPDM rubber.
• Installation: Installs externally by fitting snugly over the main tilt/trim ram.
• Application: Suitable for Mercury, Yamaha, Honda, Suzuki, and Evinrude/Johnson outboards with single ram systems.

Compatible Engine Models

Confirm your engine model/year in the table below. For Mercury owners, here’s a guide to help you identify your engine’s serial/model: Mercury Serial Number Guide. You can also review exploded diagrams to verify part numbers: Mercury Parts Diagrams & Catalog.

Confirm your engine model/year in the table below. For Yamaha owners, here’s a guide to help you identify your engine’s serial/model: Yamaha Serial Number Guide. You can also review exploded diagrams to verify part numbers: Yamaha Parts Diagrams & Catalog.

Confirm your engine model/year in the table below. For Johnson/Evinrude owners, here’s a guide to help you identify your engine’s serial/model: Johnson Serial Number Guide.

Confirm your engine model/year in the table below. For Suzuki owners, You can review exploded diagrams here to verify part numbers: Suzuki Parts Diagrams & Catalog.

Confirm your engine model/year in the table below.

Technical Specifications

Package Contents

• 1 × Yellow Transom Saver Motor Toter Support (TS002)
• 2 × Orange Outboard Steer Stop Stabilizer Clips

Installation Guide

1. Tilt the outboard motor to the full upward trailering position.
2. Identify the single hydraulic tilt/trim ram.
3. Slide the transom saver wedge over the ram shaft. Ensure it is centered and seated securely.
4. Slowly lower the outboard motor until the support saver is held firmly between the motor's lower unit and the transom bracket.
5. Continue lowering until the pressure is transferred to the support saver, stabilizing the engine.
6. For additional security, attach the two orange stabilizer clips to the hydraulic steering rams to prevent the engine from turning side-to-side during transit.
7. Before launching the boat, raise the motor slightly to relieve pressure, then remove the transom saver and stabilizer clips.

Troubleshooting & FAQ

How do I know if this will fit my outboard motor?
This transom saver is specifically designed for single ram tilt/trim systems. It is confirmed to be compatible with most Mercury (15-200 HP 4-Stroke), Yamaha (9-90 HP & F115LB), Honda, Suzuki, and Evinrude/Johnson outboards. The best way to confirm fitment is to visually inspect your motor to ensure it uses a single tilt/trim ram.

What is the purpose of the two orange clips?
The two orange clips included are outboard steer stop stabilizers. They should be attached to your hydraulic steering rams (one on each side) to prevent the engine from turning left or right while trailering, providing an extra layer of security against movement.

Is this safe for saltwater use?
Yes. The transom saver is constructed from high-density, corrosion-resistant EPDM rubber, which makes it durable and safe for both salt and freshwater environments.

OEM vs. Aftermarket?
This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

How fast do you ship and how much does it cost?
We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

What is your warranty and return policy?
This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
