Water Pump Impeller Kit – Fits Suzuki DF200/225/250 & Johnson/Evinrude 200-250HP

Water Pump Impeller Kit – Fits Suzuki DF200/225/250 & Johnson/Evinrude 200-250HP (Replaces 17400-93J02)

This water pump impeller repair kit is designed for Suzuki DF200, DF225, and DF250 V6 four-stroke outboards from 2004 and newer, as well as Johnson/Evinrude 200-250HP four-stroke EFI engines from 2004–2005. It serves as a direct replacement component to restore your engine's cooling system performance.

Engineered to meet OEM specifications, this kit ensures reliable water circulation to prevent overheating. It provides a direct replacement for Suzuki part numbers 17400-93J00, 17400-93J01, 17400-93J02, 17400-93J03, and 17400-93J04, as well as Sierra 18-3264 and Johnson/Evinrude 5035036.

• Features a durable neoprene rubber impeller for long service life.
• Mounts in the lower unit of the outboard.
• Utilizes a direct drive connection for efficient operation.

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Suzuki owners, You can review exploded diagrams here to verify part numbers: Suzuki Parts Diagrams & Catalog.

Confirm your engine model/year in the table below. For Johnson/Evinrude owners, here’s a guide to help you identify your engine’s serial/model: Johnson/Evinrude Serial Number Guide.

Suzuki Outboards

Johnson/Evinrude Outboards

Technical Specifications

Package Contents

This kit includes the following component:

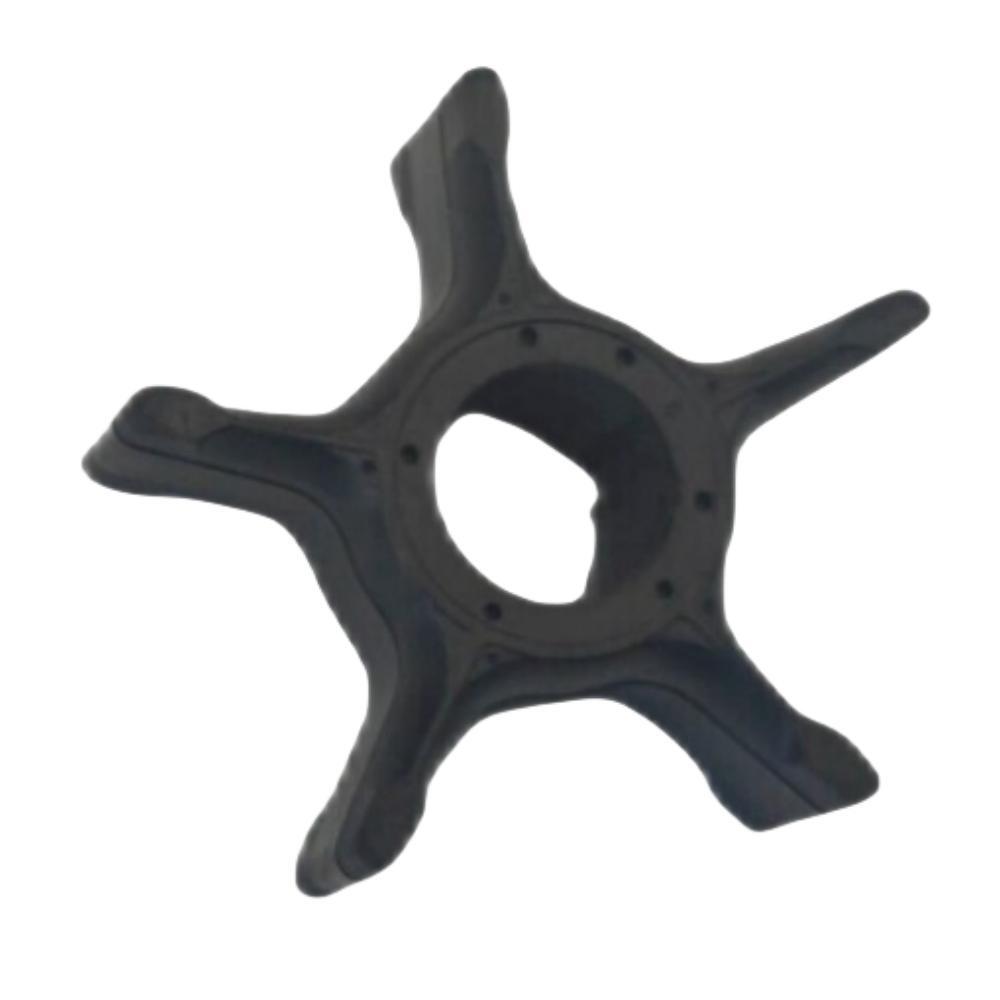

• 1 x Water Pump Impeller (17400-93J02)

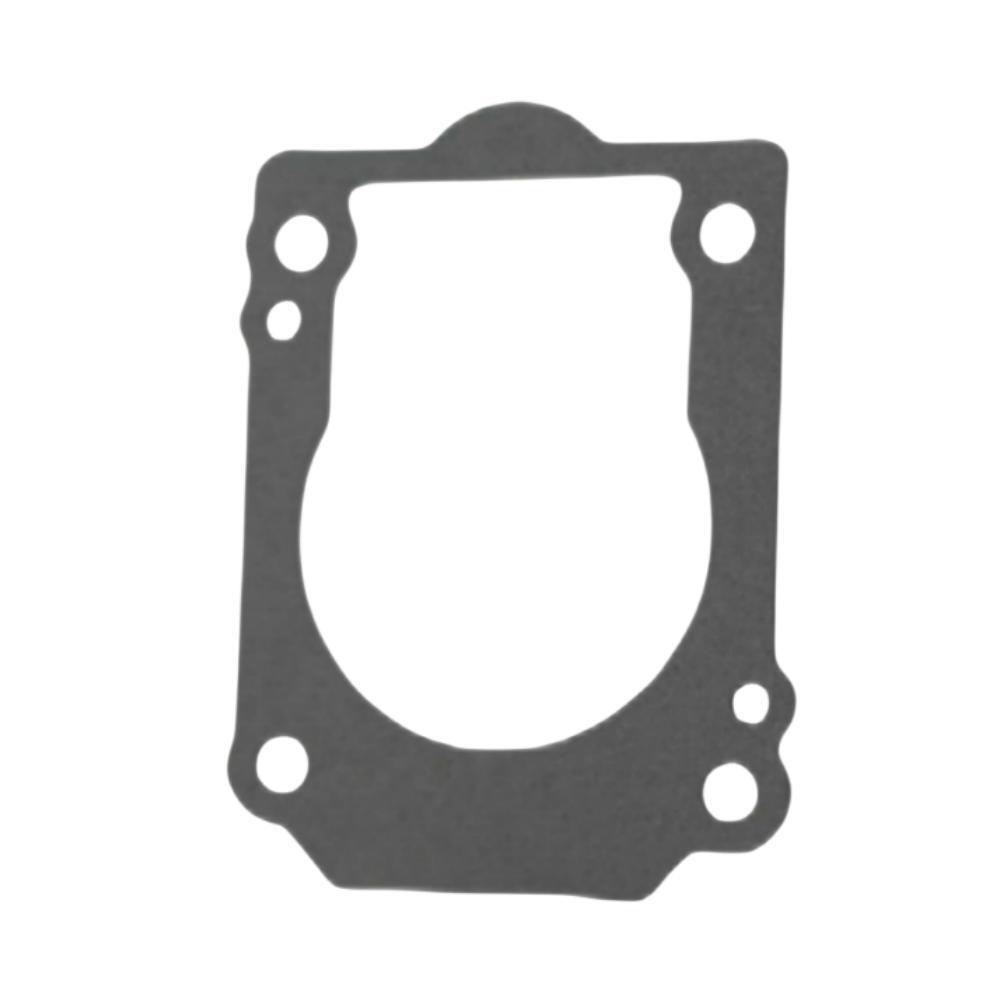

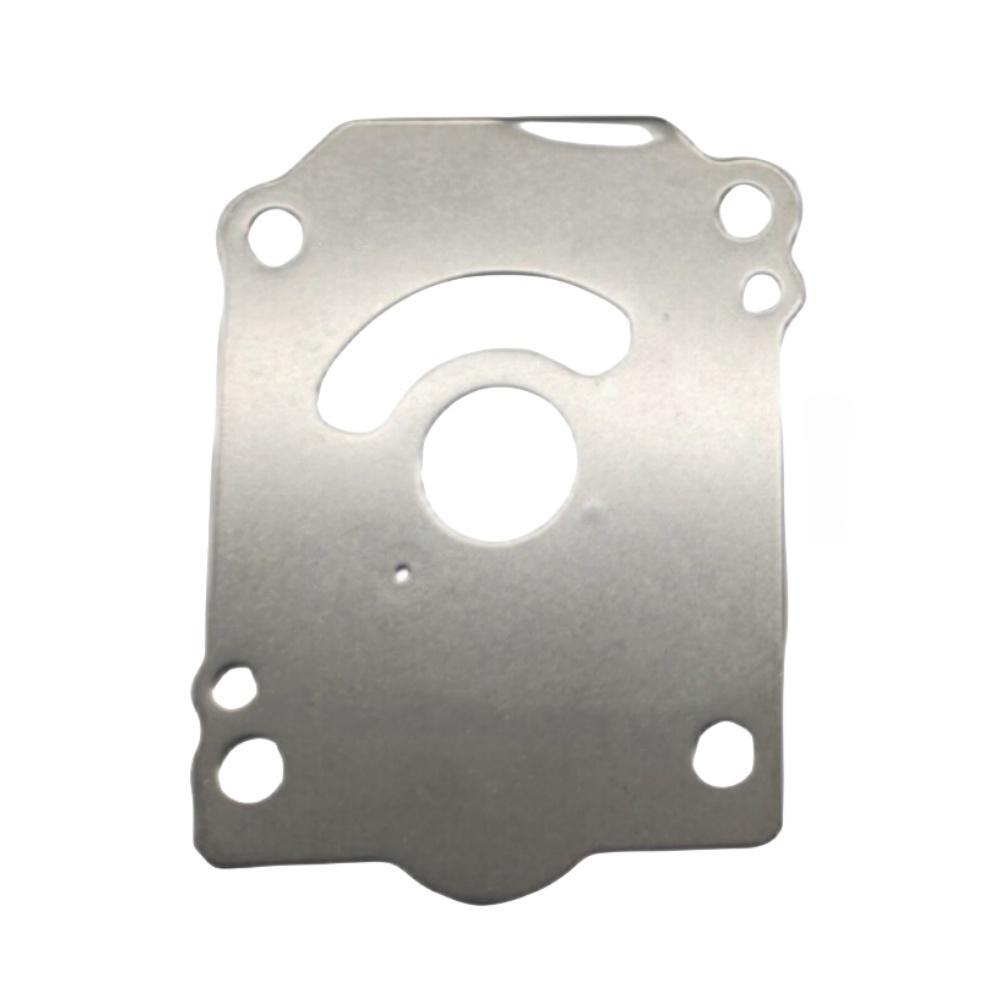

Note: This is a basic impeller kit. For a complete repair, gaskets, seals, and a wear plate may be required. Please verify if you need a full kit for your service.

Installation Guide

1. Disconnect the negative battery cable and shift the outboard into neutral gear.
2. Unbolt and remove the lower unit (gearcase) from the outboard's main housing. Be prepared to support its weight.
3. Locate the water pump housing on top of the gearcase and remove its mounting bolts.
4. Lift the water pump housing off and slide the old impeller up and off the driveshaft. Note the direction of the vanes for reinstallation.
5. Clean the housing and driveshaft surfaces. Install any new gaskets or the wear plate if included in your kit.
6. Apply a small amount of marine grease to the inside of the pump housing and slide the new impeller onto the driveshaft.
7. Rotate the driveshaft in its normal direction of operation (typically clockwise) to correctly orient the impeller vanes inside the housing.
8. Reinstall the water pump housing cover and tighten the bolts to the manufacturer's specified torque.
9. Carefully guide the lower unit back into position, ensuring the driveshaft, shift shaft, and water tube align correctly.
10. Secure the lower unit with its mounting bolts and reconnect the battery.

Troubleshooting & FAQ

Q: How do I confirm this kit fits my specific engine?

A: Check your engine model and year against the compatibility tables above. It is crucial to also verify the OEM part number (17400-93J02 for Suzuki, 5035036 for Johnson/Evinrude) listed for your model. This kit is confirmed to fit non-"A" Suzuki models from 2004 and up.

Q: What are the signs of a failing water pump impeller?

A: Common signs include the engine overheating at idle or low speeds, a weak or non-existent water stream from the "tell-tale" outlet, and an audible alarm from the engine's warning system.

Q: How often should the water pump impeller be replaced?

A: For preventative maintenance, it is recommended to inspect the impeller annually and replace it every 1-2 years or every 100-200 hours of operation, depending on usage conditions (e.g., saltwater vs. freshwater).

Q: OEM vs. Aftermarket?

A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?

A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?

A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
