Water Pump Impeller Kit – Fits Suzuki DF250/DF300 4-Stroke Outboards (Replaces 17400-98J00, 17400-98J01)

Water Pump Impeller Kit – Fits Suzuki DF250/DF300 4-Stroke Outboards (Replaces 17400-98J00, 17400-98J01)

This water pump impeller kit is designed for Suzuki 4-Stroke outboards from 200 HP to 300 HP (2004–Present). It provides a reliable solution for maintaining your engine’s cooling system, ensuring optimal performance and longevity. Compatible models include the DF200, DF225, DF250SS, DF250AP, DF300, and DF300AP.

The kit serves as a direct replacement for Suzuki part numbers 17400-98J00, 17400-98J01, 17400-98J02, 17400-98J03, and 17400-98J04, as well as Sierra 18-3267. It is manufactured to meet or exceed OEM specifications, offering a dependable alternative for your marine engine maintenance needs.

• Direct Replacement: Installs without modifications, matching OEM fit and function.
• Complete Assembly: Includes all necessary components for a full water pump service, including the impeller, wear plate, gaskets, and key.
• Quality Construction: Engineered for durability and performance in marine environments.

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Suzuki owners, You can review exploded diagrams here to verify part numbers: Suzuki Parts Diagrams & Catalog.

Technical Specifications

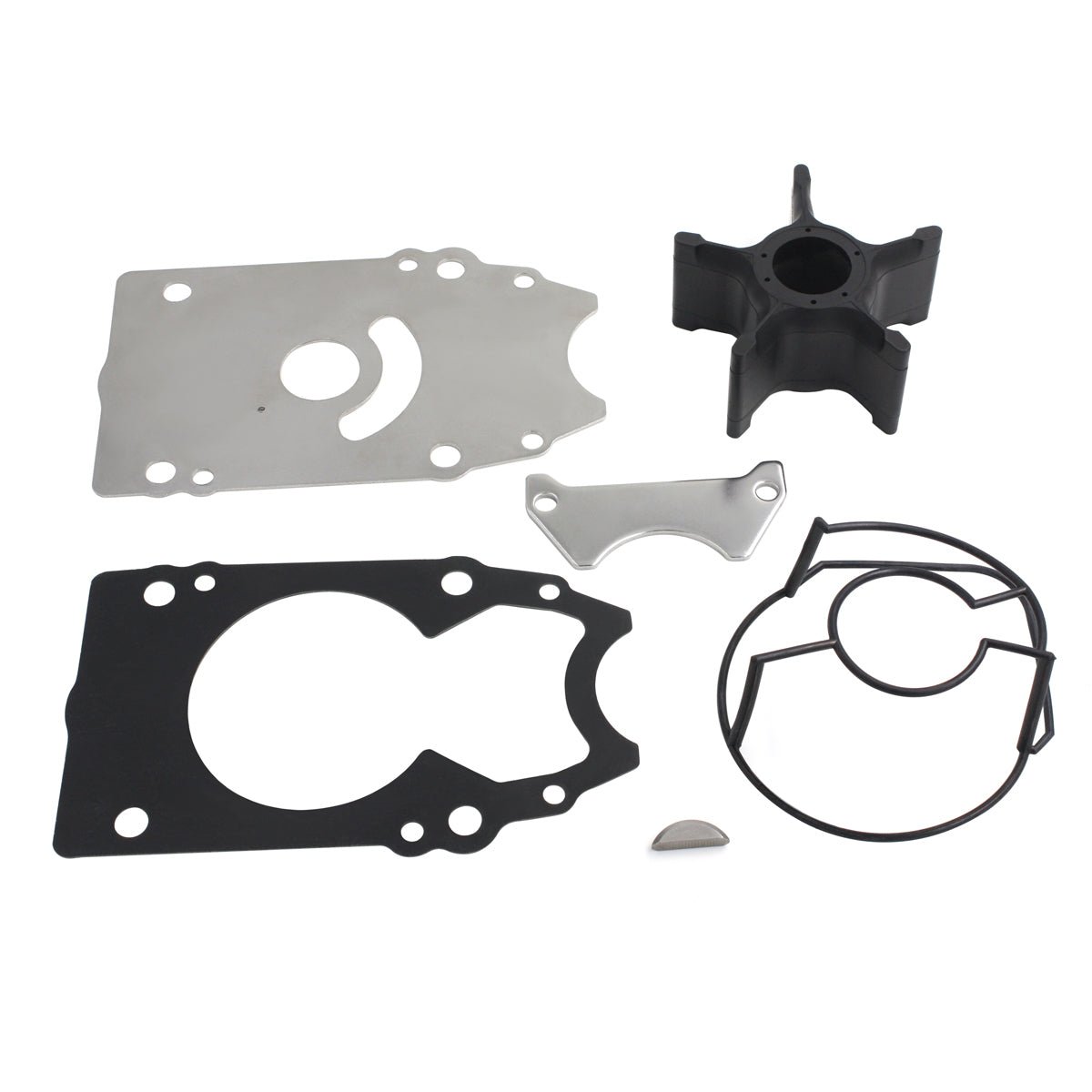

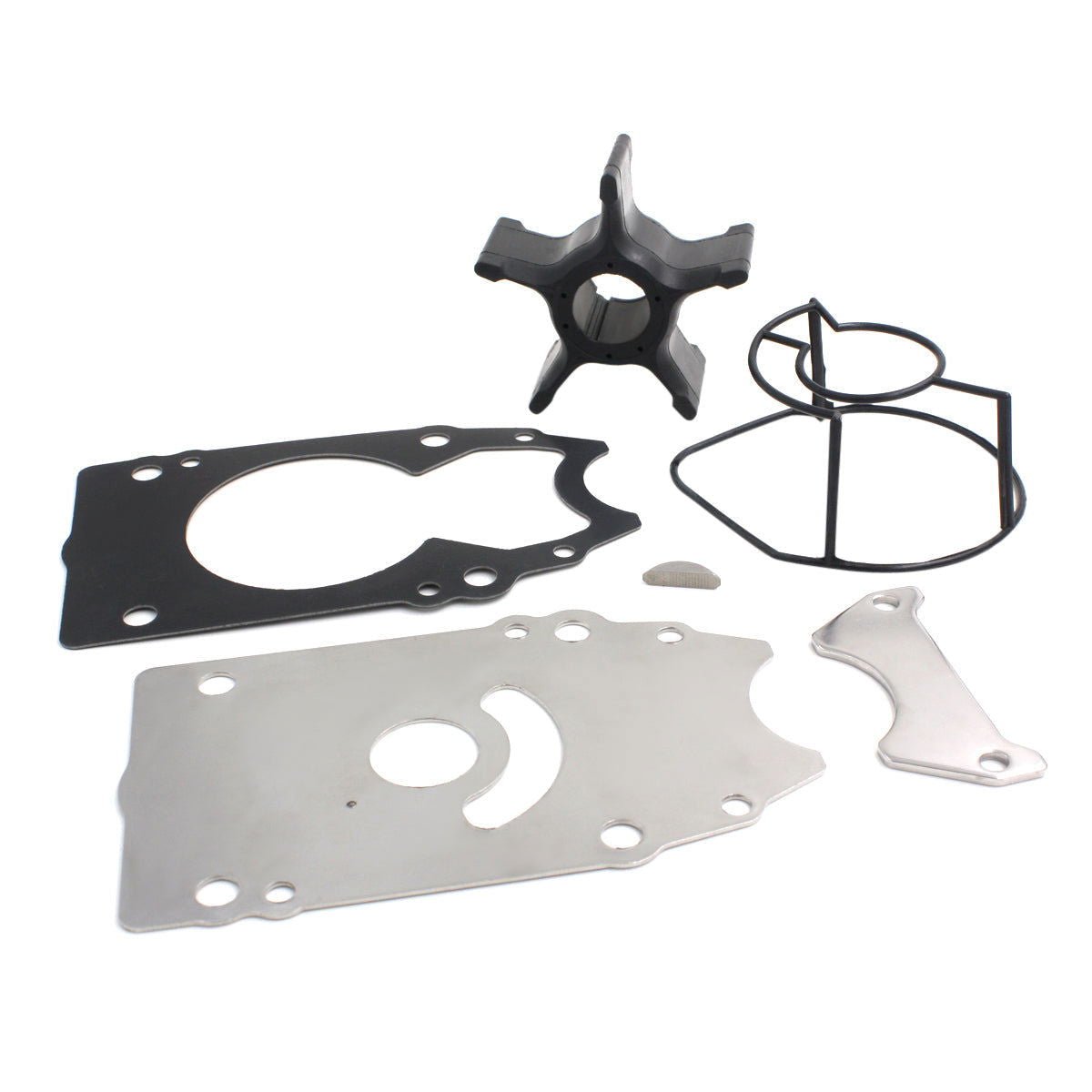

Package Contents

• 1 x Water Pump Impeller (Replaces: 18-3035, 17461-93J00, 5035040)

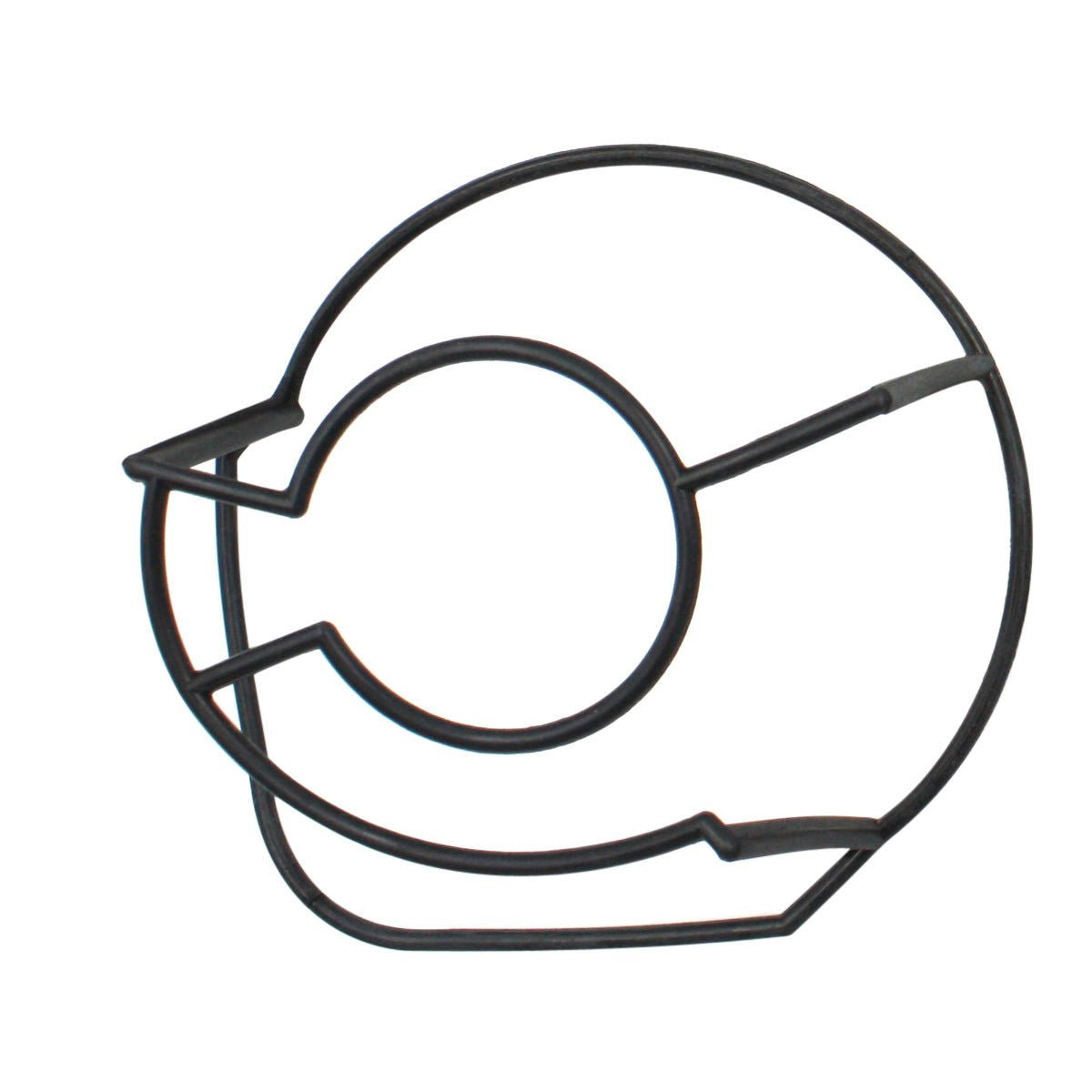

• 1 x Sealing (Replaces: 17416-93J00, 5035039)
• 1 x Key (Replaces: 09420-05009)

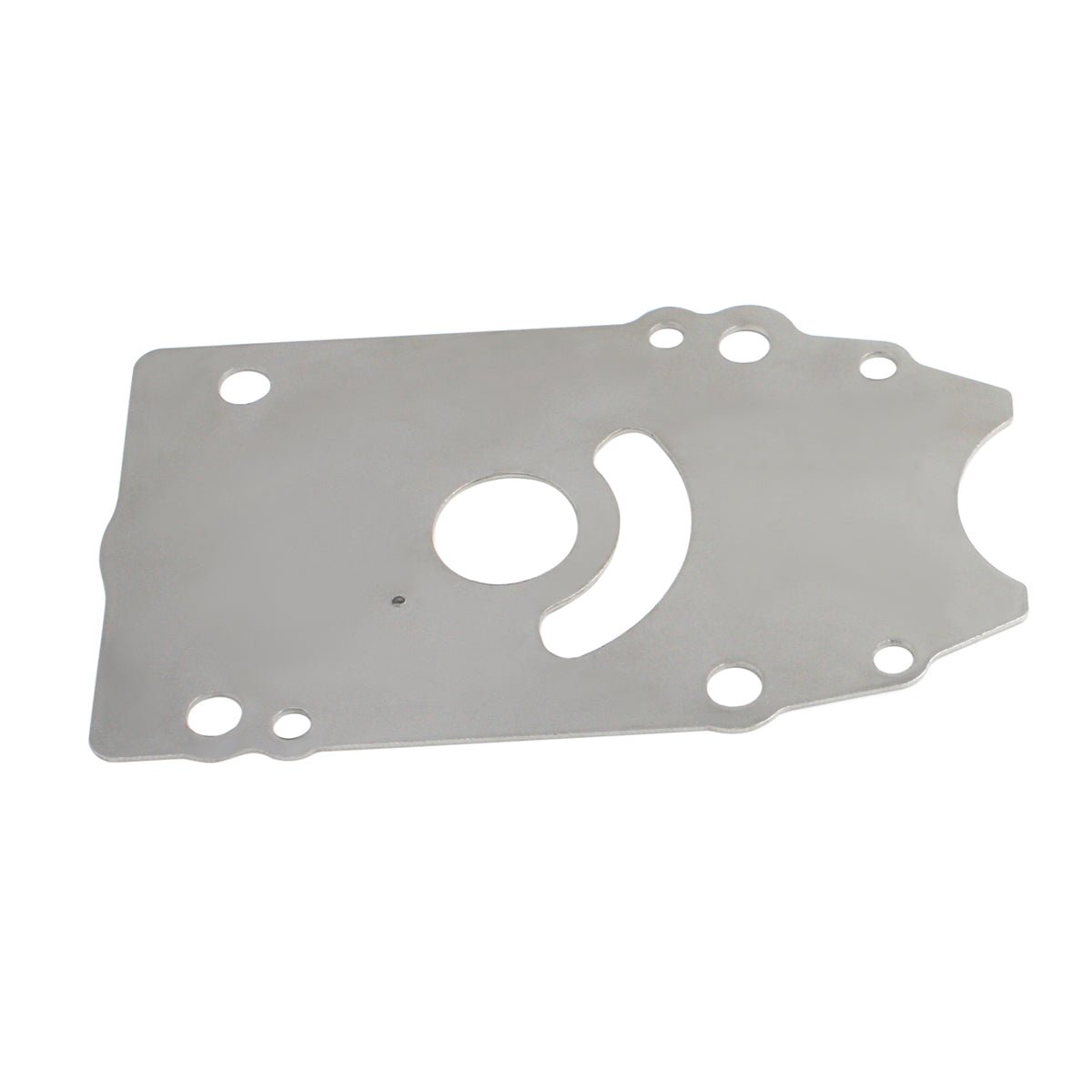

• 1 x Wear Plate, Pump case under (Replaces: 17471-98J01)
• 1 x Panel, Water pump (Replaces: 17473-98J00)

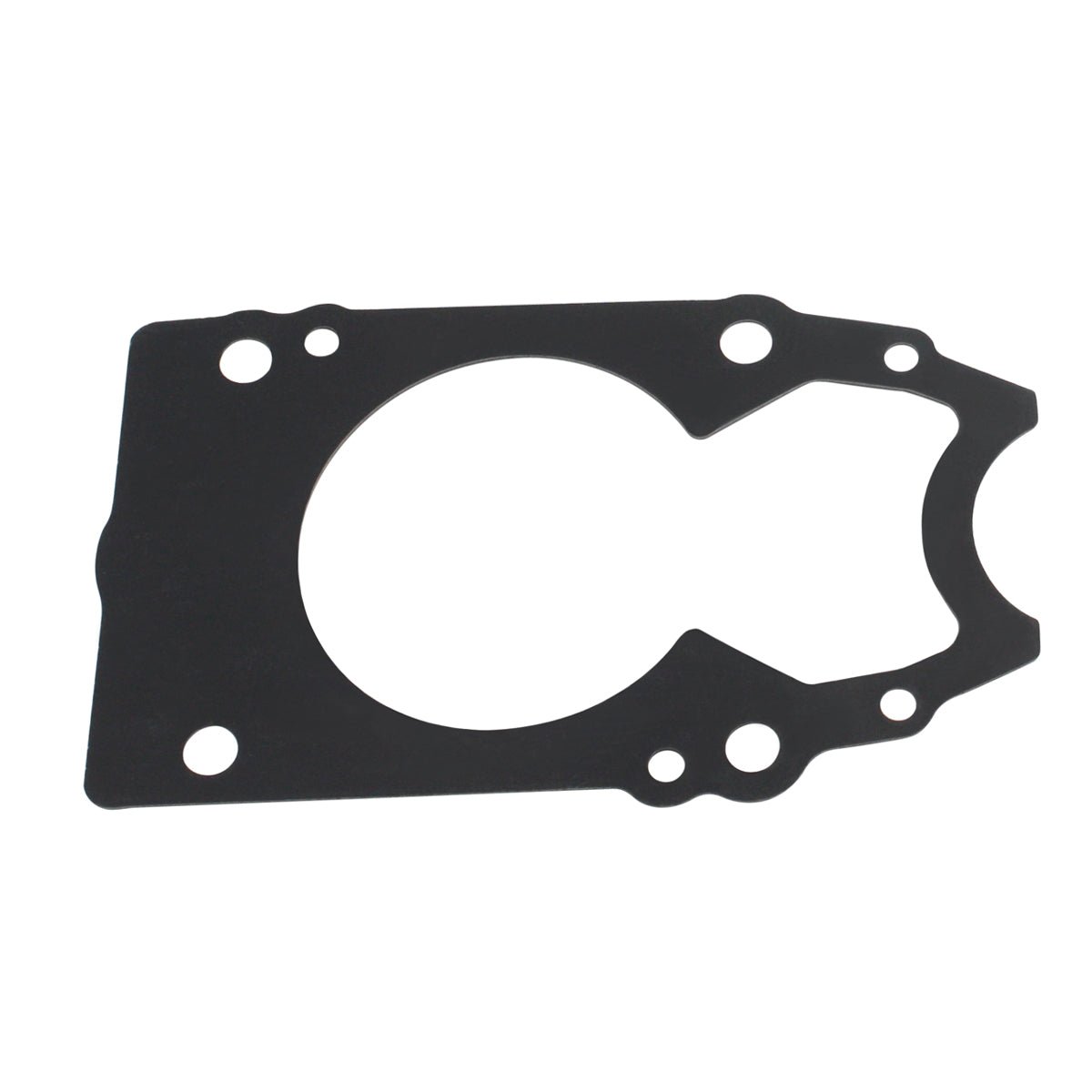

• 1 x Gasket (Replaces: 17472-98J00, 18-0651)

Installation Guide

1. Disconnect the negative battery cable.
2. Place the outboard in neutral and remove the lower unit mounting bolts.
3. Carefully separate the lower unit from the upper casing.
4. Unscrew the bolts securing the water pump housing and remove it.
5. Note the rotational direction of the old impeller fins before removing the impeller, key, gaskets, and wear plate.
6. Thoroughly clean all mating surfaces, removing any old gasket material or debris.
7. Install the new wear plate and gasket.
8. Insert the new key into the driveshaft and slide the new impeller on, turning the driveshaft clockwise to set the fins correctly.
9. Apply a light coat of marine grease to the inside of the new housing and install it over the impeller.
10. Tighten the housing bolts to the manufacturer's specified torque.
11. Reinstall the lower unit, ensuring the water tube and shift shaft are correctly aligned.
12. Reconnect the battery, start the engine in a water-filled container or with a hose attachment, and confirm a steady water stream from the tell-tale outlet.

Troubleshooting & FAQ

Q: How can I be sure this kit fits my Suzuki engine?
A: This kit is designed for specific Suzuki DF200, DF225, DF250, and DF300 4-stroke models from 2004 onwards. To guarantee a match, please check the "Compatible Engine Models" table and cross-reference your engine's original part number with those listed on our page, such as 17400-98J01.

Q: What are the signs of a failing water pump impeller?
A: Common indicators include engine overheating, an alarm sounding, or a weak or non-existent water stream from the tell-tale port. A visual inspection of the old impeller may reveal cracked, brittle, or worn-out rubber fins.

Q: How often should I replace the water pump impeller?
A: For preventative maintenance and to avoid overheating, it is recommended to replace the impeller every 100-200 service hours or at least once a year, especially if operating in saltwater or sandy/silty conditions.

Q: Is this a an OEM part?
A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?
A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?
A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
