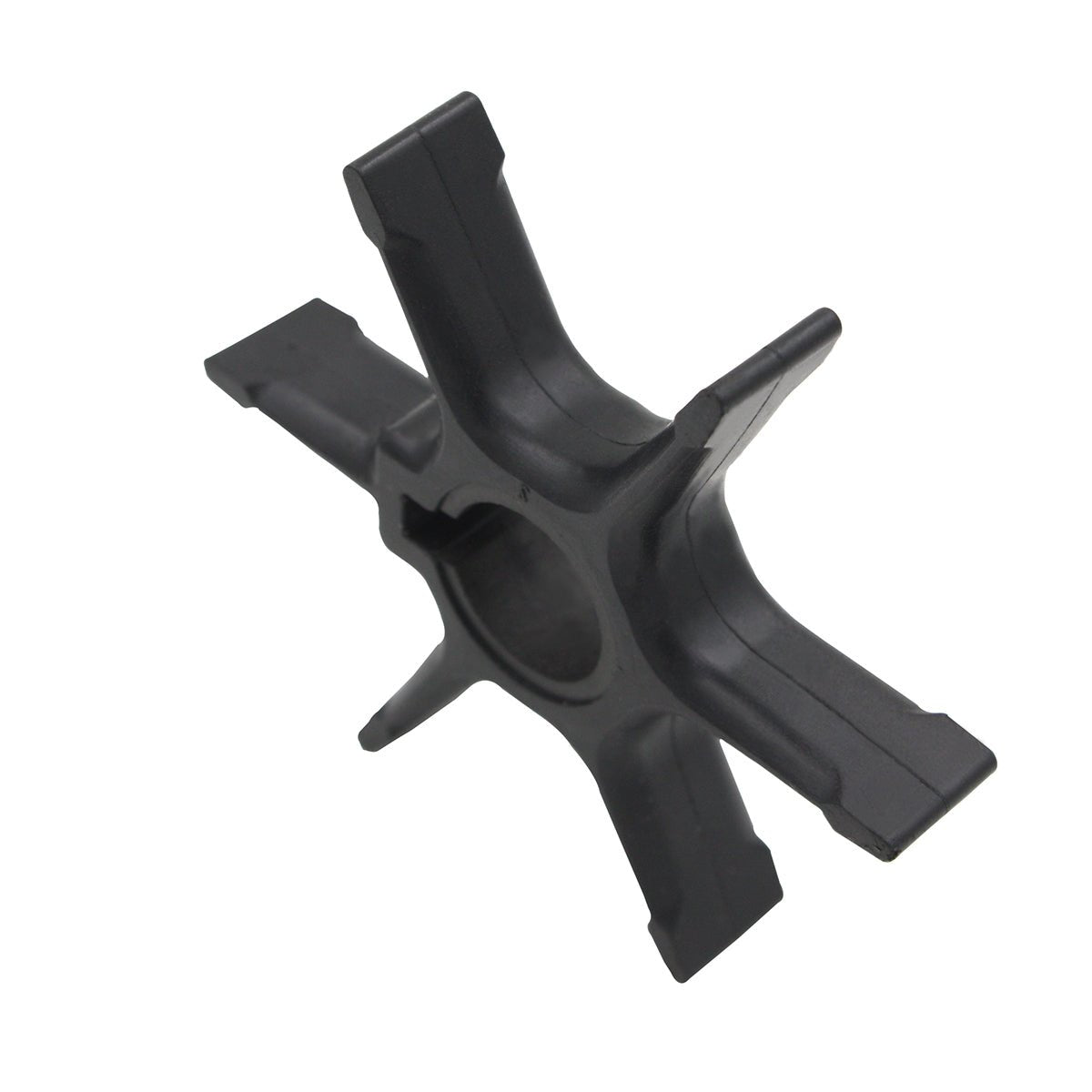

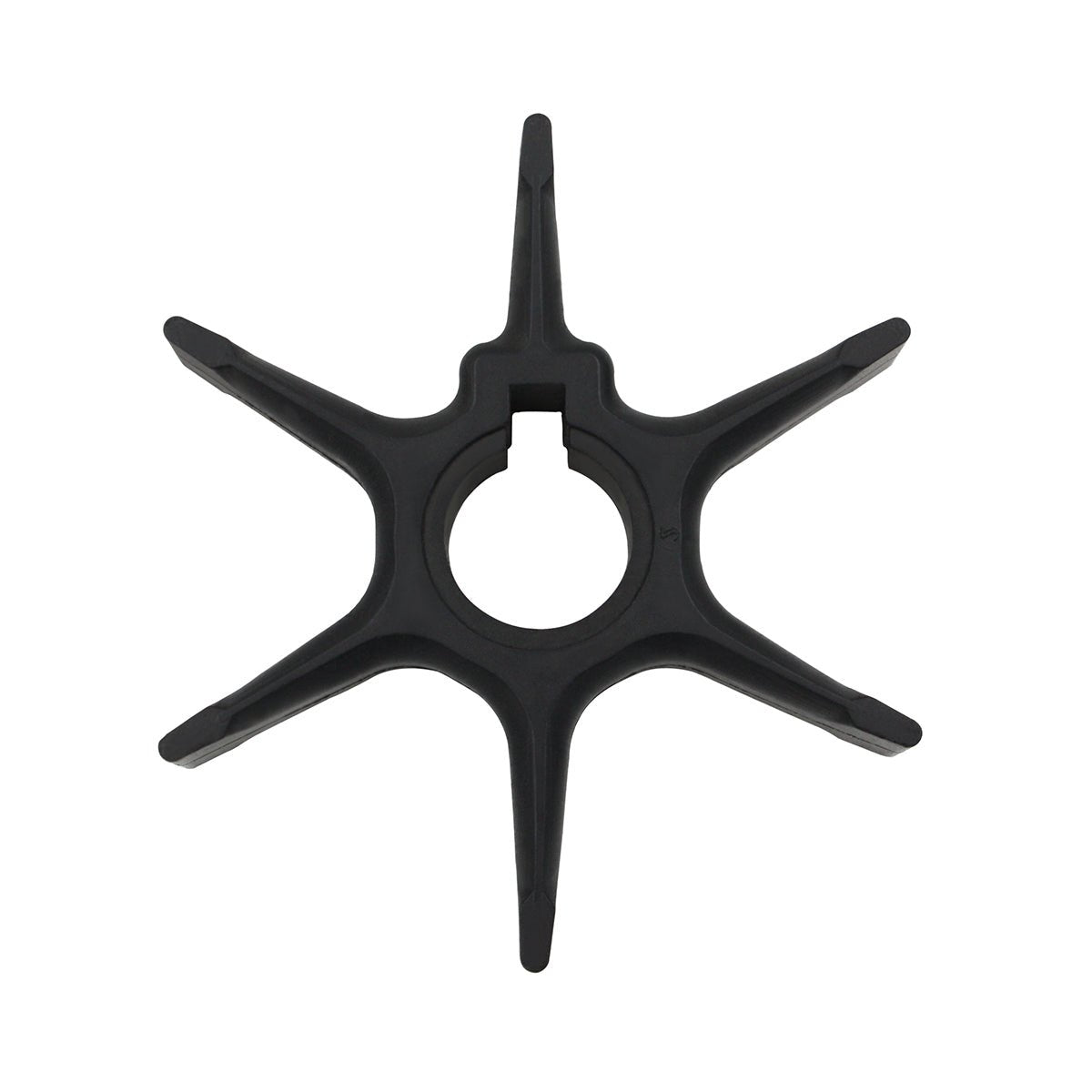

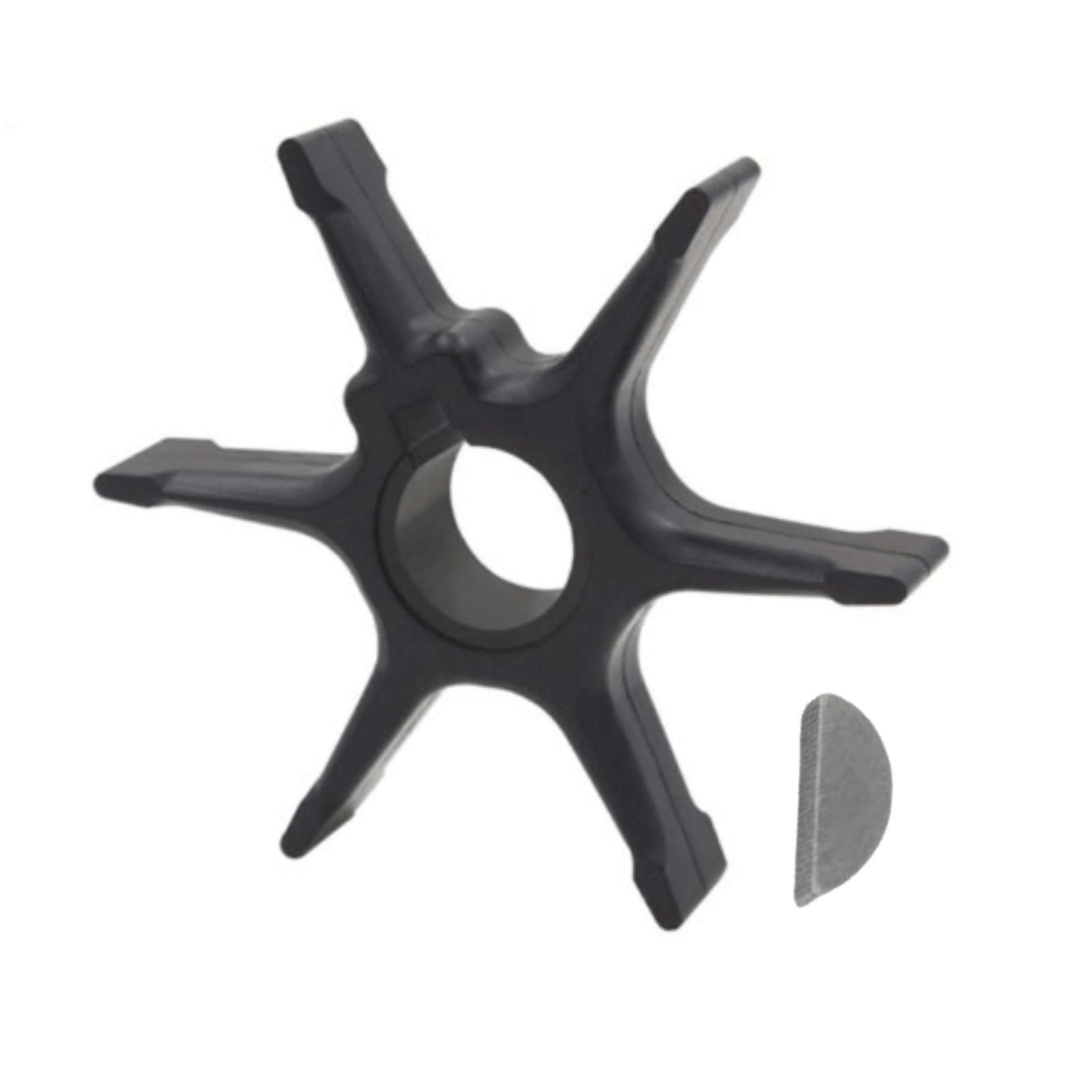

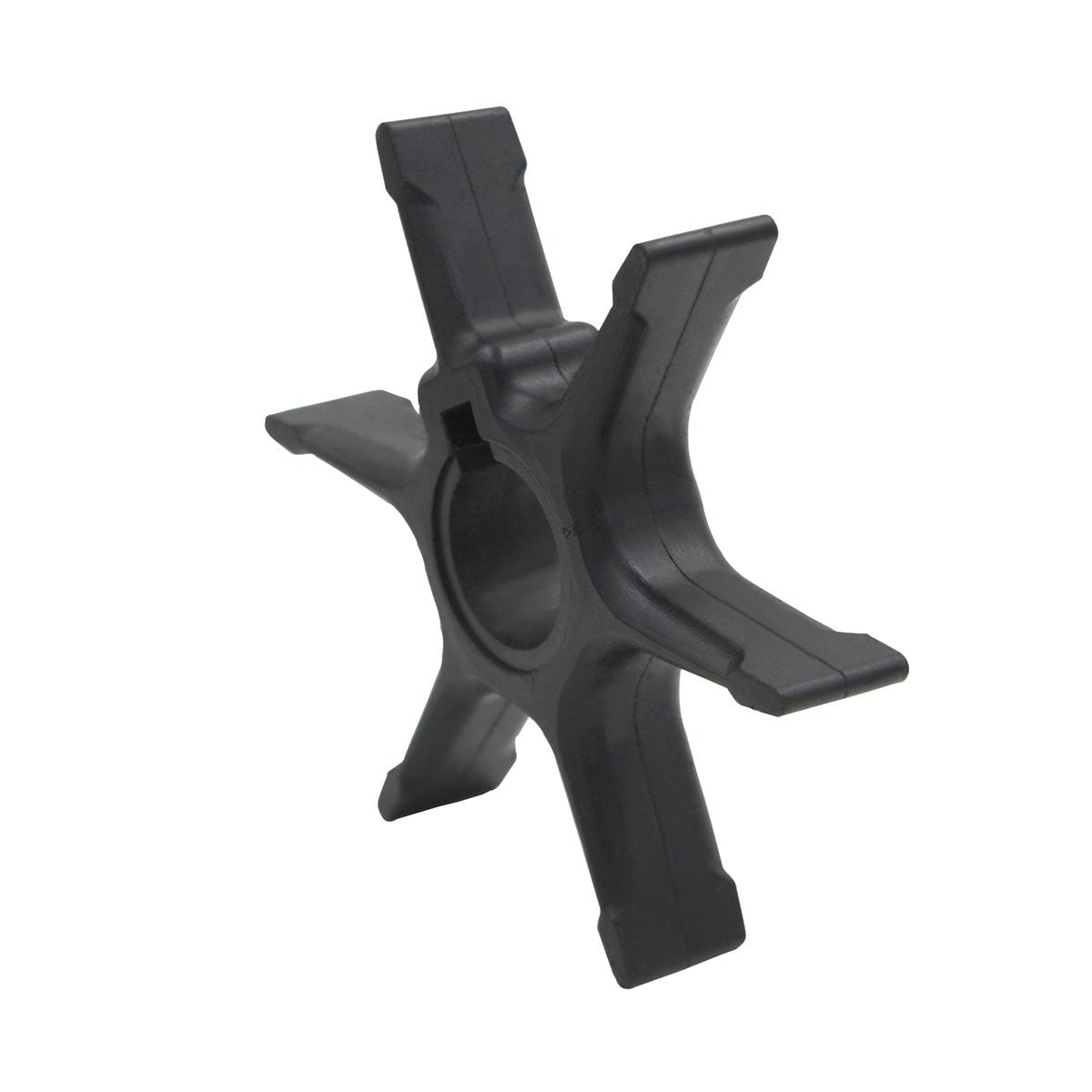

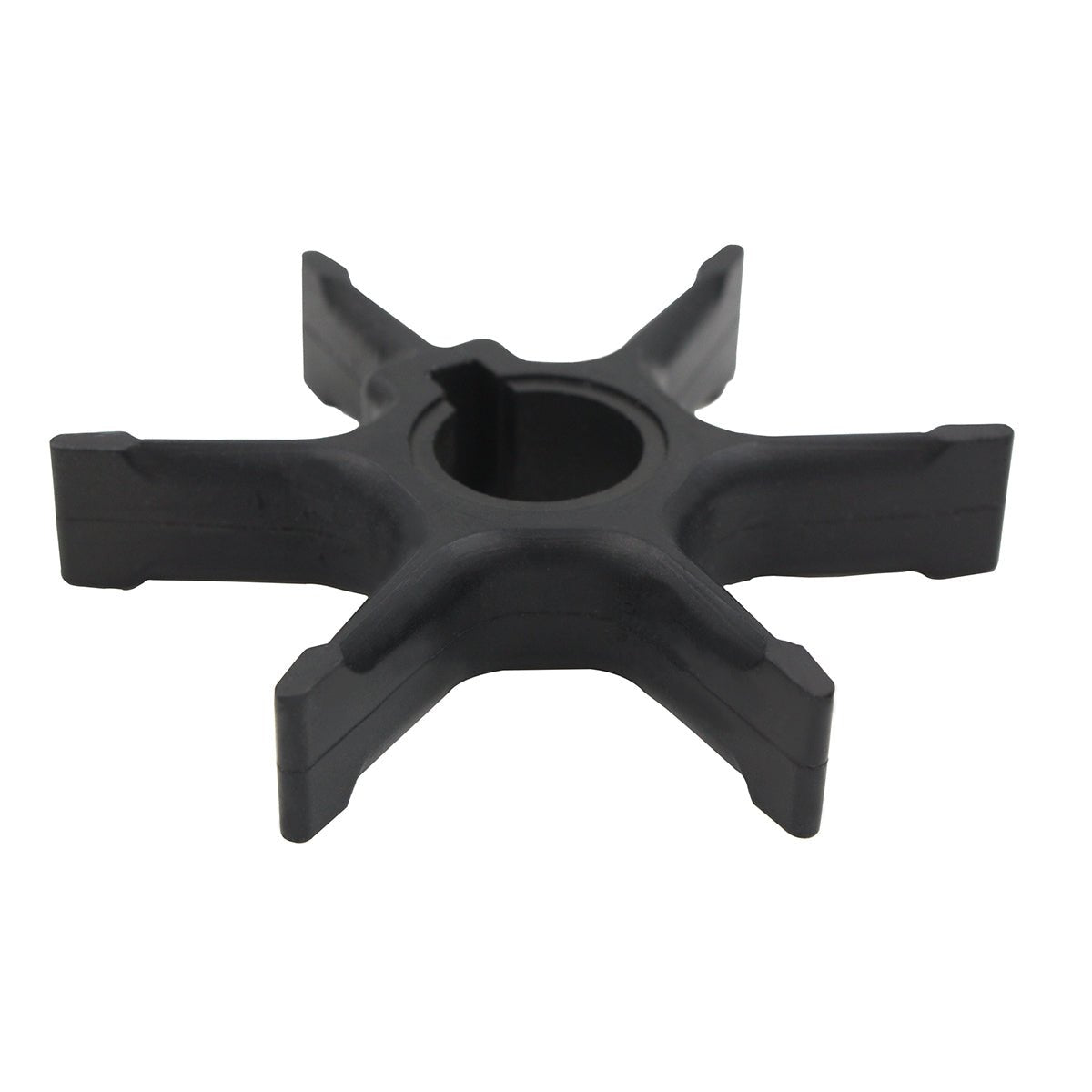

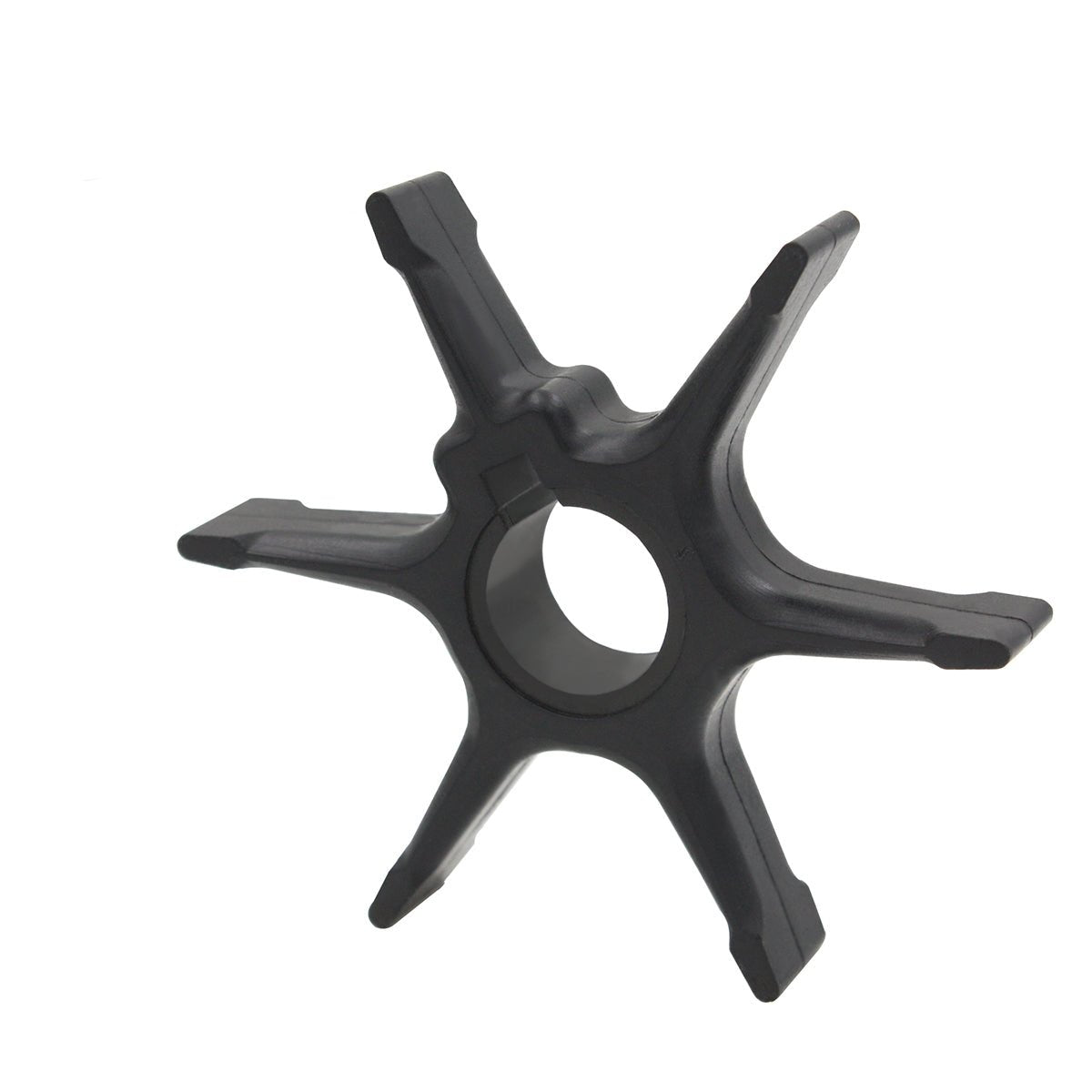

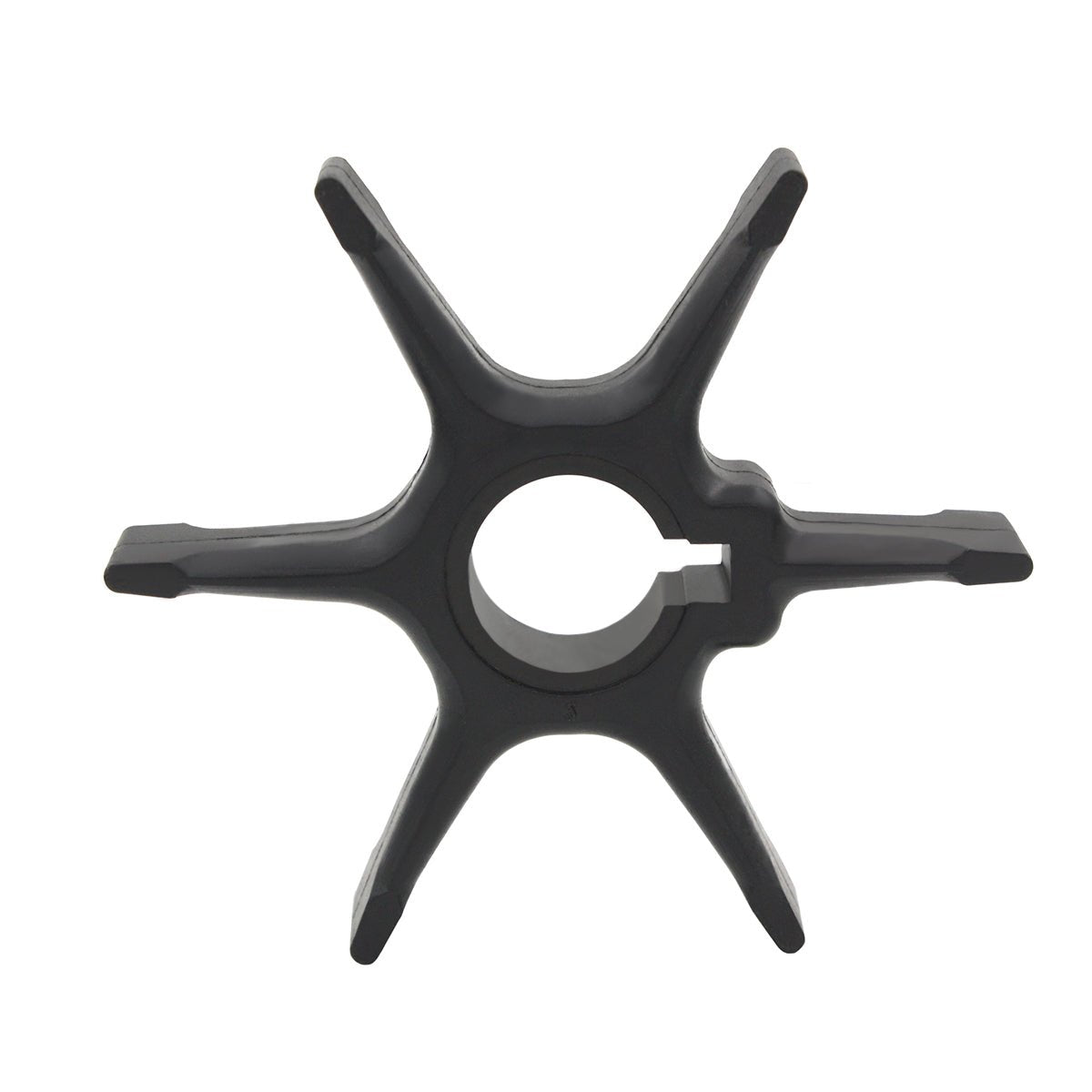

Water Pump Impeller – Fits Suzuki DT 9.9/14/15/16/25/28 HP (Replaces 17461-93003, 17461-93004)

Water Pump Impeller – Fits Suzuki DT 9.9/14/15/16/25/28 HP (Replaces 17461-93003, 17461-93004)

This water pump impeller is designed for a wide range of Suzuki two-stroke outboard engines from 9.9 to 28 HP (1977–1997), covering models such as the DT9.9, DT14, DT15, DT16, DT25, and DT28. It also fits select Suzuki four-stroke DF8, DF9.9, and DF15 engines manufactured from 2004 onwards.

As a direct replacement, this component meets or exceeds original equipment specifications, ensuring reliable performance. It is engineered to replace Suzuki OEM parts 17461-93004, 17461-93003, 17461-93002, 17461-93001, 17461-93000, and several others, providing broad compatibility.

• Installation Type: Direct drop-in replacement.
• Materials: Constructed from a durable neoprene rubber composite with a hardened nylon hub for longevity.
• Quality Standard: Manufactured in an ISO9002 certified facility for consistent quality.

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Suzuki owners, you can review exploded diagrams here to verify part numbers: Suzuki Parts Diagrams & Catalog.

Technical Specifications

Package Contents

• 1 x Water Pump Impeller (Replaces 17461-93004)

Explosion Diagram

Installation Guide

1. Safety First: Disconnect the battery and disable the ignition system before beginning work.
2. Access the Lower Unit: Shift the outboard into neutral and remove the bolts securing the lower unit (gearcase) to the engine leg.
3. Remove the Water Pump Housing: With the lower unit separated, locate and unbolt the water pump housing to expose the impeller.
4. Inspect and Replace Impeller: Note the orientation of the old impeller blades. Remove the old impeller and key drive, clean the housing, and install the new impeller, turning the driveshaft clockwise to seat the blades.
5. Reassemble: Re-install the water pump housing, ensuring all seals and gaskets are correctly positioned.
6. Final Steps: Re-attach the lower unit to the engine and test the cooling system using a water supply before heading out on the water.

Troubleshooting & FAQ

How do I confirm this part fits my engine?
Start by checking the "Compatible Engine Models" table on this page. If your model and year range are listed, it is a likely fit. For final confirmation, we recommend checking your engine's original part number or consulting an exploded parts diagram for your specific model.

How often should I replace the water pump impeller?
For preventative maintenance, it is recommended to inspect the impeller annually and replace it every 1-2 years, depending on usage (especially in saltwater or silty conditions). A worn or damaged impeller can lead to engine overheating.

What are the signs of a failing impeller?
Common symptoms include the engine running hotter than normal, a weak or inconsistent water stream from the tell-tale outlet, or a complete lack of water flow, which can trigger an overheat alarm.

OEM vs. Aftermarket?
This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

How fast do you ship and how much does it cost?
We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

What is your warranty and return policy?
This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
