Water Pump Impeller – Fits Suzuki 8-9.9 HP 2-Stroke Outboard Motors (Replaces 17461-92D02)

Water Pump Impeller – Fits Suzuki 8-9.9 HP 2-Stroke Outboard Motors

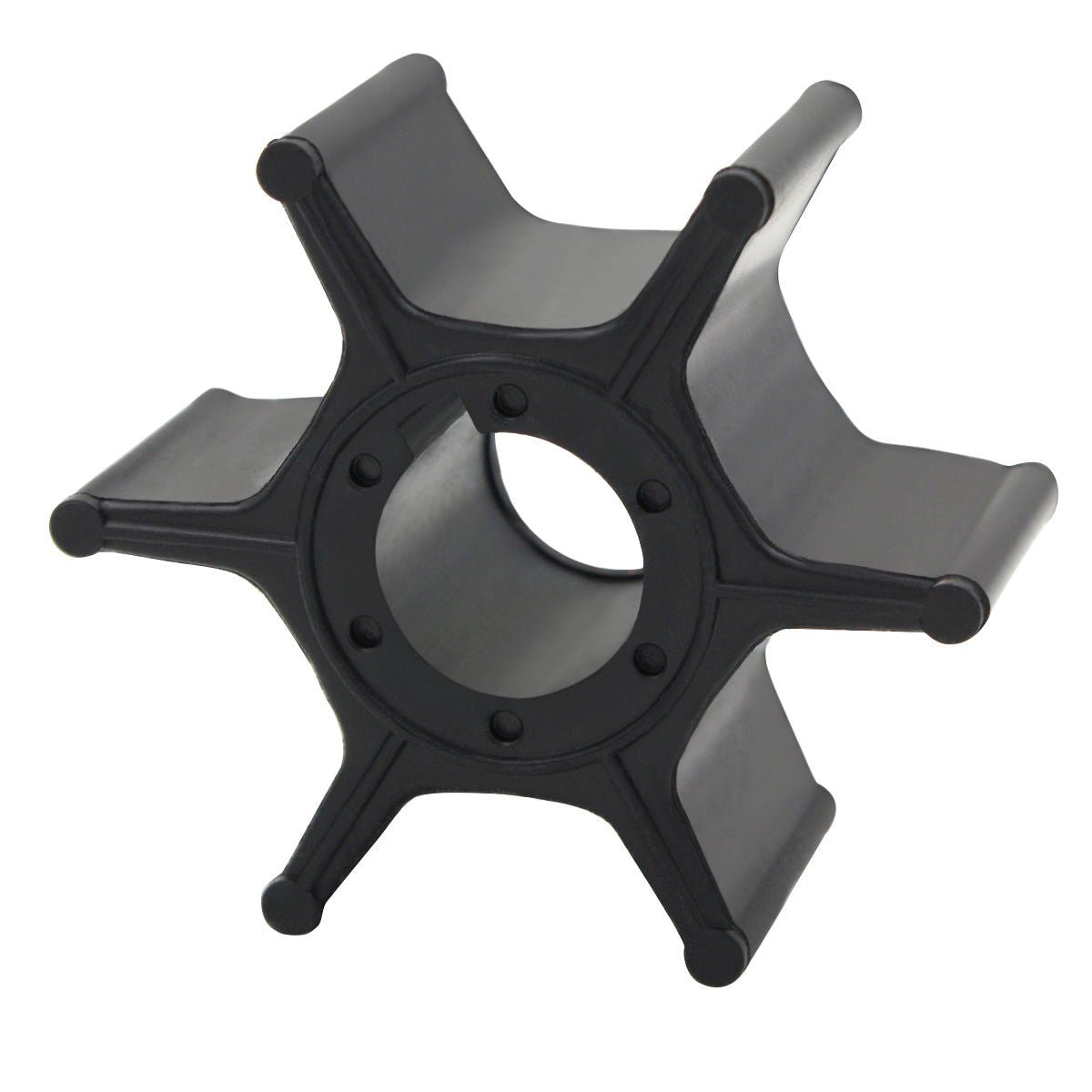

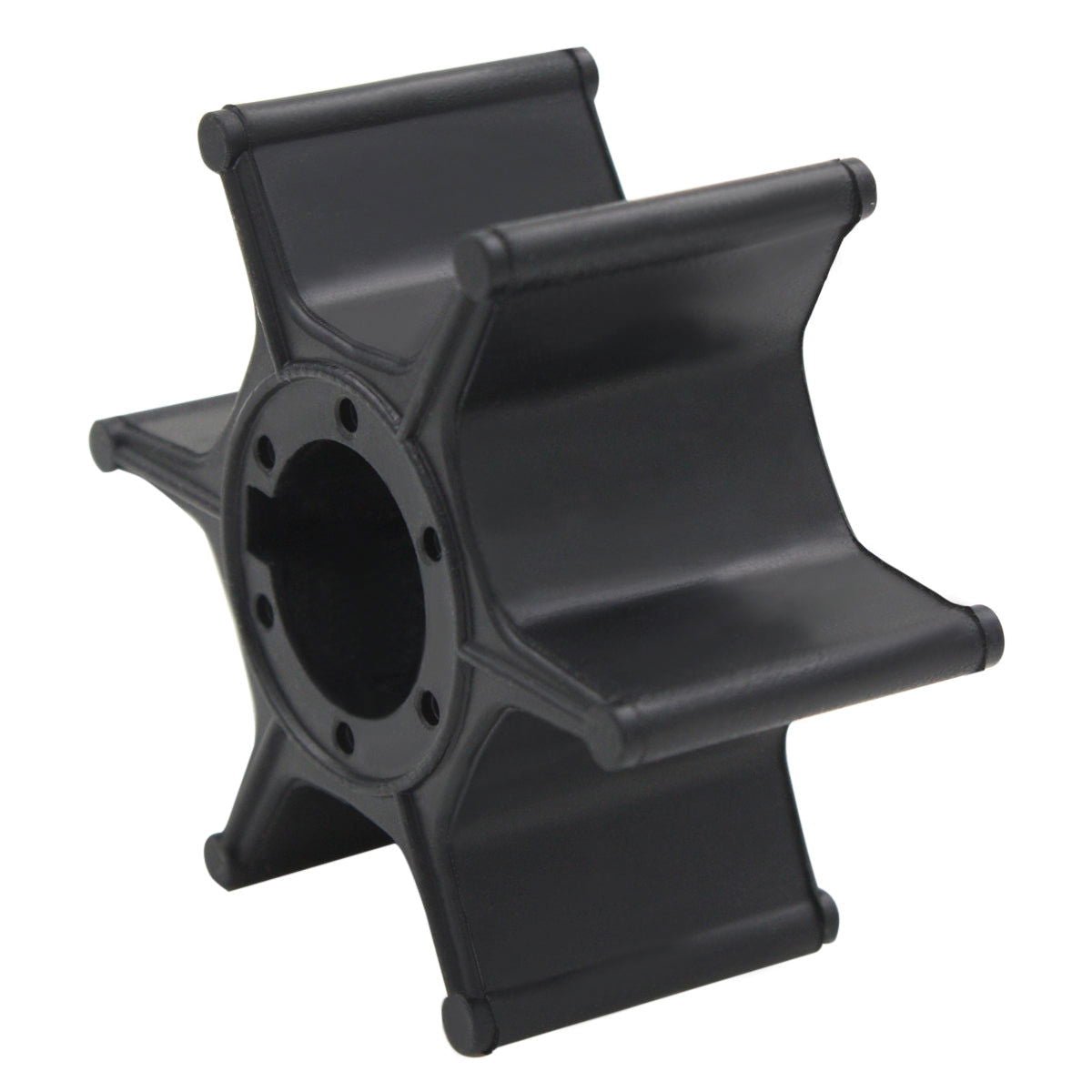

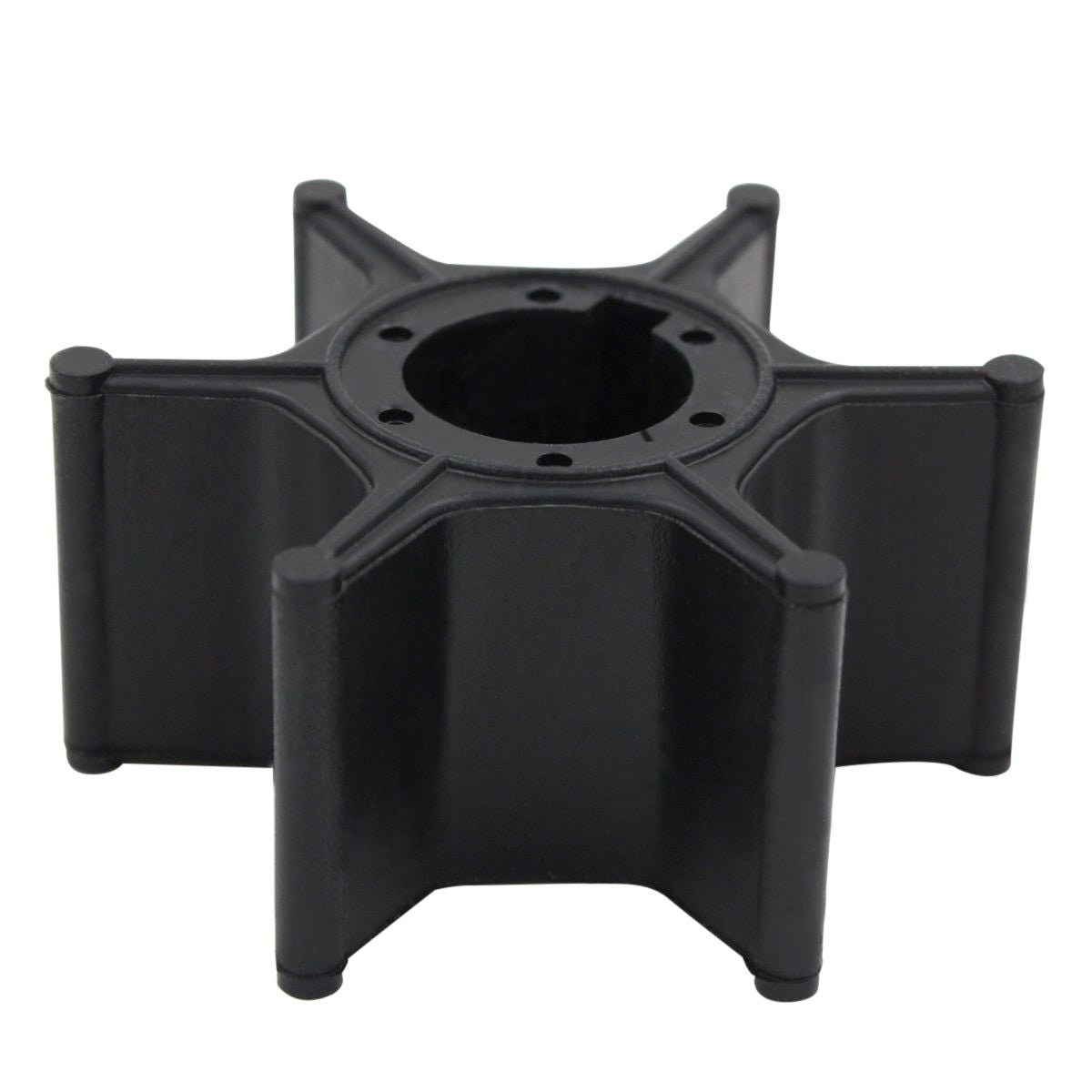

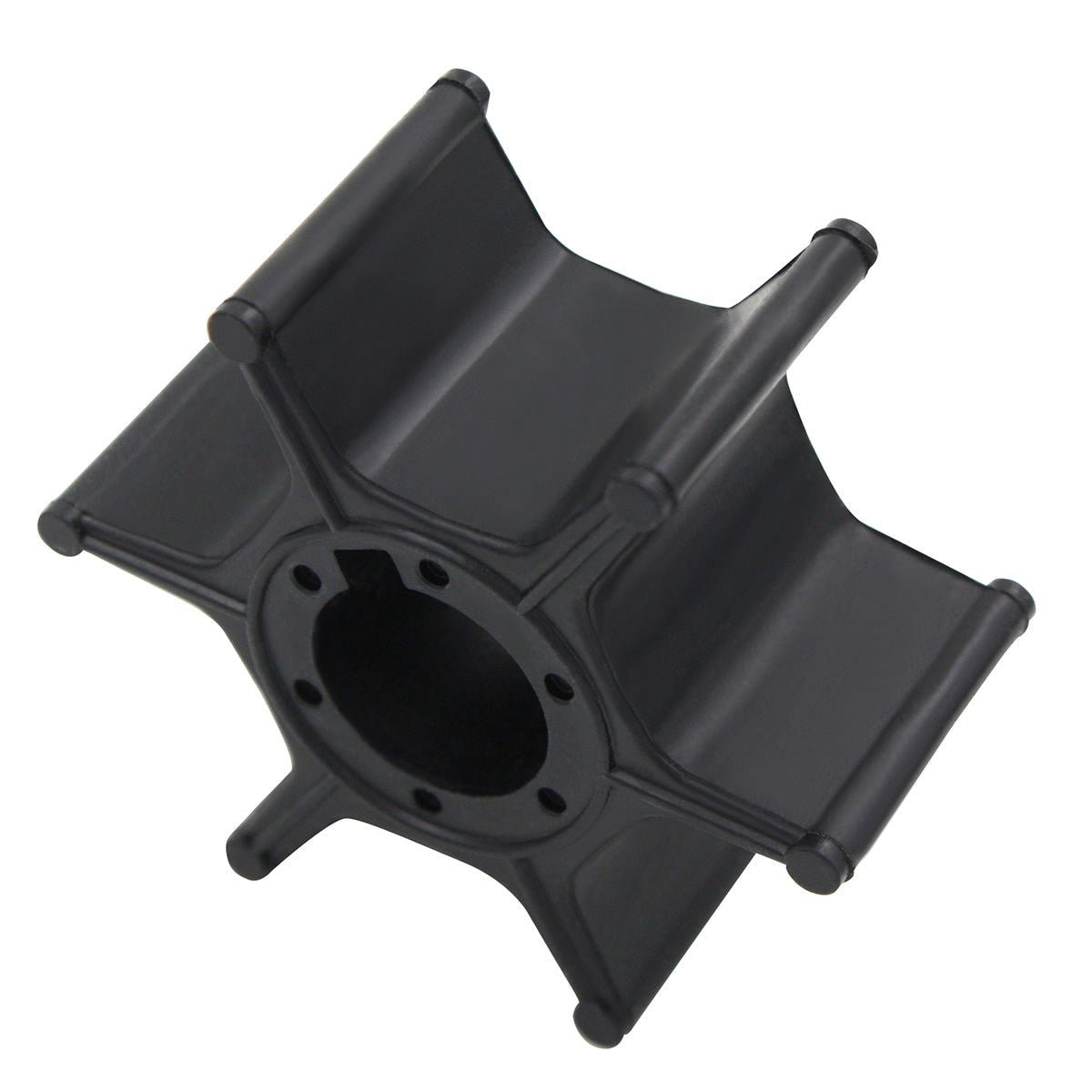

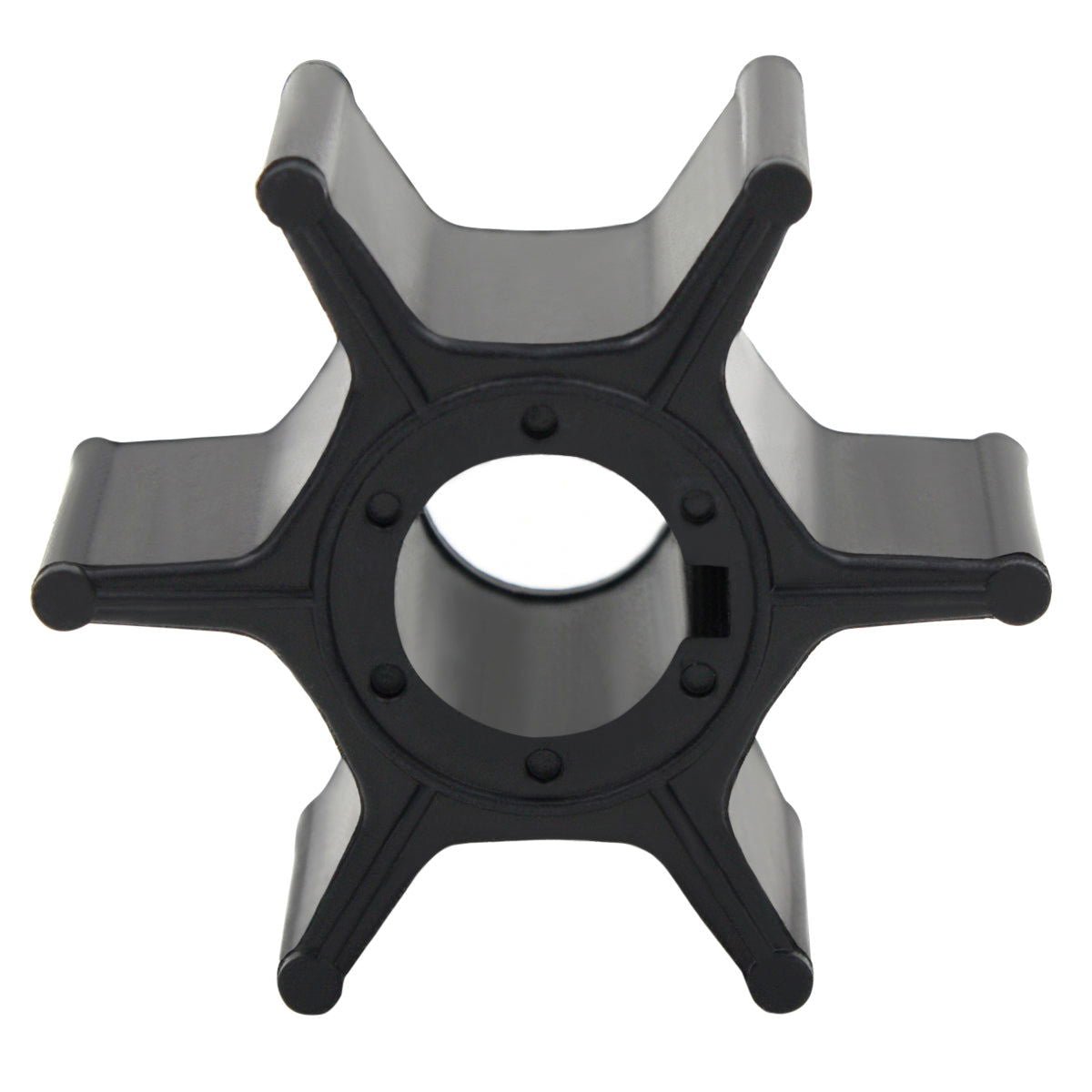

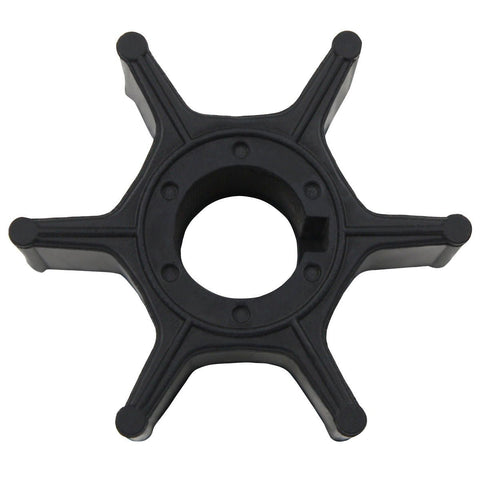

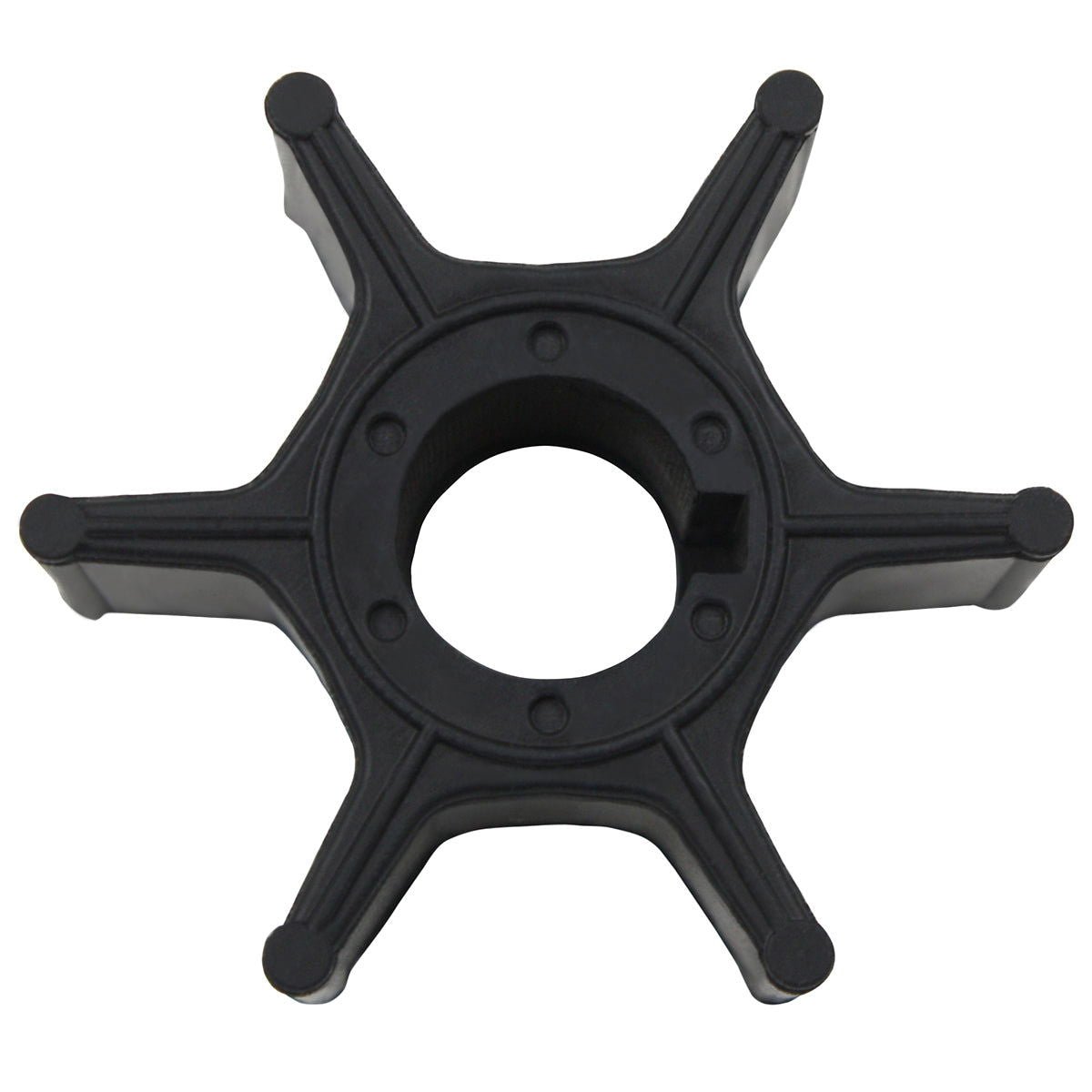

This water pump impeller is engineered to fit Suzuki 8 HP DT8 and 9.9 HP DT9.9 2-stroke outboard motors manufactured between 1988 and 1997. It serves as a direct, reliable replacement for worn or damaged original impellers, crucial for maintaining proper engine cooling.

This component is a direct replacement for Suzuki part numbers 17461-92D02, 17461-92D01, 17461-92D00, and Sierra 18-3000.

• Constructed from a durable blend of neoprene and hardened nylon for longevity.
• Installation requires disassembly of the lower unit.
• A new impeller key is included to ensure proper fitment on the driveshaft.

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Suzuki owners, you can review exploded diagrams here to verify part numbers: Suzuki Parts Diagrams & Catalog.

Technical Specifications

Package Contents

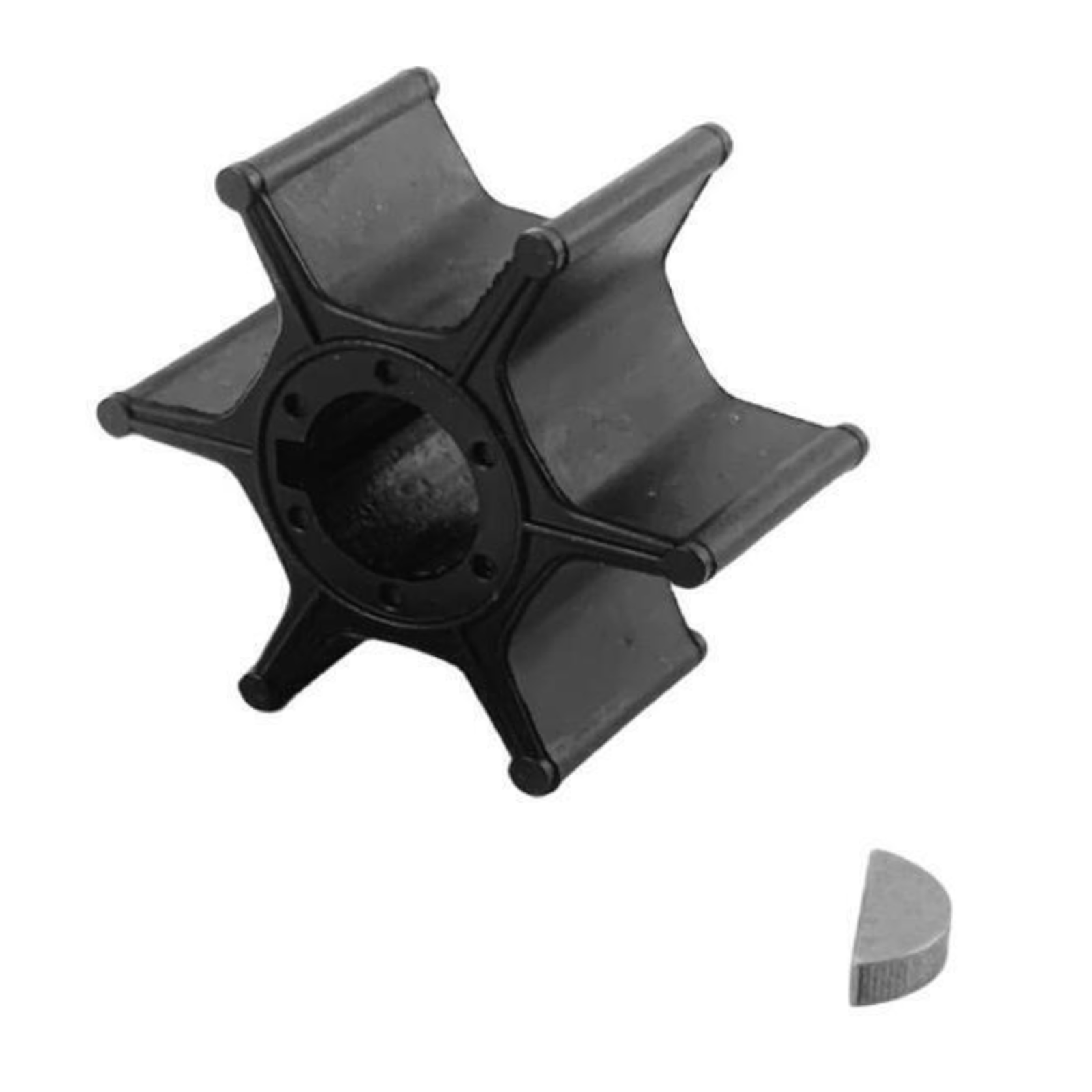

• 1 x Water Pump Impeller (Replaces 17461-92D02)
• 1 x Impeller Key

Installation Guide

1. Safety First: Ensure the engine is off and disconnect the battery cables. Shift the outboard into the neutral position.
2. Drain Gearcase Oil: Place a drain pan under the lower unit and remove the upper and lower gearcase oil drain screws to drain the oil completely.
3. Remove Lower Unit: Loosen and remove the bolts securing the lower unit (gearcase) to the outboard's upper housing.
4. Separate Assembly: Carefully slide the lower unit down and away from the upper housing to expose the driveshaft and water pump assembly.
5. Access Impeller: Remove the bolts on the water pump housing cover to access the impeller.
6. Remove Old Impeller: Note the orientation of the old impeller blades. Remove the old impeller and the drive key from the shaft.
7. Install New Impeller: Clean the inside of the pump housing. Insert the new key into the driveshaft slot and slide the new impeller on, rotating the driveshaft clockwise to bend the blades in the correct direction.
8. Reassemble: Reinstall the water pump housing and tighten the bolts. Apply a light waterproof grease to the driveshaft splines.
9. Reattach Lower Unit: Carefully guide the lower unit back into place, ensuring the driveshaft, shift shaft, and water tube align correctly. Securely tighten all bolts.
10. Refill Oil: Refill the gearcase with the manufacturer-recommended marine gear lubricant before reinstalling the drain screws with new gaskets.

Troubleshooting & FAQ

How do I confirm this fits my engine?
This impeller is specifically for Suzuki 8 HP DT8 and 9.9 HP DT9.9 2-stroke outboards from 1988–1997. Please check your engine model and year against our compatibility table. It is a direct substitute for Suzuki part numbers 17461-92D02, 17461-92D01, 17461-92D00, and Sierra 18-3000.

What are the signs of a failing water pump impeller?
The most common signs are the engine running hotter than normal or a weak, inconsistent water stream from the "telltale" indicator outlet. During inspection, you may find the old impeller has brittle, cracked, or broken blades.

How often should I replace the impeller?
For optimal performance and to prevent overheating, we recommend replacing the impeller every 1-2 years as part of regular preventative maintenance. Replacement frequency may depend on hours of use and water conditions (e.g., saltwater or sandy environments).

OEM vs. Aftermarket?
This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

How fast do you ship and how much does it cost?
We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

What is your warranty and return policy?
This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
