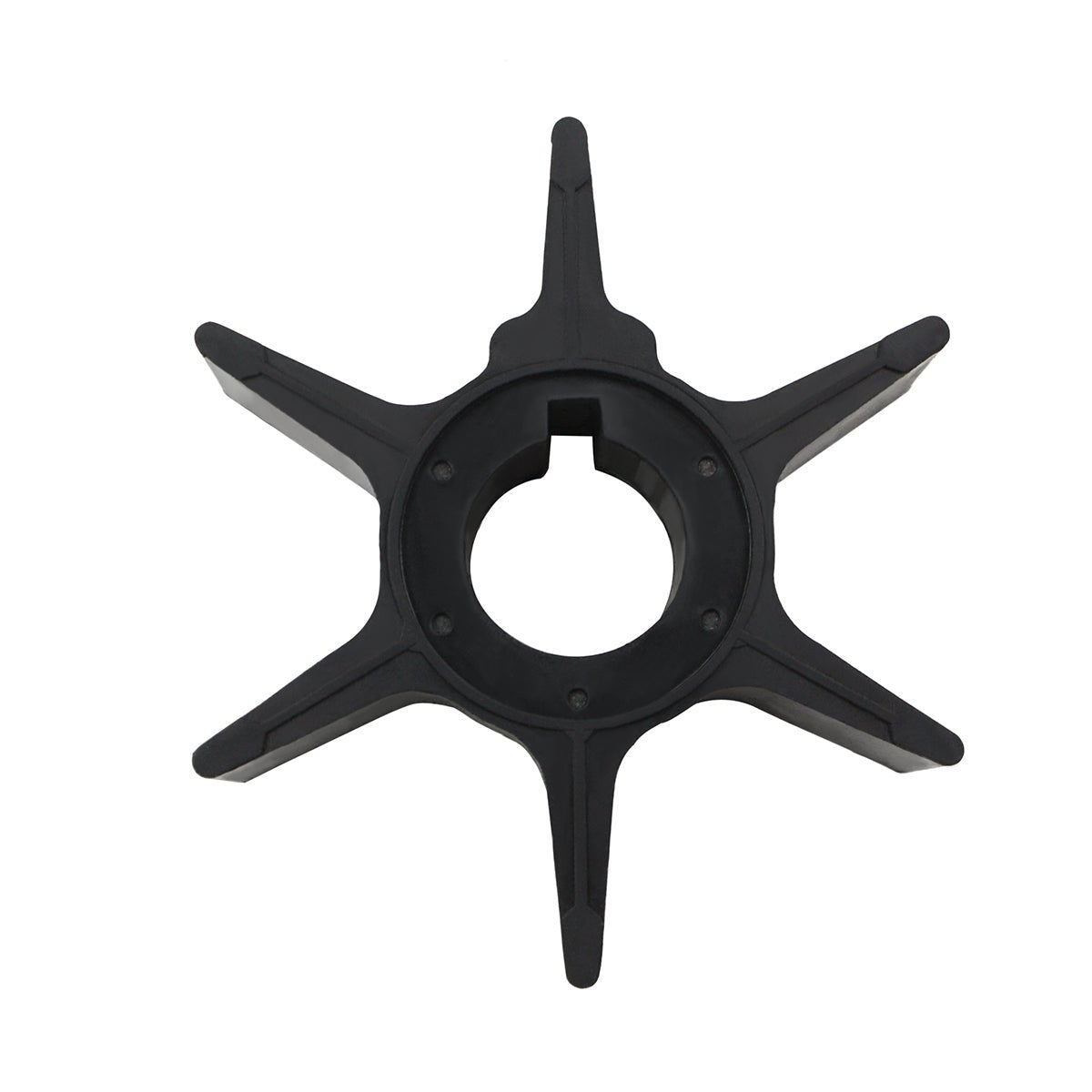

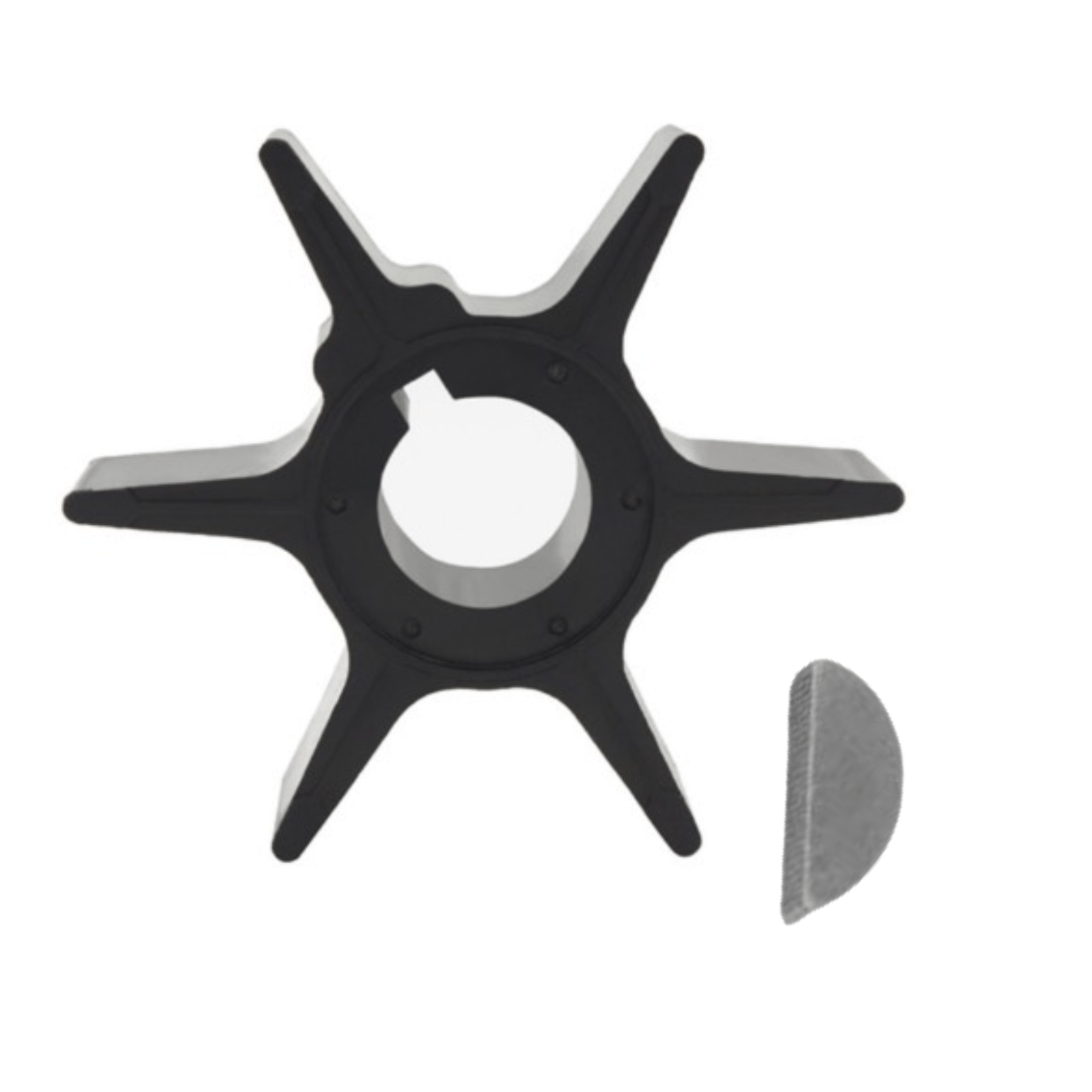

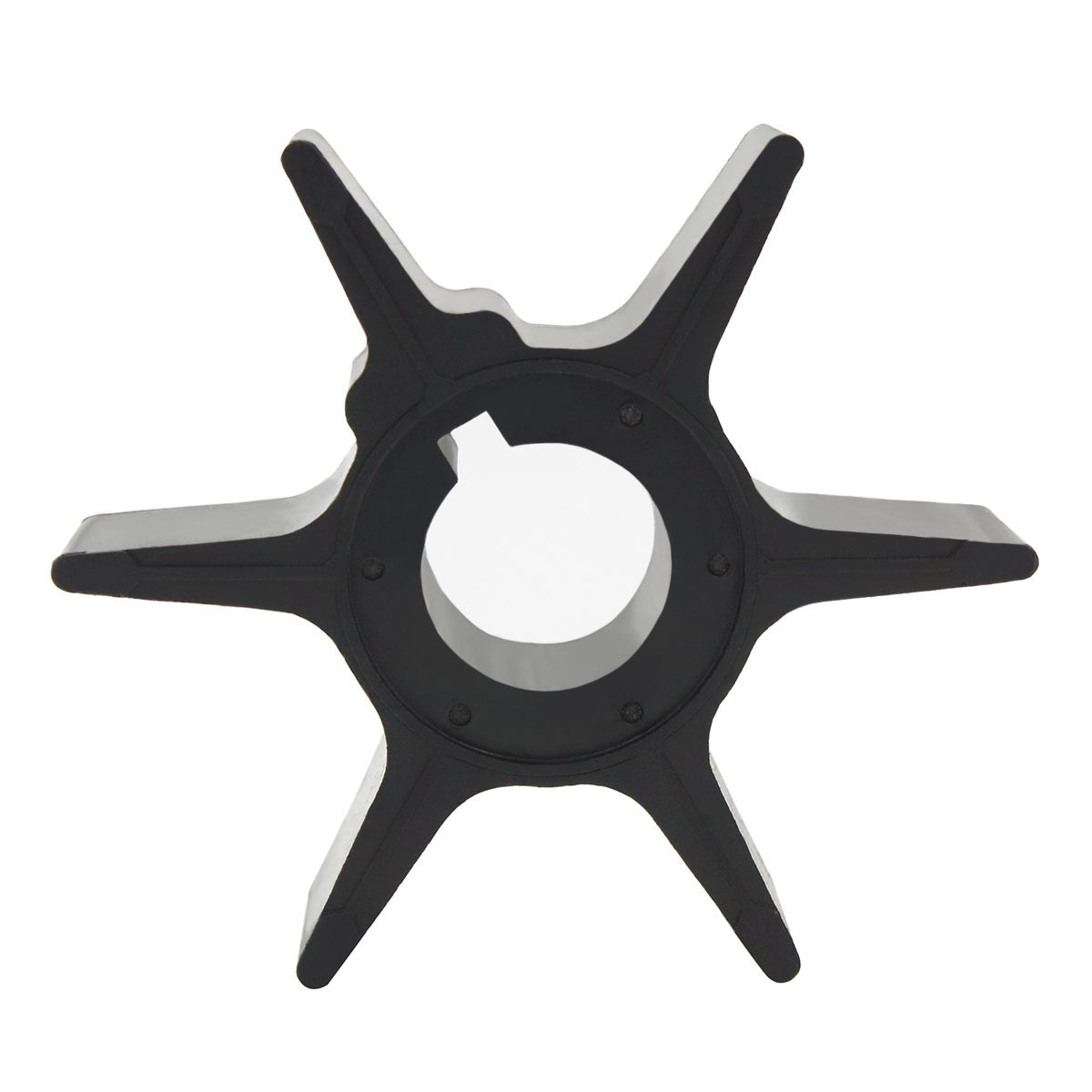

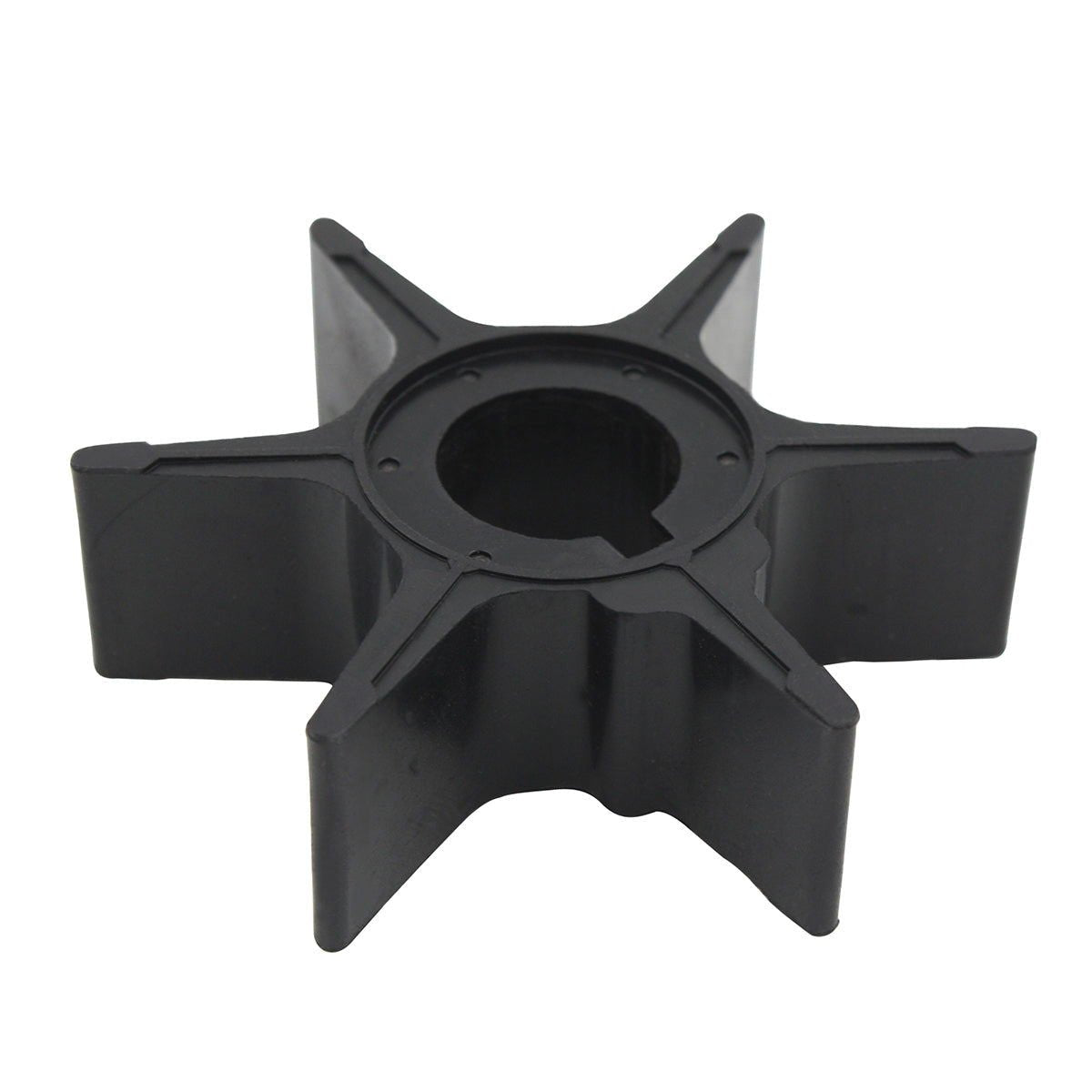

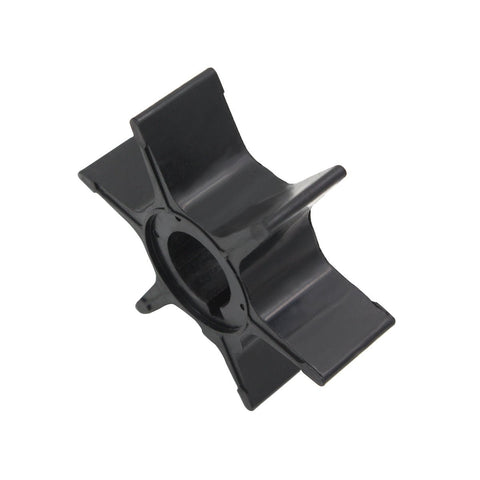

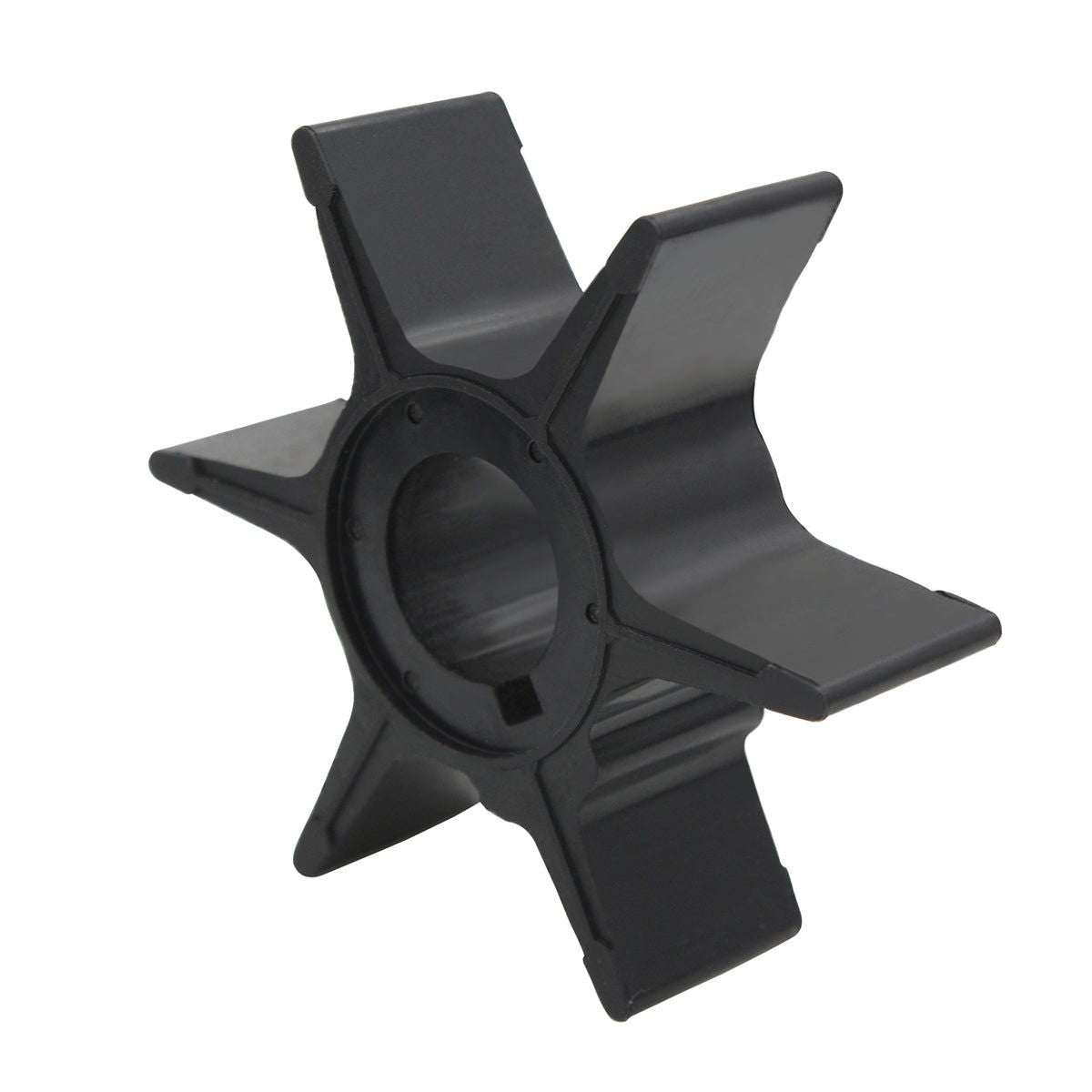

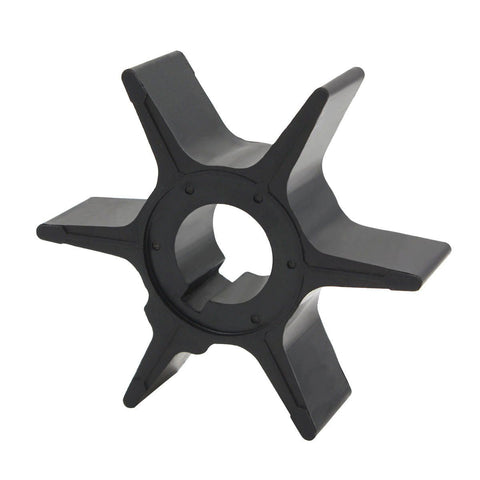

Water Pump Impeller – Fits Suzuki DT 40/55/60/65 HP Outboards (Replaces 17461-94700, 17461-94701)

Water Pump Impeller – Fits Suzuki DT 40/55/60/65 HP Outboards

This water pump impeller is designed for select Suzuki 2-Stroke outboard motors, including DT 40, 55, 60, and 65 HP models from 1983 to 1997. Additional sources indicate potential compatibility with DT35 (1980–1982), DT50 (1977–1984), DT85 (1977-1979), and PU55 Jet (1989-1994) models, but we recommend verifying the part number against your engine's service manual.

It serves as a direct replacement for Suzuki OEM part numbers 17461-94700, 17461-94701, 17461-95200, and 17461-95201, ensuring a precise fit and reliable performance. This component is crucial for maintaining proper engine cooling by circulating water through the powerhead.

• Installation: Direct replacement with an internal hub fitting.
• Material: Constructed from a durable neoprene and hardened nylon composite.
• Included: One water pump impeller.

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Suzuki owners, You can review exploded diagrams here to verify part numbers: Suzuki Parts Diagrams & Catalog.

Technical Specifications

Package Contents

• 1 x Water Pump Impeller (Replaces 17461-94700/17461-94701)

Explosion Diagram

Installation Guide

1. Disconnect Power: Disconnect the battery and spark plug wires to prevent accidental starting.
2. Access Lower Unit: Remove the lower unit (gearcase) from the outboard motor. This typically involves removing several bolts.
3. Open Water Pump Housing: Locate and unbolt the water pump housing to expose the old impeller.
4. Remove Old Impeller: Take out the old impeller, noting the direction of the vanes. Clean any debris from the housing.
5. Install New Impeller: Lightly grease the new impeller and insert it into the housing, rotating the driveshaft to seat the vanes correctly.
6. Reassemble Housing: Replace the water pump housing and gasket, ensuring all bolts are tightened to the manufacturer's specifications.
7. Reattach Lower Unit: Reinstall the lower unit onto the outboard motor.
8. Test Operation: Reconnect the battery and spark plug wires. Test the engine in water to confirm proper water flow from the tell-tale stream.

Troubleshooting & FAQ

Q: How do I confirm this impeller fits my Suzuki engine?
A: The best method is to match the OEM part number (17461-94700, 17461-94701, etc.) from your engine's service manual or existing part with our cross-reference list. While our compatibility table is accurate, verifying the part number ensures a perfect fit, especially for older models or those noted as compatible via secondary sources.

Q: What are the signs of a failing water pump impeller?
A: Common signs include a weak or non-existent water stream from the "tell-tale" outlet, engine overheating alarms, and a noticeable decrease in engine performance. A worn or damaged impeller cannot effectively cool the engine.

Q: How often should I replace my outboard's water pump impeller?
A: For preventative maintenance, it is recommended to inspect the impeller annually and replace it every 1-2 years or every 100-200 hours of use, depending on operating conditions (e.g., saltwater vs. freshwater). Frequent use in sandy or silty water may require more frequent replacement.

Q: OEM vs. Aftermarket?
A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?
A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?
A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
