Water Pump Impeller – Fits Suzuki DF 60-90 HP/DT 90-100 HP (Replaces 17461-87E00)

Water Pump Impeller – Fits Suzuki DF 60-90 HP/DT 90-100 HP (Replaces 17461-87E00)

This water pump impeller is a direct-fit replacement for Suzuki 2-stroke DT90/DT100 engines (1988–2000) and 4-stroke DF60, DF70, DF80, and DF90 outboard engines (1998–2010). It is engineered to meet or exceed original equipment specifications for reliable cooling performance.

This component directly replaces Suzuki OEM part numbers 17461-87E00, 17461-87E10, 17461-87E11, and 17461-87E12. It also serves as an aftermarket replacement for Sierra 18-3049, CEF Marine 500365, and Mallory Marine 9-45505.

• Durable Construction: Made from a tough neoprene compound molded to a hardened nylon hub for longevity and corrosion resistance.
• Direct Installation: Designed for a direct drop-in fit, requiring no modifications for installation.
• Key Included: Each impeller comes with the required drive key for a complete installation.

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Suzuki owners, You can review exploded diagrams here to verify part numbers: Suzuki Parts Diagrams & Catalog.

Technical Specifications

Package Contents

• 1 x Water Pump Impeller (Replaces 17461-87E00)

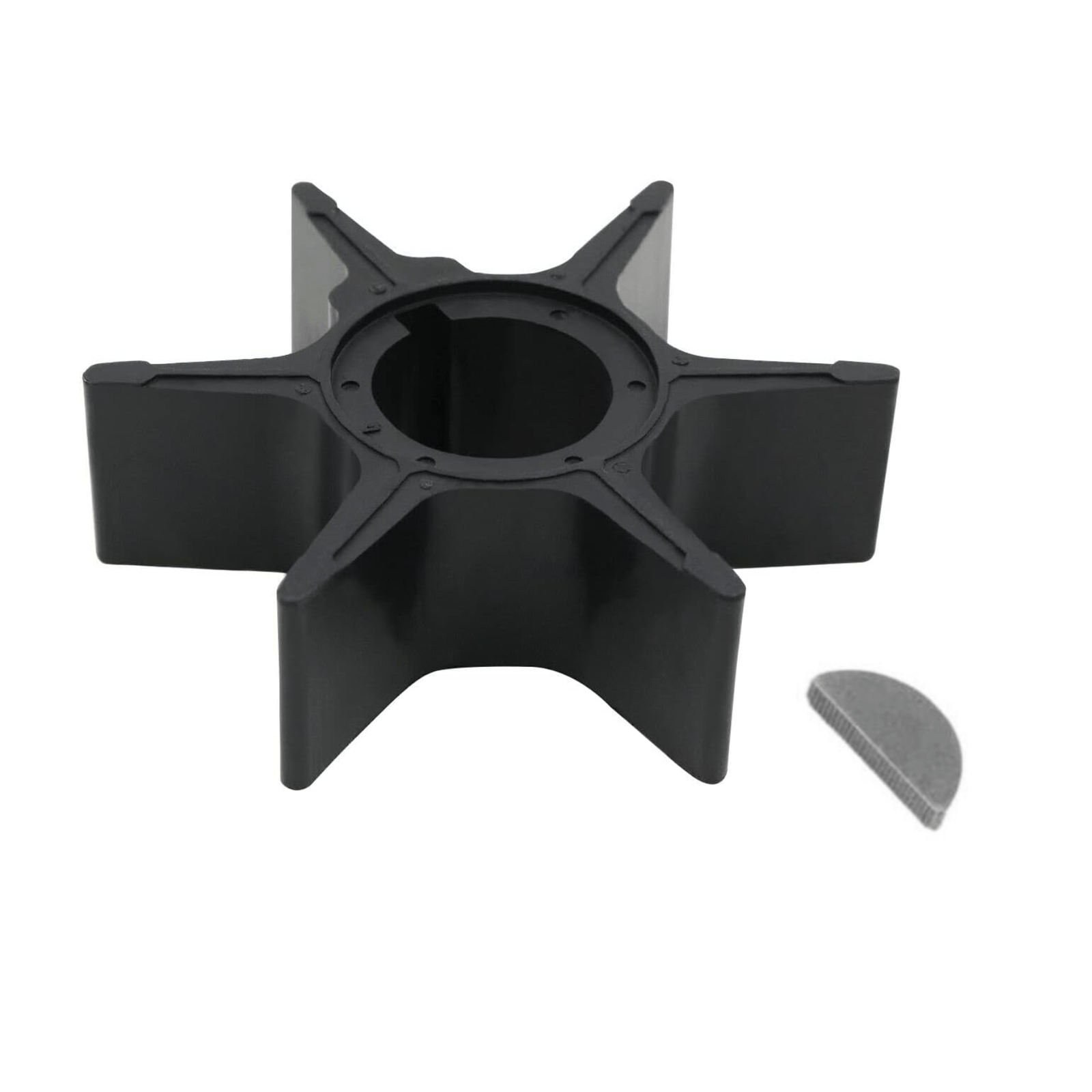

• 1 x Key (included with impeller)

Installation Guide

1. Disconnect the negative battery cable and remove the engine cover.
2. Shift the outboard into neutral and remove the shift linkage pin or bolt.
3. Unbolt and carefully lower the gearcase (lower unit) from the outboard's midsection.
4. Locate the water pump housing on top of the gearcase and remove its mounting bolts.
5. Lift the housing off and remove the old impeller, noting the rotational direction of its fins. Clean any debris from the housing interior.
6. Install the new gaskets and insert the new impeller. Use a small amount of grease on the interior and turn the driveshaft clockwise to seat the blades correctly.
7. Reinstall the water pump housing and torque the bolts to the manufacturer's specification.
8. Raise the lower unit back into position, ensuring the water tube and driveshaft align. Reinstall bolts and shift linkage.
9. Reconnect the battery, supply water to the engine using flush muffs, and start it to verify a strong water stream from the tell-tale outlet.

Troubleshooting & FAQ

Q: How do I confirm this impeller fits my Suzuki engine?
A: Check your engine's model, horsepower, and year against our "Compatible Engine Models" table. You can also verify the part number on your old impeller; this part replaces OEM numbers 17461-87E00, 17461-87E10, 17461-87E11, and 17461-87E12.

Q: What are the signs of a failing water pump impeller?
A: Common signs include the engine overheating at idle or low speeds, a weak or intermittent water stream from the "tell-tale" outlet, or finding the old impeller's blades are cracked, brittle, or have taken a permanent set.

Q: How often should I replace my engine's impeller?
A: As a crucial part of preventative maintenance, we recommend replacing the impeller every 1 to 2 years or every 100-200 hours of use, whichever comes first. More frequent changes may be needed if you operate in sandy or silty water.

Q: Will this impeller fit my Suzuki DF50?
A: While some third-party sources suggest potential compatibility with DF40/DF50 models, it is not consistently confirmed. To ensure proper fit and function, we recommend using this part only for the models explicitly listed in our compatibility chart.

Q: OEM vs. Aftermarket?
A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?
A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?
A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
