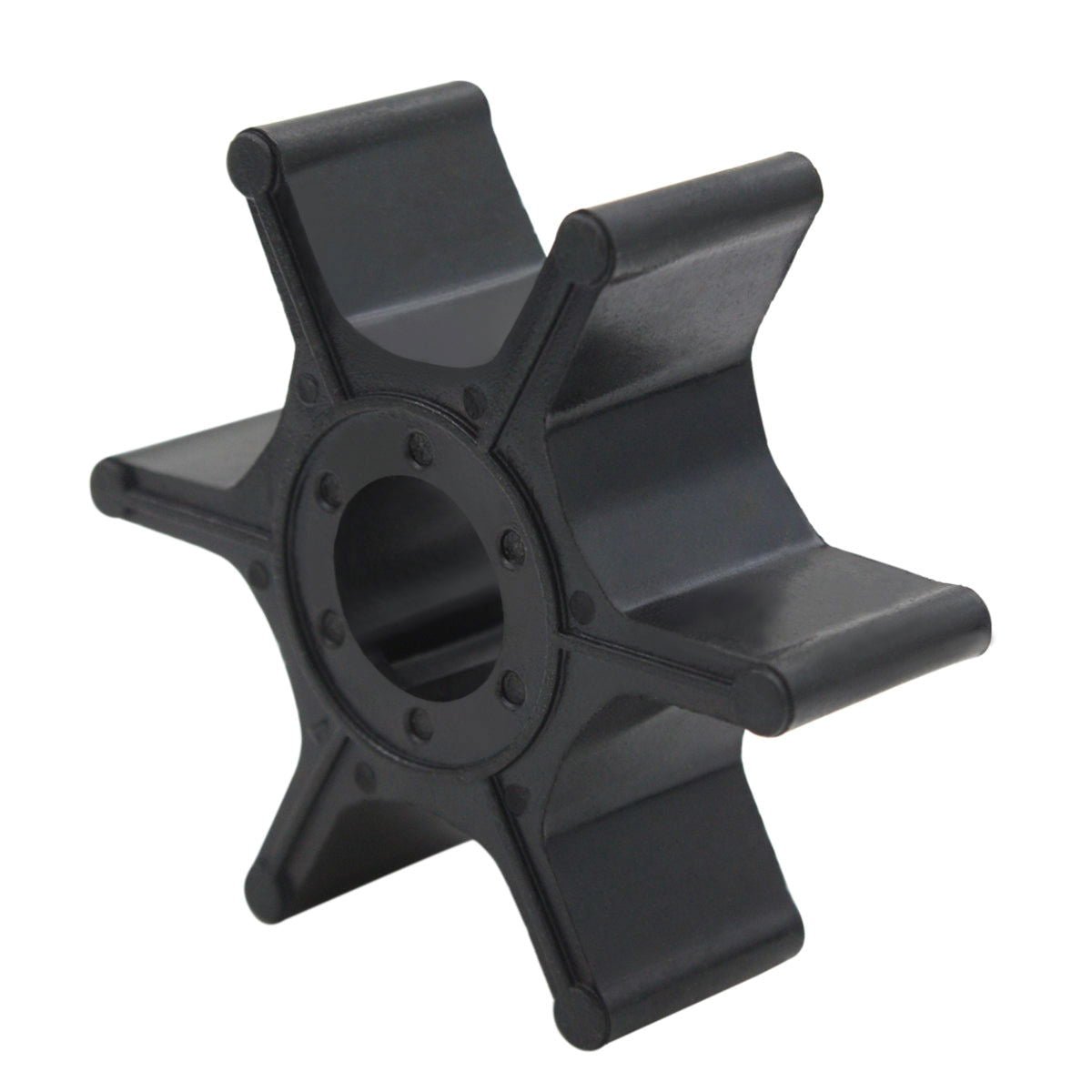

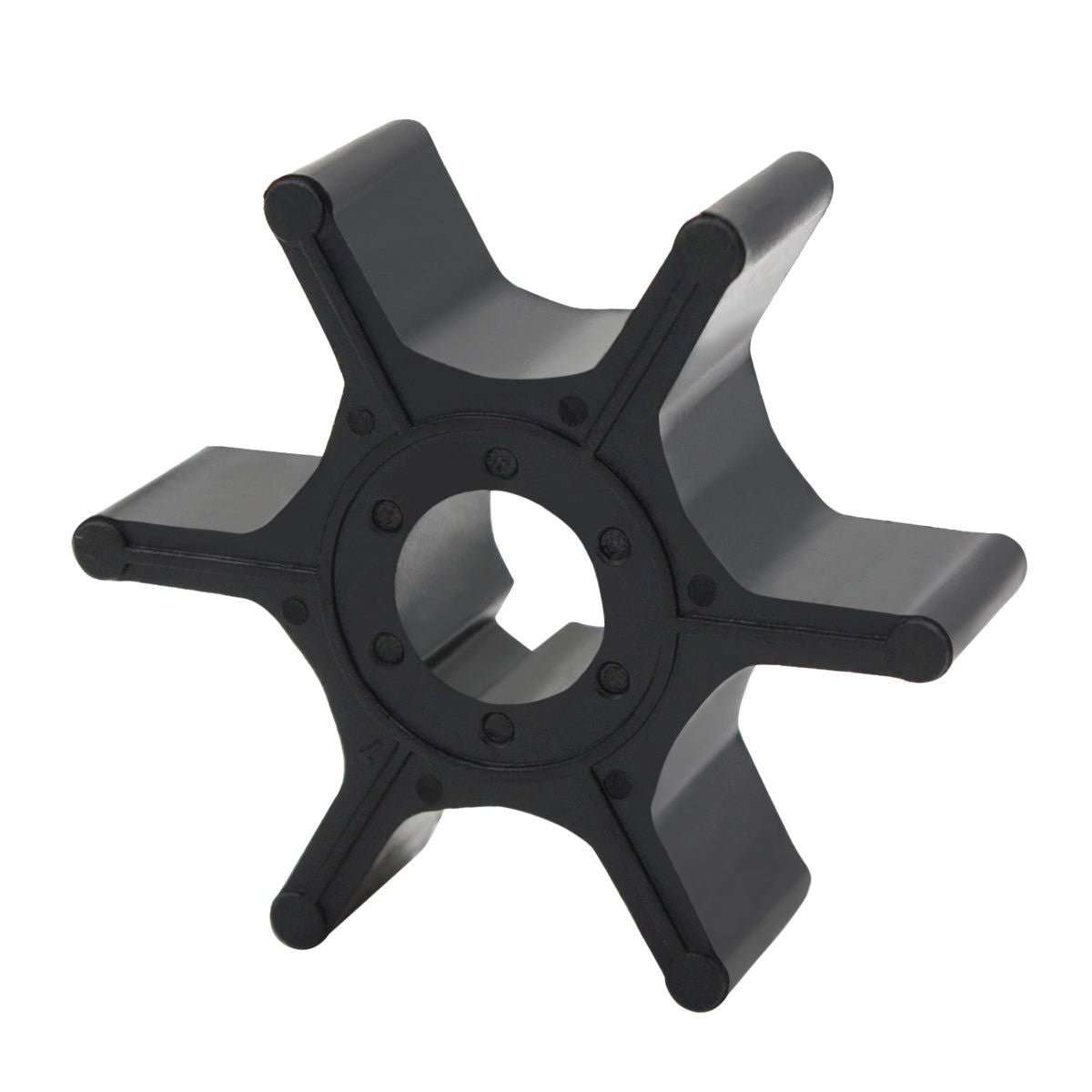

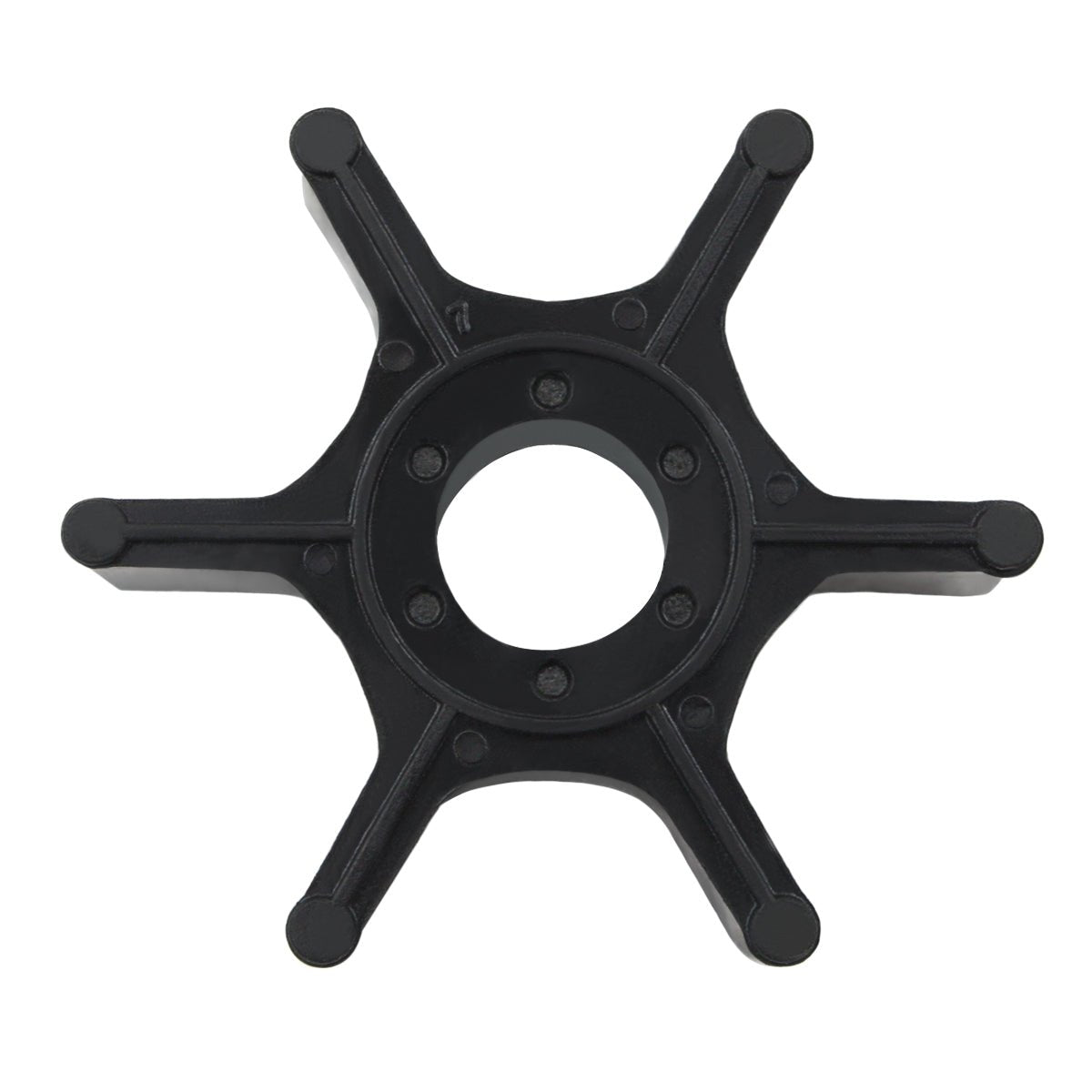

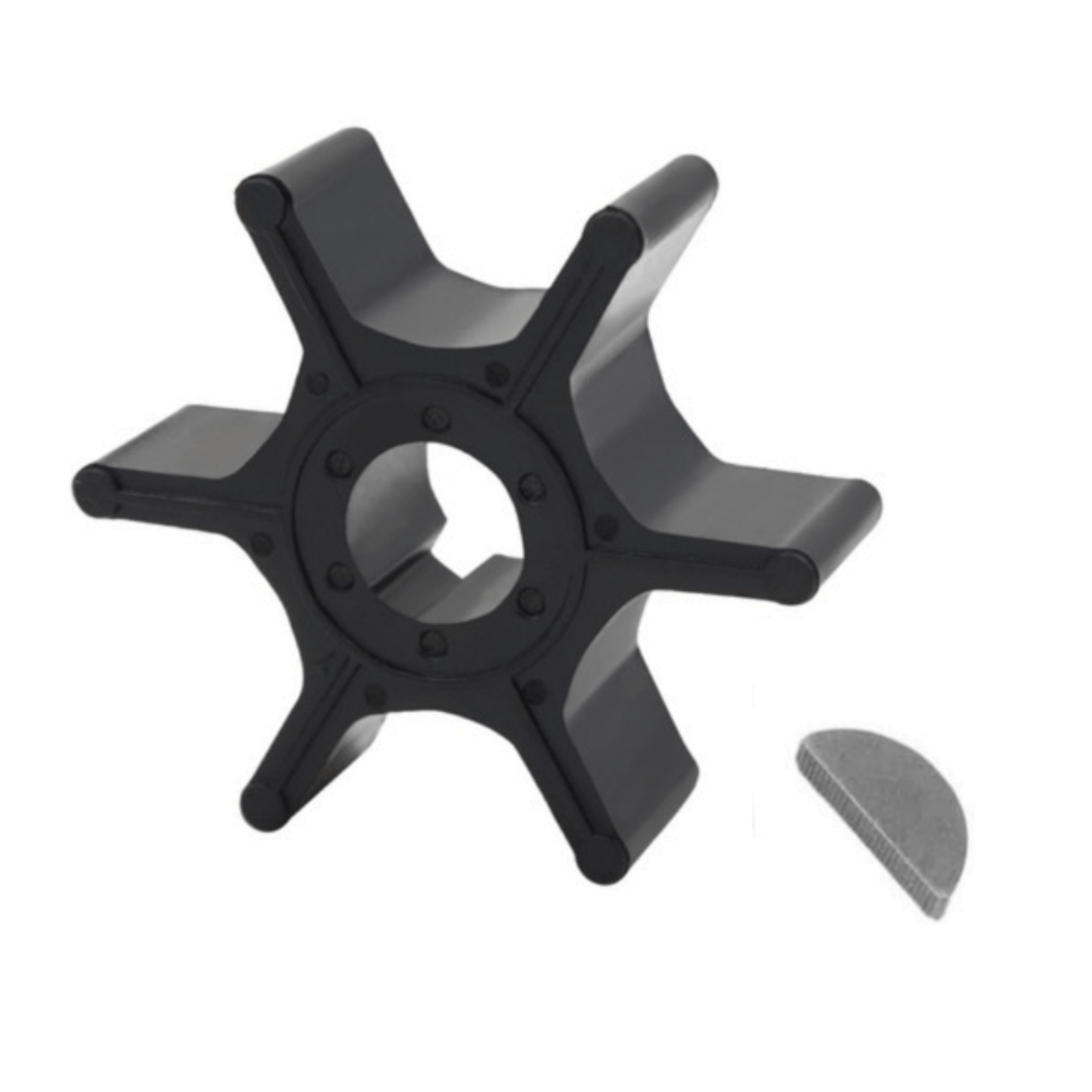

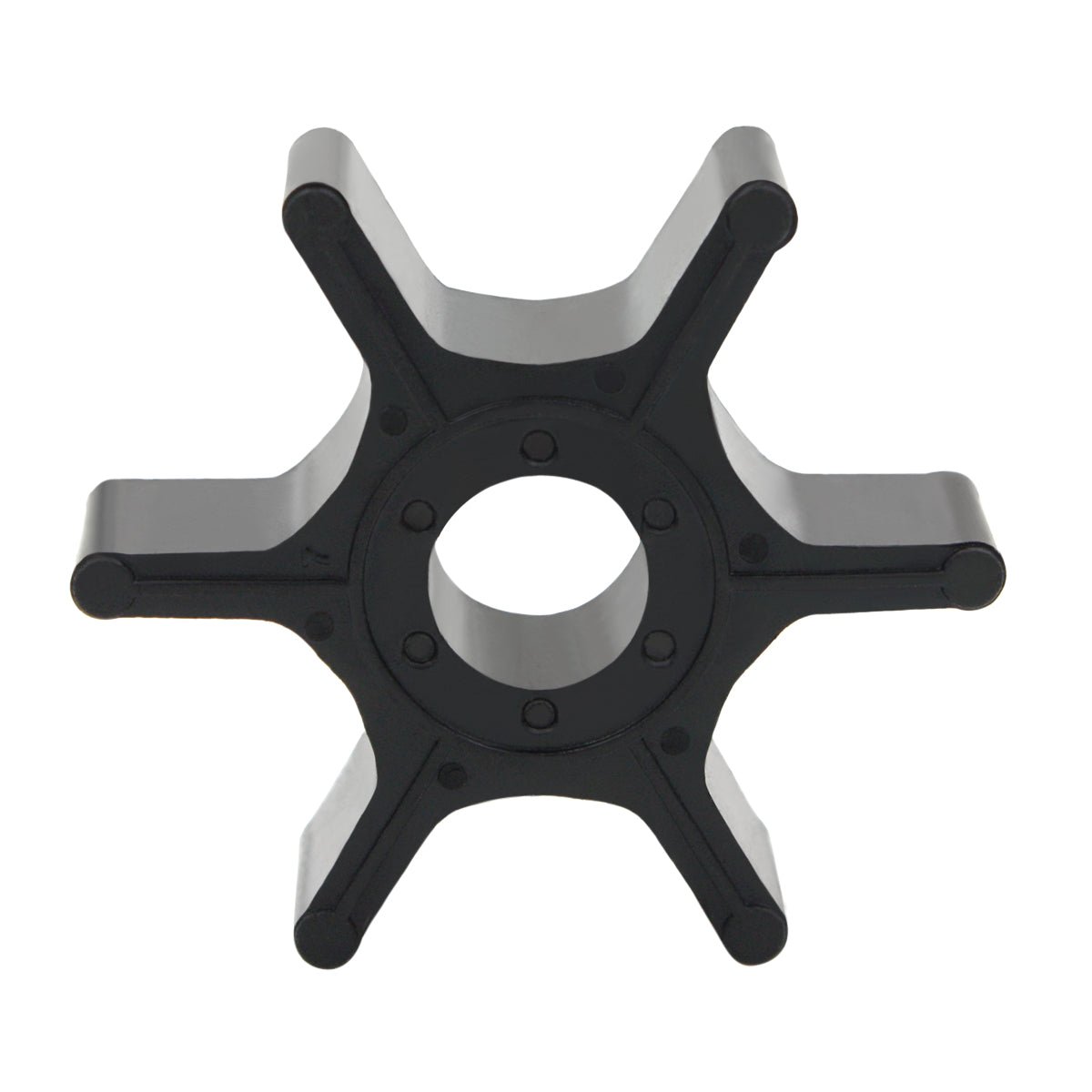

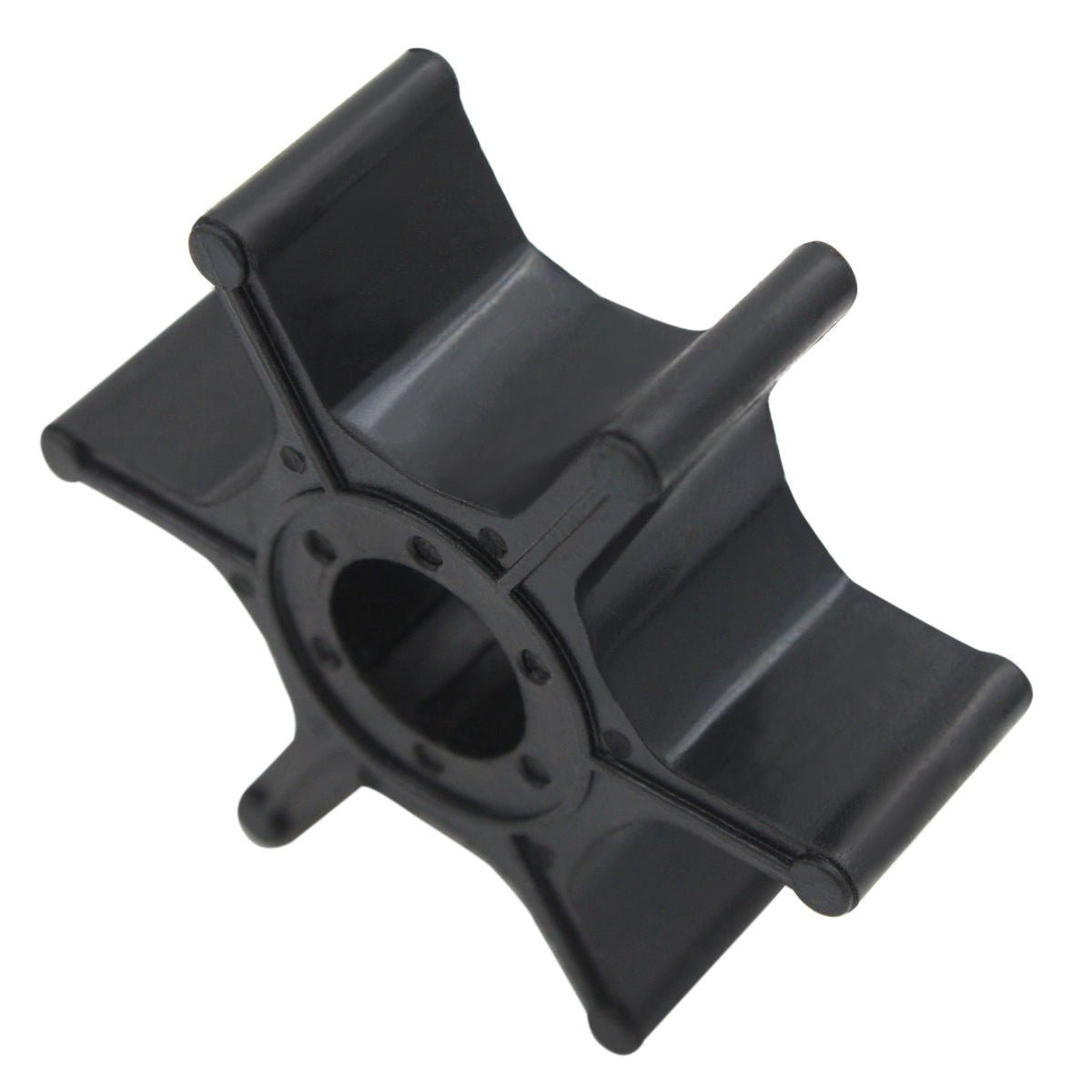

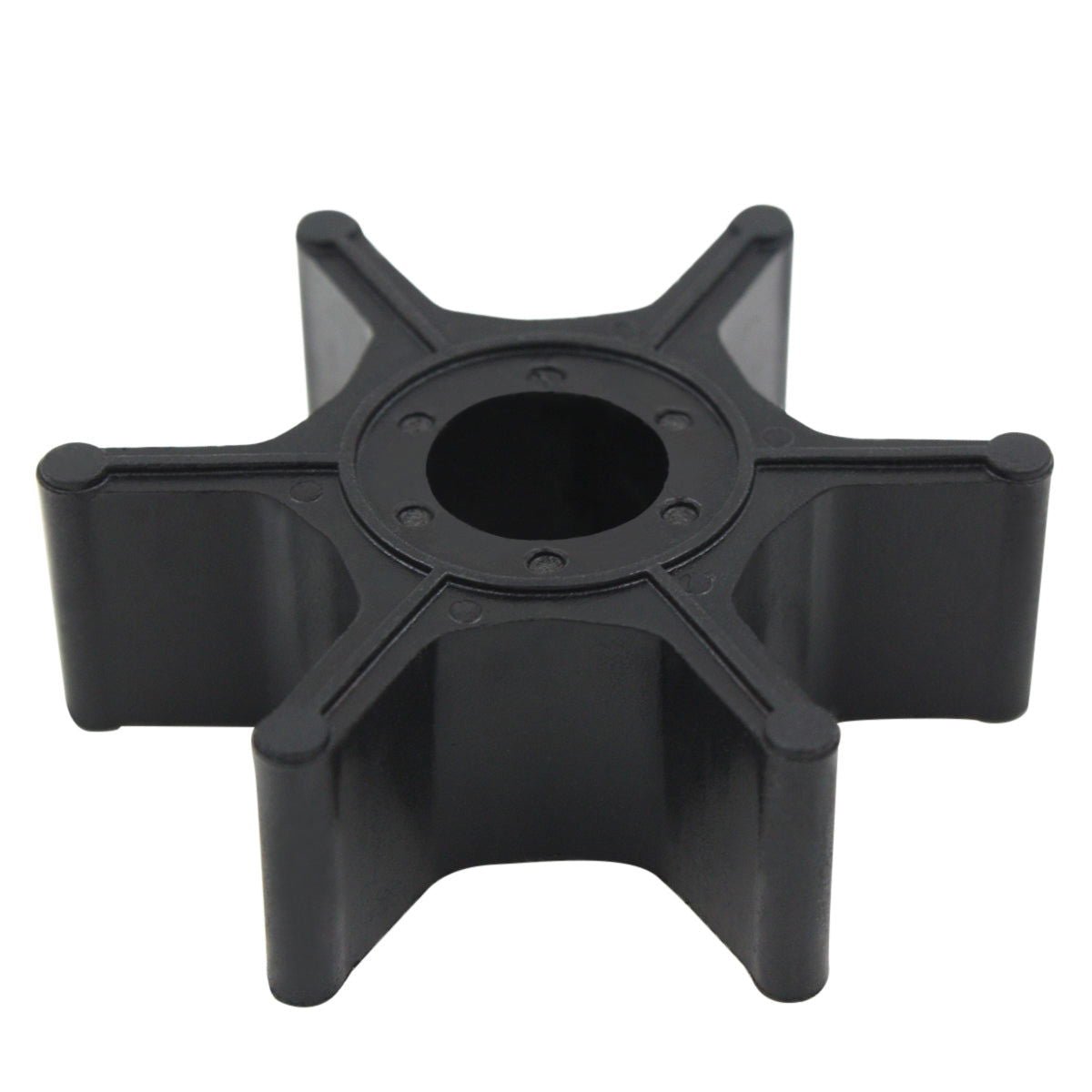

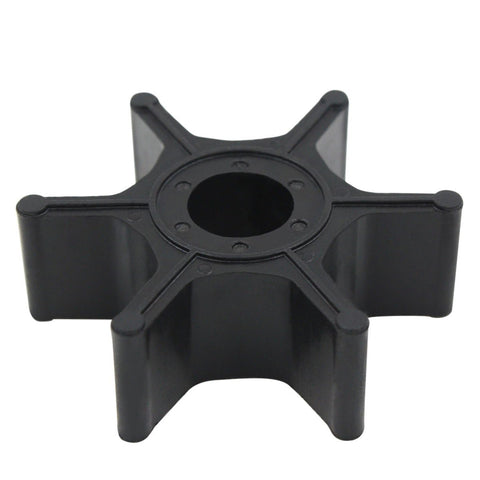

Water Pump Impeller – Fits Suzuki DF 4, 6 HP and DT 4, 5, 6, 8 HP (Replaces 17461-98501)

Water Pump Impeller – Fits Suzuki DF 4, 6 HP and DT 4, 5, 6, 8 HP (Replaces 17461-98501)

This water pump impeller is designed for a precise fit on Suzuki 4-Stroke DF 4 and DF 6 (2003–2018) and Suzuki 2-Stroke DT 2, 3.5, 4, 5, 6, and 8 HP (1977–2002) outboard motors. It serves as a direct replacement component, restoring cooling system efficiency.

This part replaces multiple Suzuki and aftermarket part numbers, including Suzuki 17461-98501, 17461-98500, 17461-98502, 17461-98503, 17461-985M0, 17461-98402, 17461-98400, 17461-98401, 17461-985L0; Sierra 18-3097; and Johnson 5034323.

• Installation Method: Direct Replacement
• Compatible Fuel Type: Gasoline
• Primary Material: Durable Rubber/Neoprene Compound

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Suzuki owners, you can review exploded diagrams here to verify part numbers: Suzuki Parts Diagrams & Catalog.

Suzuki 4-Stroke Outboards

Suzuki 2-Stroke Outboards

Technical Specifications

Package Contents

• 1 x Water Pump Impeller (Replaces 17461-98501)

Explosion Diagram

Installation Guide

1. Disconnect the negative battery cable for safety.
2. Place the outboard gear shift in neutral.
3. Remove the lower unit (gearcase) from the outboard motor.
4. Unbolt and remove the water pump housing to access the impeller.
5. Note the orientation of the old impeller's vanes before removing it.
6. Clean any debris or corrosion from the inside of the pump housing and wear plate.
7. Lightly grease the new impeller and the inside of the housing with marine grease.
8. Install the new impeller by turning the driveshaft clockwise, which will bend the vanes in the correct direction.
9. Reinstall the water pump housing with a new gasket, ensuring bolts are tightened to the specified torque.
10. Reattach the lower unit to the engine.
11. Reconnect the battery, start the engine in a water supply, and verify a strong, steady stream from the tell-tale outlet.

Troubleshooting & FAQ

How do I confirm this fits my engine?
Verify your Suzuki outboard's model, horsepower, and year of manufacture against the "Compatible Engine Models" table above. This impeller is a direct replacement for OEM part number 17461-98501 and other cross-referenced numbers listed.

What are common signs of a bad water pump impeller?
Key indicators include the engine overheating, a weak or non-existent water stream from the cooling system's tell-tale outlet, or finding the old impeller's rubber vanes are cracked, brittle, or deformed upon inspection.

How often should I replace the impeller?
For preventative maintenance, it is recommended to inspect the impeller annually and replace it every 1-2 years or every 100-200 hours of engine use. Replacement frequency may depend on usage conditions (e.g., saltwater versus freshwater).

OEM vs. Aftermarket?
This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

How fast do you ship and how much does it cost?
We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

What is your warranty and return policy?
This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
