Water Pump Impeller – Fits Suzuki DF200/225/250/300/350HP Outboards (Replaces 17461-93J00, 17461-93J01)

Water Pump Impeller – Fits Suzuki DF200/225/250/300/350HP Outboards (Replaces 17461-93J00, 17461-93J01)

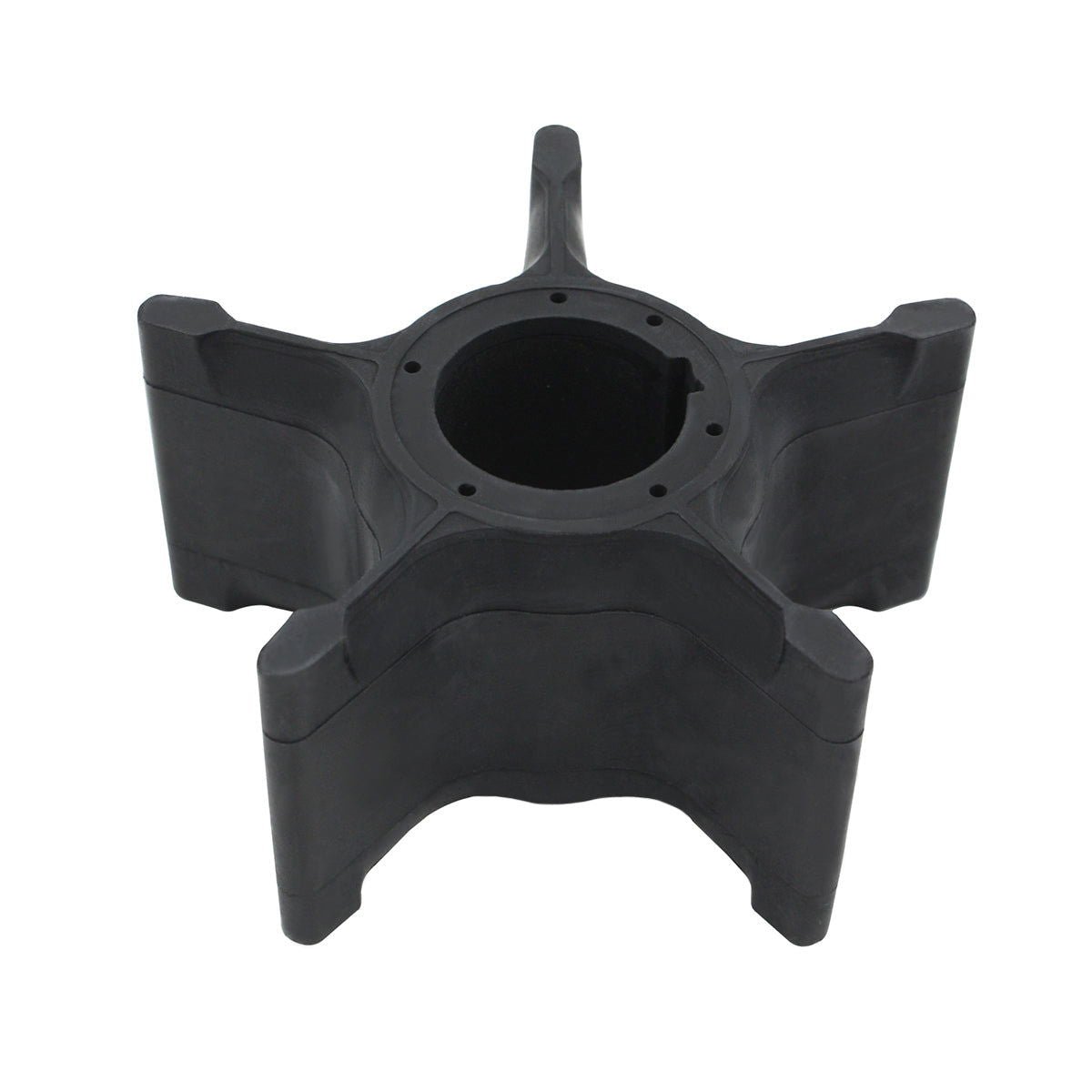

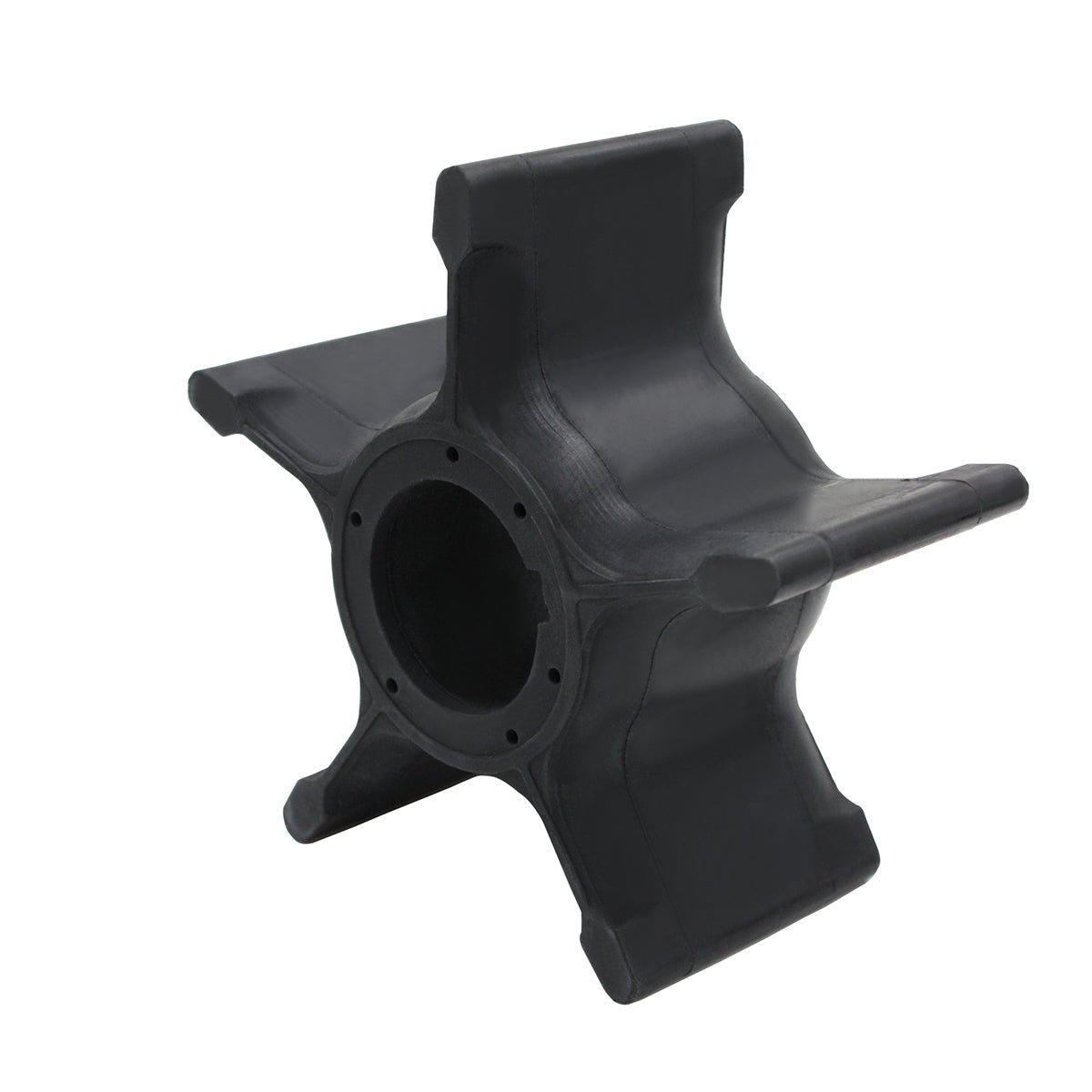

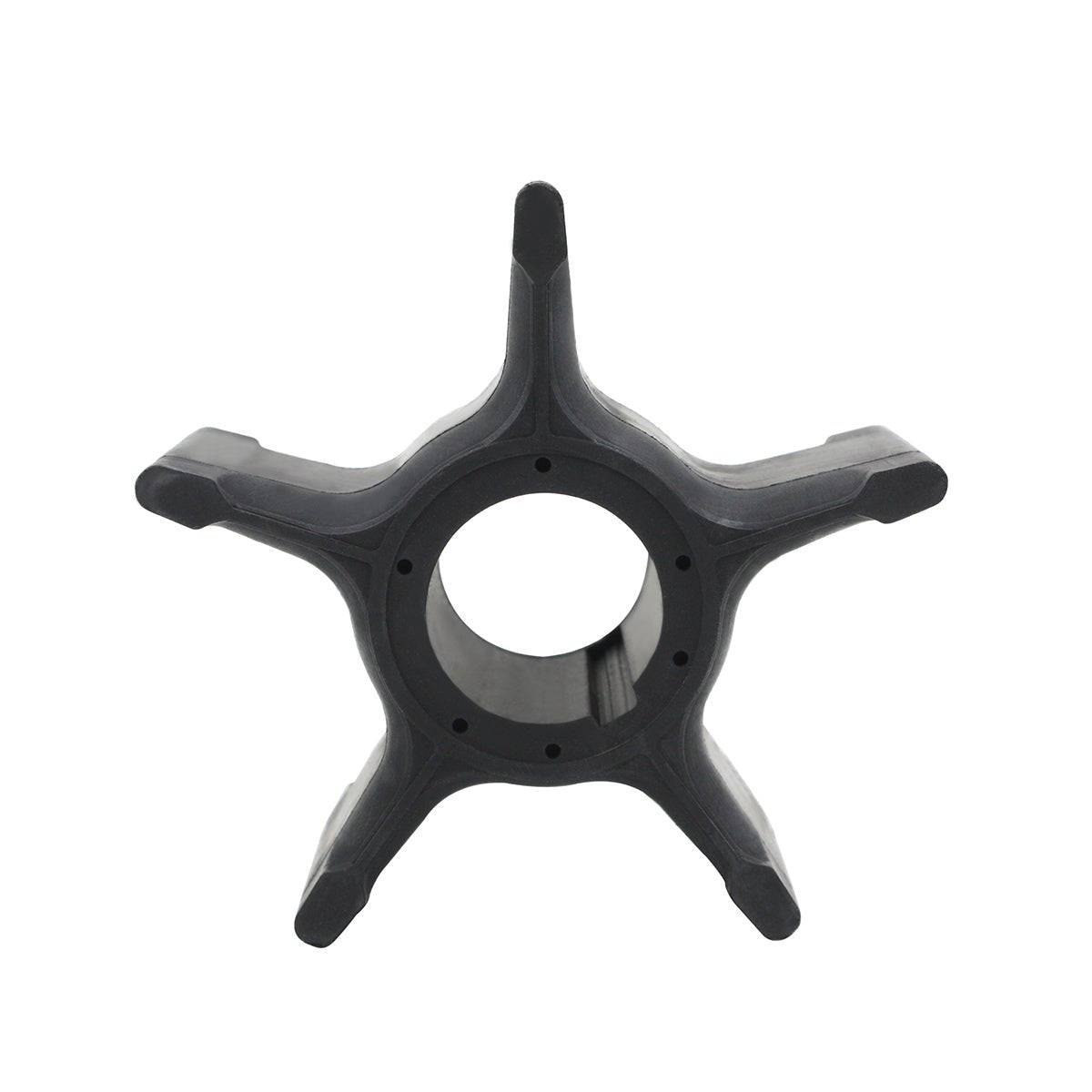

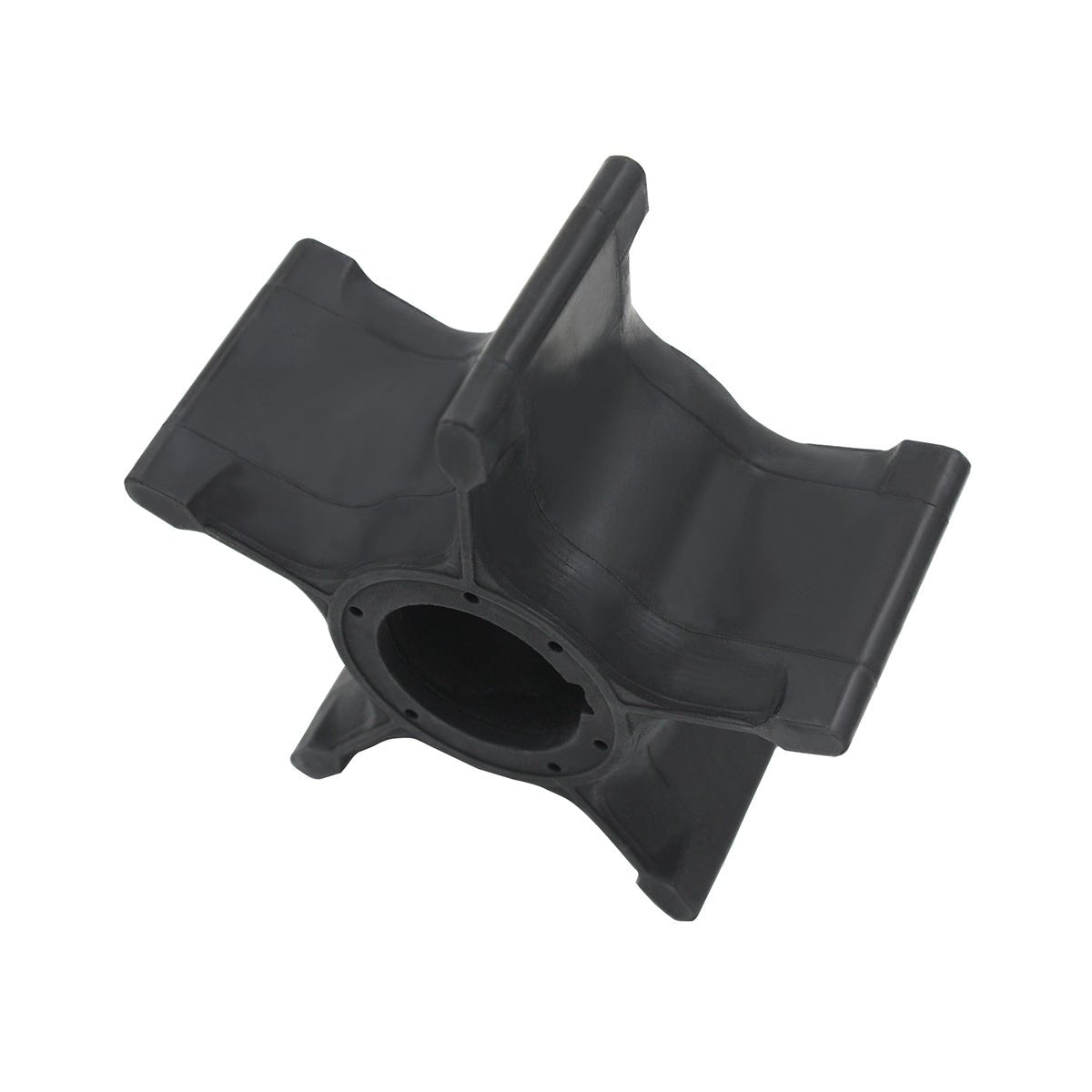

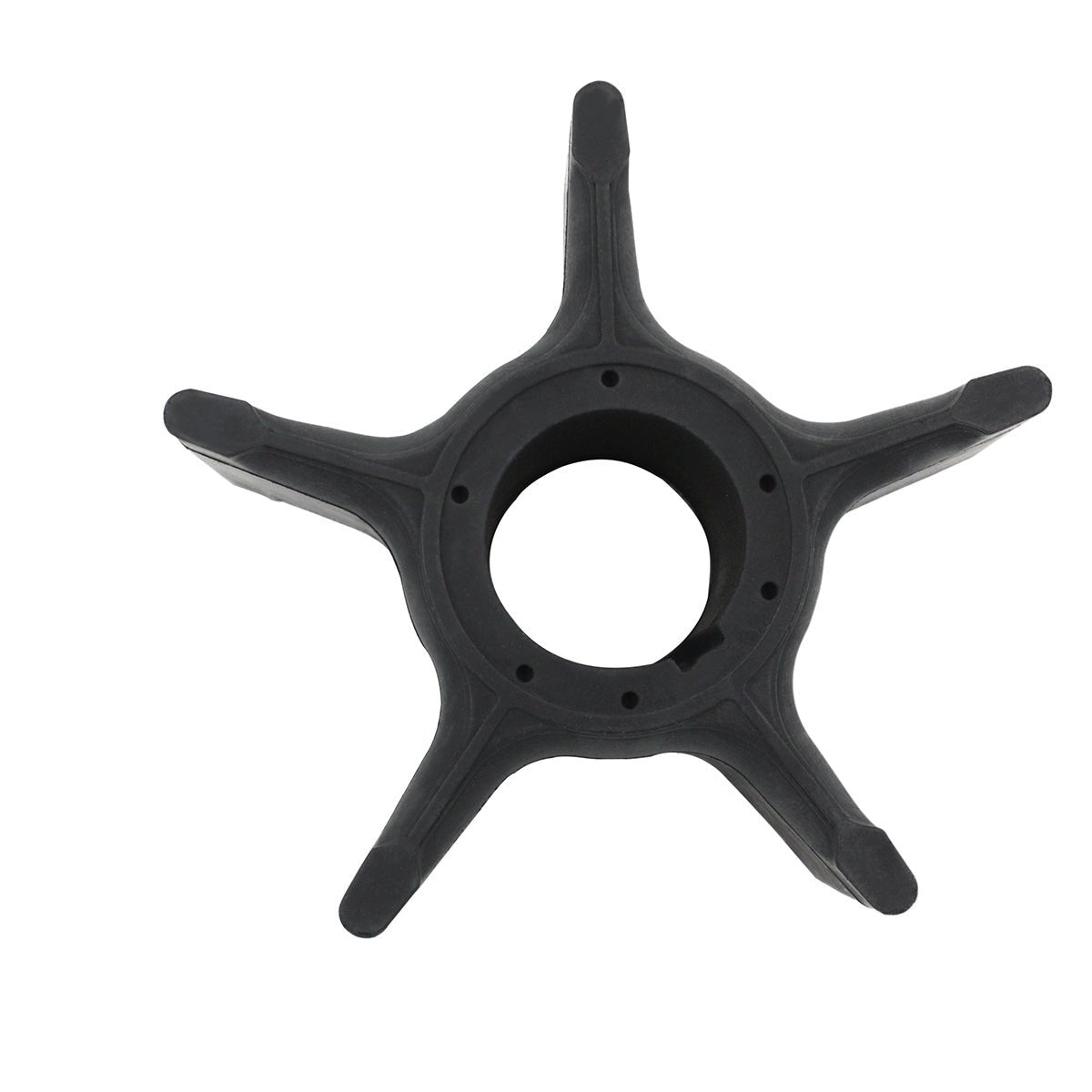

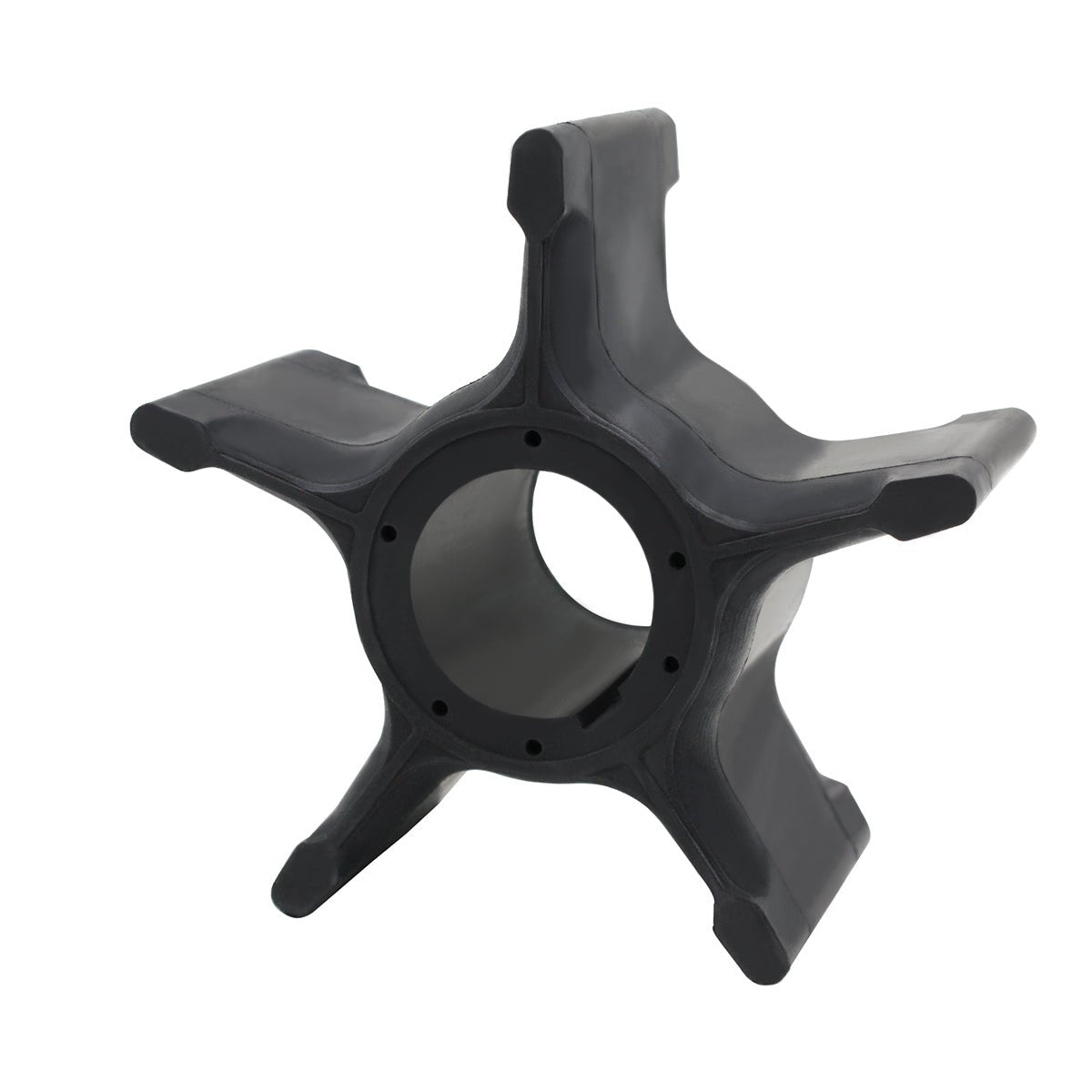

This water pump impeller is compatible with Suzuki 4-Stroke outboard motors, including DF200, DF225, DF250 (2004–2018), DF300 (2007–2018), and DF350 models. It is designed specifically for non-A models.

It serves as a direct replacement for Suzuki part numbers 17461-93J00 and 17461-93J01, as well as aftermarket equivalents from CEF Marine (500393), Sierra Marine (18-3035), and Mallory Marine (9-45507).

• Installation: Designed as a direct OEM-equivalent replacement.
• Material: Constructed from a durable blend of neoprene and hardened nylon for reliable performance.
• Important: This impeller is sold individually and is not included in any pre-packaged repair kits.

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Suzuki owners, you can review exploded diagrams here to verify part numbers: Suzuki Parts Diagrams & Catalog.

Technical Specifications

Package Contents

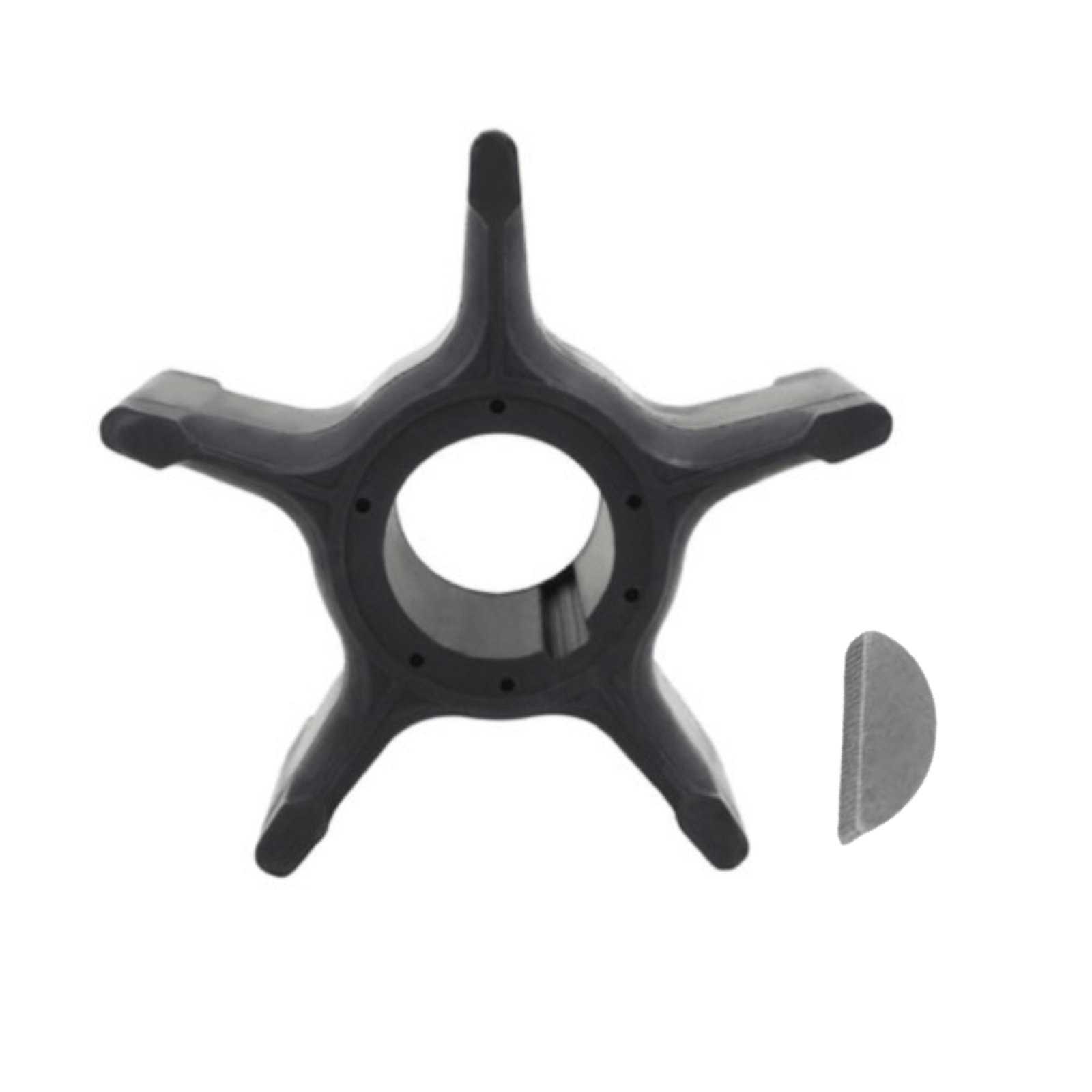

• 1 x Water Pump Impeller (Replaces 17461-93J00/17461-93J01)

Explosion Diagram

Installation Guide

1. Disconnect the negative battery cable and ensure the engine is off.
2. Place the outboard motor in the tilted position and remove the lower unit mounting bolts.
3. Carefully separate the lower unit (gearcase) from the upper engine housing.
4. Locate the water pump housing on top of the gearcase and remove its mounting bolts.
5. Slide the housing up and off the driveshaft to expose the impeller. Note the rotational direction of the old impeller's fins.
6. Remove the old impeller, key, and gaskets.
7. Clean the interior surfaces of the pump housing and wear plate, inspecting for scoring or damage.
8. Install the new key and slide the new impeller onto the driveshaft, rotating it in the correct direction (typically clockwise) to seat the fins.
9. Reassemble the water pump housing with new gaskets and torque bolts to the manufacturer's specified values.
10. Reattach the lower unit to the engine, ensuring the driveshaft and water tube align correctly.
11. Secure the lower unit bolts, reconnect the battery, and test the engine using a water supply to confirm proper water flow from the tell-tale port.

Troubleshooting & FAQ

How do I confirm this impeller fits my Suzuki engine?
Verify your Suzuki model and year against the compatibility chart above. This impeller is specifically for non-A models of the DF200, DF225, DF250, and DF300, and it directly replaces OEM part numbers 17461-93J00 and 17461-93J01. Cross-checking the part number is the most reliable way to ensure a match.

What are the signs of a failing water pump impeller?
Common signs include the engine overheating at idle or low speeds, a weak or intermittent water stream from the tell-tale indicator port, or finding brittle, cracked, or broken vanes on the old impeller during inspection.

How often should I replace my water pump impeller?
For optimal engine cooling and protection, we recommend inspecting the impeller annually and replacing it every 1-2 years or every 100-200 hours of operation. Replacement frequency may vary based on usage and water conditions (saltwater, sandy, or debris-filled water may require more frequent changes).

OEM vs. Aftermarket?
This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

How fast do you ship and how much does it cost?
We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

What is your warranty and return policy?
This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
