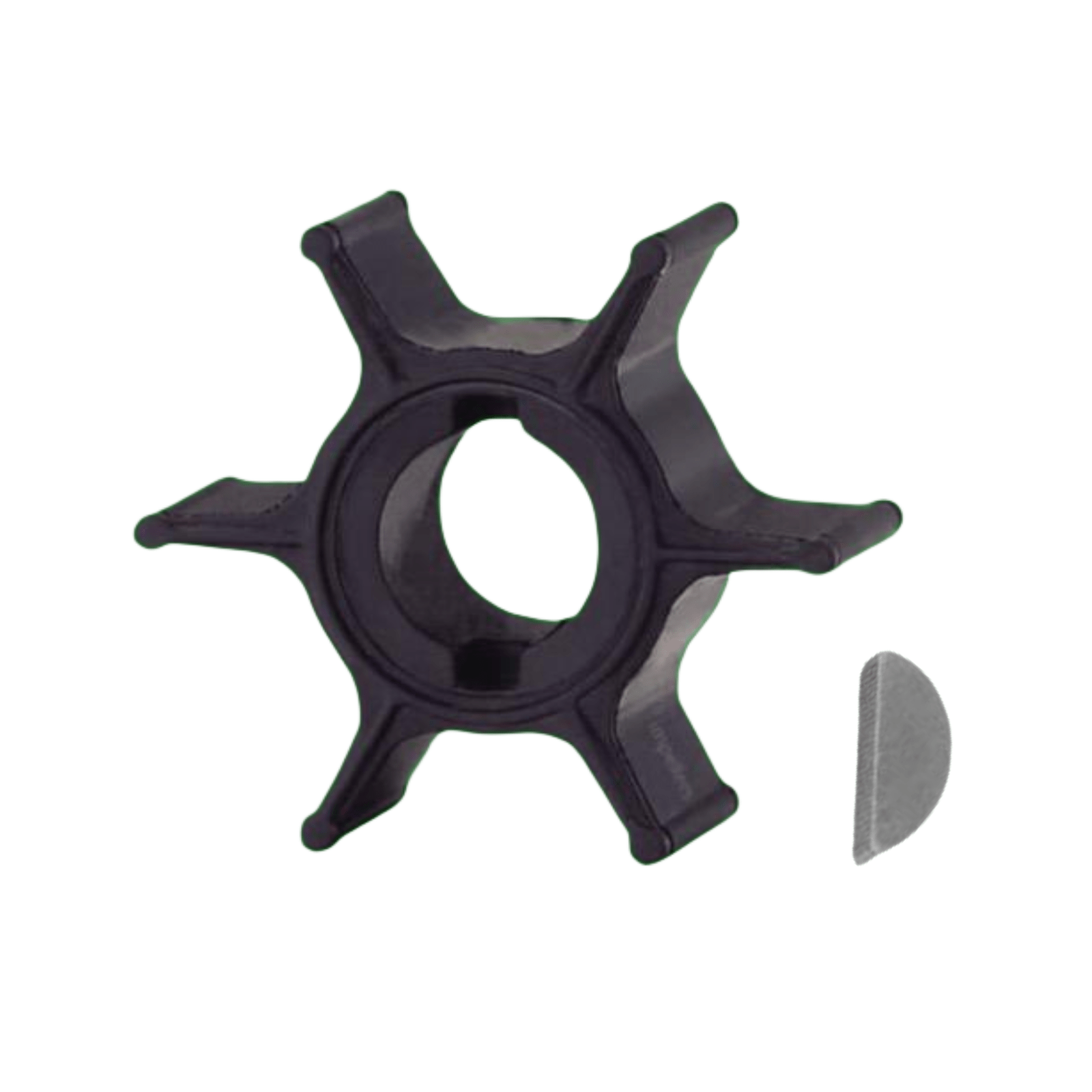

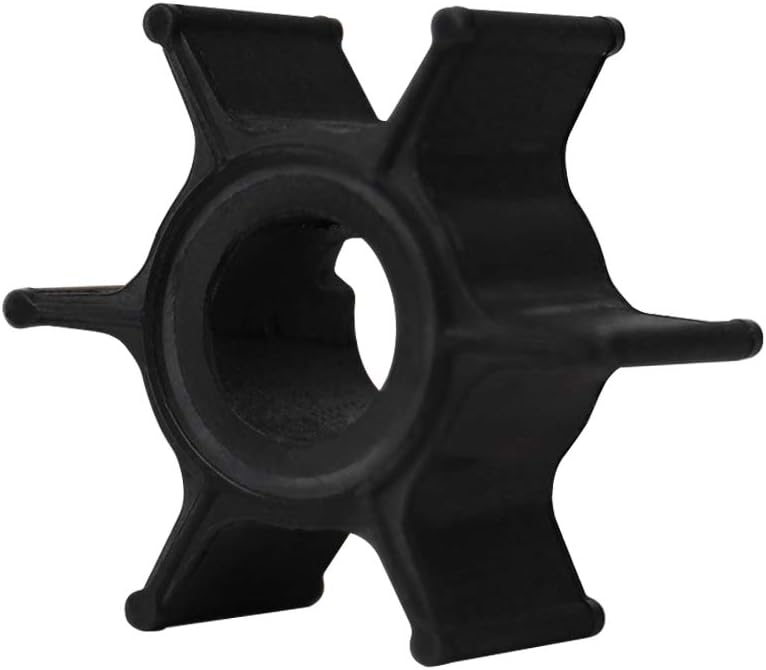

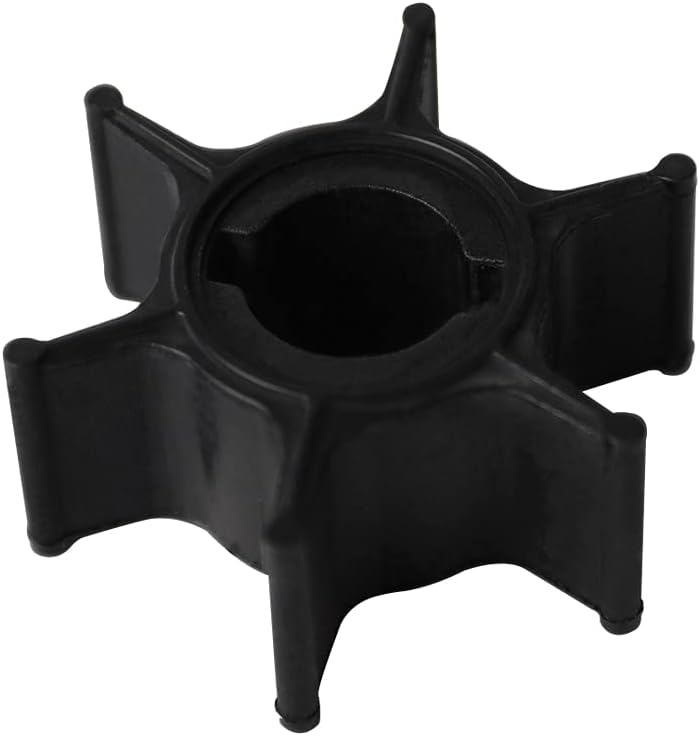

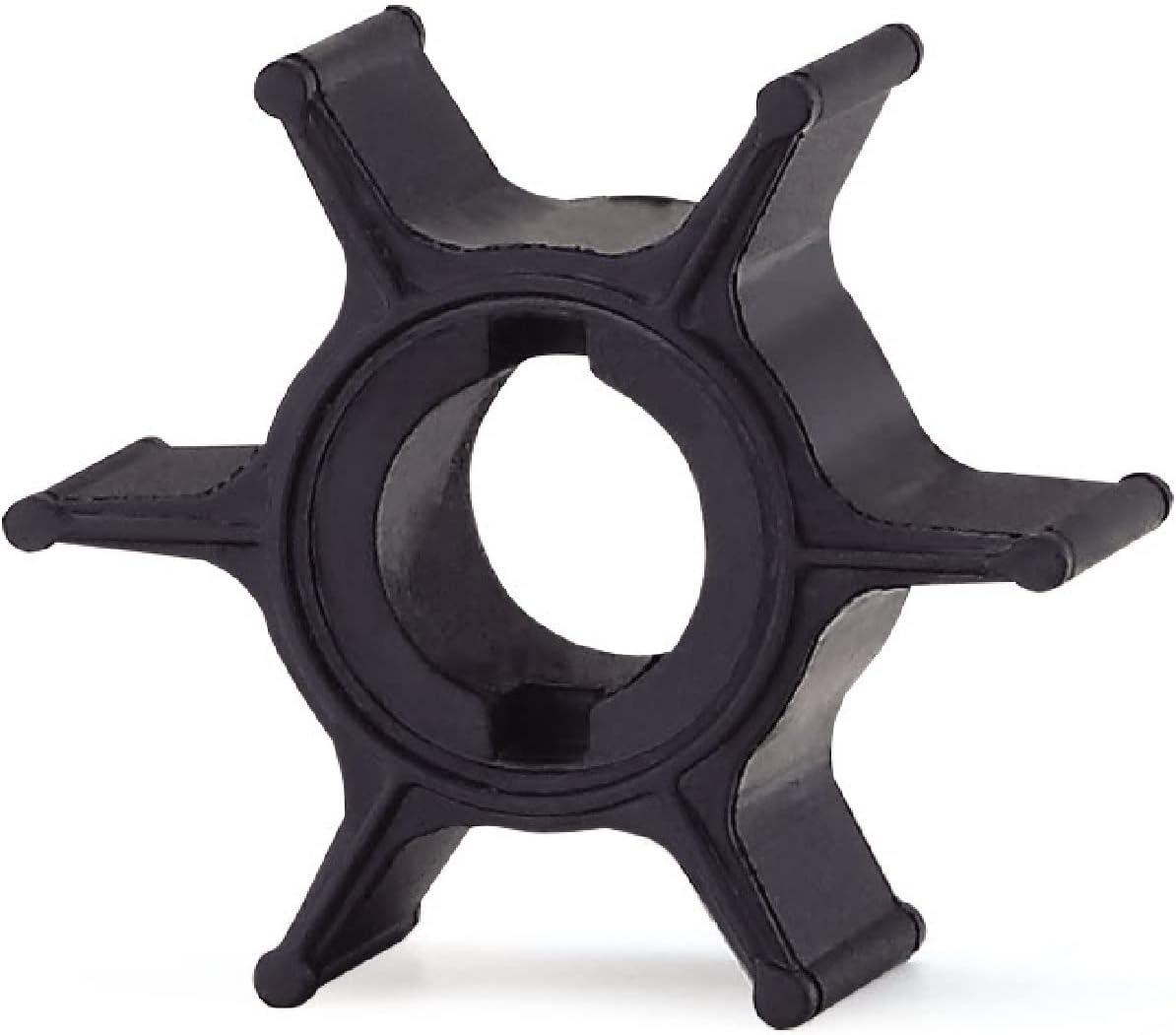

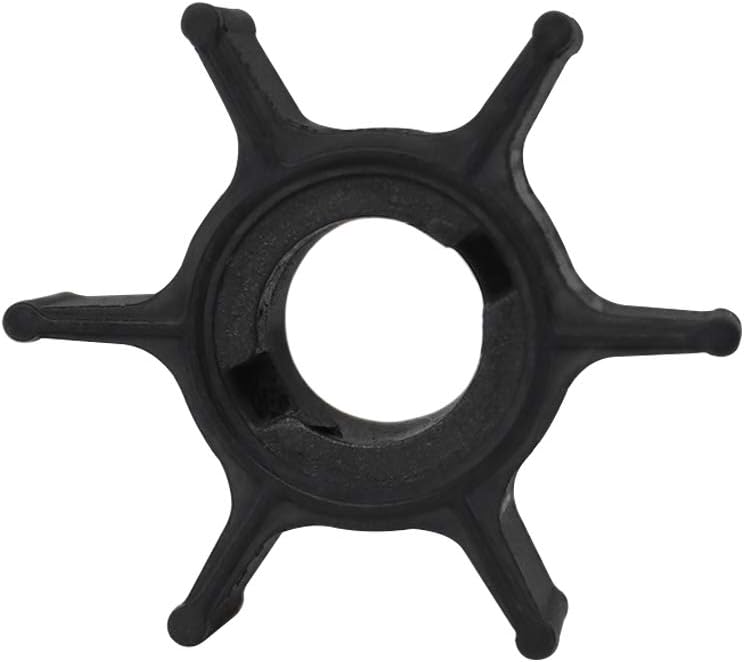

Water Pump Impeller – Fits Suzuki 2.5HP 4-Stroke (Replaces 17461-97JM0, 17461-97J00)

Water Pump Impeller – Fits Suzuki 2.5HP 4-Stroke (Replaces 17461-97JM0, 17461-97J00)

This water pump impeller is engineered for Suzuki 2.5HP 4-stroke outboard motors (DF2.5) from 2006 and newer. As a critical component of the engine's cooling system, it ensures proper water circulation to prevent overheating by drawing water through the lower unit to the powerhead.

It serves as a direct replacement for Suzuki part numbers 17461-97JM0 and 17461-97J00, Johnson/Evinrude 5037429, and aftermarket part AM17461-97JM0.

• Fits Suzuki DF2.5 models from 2006 to current.
• Constructed from durable rubber with a brass hub for longevity.
• Installation is a direct press-fit onto the drive shaft.

Compatible Engine Models

Confirm your engine model/year in the table below. For Suzuki owners, You can review exploded diagrams here to verify part numbers: Suzuki Parts Diagrams & Catalog.

Technical Specifications

Package Contents

• 1 x Water Pump Impeller (17461-97JM0)

Explosion Diagram

Installation Guide

1. Disconnect the negative battery cable.
2. Place the outboard gear shift in neutral.
3. Remove the bolts securing the lower unit (gearcase) and carefully separate it from the upper housing.
4. Locate and unbolt the water pump housing cover.
5. Slide the old impeller off the driveshaft, taking note of the drive key's position.
6. Clean the inside of the pump housing and inspect it for scoring or corrosion.
7. Lightly lubricate the new impeller with grease or soapy water.
8. Install the new impeller by pressing it onto the drive shaft while turning the shaft clockwise to bed the vanes correctly.
9. Reinstall the water pump housing and torque its bolts to the manufacturer's specification.
10. Apply a light coat of marine grease to the driveshaft splines and reinstall the lower unit.
11. Reconnect the battery and test the engine in water, ensuring a steady stream from the cooling system's tell-tale outlet.

Troubleshooting & FAQ

How do I confirm this impeller fits my Suzuki DF2.5?
This impeller is a direct replacement for Suzuki DF2.5 models from 2006 to current. To be certain, verify that your existing part number is 17461-97JM0 or 17461-97J00 before ordering.

What are the signs of a failing water pump impeller?
Common signs include a weak, intermittent, or non-existent water stream from the engine's tell-tale outlet, frequent engine overheating alarms, and visible damage like cracked, brittle, or worn vanes on the old impeller upon inspection.

How often should I replace the water pump impeller?
For optimal performance and to prevent engine damage, it's recommended to inspect the impeller annually and replace it every 1-2 years. Replacement may be needed more frequently if you operate in saltwater, silty, or sandy conditions.

OEM vs. Aftermarket?
This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

How fast do you ship and how much does it cost?
We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

What is your warranty and return policy?
This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
