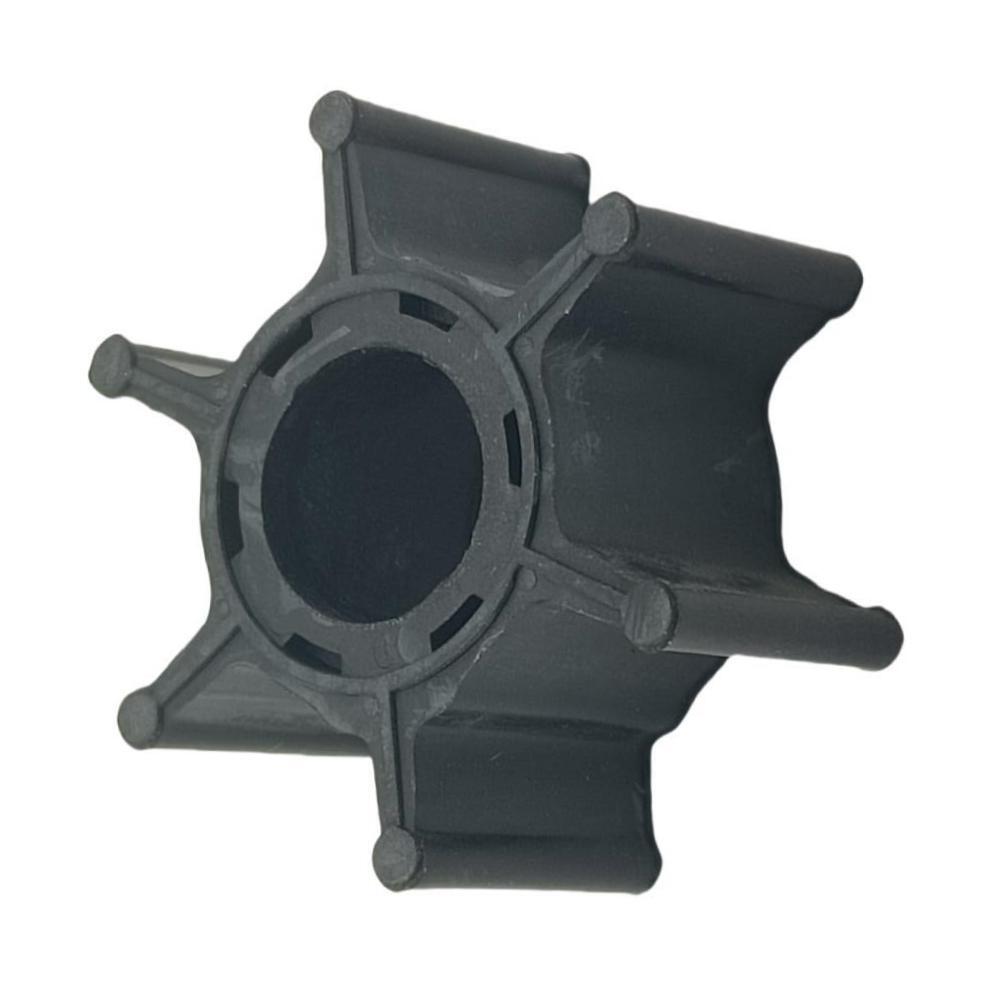

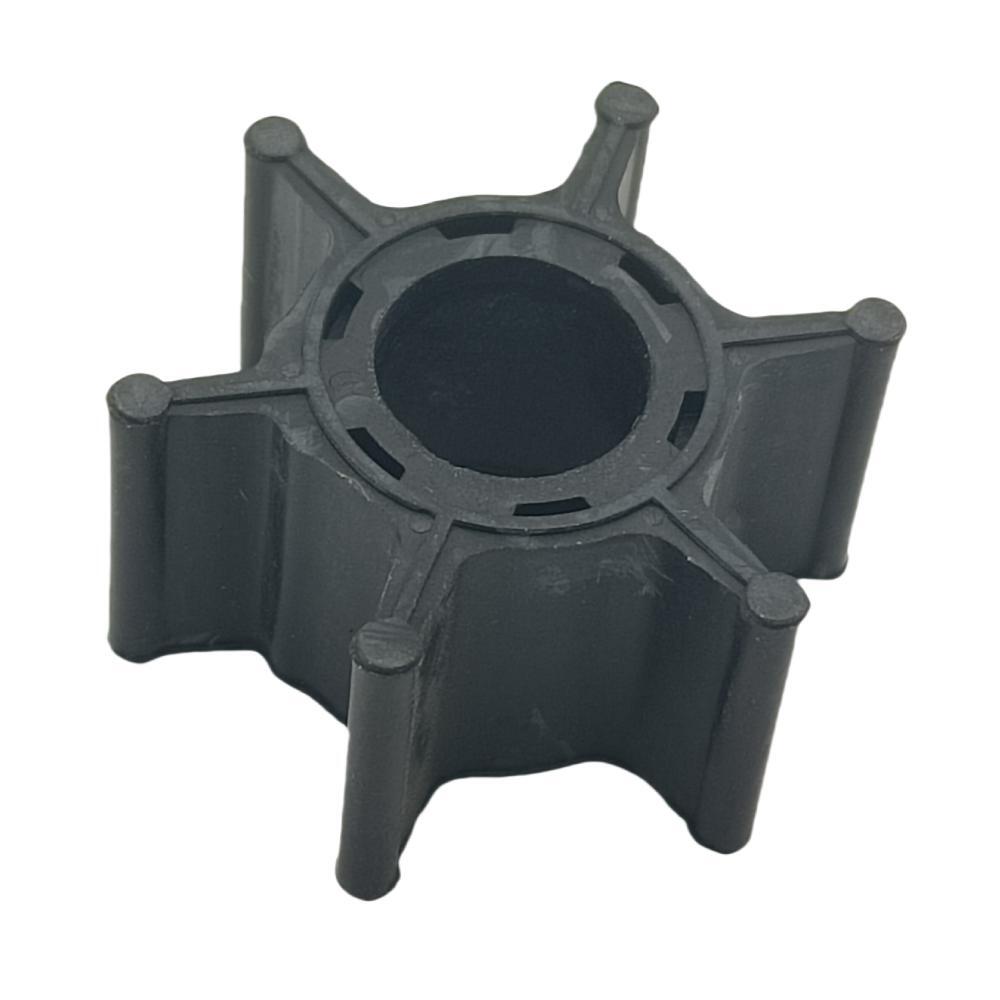

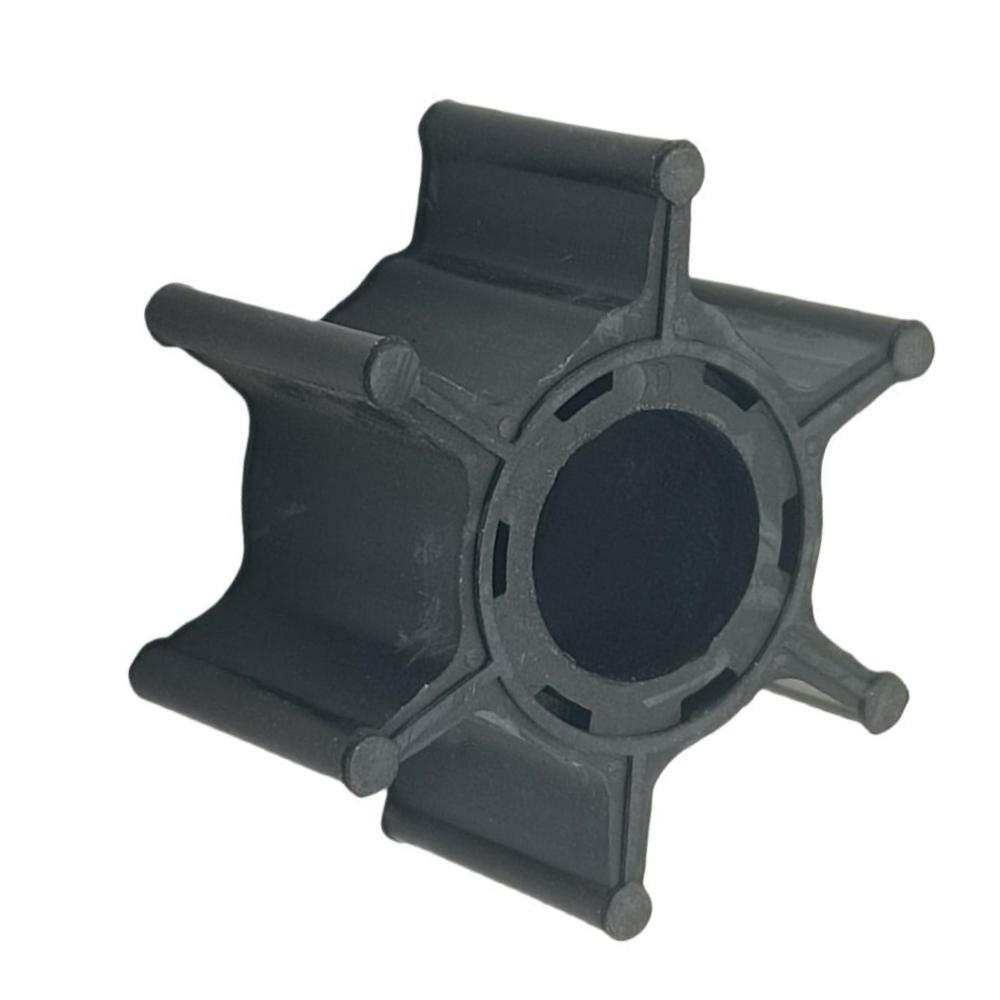

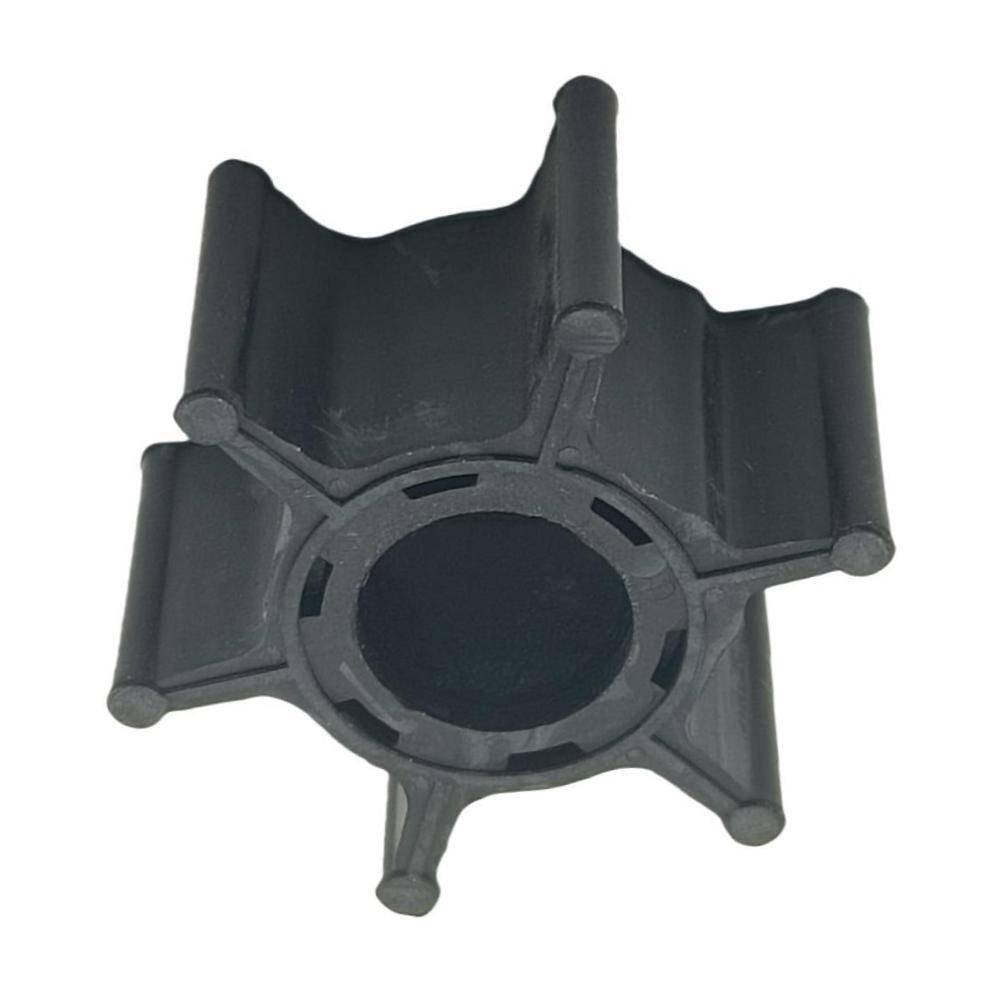

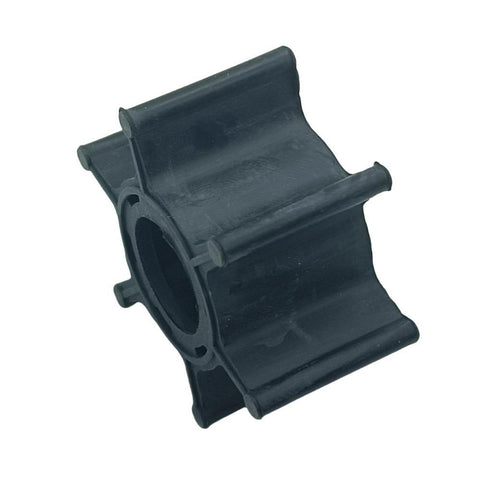

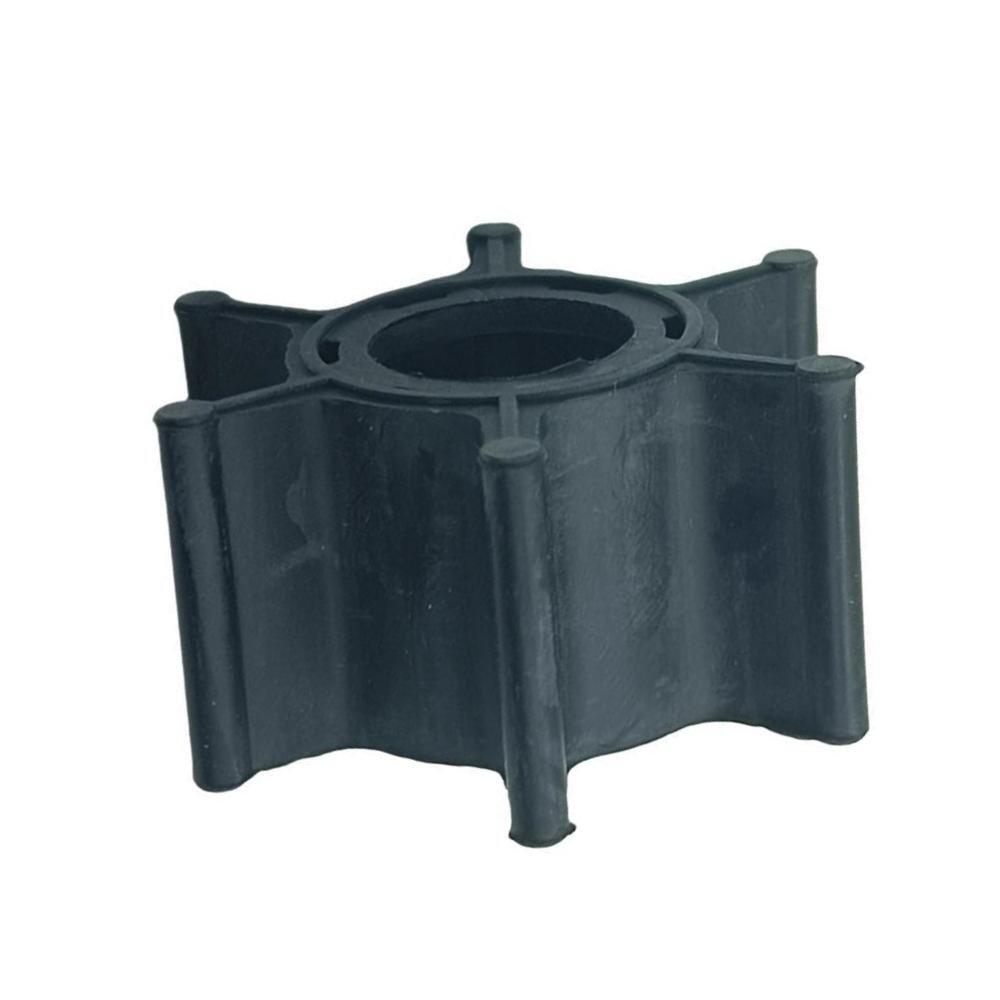

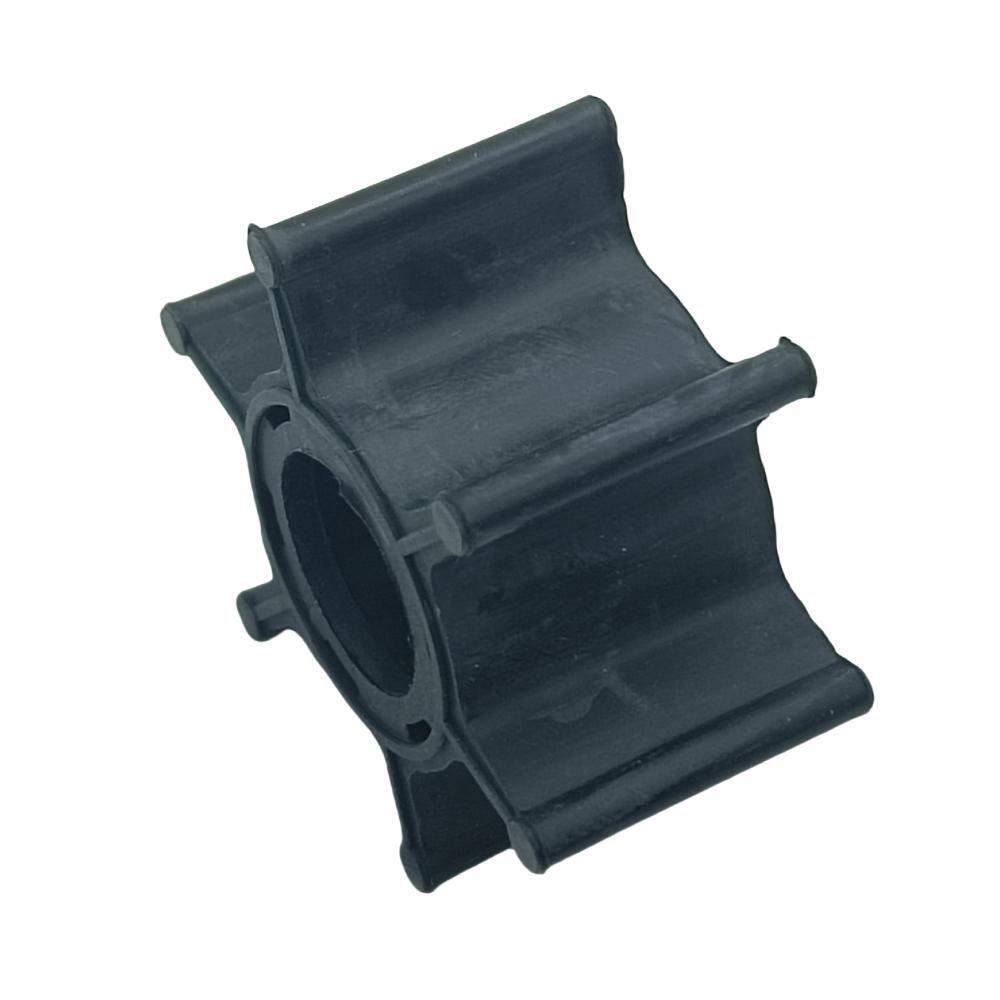

Water Pump Impeller – Fits Suzuki DT9.9/DT16 2-Stroke (Replaces 17461-93501, 17461-93500)

Water Pump Impeller – Fits Suzuki DT9.9/DT16 2-Stroke (Replaces 17461-93501, 17461-93500)

This water pump impeller is designed to fit select Suzuki 2-Stroke outboard motors, specifically the 9.9HP and 16HP DT models. It serves as a reliable replacement for maintaining your engine's cooling system.

This is a direct aftermarket replacement for several part numbers, ensuring compatibility with components from Wingogo, Soxa Marine, and JLM Marine.

• Material: Made from durable CR Neoprene rubber for longevity and consistent performance.
• Installation: Designed as a direct replacement component for straightforward installation.
• Compatibility: Replaces OEM part numbers 17461-93501 and 17461-93500.

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Suzuki owners, You can review exploded diagrams here to verify part numbers: Suzuki Parts Diagrams & Catalog.

Technical Specifications

Package Contents

• 1 x Water Pump Impeller (Replaces 17461-93501/17461-93500)
• 1 x Impeller Key (09420-03002) - *Included only with some brands/offerings*

Installation Guide

1. Disconnect the battery and remove the engine cover for safety.
2. Locate and unbolt the lower unit (gearcase) from the upper engine casing and carefully separate them.
3. Identify the water pump housing on top of the lower unit and remove its cover bolts.
4. Take note of the rotational direction of the old impeller's fins before removal.
5. Slide the old impeller off the driveshaft, and be sure to remove the small impeller key as well.
6. Thoroughly clean the interior of the pump housing and inspect it for wear, scoring, or corrosion.
7. Apply a light coat of marine grease or a soap-and-water mixture to the new impeller and inside the housing.
8. Install the new key into its slot on the driveshaft.
9. Slide the new impeller onto the shaft, turning the driveshaft clockwise to correctly bend the fins into position.
10. Reinstall the housing cover and gasket, tightening the bolts securely and evenly.
11. Reattach the lower unit to the upper casing and fasten all bolts to the manufacturer's torque specifications.
12. Once assembled, test the engine in water to confirm a steady stream of water is exiting the tell-tale port.

Troubleshooting & FAQ

How do I confirm this fits my engine?
This impeller is made for Suzuki DT9.9 (9.9 HP) and DT16 (16 HP) 2-Stroke outboard models. To guarantee fitment, please verify your OEM part number is 17461-93501 or 17461-93500 by checking the "Compatible Engine Models" chart and your engine's service manual.

What are the signs of a failing water pump impeller?
Key indicators of a worn or damaged impeller include the engine running hotter than normal (overheating), a weak or non-existent water stream from the tell-tale outlet, or visible damage like cracks and brittleness during a visual inspection.

How often should I replace the impeller?
As a critical a preventative maintenance item, we recommend replacing the impeller every 1-2 years or every 100-200 hours of use. Annual inspections are advised, with more frequent replacement if operating in saltwater or debris-heavy water.

OEM vs. Aftermarket?
This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

How fast do you ship and how much does it cost?
We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

What is your warranty and return policy?
This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
