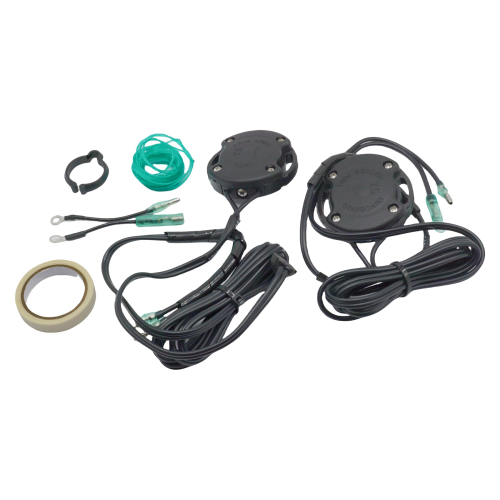

This trim sender and limit switch kit is designed for a wide range of MerCruiser stern drives, including MC-I, R, MR, Alpha One, Alpha One Gen II, and Bravo I, II, and III models. It ensures your trim system functions correctly by providing accurate position feedback and setting the upper trim limit.
This component is a direct replacement for MerCruiser part numbers 805320A03, 805320A1, 17693A2, 63115A12, 88678A4, 88678A5, and 96863A15. It also replaces Sierra part 18-7633 and Red Rhino part MR-971.
Use this table to confirm equivalent part numbers across OEM and aftermarket brands.
| Brand | Part Number |
|---|---|
| MerCruiser | 805320A03 |
| MerCruiser | 805320A1 |
| MerCruiser | 17693A2 |
| MerCruiser | 63115A12 |
| MerCruiser | 88678A4 |
| MerCruiser | 88678A5 |
| MerCruiser | 96863A15 |
| Sierra | 18-7633 |
| Red Rhino | MR-971 |
Confirm your engine model/year in the table below. For Mercury owners, here’s a guide to help you identify your engine’s serial/model: Mercury Serial Number Guide. You can also review exploded diagrams to verify part numbers: Mercury Parts Diagrams & Catalog.
| Brand | Model | Rated HP | Stroke | OEM Part No. |
|---|---|---|---|---|
| MerCruiser | MC-I | N/A | 4-Stroke | 805320A03 |
| MerCruiser | R | N/A | 4-Stroke | 805320A03 |
| MerCruiser | MR | N/A | 4-Stroke | 805320A03 |
| MerCruiser | Alpha One | N/A | 4-Stroke | 805320A03 |
| MerCruiser | Alpha One Gen 2 | N/A | 4-Stroke | 805320A03 |
| MerCruiser | Bravo I | N/A | 4-Stroke | 805320A03 |
| MerCruiser | Bravo II | N/A | 4-Stroke | 805320A03 |
| MerCruiser | Bravo III | N/A | 4-Stroke | 805320A03 |
| Specification | Value |
|---|---|
| Product Type | Trim Sender/Limit Switch Kit |
| Installation | Direct replacement |
| Connection | Wire leads with pre-installed electrical connectors |
| Weight | 0.72 lbs (0.33 kg) |
| Fitting Type | Direct mount to gimbal housing |
| Warranty | Limited lifetime (Sierra part) |
| Other Technical Attributes | Trim limit switch on port side; trim position sender on starboard side |
How do I confirm this kit will fit my specific MerCruiser model?
Start by checking your original part for any of the numbers listed in our cross-reference table, such as 805320A03 or 805320A1. Next, verify your engine model is listed in the "Compatible Engine Models" section. When in doubt, consulting a marine mechanic is recommended.
What are the common symptoms of a failing trim sender or limit switch?
Failure symptoms include an inaccurate or non-functional trim gauge, the drive trimming up or down on its own, or the trim motor not stopping at the preset upper limit ("trailer" position). This can lead to improper boat handling and potential damage to the stern drive.
Is this a complete kit for both sides of the stern drive?
Yes, this is a complete kit containing both the trim position sender (for the gauge, typically on the starboard side) and the trim limit switch (for setting the maximum trim angle, typically on the port side).
OEM vs. Aftermarket?
This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.
How fast do you ship and how much does it cost?
We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.
What is your warranty and return policy?
This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.
