6EK-W006A-00 Service Kit for Yamaha F115A F115B F130A | JLM Marine

6EK-W006A-00 Service Kit for Yamaha F115A F115B F130A

This comprehensive service kit is designed for Yamaha 4-stroke outboard engines including the F115A (2000-2015), F115B (2014+), and F130A (2015+) models. It provides all essential maintenance components in one package to keep your engine running smoothly and reliably.

This kit directly replaces Yamaha OEM part number 6EK-W006A-00, delivering a complete maintenance solution that includes the water pump rebuild components, fuel filters, oil filter, thermostat, drain gaskets, and gear oil pump.

• Complete service kit with 18 genuine components for comprehensive maintenance
• Includes water pump rebuild kit, multiple fuel filters, oil filter, and thermostat
• Covers routine service intervals for Yamaha F115A, F115B, and F130A engines

Part Number Cross-Reference

Use this table to confirm the OEM part number for this service kit:

Compatible Engine Models

Confirm your engine model/year in the table below. For Yamaha owners, here's a guide to help you identify your engine's serial/model: Yamaha Serial Number Guide. You can also review exploded diagrams to verify part numbers: Yamaha Parts Diagrams & Catalog.

Technical Specifications

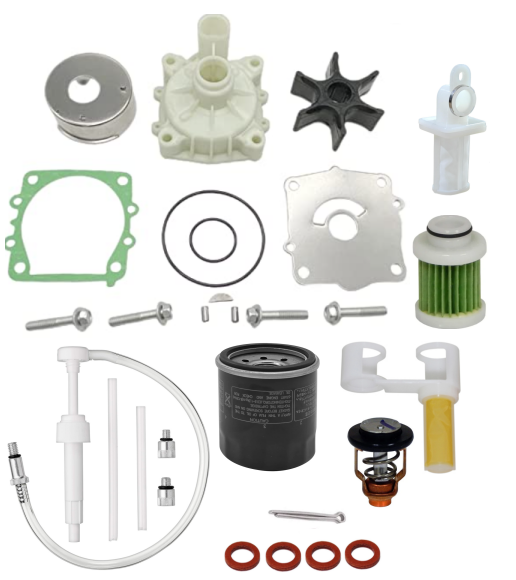

Package Contents

This comprehensive service kit includes 18 components for complete engine maintenance:

• 61A-44322-02 - Cup, Insert × 1
• 6E5-44315-A0 - Gasket × 1
• 6E5-44352-01 - Impeller × 1
• 68V-44323-00 - Plate × 1
• 90280-04M05 - Key × 1
• 93210-37M67 - O-ring × 1
• 93210-86M38 - O-ring × 1
• 6E5-44311-00 - Housing, Water Pump × 1
• 93606-12019 - Pin × 2
• 97080-08045 - Bolt × 4
• 6CB-24501-01 - Fuel Filter × 1
• 63P-13915-00 - Fuel Filter × 1
• 6D8-WS24A-00 - Fuel Filter × 1
• 5GH-13440-00 - Oil Filter × 1
• 60V-12411-00 - Thermostat × 1
• 90430-08020 - Drain Gasket × 4
• 91490-40030 - Cotter Pin × 1
• 24OP149 - Gear Oil Pump × 1

Installation Guide

Follow these steps for proper installation of the service kit components:

1. Preparation: Ensure the engine is off and cool. Gather all necessary tools including screwdrivers, wrenches, and a drain pan.
2. Drain fluids: Remove the lower unit drain plug using a new drain gasket (90430-08020) and drain the gear oil completely into a suitable container.
3. Remove water pump: Unbolt the lower unit and carefully separate it to access the water pump housing. Remove old impeller and components.
4. Install water pump components: Install the new housing (6E5-44311-00), impeller (6E5-44352-01), plate (68V-44323-00), and insert cup (61A-44322-02) with gasket (6E5-44315-A0). Ensure the key (90280-04M05) is properly seated.
5. Install O-rings and seals: Replace both O-rings (93210-37M67 and 93210-86M38) ensuring they are lubricated with marine grease and properly seated in their grooves.
6. Secure with hardware: Use the included pins (93606-12019) and bolts (97080-08045) to secure the water pump assembly. Torque bolts to manufacturer specifications.
7. Replace fuel filters: Locate and replace all three fuel filters (6CB-24501-01, 63P-13915-00, 6D8-WS24A-00) in their respective positions on the engine.
8. Replace oil filter: Remove the old oil filter and install the new oil filter (5GH-13440-00). Hand-tighten and add 1/4 turn after gasket contact.
9. Install thermostat: Replace the thermostat (60V-12411-00) in the thermostat housing, ensuring proper orientation for correct operation.
10. Refill gear oil: Use the included gear oil pump (24OP149) to refill the lower unit with appropriate marine gear oil until it flows from the upper vent hole.
11. Install drain plugs: Install new drain gaskets (90430-08020) on all drain plugs and torque to specification. Secure with cotter pin (91490-40030) where applicable.
12. Final check: Reassemble the lower unit, run the engine briefly, and check for leaks or unusual operation. Verify proper water pump flow from the telltale outlet.

Troubleshooting & FAQ

Q: How do I confirm this service kit fits my specific Yamaha engine?
A: Verify your engine model and year against our compatibility table. This kit fits F115A (2000-2015), F115B (2014+), and F130A (2015+) models. Check your engine's identification plate or use the Yamaha serial number guide linked above to confirm your exact model.

Q: How often should I replace the components in this service kit?
A: Yamaha recommends replacing the water pump impeller and fuel filters annually or every 100 hours of operation, whichever comes first. The oil filter should be changed with every oil change (typically 100-hour intervals), and the thermostat should be inspected annually and replaced as needed.

Q: What are the signs that my water pump impeller needs replacement?
A: Common symptoms include reduced water flow from the telltale outlet, engine overheating, weak stream or steam from the telltale, or if the impeller hasn't been changed in over a year. Regular preventive replacement is recommended regardless of symptoms.

Q: Can I install just some components from this kit or must I use everything at once?
A: While you can install components individually as needed, this kit is designed for comprehensive service intervals. It's most cost-effective to perform all maintenance tasks during a single service appointment to ensure optimal engine performance and longevity.

Q: Do I need any special tools to install this service kit?
A: Basic marine mechanic tools are required including socket wrenches, screwdrivers, and a torque wrench. The included gear oil pump (24OP149) simplifies lower unit oil changes. If you're unfamiliar with outboard service procedures, professional installation is recommended.

Q: Is this an OEM part or aftermarket replacement?
A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?
A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?
A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
