This comprehensive maintenance kit is specifically designed for Yamaha 4-stroke outboard engines including the F6, F8C, F8F, F9.9F, and F9.9J models spanning from 2001 to 2024. It provides all essential components needed for routine maintenance and optimal engine performance.

This kit directly replaces Yamaha OEM part number 68T-W006A-00, ensuring proper fitment and reliable operation across multiple model years and engine configurations.

• Complete maintenance solution with 14 individual components including impeller, fuel filter, thermostat, and anode
• Covers water pump service, fuel system maintenance, and cooling system refresh
• Suitable for routine service intervals on small Yamaha 4-stroke outboards

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Yamaha owners, here's a guide to help you identify your engine's serial/model: Yamaha Serial Number Guide. You can also review exploded diagrams to verify part numbers: Yamaha Parts Diagrams & Catalog.

Technical Specifications

Package Contents

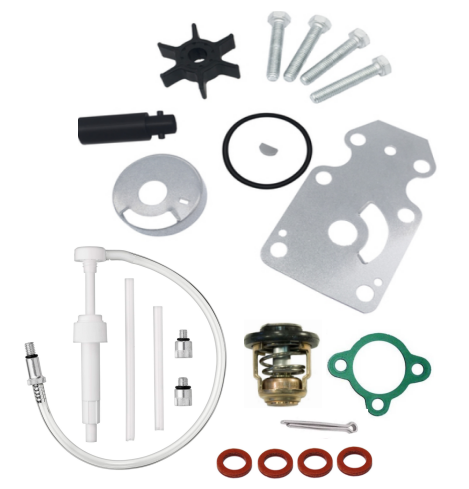

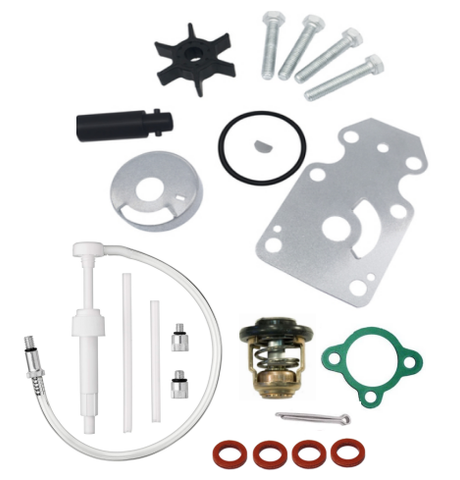

This complete maintenance kit includes the following 14 essential components:

• 63V-44322-00 - Cup, Insert × 1
• 664-44338-00 - Key × 1
• 68T-44323-00 - Plate, Wear × 1
• 68T-44352-00 - Impeller × 1
• 68T-44366-00 - Seal, Water Damper × 1
• 93210-44398 - O-ring × 1
• 97080-08045 - Bolt × 4
• 68T-24251-00 - Fuel Filter × 1
• 6G8-12411-01 - Thermostat × 1
• 6G8-12414-A0 - Thermostat Gasket × 1
• 90430-08020 - Drain Gasket × 4
• 91490-30025 - Cotter Pin × 1
• 68T-45251-00 - Anode × 1
• 24OP149 - Gear Oil Pump × 1

Installation Guide

1. Preparation: Disconnect the fuel line and remove the lower unit from the outboard engine following your service manual. Gather necessary tools including screwdrivers, socket set, and a torque wrench.
2. Water Pump Service: Remove the water pump housing and carefully extract the old impeller using pliers. Clean the housing thoroughly, removing any debris or old gasket material.
3. Install New Impeller: Lubricate the new impeller with water-resistant grease and install it with the key (664-44338-00) in the correct orientation. Ensure all blades face the proper rotation direction.
4. Replace Seals and Gaskets: Install the new wear plate (68T-44323-00), cup insert (63V-44322-00), water damper seal (68T-44366-00), and O-ring (93210-44398). Apply a thin layer of grease to all rubber components.
5. Reassemble Water Pump: Secure the water pump housing using the provided bolts (97080-08045) and tighten to the manufacturer's specified torque. Do not overtighten as this may damage the housing.
6. Replace Fuel Filter: Locate the fuel filter assembly and disconnect fuel lines carefully to avoid spillage. Install the new fuel filter (68T-24251-00) ensuring proper flow direction as indicated by arrows on the housing.
7. Thermostat Service: Remove the thermostat cover and extract the old thermostat. Clean the seating surface and install the new thermostat (6G8-12411-01) with the new gasket (6G8-12414-A0).
8. Replace Drain Gaskets: Install new drain gaskets (90430-08020) on all drain plugs before reinstalling them. This prevents oil leaks during operation.
9. Anode Replacement: Remove the old sacrificial anode and clean the mounting surface of corrosion. Install the new anode (68T-45251-00) and secure with the cotter pin (91490-30025).
10. Gear Oil Service: Use the included gear oil pump (24OP149) to drain old gear oil completely. Refill with fresh Yamaha-spec gear oil through the lower drain hole until it flows from the upper vent.
11. Reinstall Lower Unit: Align the lower unit with the driveshaft and water tube, then carefully slide it back into position. Secure all mounting bolts to the specified torque.
12. Final Check: Reconnect the fuel line, inspect all connections for leaks, and run the engine in a test tank or on-water to verify proper water flow from the telltale and smooth operation.

Troubleshooting & FAQ

Q: How do I confirm this kit fits my specific Yamaha engine?
A: Check your engine's model designation and year against our compatibility table. The kit fits F6 A/B (2001-08), F8C (2001-2024), F8F (2016-2024), F9.9F (2008-2012), and F9.9J (2013-2024) models. You can also cross-reference your existing part number 68T-W006A-00 or consult your engine's service manual.

Q: How often should I replace these maintenance components?
A: Yamaha recommends performing this maintenance annually or every 100 operating hours, whichever comes first. If you operate in sandy, silty, or heavy debris conditions, consider more frequent intervals to prevent pump damage and ensure reliable cooling.

Q: What are the signs that my water pump impeller needs replacement?
A: Common symptoms include weak or no water discharge from the telltale, engine overheating, steam from the engine, or loss of power. If you notice any of these signs, inspect and replace the impeller immediately to avoid severe engine damage.

Q: Can I install this kit myself or do I need a professional mechanic?
A: If you have moderate mechanical skills and the proper tools, this maintenance can be performed at home following the service manual. However, if you're unfamiliar with lower unit removal or water pump service, professional installation is recommended to ensure correct assembly and prevent costly mistakes.

Q: Is the fuel filter included compatible with both gasoline and ethanol blends?
A: Yes, the included fuel filter is designed to handle standard marine gasoline including ethanol blends up to E10 as specified by Yamaha. Always use fresh fuel and a fuel stabilizer if storing your engine for extended periods.

Q: What is the difference between OEM and aftermarket maintenance kits?
A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?
A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?
A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
