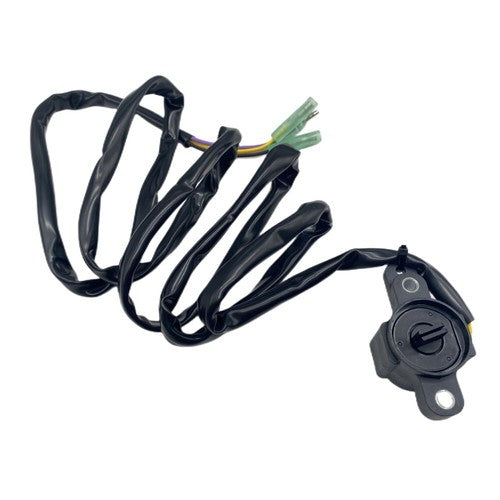

Power Trim Sensor – Fits Mercury Mariner Verado 135HP 150HP 175HP 225HP 250HP Outboards

This Power Trim Sensor is designed for Mercury Mariner Verado outboard engines ranging from 135HP to 250HP. Engineered to meet OEM specifications, it ensures accurate trim position feedback and reliable performance in demanding marine environments.

This sensor directly replaces Mercury Mariner part numbers 896688 and 896688001, providing a seamless fit for your engine's trim system.

• Direct replacement for OEM part numbers 896688 and 896688001
• Compatible with Mercury Verado and Mariner 135HP–250HP outboards
• Includes one complete Power Trim Sensor assembly

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Mercury owners, here's a guide to help you identify your engine's serial/model: Mercury Serial Number Guide. You can also review exploded diagrams to verify part numbers: Mercury Parts Diagrams & Catalog.

Technical Specifications

Package Contents

Your purchase includes:

• 1 × Power Trim Sensor

Installation Guide

1. Disconnect the battery: Remove the negative terminal to ensure electrical safety during installation.
2. Locate the existing trim sensor: It is typically mounted on the trim/tilt assembly near the hydraulic cylinders.
3. Disconnect the electrical connector: Carefully unplug the wiring harness from the old sensor.
4. Remove mounting hardware: Unscrew the bolts or fasteners securing the old sensor to the bracket.
5. Remove the old sensor: Carefully pull the sensor away from the mounting location.
6. Position the new sensor: Align the replacement sensor with the mounting holes on the trim assembly.
7. Secure with hardware: Install the mounting bolts and tighten to manufacturer specifications (do not overtighten).
8. Reconnect the wiring harness: Plug the electrical connector firmly into the new sensor until you hear a click.
9. Reconnect the battery: Attach the negative terminal and ensure the connection is secure.
10. Test trim operation: Use the trim switch to cycle the engine up and down, verifying smooth operation and correct gauge readings.
11. Check for error codes: If equipped with a diagnostic system, ensure no fault codes are present.
12. Perform a final inspection: Verify all connections are tight and the sensor is securely mounted before operating the engine.

Troubleshooting & FAQ

Q: How do I confirm this sensor fits my Mercury outboard?
A: Verify your engine model and horsepower against the compatibility table above. Cross-check your existing sensor's part number (896688 or 896688001) to ensure a direct match. If your model is listed but the sensor looks different, do not proceed.

Q: What are the signs that my power trim sensor has failed?
A: Common symptoms include erratic or non-functional trim gauge readings, failure of the trim system to respond to commands, or intermittent trim operation. Error codes related to trim position may also appear on diagnostic displays.

Q: How often should I replace the power trim sensor?
A: The sensor typically lasts many years under normal use. Replace it only when you experience trim system faults, gauge malfunctions, or after diagnosing a sensor-related issue. Regular inspection during seasonal maintenance is recommended.

Q: Can I install this sensor myself or do I need a professional?
A: Installation is straightforward for those with basic mechanical skills and tools. However, professional installation is recommended if you are unfamiliar with marine electrical systems to ensure safety and proper calibration.

Q: Is this an OEM part or an aftermarket replacement?
A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?
A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?
A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
