6G1-81970-61 Regulator Rectifier for Yamaha | JLM Marine

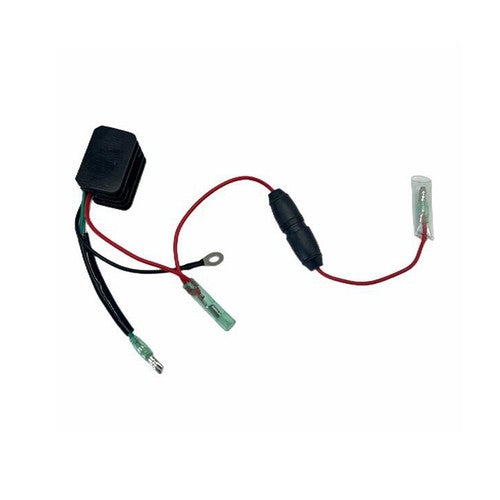

Regulator Rectifier for Yamaha Outboard Engines – 6G1-81970-61

This aftermarket regulator rectifier is designed as a direct replacement for Yamaha outboard engines ranging from 6HP to 70HP across multiple models including F9.9C, F15A, and E60H. Engineered to OEM specifications, this rectifier ensures reliable voltage regulation and charging system performance for your marine engine.

This unit directly replaces Yamaha OEM part numbers 6G1-81970-61, 6G1-81970-62, 6G1-81870-00, and 6G1-87970-60, providing broad compatibility across Yamaha's outboard lineup from 1984 to 2001.

• Constructed from high-quality ABS material for corrosion resistance and durability in marine environments
• Precision-manufactured to deliver high reliability and consistent performance
• Simple installation with no specialized tools required

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Yamaha owners, here's a guide to help you identify your engine's serial/model: Yamaha Serial Number Guide. You can also review exploded diagrams to verify part numbers: Yamaha Parts Diagrams & Catalog.

Technical Specifications

Package Contents

• 1 x Regulator Rectifier

Installation Guide

1. Disconnect the negative battery cable to ensure safety during installation.
2. Locate the existing regulator rectifier on your Yamaha outboard engine, typically mounted near the engine block or electrical components.
3. Carefully disconnect the wire harness connectors from the old rectifier. Note the wire positions or take a photo for reference.
4. Remove the mounting bolts securing the old rectifier to the engine using an appropriate socket or wrench.
5. Clean the mounting surface to ensure proper contact and heat dissipation for the new unit.
6. Position the new regulator rectifier in place and secure it with the mounting bolts, tightening to manufacturer specifications.
7. Reconnect the wire harness connectors to the new rectifier, ensuring each connector is firmly seated and matches your reference.
8. Apply dielectric grease to the connections to protect against moisture and corrosion in the marine environment.
9. Reconnect the negative battery cable.
10. Start the engine and verify proper charging system operation using a multimeter to check voltage output (typically 13.5-14.5V at idle).
11. Inspect all connections for security and ensure no wires are pinched or exposed.
12. Test the engine under normal operating conditions and monitor for any electrical issues.

Troubleshooting & FAQ

Q: How do I confirm this rectifier fits my Yamaha engine?
A: Verify that your engine model and year match the compatibility table above. Cross-reference your existing part number with the OEM numbers listed (6G1-81970-61, 6G1-81970-62, 6G1-81870-00, or 6G1-87970-60). You can also check your engine's parts diagram using the Yamaha catalog link provided.

Q: What are the signs that my regulator rectifier is failing?
A: Common symptoms include a dead or weak battery after running the engine, erratic voltage output, difficulty starting, flickering lights or gauges, or a burning smell from the electrical system. Use a multimeter to test voltage output; readings below 13V or above 15V at normal RPM indicate rectifier issues.

Q: How often should I replace the regulator rectifier?
A: Regulator rectifiers typically last several years but should be inspected annually as part of routine maintenance. Replace immediately if you experience charging system problems or notice physical damage such as corrosion, melted connectors, or burnt components.

Q: Will this aftermarket rectifier perform the same as the original Yamaha part?
A: Yes, this rectifier is manufactured to OEM specifications with comparable-grade materials. It provides equivalent voltage regulation and charging performance while offering a cost-effective alternative to the OEM component.

Q: Can I install this rectifier myself or do I need a professional?
A: Installation is straightforward and requires only basic hand tools and mechanical knowledge. However, if you're unfamiliar with marine electrical systems or uncomfortable working with charging components, professional installation is recommended to ensure proper function and safety.

Q: Is this an OEM part or aftermarket?
A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?
A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?
A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
