This U-Joint Spider is engineered for reliable performance across a wide range of Volvo Penta stern drive models, including DP-C, DP-D, DP-E, DP-G, SP, DPX, SX-M, and DPS-M series. It also fits select Mercruiser Alpha 1 Gen 2 and Bravo 1, 2, 3 stern drives, providing versatile cross-brand compatibility for your marine drivetrain needs.

This aftermarket replacement directly substitutes for Volvo Penta OEM 3860232 and 854619, as well as Mercruiser OEM 865493A01, 865496A01, 865496A02, 865510T, and 865511T. It also cross-references with Sierra 18-6406, ensuring broad fitment across multiple applications.

• Complete assembly includes U-Joint cross and bearing plus four retaining clips
• Compatible with both Mercruiser Alpha/Bravo and Volvo Penta DP/SP stern drive systems
• Direct bolt-on replacement for streamlined installation

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below.

Technical Specifications

Package Contents

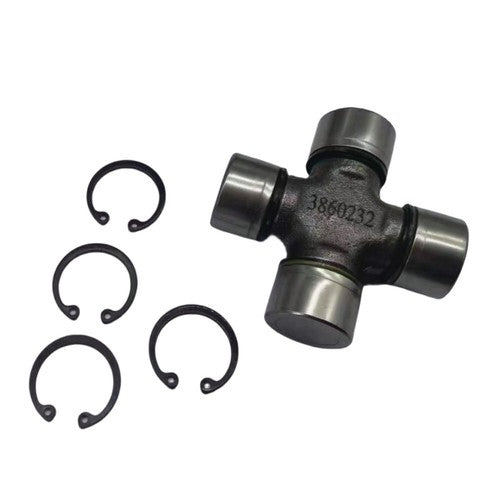

• 1 × U-Joint Cross and Bearing
• 4 × Clips

Installation Guide

1. Disconnect the battery and ensure the stern drive is securely supported on a stable work surface or hoist.
2. Remove the propeller, then unbolt and separate the lower unit from the upper gearcase following your service manual.
3. Locate the existing U-joint spider and carefully remove the four retaining clips using snap-ring pliers.
4. Extract the old bearing caps and spider assembly, noting the orientation for reassembly.
5. Clean the yoke bores thoroughly to remove any old grease, corrosion, or debris.
6. Insert one bearing cap into the first yoke bore, then position the new U-joint spider cross into the yoke.
7. Slide the opposite bearing cap into place, ensuring the spider trunnion seats fully into both caps.
8. Install the retaining clips into their grooves, verifying they are fully seated and secure.
9. Repeat the process for the second yoke pair, aligning the spider cross at the correct angle.
10. Check that the U-joint rotates smoothly without binding or excessive play.
11. Reassemble the lower unit to the upper gearcase, torque all fasteners to specification, and reinstall the propeller.
12. Reconnect the battery and perform a visual inspection before conducting a water test to confirm smooth operation.

Troubleshooting & FAQ

Q: How do I confirm this U-joint spider fits my stern drive?
A: Cross-reference your original OEM part number (Volvo Penta 3860232/854619 or Mercruiser 865493A01/865496A01/865510T/865511T) or verify your drive model in the compatibility table above. If your model is listed, this spider is a direct fit.

Q: What are the signs that my U-joint spider needs replacement?
A: Common symptoms include clunking or knocking noises during acceleration or deceleration, vibration in the drivetrain, difficulty shifting, or visible play/looseness in the gimbal area. Inspect the spider for worn bearings, rust, or damaged trunnions.

Q: How often should I replace the U-joint spider?
A: Inspect the U-joint spider annually or every 100 hours of operation, whichever comes first. Replace immediately if you detect excessive play, corrosion, or worn bearing caps, as failure can lead to drivetrain damage.

Q: Can I install this myself, or do I need a professional mechanic?
A: While experienced DIY mechanics with the proper tools can perform this installation, professional installation is recommended to ensure correct alignment, torque specifications, and safe reassembly of the stern drive.

Q: Does this kit include all necessary hardware for installation?
A: Yes, this package includes the U-joint cross and bearing assembly plus four retaining clips—everything you need for a complete replacement. Ensure you have snap-ring pliers and marine grease on hand.

Q: What is the difference between this aftermarket U-joint and the OEM version?
A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?
A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?
A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.

Why Choose JLM MARINE?

• Quality Assured: As a trusted manufacturer for over 20 years, we supply top marine brands globally.
• Fast Global Shipping: Free delivery worldwide in 5–15 days.
• Direct from Manufacturer: Competitive pricing without compromising quality.
