3855650 Trim And Tilt Switch for Volvo Penta DP-D1 DP-C DP-E DP-G DPX SP-C1 SP-E SX | JLM Marine
- $31.82
- $31.82
- Unit price
- per
Couldn't load pickup availability
Free Shipping
Free standard shipping on all orders under 1 KG
Worry-Free Returns

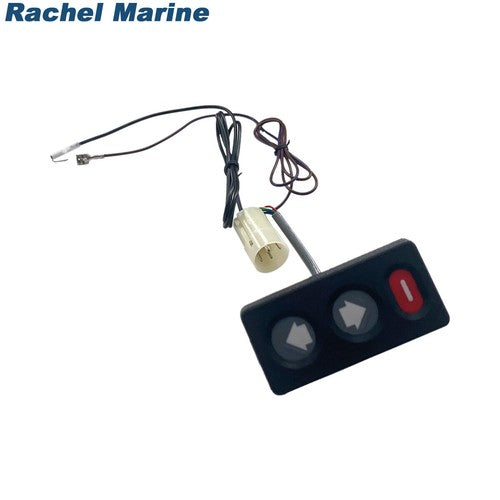

Trim And Tilt Switch for Volvo Penta DP-D1 DP-C DP-E DP-G DPX SP-C1 SP-E SX
This Control Panel Trim and Tilt Switch is designed as a direct replacement for Volvo Penta sterndrive systems. It is compatible with a wide range of DP, SP, and SX series models, providing reliable trim and tilt control for your boat.
Direct Replacements: Volvo Penta part numbers 3855560 and 3855650.
- Designed for Volvo Penta DP, SP, and SX sterndrive models
- Control panel mount installation
- Aftermarket replacement part built to OEM specifications
Part Number Cross-Reference
Use this table to confirm equivalent part numbers across OEM and aftermarket brands.
| Brand | Part Number |
|---|---|
| Volvo Penta | 3855560 |
| Volvo Penta | 3855650 |
Compatible Engine Models
Confirm your engine model/year in the table below.
| Brand | Model |
|---|---|
| Volvo Penta | DP-D1 |
| Volvo Penta | DP-C |
| Volvo Penta | DP-E |
| Volvo Penta | DP-G |
| Volvo Penta | DPX |
| Volvo Penta | SP-C1 |
| Volvo Penta | SP-E |
| Volvo Penta | SX |
Technical Specifications
| Specification | Value |
|---|---|
| OEM Number | 3855650 |
| Application | Control Panel Trim and Tilt Switch |
| Compatible Brands | Volvo Penta |
| Mounting Location | Control Panel |
Package Contents
- 1 × Trim and Tilt Switch for Volvo Penta
Installation Guide
- Disconnect the battery to ensure safety before beginning any electrical work on your boat.
- Locate the existing trim and tilt switch on your control panel. Take note of the wire connections before removal.
- Carefully disconnect the wiring harness from the old switch. Label wires if necessary for easier reconnection.
- Remove the mounting screws or fasteners securing the old switch to the control panel.
- Position the new trim and tilt switch in the same mounting location.
- Secure the new switch to the control panel using the appropriate mounting hardware.
- Reconnect the wiring harness to the new switch, ensuring all connections match the original configuration.
- Double-check all wire connections for security and proper orientation.
- Reconnect the battery and test the trim and tilt function in both UP and DOWN directions.
- Verify that the switch operates smoothly without binding or hesitation.
- If the switch does not function correctly, recheck all wiring connections and consult your engine's wiring diagram.
- Once confirmed operational, secure all wiring and complete the installation.
Troubleshooting & FAQ
Q: How do I confirm this switch fits my Volvo Penta sterndrive?
A: Check the compatible models table above to ensure your DP, SP, or SX model is listed. Additionally, compare the OEM part numbers (3855560 or 3855650) with your original switch to verify compatibility.
Q: What are the signs that my trim and tilt switch needs replacement?
A: Common symptoms include unresponsive trim/tilt buttons, intermittent operation, physical damage to the switch housing, or complete failure of trim and tilt functions. If you experience any of these issues, the switch likely needs replacement.
Q: How does this aftermarket switch compare to the OEM Volvo Penta part?
A: This aftermarket switch is built to OEM specifications using comparable-grade materials. It provides the same functionality and fitment as the original Volvo Penta part at a more competitive price point.
Q: Can I install this switch myself or do I need a professional?
A: Basic electrical knowledge and familiarity with marine wiring are recommended. If you are comfortable with electrical connections and have the proper tools, DIY installation is possible. However, professional installation is recommended for those unfamiliar with marine electrical systems.
Q: Is this an OEM or aftermarket part?
A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.
Q: How fast do you ship and how much does it cost?
A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.
Q: What is your warranty and return policy?
A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.
Important Notes
- Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
- This product is an aftermarket replacement part and is not an OEM component.
- Professional installation is recommended to ensure safety and optimal performance.
