Tilt Trim Relay for Johnson Evinrude – Fits 15-300 HP Outboards (2004-2011)

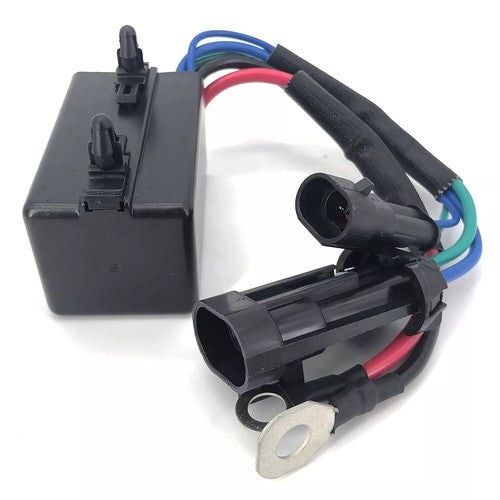

This aftermarket tilt trim relay is engineered to fit a wide range of Johnson and Evinrude outboard motors from 15 HP to 300 HP (2004-2011 model years). Designed as a direct replacement for OMC part number 0586767, this relay ensures reliable power and trim control for your marine engine.

The relay replaces multiple OEM and aftermarket part numbers including OMC 0586767/586767, ARCO MARINE R767, and ARROWHEAD TRM6001/240-22156. With a compact design and dual-plug configuration, it integrates seamlessly into your existing electrical system.

• 12-volt relay switch designed for tilt and trim control systems
• Features dual connector plugs with large and small gauge wires plus battery eyelets
• Compact dimensions: 69mm L × 41mm W × 38mm T

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Johnson/Evinrude owners, here's a guide to help you identify your engine's serial/model: Johnson/Evinrude Serial Number Guide.

Note: Please ensure this part fits your specific engine model before ordering.

Technical Specifications

Package Contents

Your order includes:

• 1 × Tilt Trim Relay (OMC 0586767 Replacement)

Installation Guide

1. Disconnect the battery: Turn off the engine and disconnect the negative (black) battery terminal to prevent electrical shock.
2. Locate the existing relay: Find the tilt trim relay on your Johnson/Evinrude outboard, typically mounted near the engine's electrical panel or trim motor assembly.
3. Remove the old relay: Disconnect both connector plugs and unscrew the battery eyelet connections (red positive and black ground).
4. Inspect wiring: Check all wire terminals and connectors for corrosion or damage; clean or replace if necessary.
5. Install the new relay: Connect Plug #1 (large green and blue wires) and Plug #2 (small green and blue wires) to their respective harness connectors.
6. Attach battery leads: Secure the red positive wire eyelet to the battery positive terminal and the black ground wire eyelet to the engine ground or negative terminal.
7. Verify connections: Ensure all plugs are firmly seated and eyelets are tightly fastened to prevent loose connections.
8. Reconnect the battery: Reattach the negative battery terminal.
9. Test tilt/trim function: Start the engine and operate the tilt/trim switch to confirm the motor raises and lowers smoothly.
10. Check for unusual sounds: Listen for clicking from the relay during operation; a consistent click indicates proper function.
11. Secure the relay: If your original relay was bracket-mounted, ensure the new relay is secured to prevent vibration damage.
12. Final inspection: Turn off the engine and visually confirm no loose wires or exposed connections remain.

Troubleshooting & FAQ

Q: How do I confirm this relay fits my Johnson/Evinrude engine?
A: Check the Compatible Engine Models table above for your engine's HP rating and model year. You can also verify your original relay matches the part number 0586767 or cross-reference numbers listed (ARCO R767, ARROWHEAD TRM6001). If your model year and HP match the table, this relay should fit.

Q: My tilt/trim motor runs but doesn't move—could this relay be the issue?
A: Possibly, but the relay typically controls power delivery, not mechanical function. If you hear a clicking sound when pressing the tilt/trim switch, the relay is likely working and the issue may be hydraulic (fluid, valves, or motor). If there's no click, the relay may be faulty.

Q: What are the signs that my tilt trim relay needs replacement?
A: Common symptoms include no response when pressing the tilt/trim switch, intermittent operation, a burnt smell near the relay, or visible corrosion/damage on the relay housing or connectors. If the relay doesn't click when activated, it has likely failed.

Q: How does this aftermarket relay compare to the original OMC part?
A: This relay is built to OEM specifications with comparable materials and designed as a direct replacement for OMC 0586767. It offers the same voltage rating (12V), connector configuration, and dimensions as the original, ensuring proper fit and function at a more competitive price point.

Q: Can I install this relay myself or do I need a mechanic?
A: If you're comfortable working with marine electrical systems and can safely disconnect your battery, installation is straightforward—simply unplug the old relay and plug in the new one, then reattach battery leads. However, if you're unsure about electrical work, we recommend professional installation to ensure safety.

Q: Is this an OEM part or an aftermarket replacement?
A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?
A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?
A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
