This comprehensive maintenance kit is engineered for Honda BF175A, BF200A, and BF225A outboard engines, delivering all essential service components in one package. Designed to meet OEM specifications, this kit simplifies routine maintenance and ensures your engine runs at peak performance.

Direct replacement for OEM part number 06211-ZY2-506, this kit provides everything needed for a complete service interval—from impeller and thermostat to filters, gaskets, and seals.

• Includes 14 different components covering cooling system, fuel system, lubrication, and sealing elements
• Complete service solution in one kit—saves time and ensures compatibility
• Fits Honda 4-stroke outboards rated 175–225 HP

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below.

Technical Specifications

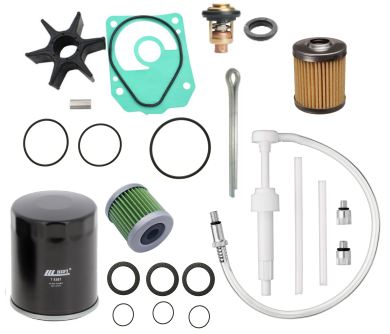

Package Contents

This maintenance kit includes the following components:

• 19234-ZY3-000 (Gasket) × 1
• 90752-ZY3-000 (Key) × 1
• 91356-ZY3-000/003 (O-ring) × 1
• 19210-ZY3-003 (Impeller) × 1
• 19300-ZY3-023 (Thermostat) × 1
• 15400-RBA-F01 (Oil Filter) × 1
• 16911-ZY3-010 (Fuel Filter) × 1
• 16901-ZY3-003 (Fuel Filter) × 1
• 12-191833 (Drain Gasket) × 3
• 16078-ZY3-000 (O-ring) × 1
• 91356-SD4-952 (O-ring) × 2
• 91301-ZW4-003 (O-ring) × 3
• 90758-ZW1-B00 (Cotter Pin) × 1
• 24OP149 (Gear Oil Pump) × 1

Installation Guide

Follow these steps for a complete maintenance service using this kit:

1. Disconnect the battery and allow the engine to cool completely before beginning any work.
2. Remove the lower unit by loosening the mounting bolts and carefully separating it from the midsection.
3. Drain the gear oil completely using the drain plug and inspect for metal particles or water contamination.
4. Remove the old water pump housing and carefully extract the old impeller, noting its direction of rotation.
5. Install the new impeller with blades oriented in the correct rotation direction, lubricating with soapy water or glycerin. Replace the impeller key (90752-ZY3-000) and gasket (19234-ZY3-000).
6. Install the new thermostat (19300-ZY3-023) in the cooling system housing, ensuring proper orientation and seating.
7. Replace all O-rings throughout the lower unit and midsection as specified in the kit contents, lubricating lightly with marine grease.
8. Install new drain gaskets (12-191833) on drain and fill plugs before reassembly.
9. Reattach the lower unit, torque all mounting bolts to manufacturer specifications, and install the cotter pin (90758-ZW1-B00) as required.
10. Refill the lower unit with fresh gear oil using the included gear oil pump (24OP149) until oil appears at the upper vent hole.
11. Replace the oil filter (15400-RBA-F01) and both fuel filters (16911-ZY3-010 and 16901-ZY3-003) in their respective locations.
12. Reconnect the battery, run the engine in a test tank or on-water, and verify proper cooling water discharge and smooth operation.

Troubleshooting & FAQ

How do I confirm this kit fits my Honda outboard?
Verify your engine model number matches BF175A, BF200A, or BF225A, and confirm the OEM part number 06211-ZY2-506 is listed in your service manual. Always compare images and specifications to your original parts before ordering.

How often should I replace the components in this maintenance kit?
Honda recommends replacing the impeller and thermostat every 2–3 years or 200–300 hours of operation, whichever comes first. Oil and fuel filters should be changed annually or every 100 hours. Always follow your engine's specific service schedule.

What are the signs that my impeller needs replacement?
Weakened or no water stream from the tell-tale, engine overheating, or visible cracks and missing blades on the impeller indicate immediate replacement is needed. Even without visible damage, impellers degrade over time and should be changed preventively.

Can I install this kit myself or do I need a professional?
Experienced DIY mechanics with proper tools and a service manual can complete this maintenance. However, lower unit disassembly requires careful attention to torque specifications and seal alignment. If you're unsure, professional installation is recommended.

What's the difference between this aftermarket kit and the Honda OEM kit?
This aftermarket kit is manufactured to OEM specifications using comparable-grade materials and includes all the same components as the Honda factory kit. Production is done in an ISO9002-certified facility with batch inspection, offering reliable performance at a more competitive price point.

Is this an OEM or aftermarket part?
This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

How fast do you ship and how much does it cost?
We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

What is your warranty and return policy?
This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
