This comprehensive maintenance kit is engineered for Honda BF75A and BF90A outboard engines, delivering all essential components for routine service in one convenient package. Designed to meet OEM specifications, this kit ensures your engine runs smoothly and reliably season after season.

This kit directly replaces Honda OEM part number 06211-ZW0-505, providing a complete solution for scheduled maintenance without the need to source individual components.

• Includes 11 different components covering impeller, filters, gaskets, seals, and a gear oil pump
• Fits Honda BF75A and BF90A models
• Complete service solution in one kit for hassle-free maintenance

Part Number Cross-Reference

Use this table to confirm the OEM part number for this maintenance kit.

Compatible Engine Models

Confirm your engine model/year in the table below.

Technical Specifications

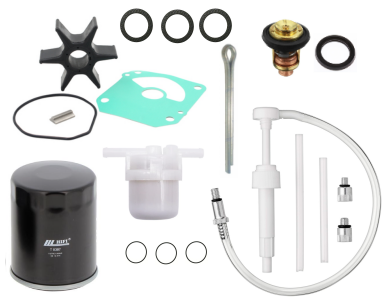

Package Contents

This comprehensive maintenance kit includes the following components:

• 19234-ZW1-B00 (Gasket) × 1
• 90752-ZW1-B02 (Key) × 1
• 91356-ZW1-B00 (O-ring) × 1
• 19210-ZW1-B02/B03/B04 (Impeller) × 1
• 19300-ZV5-043 (Thermostat) × 1
• 15400-RBA-F01 (Oil Filter) × 1
• 16900-SA5-004 (Fuel Filter) × 1
• 12-191833 (Drain Gasket) × 3
• 91301-ZW4-003 (O-ring) × 3
• 90758-ZW1-B00 (Cotter Pin) × 1
• 24OP149 (Gear Oil Pump) × 1

Installation Guide

1. Prepare the engine: Ensure the engine is off, cool, and positioned in a well-ventilated workspace. Gather all necessary tools including wrenches, screwdrivers, and a drain pan.
2. Drain the lower unit gear oil: Remove the drain plug and allow the old gear oil to drain completely into a suitable container. Inspect the drained oil for metal particles or unusual color.
3. Replace the oil filter: Remove the old oil filter using an oil filter wrench. Install the new filter, hand-tightening first, then giving it an additional 3/4 turn.
4. Replace the fuel filter: Disconnect fuel lines and remove the old fuel filter. Install the new filter, ensuring correct flow direction as indicated by the arrow.
5. Access the water pump housing: Remove the lower unit and propeller to access the water pump assembly. Take note of the orientation of components as you disassemble.
6. Replace the impeller: Remove the old impeller and clean the housing thoroughly. Lubricate the new impeller with glycerin or soapy water and install it with blades following the correct rotation direction.
7. Install new gaskets and O-rings: Replace all gaskets and O-rings as you reassemble components. Ensure all mating surfaces are clean and free of old gasket material.
8. Replace the thermostat: Remove the thermostat cover and install the new thermostat with a fresh gasket. Torque the cover bolts to manufacturer specifications.
9. Install the key and cotter pin: Install the key in the drive shaft keyway and secure with the new cotter pin. Bend the cotter pin ends to prevent it from backing out.
10. Refill gear oil using the pump: Using the included gear oil pump, inject new lower unit gear oil through the lower fill hole until it flows from the upper vent. Install drain gaskets and secure both plugs.
11. Reassemble the lower unit: Reinstall the lower unit to the engine, ensuring proper alignment and secure all mounting bolts. Reconnect all hoses and cables.
12. Test the engine: Start the engine and check for leaks around all replaced components. Run the engine in a test tank or on the water, verifying proper cooling and smooth operation.

Troubleshooting & FAQ

Q: How do I confirm this maintenance kit fits my Honda engine?
A: This kit is designed specifically for Honda BF75A and BF90A models. Verify your engine model by checking the tag on the engine mounting bracket or tilt tube, and confirm that the OEM part number 06211-ZW0-505 matches your service manual recommendation.

Q: How often should I replace the components in this maintenance kit?
A: Honda typically recommends annual maintenance or every 100 hours of operation, whichever comes first. The impeller should be inspected annually and replaced if worn, while oil and fuel filters should be changed according to your service schedule or sooner if operating in harsh conditions.

Q: Can I install individual components separately, or must I use the entire kit at once?
A: While you can install components as needed, performing a complete maintenance service using all kit components at once ensures optimal engine performance and longevity. This approach is more cost-effective and prevents overlooking critical service items.

Q: What are the signs that my impeller or thermostat needs replacement?
A: Common signs include reduced or no water flow from the cooling indicator, engine overheating, weak stream from the tell-tale, or visible cracks and missing blades on the impeller. If you notice any of these symptoms, inspect and replace the impeller and thermostat immediately.

Q: What is the difference between OEM and aftermarket maintenance kits?
A: This is an aftermarket replacement part designed to meet OEM specifications. We manufacture using comparable-grade materials in an ISO9002-certified facility, with each batch inspected for consistent performance.

Q: How fast do you ship and how much does it cost?
A: We offer fast global shipping, typically 5–15 days worldwide, and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?
A: This product includes a 1-year warranty against manufacturing defects under normal use. Returns are accepted within our standard return window for unused items in original condition. Please contact our support team for assistance.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist, even if your model is listed, do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
